Home Raypak Digital Low NOX ASME Certified Natural Gas Commercial Pool Heater 333k BTU | C-R337A-EN-C 009294

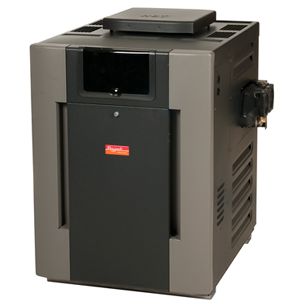

Raypak Digital Low NOX ASME Certified Natural Gas Commercial Pool Heater 333k BTU | C-R337A-EN-C 009294

Name: Raypak Digital Low NOX ASME Certified Natural Gas Commercial Pool Heater 333k BTU | C-R337A-EN-C 009294
Brand: RAYPAK
SKU: 35554
Price: 3780.27 USD
Availability: InStock

$3,780.27

Parts Available

Free Shipping

PURCHASE OPTIONS:

Overview

A metal header design allows for the higher working pressures required by ASME.
This tubing is over 50% thicker in wall thickness than standard tubing.
The Unitherm Governor automatically regulates the water flow to help keep the water temperature in the heat exchanger above 105 Degrees F.

Low NOx ASME Pool/Spa Heaters, 207A-407A

Raypak offers a complete line of gas heaters to fit almost every application. Inside and out, the Raypak Digital is the result of over 50 years experience in the design, engineering and manufacturing of all types of residential and commercial pool, and water heaters. These units meet the ASME pressure vessel requirements demanded by code for commercial installations over 200,000 BTUH and are certified to the ANSI Z21.56 pool heater standard. So dive in and take a look at the Raypak heater that can meet your exact needs. Just click on the links below for more information.

BASIC DATA

Model Number	Full Input BTUH	Indoor Stack Dia.
C-R207A	199,500	6"
C-R267A	266,000	7"
C-R337A	332,500	8"
C-R407A	399,000	9"

Features:

Raypak's Low Emissions units use combustion control to minimize levels of nitrogen oxides (NOx). These units meet emissions standards in all Low NOx areas, from Los Angeles (SCAQMD rule 1146.2 certified) to the San Joaquin Valley (SJAPCD rule 4308) and any other areas applying the stringent SCAQMD standard -- the "gold standard" of emissions regulations -- to pool heaters.

Available for natural gas only.

PolyTuf Textured Powder Coating
The Raypak gas heater has a polyester-coated,non-corrosive cabinet that is more durable than solventborne-and waterborne-coated metal cabinets. Every piece of sheet metal goes through a 7-stage wash system. making certain the power paint has a perfect bond. Underneath the tough, yet beautiful finish you will galvanized metal that offers superior rust prevention and years of durable service.

Wind-Resistant Design
No need for fans to combat drafting problems under normal conditions. This heater is designed to draft naturally in outdoor installations with its exclusive low-profile design. It is so thoughtfully and carefully designed it actually protects itself from the things that tend to stifle ordinary pool and spa heaters. It delivers uninterrupted heating performance regardless of falling leaves, wind, airborne debris, rain, downdrafts, updrafts, sleet, snow, etc.

Digital Controls
The digital controls provide simple setup, simple programming, and easy-to-understand diagnostics. The unit only generates a pilot when needed.

Cast-Iron Headers
Rugged cast-iron headers with porcelainized waterways provide the strength that tough ASME requirements demand.

All-Copper-Fin-Tube Heat Exchanger
The fin tubes of the heat exchanger are each made from a single piece of extruded copper. This integral-fin design allows maximum heat transfer to be attained and maintained. Cupro-nickel is also available as an optional upgrade.

Stainless Steel Tube Sheet
Stainless steel tube sheets allow for a completely nonferrous waterway, leaving your pool truly rust-free.

CPVC 2" Water Connections
Standard with every Raypak is a set of 2" slip-fit CPVC water connections to make your installation secure and effortless.

Condensation Protection
The Unitherm Governor inside the header helps reduce condensation from low inlet water temperatures. It automatically regulates the water flow to help keep the water temperature in the heat exchanger above 105°F. Both water temperature and water flow rate are controlled to eliminate condensation, sooting, and scale build-up that can shorten heater life.

High Flow Rates
The Raypak gas heater comes with an automatic bypass built into the header. You'll find that the heater is capable of handling water flow at a rate up to 125 GPM.

Burner Tray
Every burner tray is built to last, from the stainless steel burners to the aluminized metal used in the heat sensitive areas. Innovative design allows for the easy removal of the tray and burners for servicing.

Fire Tile
A ceramic fiber combustion box keeps your heater running efficiently while keeping the outside jacket cool. By using this space-age material the heater won't retain residual heat after it is turned off, allowing it to be installed without the use of costly metal heat sinks.

Fuel-Efficient
Energy-smart Raypak heaters consistently achieve the highest efficiency ratings. They exceed all federal and state standards.

Brand: RAYPAK

Warranty

REQUIRED FOR WARRANTY

SCOPE OF WARRANTY

Raypak, Inc. (Raypak) warrants to the original owner when installed in the contiguous 48 states of the United States of America with a pool or spa by a properly licensed installer will be free from defects in materials and workmanship under normal use and service for the Applicable Warranty Period. Under this Limited Warranty, Raypak will, at its option, repair or furnish a replacement for any defective part of the HEATER. The repair or replacement will be warranted for only the unexpired portion of the original Applicable Warranty Period or the Extended Warranty Period, as the case may be.

EFFECTIVE DATE

The Effective Date of Warranty coverage is the date of original installation if properly documented; otherwise it is the date of manufacture plus 30 days. All Applicable Warranty Periods specified in this Limited Warranty are measured from the Effective Date.

APPLICABLE WARRANTY PERIOD – UNREGISTERED

If the HEATER is installed with a pool or spa, the Applicable Warranty Period is ninety (90) days from the Effective Date, parts and labor, for the HEATER and component parts.

EXTENDED WARRANTY PERIOD – SERVICE PROFESSIONAL

If, within 90 days of the Effective Date, (i) the HEATER is installed in a pool or spa at a single family residential dwelling by a properly licensed installer (in accordance with applicable state and local laws and regulations), and (ii) registered with Raypak (www.raypak.com) with an installation receipt attached to such registration, then the Applicable Warranty Period is two (2) years from the Effective Date for the HEATER and component parts. If the Heater is installed anywhere other than a single family residential dwelling, the Applicable Warranty Period for the Heater and component parts is limited to only one (1) year, parts and labor.

EXTENDED WARRANTY PERIOD – BUILDER, NEW CONSTRUCTION

If, within 90 days of the Effective Date, (i) the HEATER is installed) in a pool or spa at a single family residential dwelling by a properly licensed installer (in accordance with applicable state and local laws and regulations), (ii) registered with Raypak (www.raypak.com) with an installation receipt attached to such registration, then the Applicable Warranty Period is three (3) years from the Effective Date for the HEATER and component parts. If the Heater is installed anywhere other than a single family residential dwelling, the Applicable Warranty Period for the Heater and its parts is limited to only one (1) year, parts and labor.

LABOR AND SHIPPING COSTS

This Limited Warranty covers the reasonable cost of labor for repairs or replacements covered by this Limited Warranty, provided that said repairs or replacements are performed by a Raypak designated service provider during the Applicable Warranty Period and Raypak has preauthorized said repair or replacement. This Limited Warranty does not cover any travel time or other labor costs. Furthermore, unless applicable state law provides otherwise, this Limited Warranty does not cover any shipping costs to and from the service provider or to or from the installation site. All of the foregoing costs and expenses are your responsibility.

WARRANTY EXCLUSIONS

This Limited Warranty does NOT apply:

if the product has been moved from its original place of installation, or if the original owner no longer owns the property where the original installation was made;
if the product is not properly installed with a pool or spa by a qualified licensed installer in accordance with applicable local codes and ordinances, good trade practices, and the manufacturer’s installation instructions;
if the rating plate(s) or serial number(s) are altered or removed;
if the product is modified in any way, or non-factory authorized accessories or other components are used in conjunction with the product;
to damage, malfunctions or failures resulting from failure to properly install, operate or maintain the product in accordance with the manufacturer’s instructions;
to damage, malfunctions or failures from abuse, act of nature, accident, fire, flood, freeze, lightning or the like;
to damage, malfunctions or failures resulting from [or due to] connected system control devices;
to performance problems caused by improper sizing of the heater or electric service voltage, wiring or fusing;
to use of any attachment, including any energy saving device not authorized by the manufacturer.
to damage, malfunctions or failures from misuse or neglect, including but not limited to, freeze-ups, operating the heater with the cabinet door off, having flow restrictions or obstructions between the heater outlet and the pool/spa, or not maintaining a proper chemical balance (PH level must be between 7.4 and 7.8 and total alkalinity between 100 and 150 PPM. Total dissolved solids (TDS) must be no greater than 3000 PPM). In salt water chlorinated pools, TDS must be no greater than 6000 PPM).
to Raypak supplied anodes, which are not covered under warranty. The anode is a sacrificial protection device and will wear out and need to be replaced. Damage caused to the heater due to a depleted anode that has not been replaced may affect the warranty of the heat exchanger.

This information was updated on 8/30/19. For the most current information and full warranty policy please visit www.raypak.com.
