AquaStar 12" Square Wave Suction Outlet Cover with Vented Riser Ring with Mud Frame (VGB Series) White | WAV12WR101
Regular price
$166.47
Call for Help & Best Pricing!
Speak directly with a pool guru that's ready to help!
888-751-8084 Live Chat
Product Description

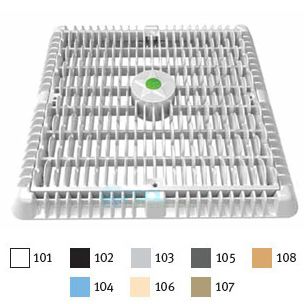

⌄12" Square Wave Suction Outlet Cover with Vented Riser Ring with Mud Frame
FEATURES
For single or multiple drain use 3" minimum sump depth (see installation instructions)
Single –
For single or multiple drain use 3" minimum sump depth (see installation instructions)
Single –
- Floor/wall: 361 GPM at 1.3 fps
- Floor/wall: 424.5 GPM at 1.5 fps
- Floor/wall: 283 GPM at 1.0 fps
- When 1.0 or 1.5 fps installations are not required, always use the lower
- tested flow rate
- 90.8 square inch opening Easily and safely retrofits most brands’ existing 12" square ¾" deep frames*
- Trademarked VGB compliance button easily identifies VGB 2008 compliant cover from on deck and underwater
- Manufactured from superior UV-resistant engineered polymers
- All components (cover, sump, screws) meet or exceed ANSI/APSP 16-2011 andNSF/ANSI 50-2009a national standards and ASTM G154 UV testing exposure
- Replace every five years from the date of installation
- 8 per case
- Fits: AquaStar (p/n 12xxx, pre-VGB €œflat€?); Pentair (#1 selling)with ¾" deep existing frames and four screw hole pattern
- 12" Square Vented Riser Ring also sold separatelypart # 12RRxxx
- The xxx in all AquaStar part numbers is the color number
