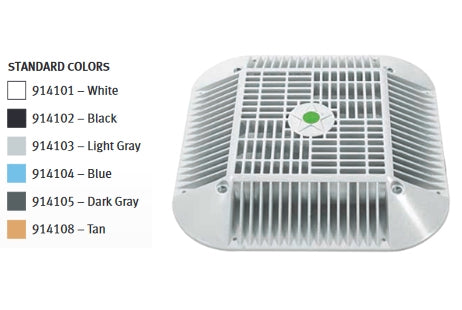

AquaStar 14" Square Anti-Entrapment Suction Outlet Cover, Mud Frame and Retro-Adapter Sub-Frame for 9" Square .75" Deep Retrofits (VGB Series) White | 914101
Regular price
$172.65
Call for Help & Best Pricing!
Speak directly with a pool guru that's ready to help!
888-751-8084 Live Chat
Product Description
⌄14" Square Anti-Entrapment Suction Outlet Cover
Features
- For single or multiple drain use 3" minimum sump depth (see installation instructions)
- Single – Floor: 560 GPM at 2.1 fps Wall: 300 GPM at 1.2 fps Floor/wall: 394 GPM at 1.5 fps Floor/wall: 261.8 GPM at 1.0 fps
- 84 square inch opening

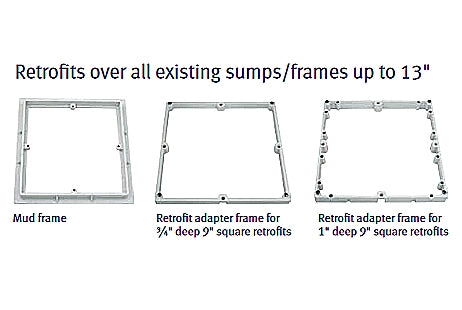

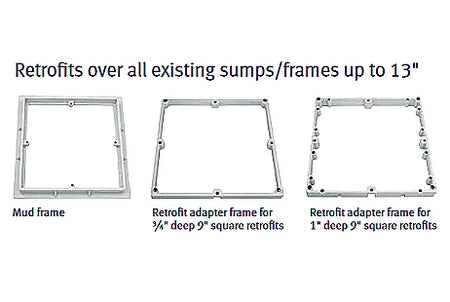

- Retrofit adapter frame easily and safely retrofits most brands’ existing 9" mud frame with epoxy or screws or both; cover anchors into in-molded brass inserts in frame with four fine thread machine screws

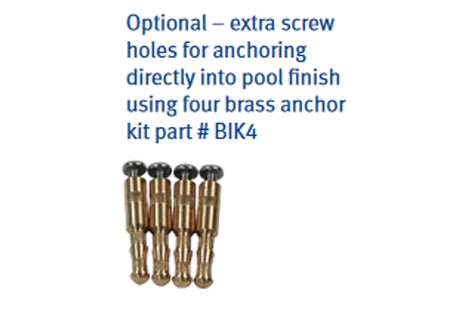

- Ideal for retrofitting over all existing sumps/frames up to 13" by anchoring directly into pool finish (plaster, tile, fiberglass, etc.) using four brass anchors and stainless screws in kit #BIK4
- Trademarked VGB compliance button easily identifies VGB 2008 compliant cover
- from on deck and underwater
- #316 stainless steel screws
- Manufactured from superior UV-resistant engineered polymers
- All components (cover, sump, screws) meet or exceed ANSI/APSP 16-2011 and
- NSF/ANSI 50-2009a national standards and ASTM G154 UV testing exposure
- Replace every five years from the date of installation
- 6 per case
- Fits: AquaStar (p/n 9xxx, pre-VGB flat); Pentair (#1 selling) with ¾"deep existing frames and four screw hole pattern
- Use part # R914xxx for 1" deep frames (Hayward, Waterway, American Pre-fab, CMP)
- The xxx in all AquaStar part numbers is the color number
