AquaStar 32" Channel Drain Flat Grate Anti-Entrapment Suction Outlet Covers and Frames | Dark Gray | 32CDFLFR105
Regular price
$152.53
Call for Help & Best Pricing!
Speak directly with a pool guru that's ready to help!
888-751-8084 Live Chat
Product Description

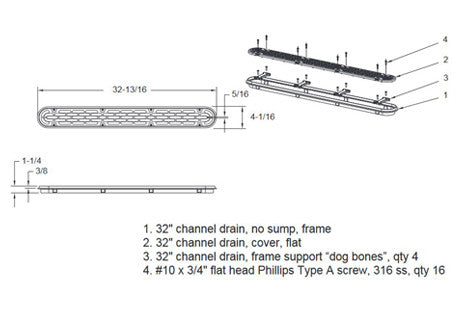

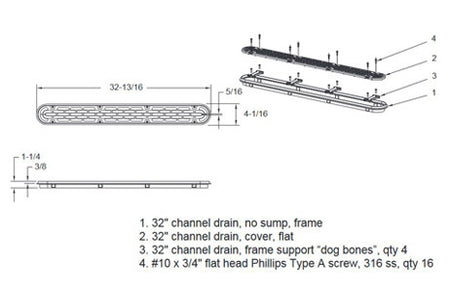

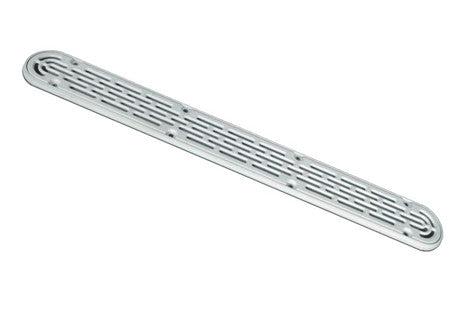

⌄32" Channel Drain Flat Grate Anti-Entrapment Suction Outlet Covers and Frames
Features
- Requires a minimum 3" sump depth the entire length of cover
- For single or multiple drain use (see installation instructions for plumbing, hydrostatic valve/drain pipe and single or multi-pump connections)
- Single - 3" sump depth
- Floor: 316 GPM at 3.9 fps
- Wall: 208 GPM at 2.6 fps
- Floor/wall: 122 GPM at 1.5 fps
- Floor/wall: 80.7 GPM at 1.0 fps
- 25.9 square inch opening
- Manufactured from superior UV-resistant engineered polymers
- All components meet or exceed ANSI/APSP 16-2011 and NSF/ANSI 50-2009a
- national standards and ASTM G154 UV testing exposure
- Includes disposable "dog bone" supports to retain shape during all phases of construction
- Replace every five years from the date of installation
- For single or multiple drain use
- Two Drains in One!
- Manufactured from superior UV-resistant engineered polymers
