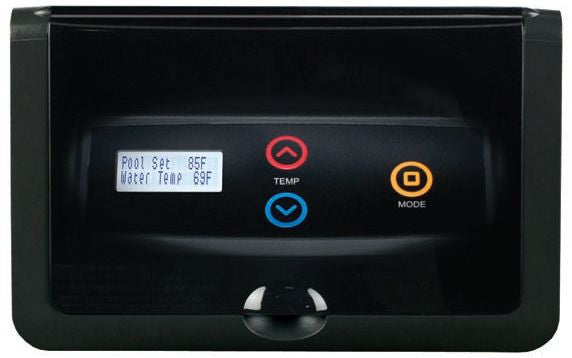

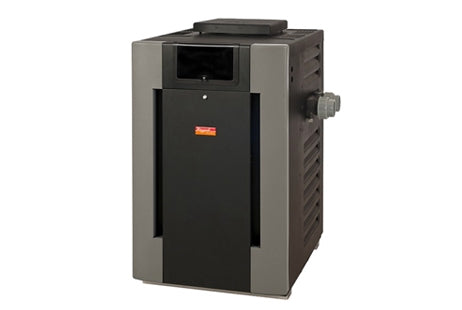

Raypak Digital Natural Gas Pool Heater 266K BTU | Electronic Ignition | High Altitude 2000-6000 Ft #51 | P-R266A-EN-C 009221 P-M266A-EN-C 009967



Features

• PolyTuf Textured Powder Coating

The Raypak gas heater has a polyester-coated, non-corrosive cabinet that is more durable than solventborne- and waterborne-coated metal cabinets. Every piece of sheet metal goes through a 7-stage wash system, making certain the powder paint has a perfect bond. Underneath the tough, yet beautiful finish you will find galvanized metal that offers superior rust prevention and years of durable service

• Wind-Resistant Design

No need for fans to combat drafting problems. This heater is designed to draft naturally in outdoor installations with its exclusive low-profile design. It is so thoughtfully and carefully designed it actually protects itself from the things that
tend to stifle ordinary pool and spa heaters. It delivers uninterrupted heating performance regardless of falling leaves, wind, airborne debris, rain, downdrafts, updrafts, sleet, snow, etc.

• Polymer Headers

Polymer headers prevent rust stains from harming your pool’s surface, giving you years of trouble-free swimming pleasure
All-Copper-Fin-Tube Heat Exchanger
The fin tubes of the heat exchanger are each made from a single piece of extruded copper. This integral-fin design allows maximum heat transfer to be attained and maintained. Cupro-nickel is also available as an optional upgrade

• Stainless Steel Tube Sheet

Stainless steel tube sheets are used on all Raypak heaters with the polymer headers. This allows for a completely nonferrous waterway, leaving your pool truly rust-free

• CPVC 2" Water Connections

Standard with every Raypak is a set of 2" slip-fit CPVC water connections to make your installation secure and effortless

• Condensation Protection

The Unitherm Governor helps reduce condensation from low inlet water temperatures. It automatically regulates the water flow to help keep the water temperature in the heat exchanger above 105°F. Both water temperature and
water flow rate are controlled to eliminate condensation, sooting, and scale build-up that can shorten heater life

• High Flow Rates

The Raypak gas heater comes with an automatic bypass built into the header. You'll find that the heater is capable of handling water flow at a rate up to 125 gpm.

• Burner Tray

Every burner tray is built to last, from the stainless steel burners to the aluminized metal used in the heat sensitive areas. Innovative design allows for the easy removal of the tray and burners for servicing

• Fire Tile

A ceramic fiber combustion box keeps your heater running efficiently while keeping the outside jacket cool. By using this space-age material the heater won't retain residual heat after it is turned off, allowing it to be installed without
the use of costly metal heat sinks

• Fuel-Efficient

Energy-smart Raypak heaters consistently achieve the highest efficiency ratings. They exceed all federal and state standards.
