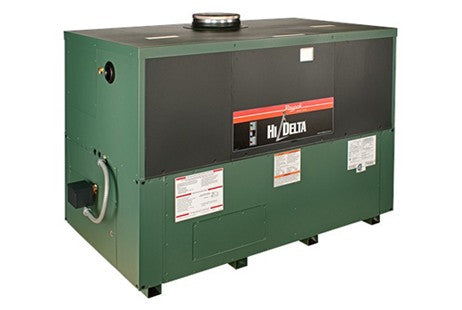

Raypak HI Delta P2342C Commercial Pool Heater with H-Style Bypass and Versa IC Controller | Natural Gas 2,340,000 BTUH | 016071
Regular price
$40870.92
Call for Help & Best Pricing!
Speak directly with a pool guru that's ready to help!
888-751-8084 Live Chat
Product Description
⌄The Hi Delta® line of fan-assisted combustion units offers solid performance with low emissions, flexible control, and easy-to-understand diagnostics.
Features:
- 83.1% efficiency
- Elevation: 0-5000 Feet
- Multiple vertical venting and sidewall venting options. No extractor required for sidewall applications up to 70ft on room air
- All models indoor/outdoor certified
- Patented burner "security blanket" enhances staged combustion, minimizes installation/start-up issues, and protects burners from metal fatigue
- 105ºF minimum inlet water temperature
- Cupro-nickel finned-tube heat exchanger with brass headers. AB 1953 compliant
- VERSA IC® control package with LCD display
- Status display lights
- Cascade control of up to 4 units, no external sequencer required
- Diagnostics center with history in English , not in codes
- Modbus RTU BMS port (RS485)
- 0-10 VDC BMS Interface (set point or direct drive)
- Ducted combustion air capable. TruSeal® CSA-Certified direct-vent available
- Models 992C-2002C certified to SCAQMD Rule 1146.2. Meets all Low NOx regulations
- All models except 2002C available for natural gas and propane. Model 2002C available for natural gas only
- Certified to the ANSI Z21.56 pool heater standard
Bypass Options:
- The standard external bypass uses an external bypass to achieve cold-water protection
- All units available without an external bypass; cold-water protection provided in the field
- The Cold Water Run (CWR) option provides electronic control of a variable-speed pump to continuously adjust bypass flow, achieving real-time cold-water protection
