Armada Technologies PRO48, Multi-Function Irrigation Tester with DC Latching Solenoid Capability

Armada Technologies PRO48 Multi-Function Irrigation Tester with DC Latching Solenoid Capability

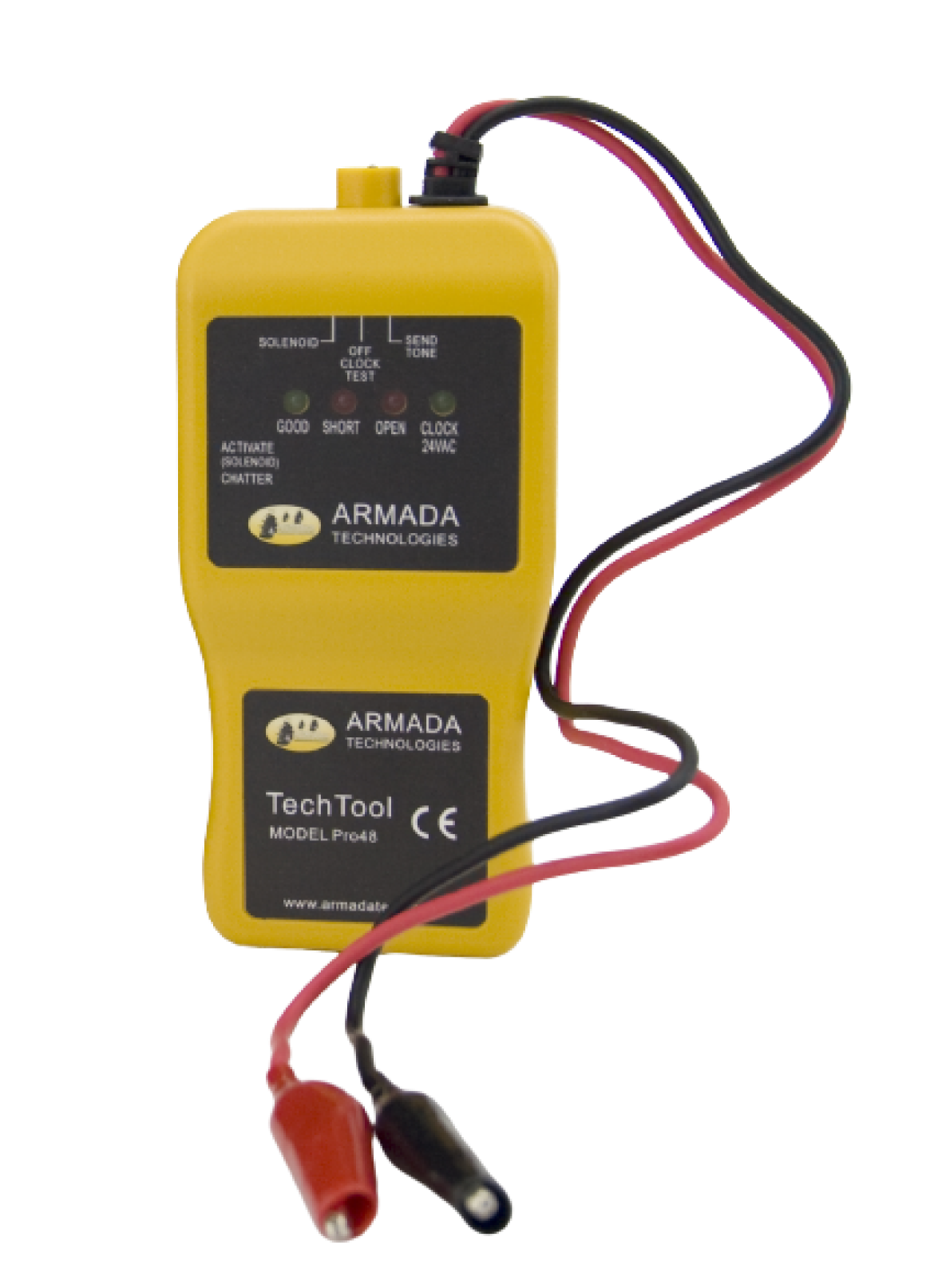

Armada Pro48 Solenoid Activator and Chatterer The Armada Pro48 is a handheld irrigation tester. It activates and holds solenoids open, chatters them for location, and traces field wiring with a tone. LED indicators call out the fault. Activates and holds solenoids open, including DC-latching solenoids and standard 24 VAC Chatters solenoids so you can hear the valve you are on Generates a 1 kHz tracing tone to follow wire runs Checks controller 24V power output at the clock Tests for open and shorted wiring LED status: Good, Short, Open, Volts Powered by two 9V alkaline batteries (not included) How to use it in the field Clip the Pro48 to a valve wire and the common. Activate to confirm the solenoid pulls in, or chatter it to find the buried valve by ear. Switch to tone mode to trace a run back to a break. The LEDs flag opens, shorts, and whether 24V is present, so you diagnose without carrying a separate meter. Pro48 vs Pro50 The Pro48 is LED-indicator only. If you want an actual voltage and resistance reading on the same tool, step up to the Armada Pro50 , which adds a built-in digital multimeter. Both activate AC and DC solenoids and trace wire with a tone.
