How do I know a rail will fit my anchors?
Measure the tube, not the rail. Almost every pool rail, anchor, escutcheon and grip in this catalogue is built around a tube of 1.90 in. outside diameter, and the accessories say so outright: their specifications list what they fit and it is that figure over and over. So an existing anchor set in your deck will take a new rail of the same tube size whatever brand it is. The rails that are not 1.90 are the exception, and they are the ones to check twice, because their accessories are a smaller world.
What does the bend count mean?

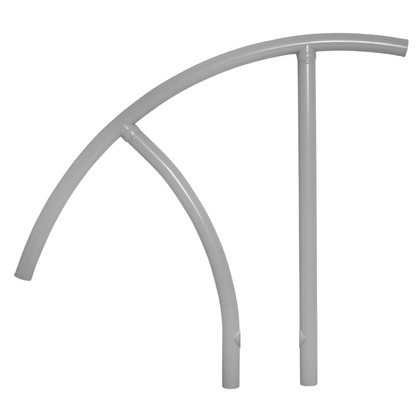

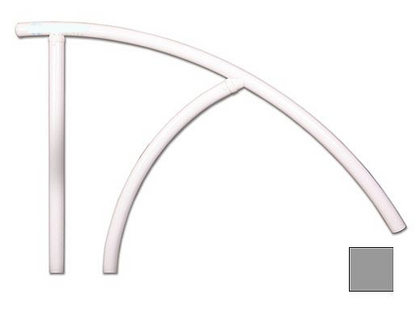

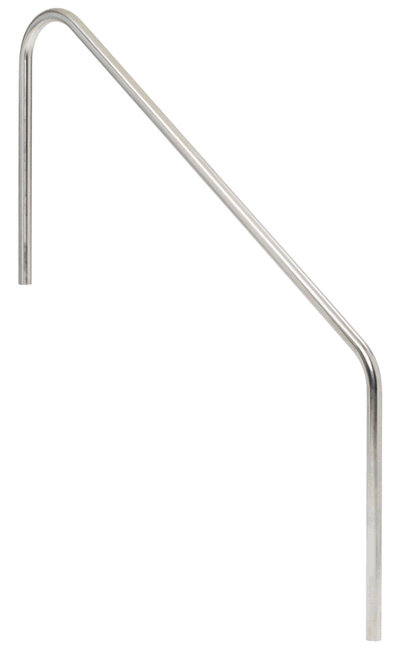

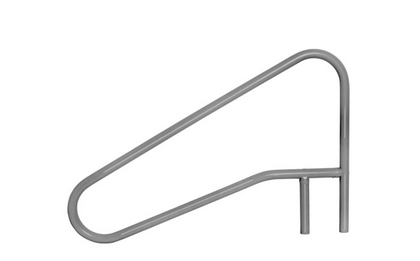

Where the two ends land. A two bend rail goes from the deck down and back, which suits a simple step. A three bend adds a leg so the rail can reach further out or sit around a wider entry. A four bend, usually sold as a figure 4 or an arch, comes off the deck, over and back down to the deck again, which is the shape you want beside a set of stairs you walk down rather than climb. The curves themselves are a 6 in. radius on almost everything here, so it is the count and the reach that change, not the shape of the bend.
Does it go in the deck or on it?

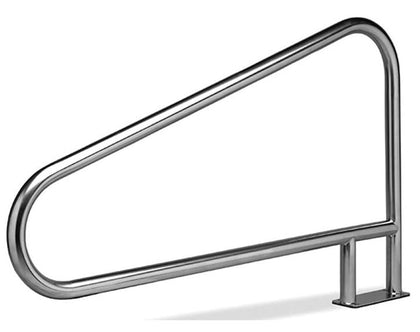

Both exist and they are not interchangeable. An anchored rail drops into a socket set into the concrete, so the deck has to be cored or the anchors have to already be there, and the rail lifts out for winter. A flanged rail bolts down through a welded plate, which needs sound concrete under it and stays put. Look at what is in your deck now before choosing: an empty socket wants an anchored rail, and a bare slab is a decision about whether you want to core it.
Which grade do I need for a salt pool?
Read the product rather than the grade. Salt water is harder on stainless than chlorinated water is, and the marine grades hold up better, which is why 316L is on this page alongside 304. But our catalogue answers it directly: the products rated for salt carry a salt friendly line on their own specification, and some say no. That per product answer is worth more than a rule about grades, because finish and welds matter as much as the alloy.
Do the escutcheons come with it?

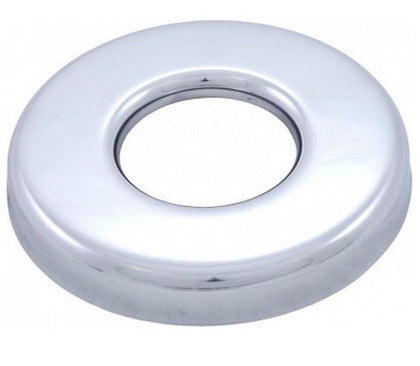

Only on some, and they are the trim you notice. An escutcheon is the collar that covers the gap where the tube enters the deck: it hides the socket, keeps grit out of the anchor and is what makes the install look finished. Six products here list them as included and the rest do not, so it is worth checking the specification before you order. They are also the part most likely to be missing or cracked on a rail that has been in the ground a decade.
What does the wall thickness change?
How much the rail flexes and how long it lasts. Two walls are on this shelf, .049 in. and .065 in., in the same 1.90 in. tube, so the thicker one is heavier metal in the same outside size and it feels more solid under a hand that is really leaning. Nothing on our products states a rule about where each belongs, so treat it as a judgement rather than a code question: heavier wall for a rail that will take real weight or heavy traffic, lighter where it is a guide.
