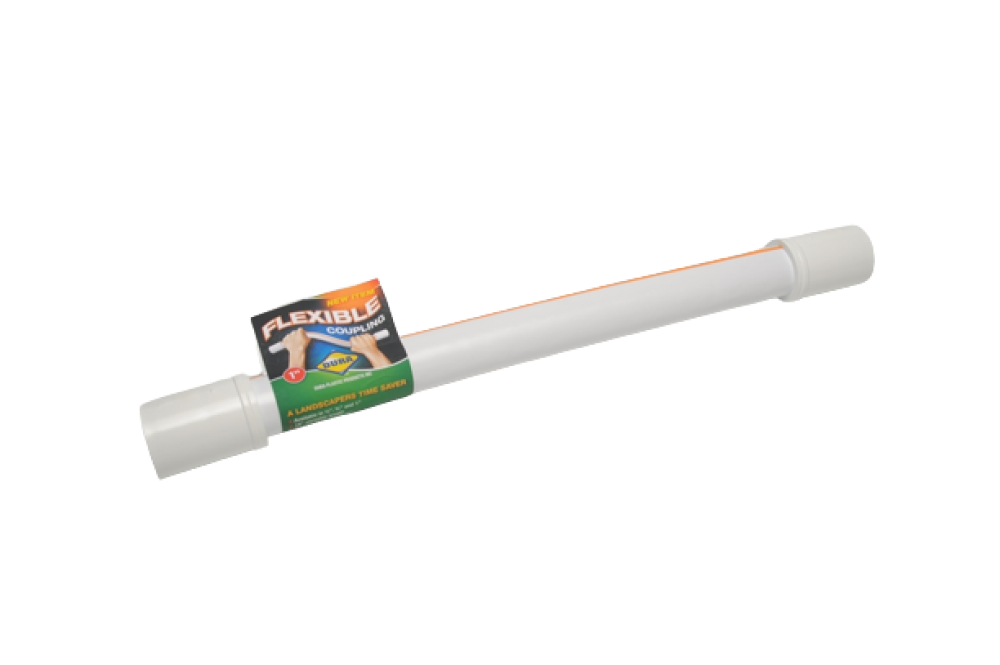

Dura FRC-010, 1" X 18" Flexible Repair Coupling

Dura Model # FRC-010 1" X 18" Flexible Repair Coupling

Dura FRC-010 1" x 18" Flexible Repair Coupling The Dura FRC-010 is a 1-inch by 18-inch flexible PVC repair coupling, slip x slip. The flexible mid-section bends around roots, rocks, and misaligned pipe so you splice a break without cutting a straight run. Spec Value Size 1 in x 18 in Ends Slip (socket) x slip Material Flexible PVC, meets Schedule 40 Max working pressure 150 PSI Bend 18 in flexible section bends up to ~90 deg Use Zone / lateral lines only; not mainline or constant pressure How to install it Cut out the damaged section. Prime and solvent-cement both slip ends onto the exposed pipe. Route the flexible middle around the obstacle instead of digging a straight trench. Let the cement set before you pressurize. Keep it on lateral lines under 150 PSI, not on the mainline, and use it outdoors, not for hot water. What it fits The FRC-010 solves the tight-quarters repair where a rigid coupling will not seat: a break next to a root ball, a rock, or two ends that no longer line up. For the controllers and heads on the same zone, browse our irrigation controllers .
