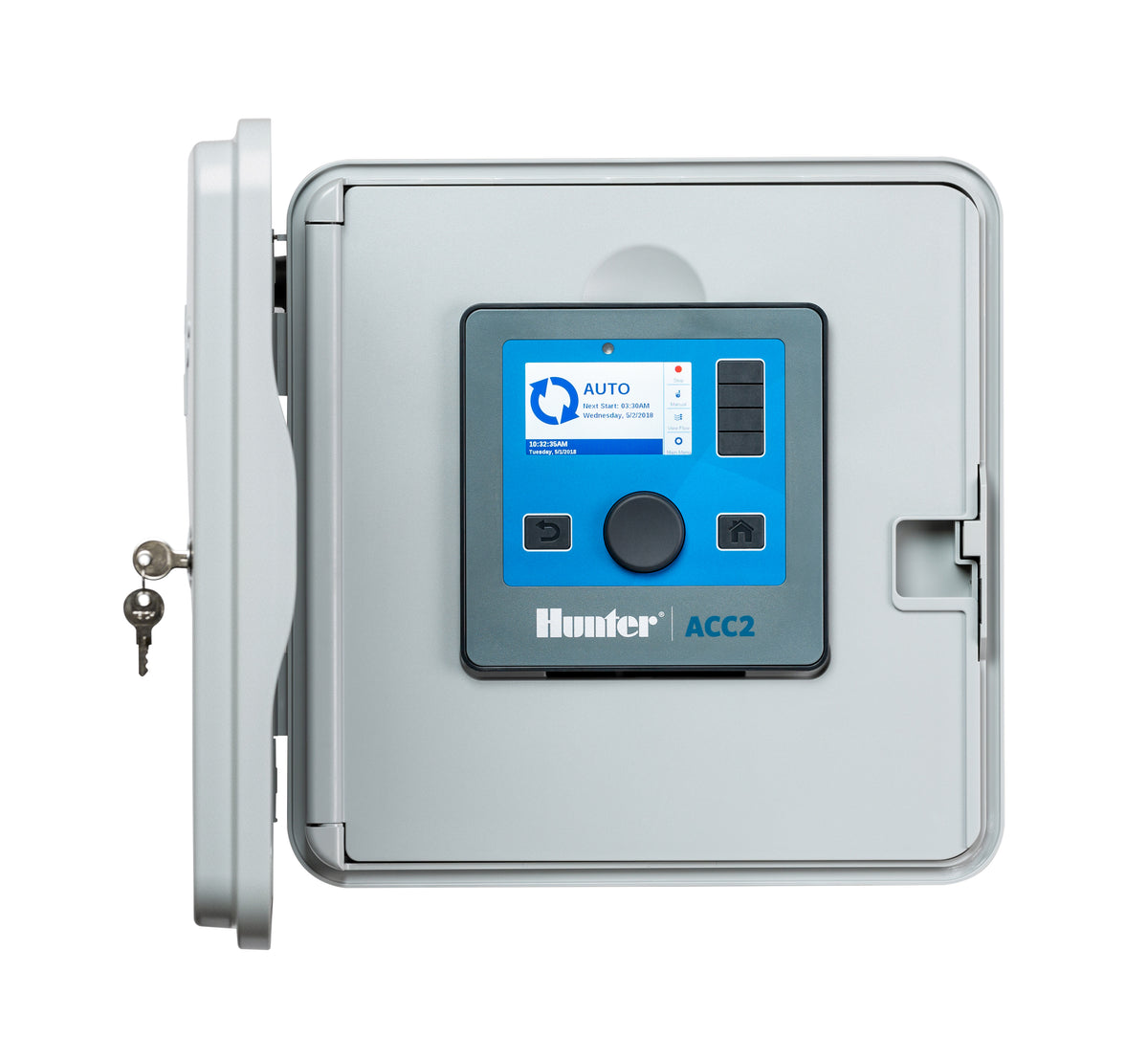

Hunter A2C-75D-P, 75-Station ACC2 Plastic Decoder Controller

The Hunter A2C-75D-P is a 75-station ACC2 decoder controller in a plastic wall-mount cabinet, built for two-wire commercial irrigation systems. Same ACC2 platform as the metal-cabinet A2C-75D-M, in a lighter and more cost-effective enclosure for indoor or sheltered installations. 75-station base on Hunter's ACC2 commercial platform Two-wire decoder system for long-cable installations Plastic wall-mount cabinet Compatible with Hunter Centralus and Hydrawise central control Genuine Hunter, in stock and ships fast from Total Sprinkler.

Hunter A2C-75D-P ACC2 75-Station Two-Wire Decoder Controller The A2C-75D-P is a commercial two-wire decoder controller. It bases at 75 stations and expands to 225. One two-wire path replaces the conventional multi-conductor bundle, so long runs cost less wire. Spec Detail Model / MPN A2C-75D-P (suffix -P = plastic wall mount) Base stations 75 (decoder) Max stations Up to 225 with expansion modules Programs / start times 32 programs, 10 start times per program Wiring Two-wire path (3 paths per output module); up to 10,000 ft on 14 AWG, 15,000 ft on 12 AWG; runs all Hunter ICD decoders Flow / simultaneous Flow Manager up to 30 simultaneous solenoids (20 per module); flow monitoring for up to 6 zones Connectivity WiFi (A2C-WIFI), Ethernet LAN (A2C-LAN), or 4G cellular (A2C-LTEM); modules sold separately Display Full-color backlit LCD in a reversible facepack (works in either orientation) Mounting / power Outdoor plastic wall-mount cabinet, AC power Warranty 5 years Cabinet and connectivity options The -P suffix is the plastic wall mount. Order -M for metal or -PP for a plastic pedestal if the site needs it. Network is a separate module: add A2C-WIFI for WiFi, A2C-LAN for wired Ethernet, or A2C-LTEM for cellular. Add the A2C-WIFI module for Centralus cloud control. Decoder vs conventional Two-wire decoder wiring pays off on large sites with long field runs. For smaller conventional-wired jobs that still want WiFi, a modular controller like the HCC-800-PL Hydrawise is the simpler path.
