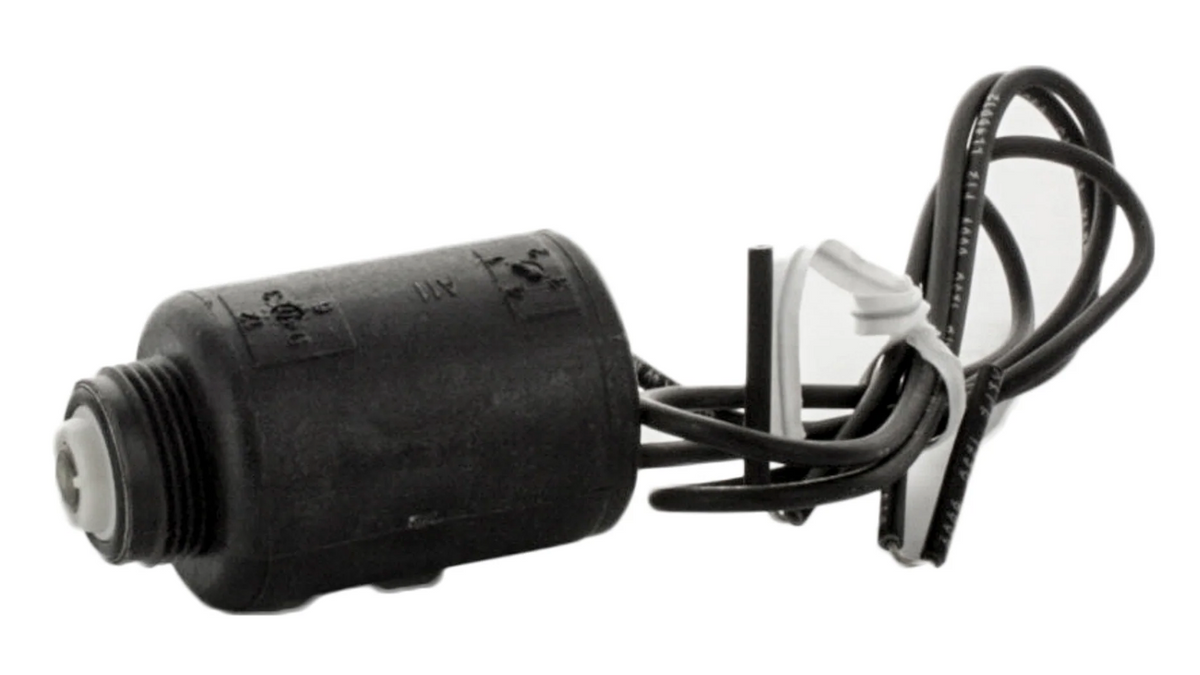

Irritrol R811-24VACG, 24 VAC Solenoid

Irritrol R811-24VACG , 24 VAC, 60 Hz replacement solenoid with a sealed, encapsulated coil and threaded base. Universal fit for Irritrol, Richdel, Hardie, and Toro EZ-Flow / P-220 valves.

Irritrol R811-24VACG 24 VAC Replacement Solenoid The R811-24VACG is a 24 VAC encapsulated replacement solenoid for Irritrol and Richdel valves. Swap it in when a zone stops opening, chatters, or buzzes at the controller. The coil is sealed against moisture, so it holds up in the valve box. Electrical specs Spec Value Type 24 VAC encapsulated replacement solenoid assembly Voltage 24 VAC, 60 Hz Inrush 9.6 VA (0.4 A) at 24 VAC Holding 4.8 VA (0.2 A) at 24 VAC What it fits This is the universal R811 solenoid used across the Irritrol and Richdel valve families. It fits these valve series: Irritrol / Richdel 2400, 2500, 205, and 2600 series Hardie valves Toro EZ-Flow and Toro P-220 valves The 9.6 VA inrush and 4.8 VA holding figures match the electricals printed on the 205 and 2400/2600 valve datasheets, so this coil is a direct match for those bodies. Rebuilding the whole valve instead? Pair it with the matching Irritrol 205T 1" valve or the 2400 Series 1" globe valve . How to replace it Shut the water off first. Turn off the controller. Unscrew the old solenoid from the valve bonnet counterclockwise. Thread the new R811 in hand-tight, then snug it a quarter turn. Reconnect the two lead wires to the field wires with waterproof connectors. Turn the water and controller back on and test the zone.

The Irritrol R811-24VACG is a sealed, encapsulated 24 VAC replacement solenoid with a threaded base, so it drops into a wide range of Irritrol and compatible valve families as a universal service part. Irritrol R811-24VACG Specifications Voltage 24 VAC, 60 Hz Coil Sealed, encapsulated Base Threaded (universal replacement) Compatible valves Irritrol, Richdel, Hardie, Toro EZ-Flow, Toro P-220 (incl. Irritrol/Richdel 205, 214, 216, 218, 700, 2400, 2500, 2600, 2700 series) Based in San Antonio, TX and shipped from a nationwide network of irrigation warehouses , from a warehouse near you.
