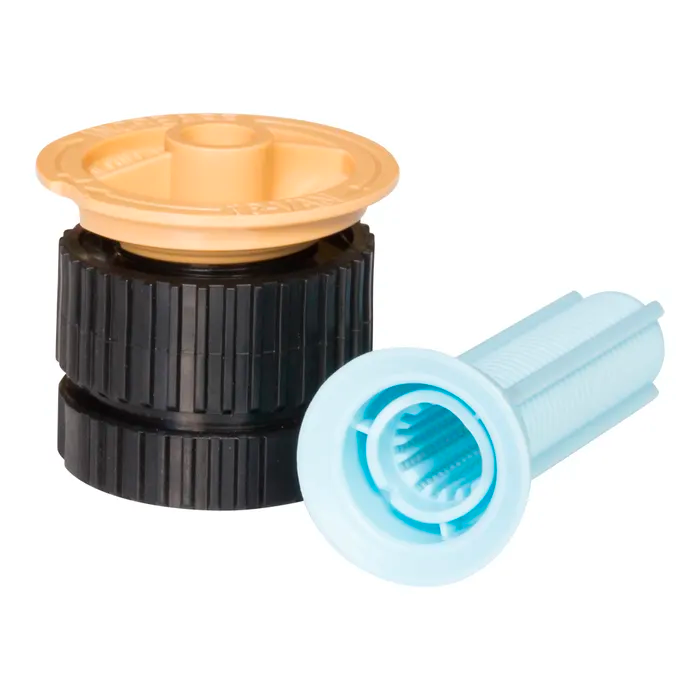

Rain Bird 18VAN - 18 ft. VAN Series Variable Arc Spray Nozzle

Rain Bird 18VAN 18 ft. VAN Series Variable Arc Spray Nozzle

Rain Bird 18VAN variable arc spray nozzle The Rain Bird 18VAN sprays up to 18 ft and adjusts from 0 to 360 degrees by hand. No key, no tool. Set the arc on the collar and dial the radius with the stainless screw. One nozzle covers odd corners, curves, and full circles. Specifications Radius Up to 18 ft (14 to 18 ft range) Arc 0° to 360°, field-adjustable, no tool Pressure 15 to 30 psi (optimum 30 psi) Filter Blue screen (.02 in. x .02 in.) Adjustment Stainless steel screw, textured collar for grip Fit All Rain Bird spray heads, bodies, shrub adapters Set the arc and radius Twist the collar to set the arc, then turn the stainless screw to pull the radius in. The 12, 15, and 18 VAN nozzles match precipitation with Rain Bird MPR nozzles, so you can mix them on one zone. Keep pressure near 30 psi for the full 18 ft throw.
