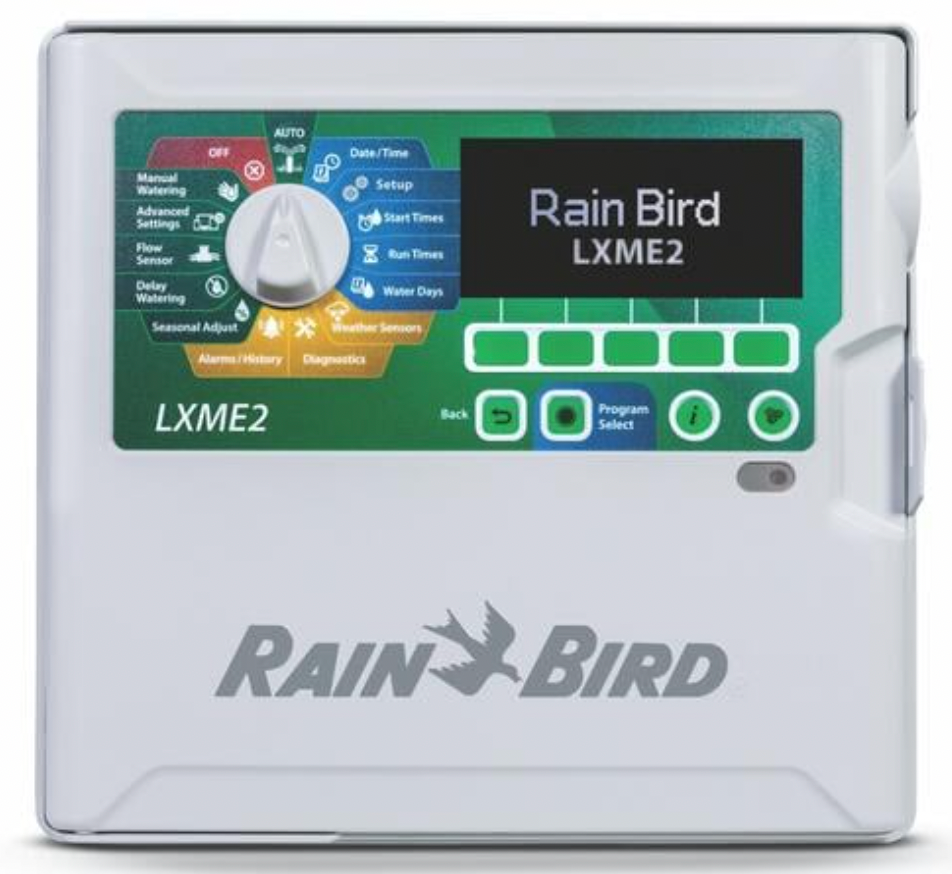

Rain Bird ESPLXME2 - Controller 12-station base unit expandable to 48 stations

The Rain Bird ESP-LXME2 is a 12-station base modular irrigation controller, 120V indoor/outdoor, expandable with station modules. Built for residential and light commercial sites that may grow over time without replacing the controller. 12-station base, modular station expansion 120 VAC indoor/outdoor cabinet Multiple independent programs and start times Integrated flow sensing input Genuine Rain Bird, in stock and ships fast from Total Sprinkler.

Rain Bird ESP-LXME2 12-Station Modular Controller The Rain Bird ESP-LXME2 is a 12-station modular controller for the 120V domestic market. Start at 12 stations and add modules as the site grows. Spec Value Base stations 12 Max stations 48 (3 slots x 12-station modules) Power 120V domestic Programs 40 Display Large backlit LCD Flow management FloManager standard; flow sensing via the LXME2 PRO upgrade Central control IQ4 compatible (NCC network cartridge option) How to size it Count your zones. The base LXME2 runs 12 stations. Each 12-station module fills one of three slots, so it scales to 24, 36, or 48 stations without swapping the controller. FloManager sequences stations to stay within available flow. For a flow sensor input and advanced flow management, step up to the LXME2 PRO. What it drives Wire the LXME2 to 24 VAC valves across residential and light-commercial sites. Pair it with spray bodies like the Rain Bird 1804 for a full Rain Bird zone build.

Model: ESPLXME2 Zones/Stations: 12-48 expandable Controller Type: Modular/Expandable Indoor/Outdoor Dimensions: Width: 14.32 in. (36,4 cm) Height: 12.69 in. (32,2 cm) Depth: 5.50 in. (14,0 cm) Features: Battery Backup, Battery-programmable, Cycle+Soak, Delay Between Stations Electrical Specifications: Input required: 120 VAC ± 10%, 60Hz; 230 VAC +10% -6%, 50 Hz. Output: 26.5 VAC 1.9A Power back-up: Lithium coin-cell battery maintains time and date while nonvolatile memory maintains the schedule Multi-valve capacity: Maximum five 24 VAC, 7 VA solenoid valves simultaneous operation including the master valve, maximum two solenoid valves per station module
