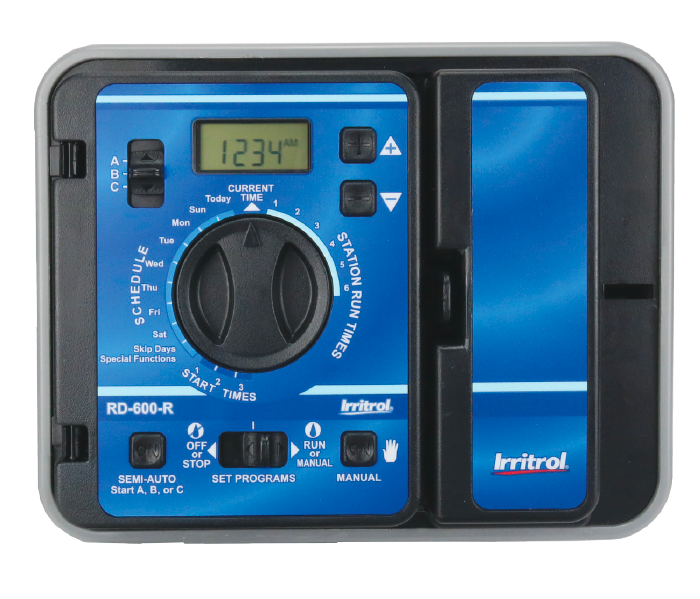

Irritrol RD600-INT-R, Rain Dial R Series 6 Station Indoor Controller

The Irritrol RD600-INT-R is a 6-station Rain Dial R Series indoor irrigation controller , Irritrol's residential platform in an indoor wall-mount cabinet. Independent program scheduling and a dial-driven interface keep setup straightforward. 6 stations in an indoor wall-mount cabinet Multiple independent programs with flexible start times Dial-driven programming Reliable Rain Dial R Series platform Genuine Irritrol, in stock and ships fast from Total Sprinkler.

Irritrol RD600-INT-R Rain Dial R Series, 6-Station Indoor Controller The RD600-INT-R is a 6-station Rain Dial R Series controller in an indoor cabinet. It is the base configuration of the line: fewer zones, external plug-in transformer, dial-driven programming. Good fit for a small residential system. Programming and electrical Spec Value Stations 6 Programs 3 independent programs Start times 3 per program (9 starts total) Station run times 1 to 59 min (1-min steps) or 1 to 5.9 hr (6-min steps) Power in / out 120 VAC 60 Hz in; 24 VAC 1.25 A out Output limits 0.5 A max per station; 1.0 A max to valves incl. master valve / pump start Warranty 5-year How to choose the right Rain Dial R Match the controller to zone count and mounting spot. Six zones indoors: this RD600-INT-R. Nine zones indoors: step up to the RD900-INT-R . Mounting outside: the RD900-EXT-R outdoor puts the transformer in a weather-resistant cabinet. Sensors and remotes A sensor bypass switch supports a RainSensor. The line is Climate Logic (CL-100) and SMRT Logic ready and takes the CRR / R-100-KIT remote.
