S.R. Smith F4H-102 26 in. Figure 4 handrail pair in type 304 stainless steelS.R. Smith 26 in. Figure 4 Handrail Pair, 304 Stainless Steel, 1.90 in. OD, .049 in. Wall, F4H-102 In stock$39299

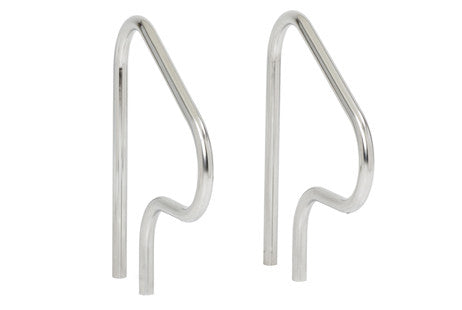

S.R. Smith F4H-102 26 in. Figure 4 handrail pair in type 304 stainless steel
Shop all S.R. Smith

S.R. Smith 26 in. Figure 4 Handrail Pair, 304 Stainless Steel, 1.90 in. OD, .049 in. Wall, F4H-102

Ask a questionMPN F4H-102
$39299
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Sold as a pair F4H-102 is two rails; the single rail is F4H-102S.
  • 26 in. Figure 4 The smaller of the two Figure 4 sizes, 26 in. wide and 29 in. tall above the deck.
  • 1.90 in. OD, .049 in. wall Type 304 stainless steel tubing formed with 6 in. radius bends.
  • Residential use S.R. Smith sets a .065 in. wall as the minimum for commercial pools, so this rail is for residential pools.
  • Standard anchors Anchors sit 8 in. apart center to center; S.R. Smith recommends AS-100B anchors and EP-100F escutcheons, sold separately.
  • Not for salt pools S.R. Smith sets 316L marine grade as the minimum for salt water, and F4H-102 is type 304.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About S.R. Smith 26 in. Figure 4 Handrail Pair, 304 Stainless Steel, 1.90 in. OD, .049 in. Wall, F4H-102, SKU SRS-35-724. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item S.R. Smith 26 in. Figure 4 Handrail Pair, 304 Stainless Steel, 1.90 in. OD, .049 in. Wall, F4H-102
S.R. Smith

26 in. Figure 4 Handrail Pair, 304 Stainless Steel, 1.90 in. OD, .049 in. Wall, F4H-102

$39299
Shade Science Pool Buoy Floating Pool Umbrella, 5'7" Adjustable Shade with 5 Cup Holders, Black and White Stripe, PB-16011-BW
Shade Science

Pool Buoy Floating Pool Umbrella, 5'7" Adjustable Shade with 5 Cup Holders, Black and White Stripe, PB-16011-BW

$24900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Pool Buoy Floating Pool Umbrella with Cup Holders, Harbor Blue, PB-16011-HAR
Shade Science

Pool Buoy Floating Pool Umbrella with Cup Holders, Harbor Blue, PB-16011-HAR

$21900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Poolguard In-Ground Pool Alarm, PGRM-2
American Granby

Poolguard In-Ground Pool Alarm, PGRM-2

$25199
S.R. Smith 20" U-Frame Fulcrum Cover, FC-200A-R
S.R. Smith

20" U-Frame Fulcrum Cover, FC-200A-R

$6499
National Stock Sign Co. 41" x 47" Texas Pool Rules Sign, Plastic, TX4148
National Stock Sign

Co. 41" x 47" Texas Pool Rules Sign, Plastic, TX4148

$10899
Pool Buoy Replacement Umbrella, PB-16011-HAR-RE-UMBRELLA
Pool Buoy

Replacement Umbrella, PB-16011-HAR-RE-UMBRELLA

Harbor Blue
$3799
Subtotal

Similar products

Other products people compare with this one.

S.R. Smith 2HR-5-049 five foot 2 bend stainless steel pool stair rail S.R. Smith 5' 2 Bend Stainless Steel Handrail, .049", 2HR-5-049$49199 Saftron TRTD-144-G Triton Series return to deck handrail in gray, 44 in. by 36 in. Saftron Triton Series Return to Deck Mounted Handrail, 44"W x 36"H, Gray, TRTD-144-G$58599 SuperPro RAIL4B 48 inch Classic 4-bend deck mount pool handrail SuperPro 48 Inch Classic 4-Bend Handrail, Deck Mount, RAIL4B$30299 S.R. Smith 2HR-6-049 6 ft 2-bend stainless steel pool stair rail S.R. Smith 6' 2 Bend Stainless Steel Handrail, .049", 2HR-6-049$44099 Designer Series deck to deck return stair rail in 304 stainless steel, part DR-D3D50065 S.R. Smith Designer Series Deck to Deck Return Stair Rail, 1.90 in. x .065 in. 304 Stainless Steel, DR-D3D50065$48199 Saftron RTD-448-G gray return to deck 4-bend fully reinforced handrail, 48 x 32 inch, product photo Saftron Return to Deck 4-Bend Fully Reinforced Handrail, 48 in. W x 32 in. H, Gray, RTD-448-G$31987 S.R. Smith Deck Mounted 3 Bend 51in Stair Rail 304 SS | DMS-100A S.R. Smith Deck Mounted 3 Bend 51in Stair Rail 304 SS | DMS-100A$50699 S.R. Smith Residential 4 Bend Hand & Stair Rail 304 SS | DMS-101A S.R. Smith Residential 4 Bend Hand & Stair Rail 304 SS | DMS-101A$48299 S.R. Smith 2-Bend 4' Stair Rail 304 SS | 2HR-4-049 S.R. Smith 2-Bend 4' Stair Rail 304 SS | 2HR-4-049$43299 Saftron TRTD-144-T Triton Series return to deck handrail, 44 in. x 36 in., taupe Saftron Triton Series Return to Deck Handrail, 44 in. W x 36 in. H, Taupe, TRTD-144-T$33299
S.R. Smith Ring Handrail Set without Anchors 304 Grade SS | RRH-100 S.R. Smith Ring Handrail Set without Anchors 304 Grade SS | RRH-100$38499 Saftron TDTP-148-B beige cross braced Triton deck to pool handrail, 48 in., product photo Saftron Triton Cross Braced Deck to Pool Handrail, 48 in., Beige, TDTP-148-B$39717 S.R. Smith Deck Mounted 4 Bend 48in Stair Rail 316L SS | DMS-101A-MG S.R. Smith Deck Mounted 4 Bend 48in Stair Rail 316L SS | DMS-101A-MG$59399 S.R. Smith Deck Mounted 3 Bend 51in Stair Rail PC Taupe | DMS-100A-TP S.R. Smith Deck Mounted 3 Bend 51in Stair Rail PC Taupe | DMS-100A-TP$60299 S.R. Smith Deck Mounted 4-Bend 48in Stair PC Taupe | DMS-101A-TP S.R. Smith Deck Mounted 4-Bend 48in Stair PC Taupe | DMS-101A-TP$60299 S.R. Smith Commercial Ring Handrails Only 304 Grade | CRH-100 S.R. Smith Commercial Ring Handrails Only 304 Grade | CRH-100$60499 Saftron in-ground spa return-to-deck handrail in beige, 26 in W x 42 in H, part S-326-B Saftron In-Ground Spa Return-to-Deck Handrail, Beige, 26 in. W x 42 in. H, S-326-B$17999 Cover Valet CoverMate 7930 spa side handrail with base Cover Valet CoverMate 7930 Spa Side Handrail with Base, SSHR$17299 S.R. Smith Residential 3 Bend 4' Stair Rail 304 SS | 3HR-4-049 S.R. Smith Residential 3 Bend 4' Stair Rail 304 SS | 3HR-4-049$61299 S.R. Smith Deck Mounted 3 Bend 51in Stair Rail 316L SS | DMS-100A-MG S.R. Smith Deck Mounted 3 Bend 51in Stair Rail 316L SS | DMS-100A-MG$61999

From S.R. Smith

A white diving board at the edge of a backyard pool. Pool better. S.R. Smith

S.R. Smith lighting

S.R. Smith Treo 5W LED Color Changing RGB Light, 80' Cord, FLED-C-TR S.R. Smith 60W 6 Amp Single Zone LED Light Control Power Tower, PT-6001 S.R. Smith RGB Treo LED Pool Light 12V, 30' Cord, FLED-C-TR-30 S.R. Smith WIRTRAN Control System with 3 Treo Color LED | 3TR-WIRTRAN
Shop S.R. Smith equipment

S.R. Smith parts

S.R. Smith Cantilever Steel Jump Stand with Jig, Radiant White, 69-209-001 S.R. Smith 6' White Spring Assembly for 606 Cantilever Jump Stand, 69-209-026 S.R. Smith 5W Replacement RGB LED Lamp, 12VAC, FLED-LAU-C S.R. Smith 18" Commercial Mounting Kit, 67-209-903-SS
Shop S.R. Smith parts
Pool slides: a curved slide set into a rock waterfall beside a backyard poolDiving boards: a white diving board over a backyard pool
S.R. Smith makes pool slides, diving boards, ladders, rails, in-pool furniture and pool lighting.Shop all S.R. Smith

Product details

The S.R. Smith F4H-102 is a pair of 26 in. Figure 4 pool handrails bent from 1.90 in. OD type 304 stainless steel tubing with a .049 in. wall. Each rail stands 29 in. above the deck and is 26 in. wide.

What it is

The Figure 4 is a deck mounted handrail with both legs set into anchor sockets, its tubing formed in three 6 in. radius bends. F4H-102 is the smaller of S.R. Smith's two Figure 4 sizes. The 30 in. rails are F4H-100, with a .065 in. wall, and F4H-101, with a .049 in. wall.

Fit and installation

The legs go into anchors set 8 in. apart center to center, and S.R. Smith's placement table gives a 22 in. anchor setback for the Figure 4. Anchors and escutcheons are sold separately; S.R. Smith recommends the AS-100B anchor and EP-100F escutcheon for 1.90 in. tubing. On new work, anchors are set flush with the deck, wedge facing away from the pool, and bonded to the deck rebar to NEC or local code. To replace a rail, loosen the anchor wedges, lift the old rail out and set the new one in.

Before you order

This rail is for residential pools, because S.R. Smith calls for at least a .065 in. wall on commercial installations. It is also not the choice for salt water: S.R. Smith sets 316L marine grade as the minimum there, ordered by adding -MG to the part number, or the white salt pool version, F4H-102-VW.

Specifications
Brand S.R. Smith
Manufacturer part number F4H-102
UPC 840671117054
Type Figure 4 handrail
Quantity Pair, 2 rails
Size 26 in.
Height above deck 29 in.
Leg below deck 4 in.
Material Type 304 stainless steel
Tubing outside diameter 1.90 in.
Wall thickness .049 in.
Bends 3, on a 6 in. radius
Fits 1.90 in. OD anchor sockets set 8 in. apart center to center
Anchor setback 22 in.
Recommended anchor AS-100B, sold separately
Recommended escutcheon EP-100F, sold separately
Use Residential pools; not for salt pools
Shipping weight 15 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

Is F4H-102 one rail or two?
Two. S.R. Smith sells the F4H-102 as a pair of 26 in. Figure 4 handrails. The single rail is part F4H-102S.
Will the F4H-102 fit my existing anchors?
It fits anchor sockets for 1.90 in. OD tubing set 8 in. apart center to center, the spacing S.R. Smith gives for its Figure 4. To swap rails, loosen the wedge in each anchor, lift the old rail out and set the new one in.
Do I need the 26 in. or the 30 in. Figure 4?
Measure the rail you are replacing. F4H-102 stands 29 in. above the deck and is 26 in. wide. The 30 in. Figure 4 rails, F4H-100 with a .065 in. wall and F4H-101 with a .049 in. wall, stand 32 in. tall and 30 in. wide.
Can I use F4H-102 on a salt water pool?
S.R. Smith sets 316L marine grade as the minimum for salt pools, and F4H-102 is type 304. For salt water, order the marine grade version by adding -MG to the part number, or the white salt pool rail, F4H-102-VW.
Ask your own question
