Pleatco PA40 40 sq ft filter cartridge for Hayward C-410 and Easy Clear C400Pleatco 40 Sq Ft Filter Cartridge, C-410, Easy Clear C400, PA40 In stock$4599

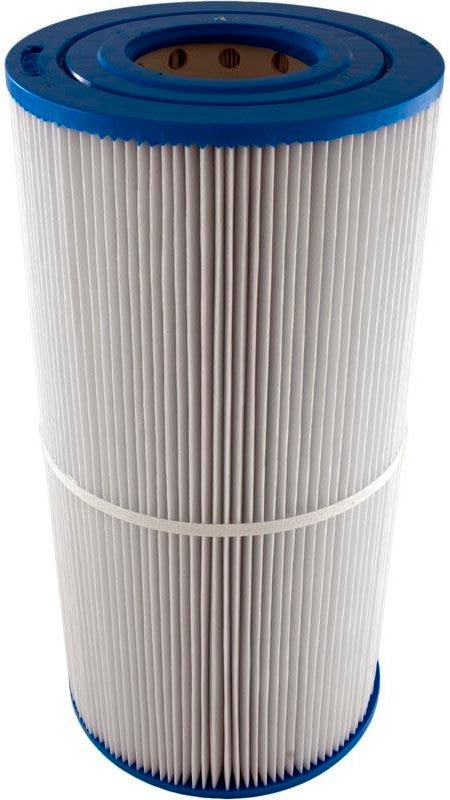

Pleatco PA40 40 sq ft filter cartridge for Hayward C-410 and Easy Clear C400
Shop all Pleatco

Pleatco 40 Sq Ft Filter Cartridge, C-410, Easy Clear C400, PA40

Ask a questionMPN PA40
$4599
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 40 square feet of media The full rated area for the C-410 and Easy Clear C400 tanks.
  • Measures 7 in. by 14-1/16 in. 7 in. outside diameter, 14-1/16 in. long, so it drops straight into the factory tank.
  • Open end with molded gasket The gasket is molded into the cartridge, so there is no separate seal to source.
  • Fits Hayward® filters Built to replace the cartridge in Hayward® C-410 and Easy Clear C400 housings.
  • Pleatco built A specialist cartridge maker rather than a generic wrap.
  • Restores flow and clarity A cartridge that no longer cleans up in the wash is done, whatever it looks like.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pleatco 40 Sq Ft Filter Cartridge, C-410, Easy Clear C400, PA40, SKU PLE-051-9205. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pleatco 40 Sq Ft Filter Cartridge, C-410, Easy Clear C400, PA40
Pleatco

40 Sq Ft Filter Cartridge, C-410, Easy Clear C400, PA40

$4599
Pleatco 7-1/8" Diameter 115 Sq Ft Advanced Ultra Filter Cartridge for Jandy CL460, 4-Pack, X15-ULT-A9-Q4
Pleatco

7-1/8" Diameter 115 Sq Ft Advanced Ultra Filter Cartridge for Jandy CL460, 4-Pack, X15-ULT-A9-Q4

$32399
Pleatco 7 in. Diameter 130 Sq Ft Advanced Ultra Replacement Filter Cartridge 4 Pack, Clean & Clear Plus CCP520, X15-ULT-A7-Q4
Pleatco

7 in. Diameter 130 Sq Ft Advanced Ultra Replacement Filter Cartridge 4 Pack, Clean & Clear Plus CCP520, X15-ULT-A7-Q4

$27899
Pleatco 7 in. Diameter 320 sq ft Advanced Ultra Replacement Filter Cartridge 4 Pack for Pentair Clean & Clear Plus 320 CCP320, X15-ULT-A5-Q4
Pleatco

7 in. Diameter 320 sq ft Advanced Ultra Replacement Filter Cartridge 4 Pack for Pentair Clean & Clear Plus 320 CCP320, X15-ULT-A5-Q4

$24299
Pleatco Advanced Ultra Xtreme Blue A1 C4025/C4030 Filter Cartridge, X15-ULT-A1-M
Pleatco

Advanced Ultra Xtreme Blue A1 C4025/C4030 Filter Cartridge, X15-ULT-A1-M

$12499
Pleatco Cartridge Filter, 90 Sq. Ft., PA90
Pleatco

Cartridge Filter, 90 Sq. Ft., PA90

$6999
Pleatco PJAN115 115 Sq Ft Filter Cartridge for Jandy CL 460
Pleatco

PJAN115 115 Sq Ft Filter Cartridge for Jandy CL 460

$11399
Subtotal

Similar products

Other products people compare with this one.

Pleatco PA50 50 sq ft pool filter cartridge Pleatco 50 Sq Ft Filter Cartridge, Star-Clear C500, Pentair Purex CF-50, PA50$6499 Pleatco PIN20 replacement filter cartridge for Intex Easy Set Pool B version Pleatco Replacement Filter Cartridge for Intex Easy Set Pool B Version, 15 Sq Ft, PIN20$2962 Unicel C-9410 100 square foot replacement filter cartridge Unicel Cartridge Filter, 100 sq ft, for Pentair Clean and Clear CC100, C-9410$5999 Pleatco PWW50L 50 sq ft filter cartridge for Waterway Teleweir Pleatco PWW50L 50 Sq Ft Filter Cartridge for Waterway Teleweir$3699 Pleatco PC7-120 replacement filter cartridge for Intex type A or type C Pleatco Intex Replacement Filter Cartridge, Fits A or C, PC7-120$2399 Pleatco PWK65 65 sq ft filter cartridge for Watkins Hot Spring Spas Pleatco 65 Sq Ft Filter Cartridge, PWK65$5399 Pleatco PRB18-4 replacement filter cartridge, 18 square feet Pleatco PRB18-4 Filter Cartridge, 18 Sq Ft$3399 Pleatco PPM35SC-F2M 35 sq ft filter cartridge for Marquis Spas Pleatco 35 Sq Ft Filter Cartridge for Marquis Spas, PPM35SC-F2M$3499 Pleatco PWW50P3 40 sq ft replacement pool filter cartridge Pleatco 40 Sq Ft Filter Cartridge Replacement, PWW50P3$3899 Pleatco PLBS50 replacement pool and spa filter cartridge Pleatco PLBS50 Replacement Filter Cartridge$4099
Pleatco PSANT20P3 20 square foot replacement spa filter cartridge Pleatco 20 sq ft Replacement Filter Cartridge, PSANT20P3$3499 Web Price Pleatco 25 square foot CFR-25 replacement filter cartridge Pleatco 25 sq ft Filter Cartridge, CFR-25, X15-PJ25-IN-4$3399 Pleatco PWK30-4 30 sq ft replacement filter cartridge for Watkins Hot Spring Spas Pleatco 30 Sq Ft Replacement Filter Cartridge for Watkins Hot Spring Spas, PWK30-4$3399 Filbur Replacement Cartridge for Hayward Star-Clear C500 50 Sq Ft Cartridge Filter | CX500RE C-7656 15004 PA50 | FC-1240 Filbur Replacement Cartridge for Hayward® Star-Clear C500 50 Sq Ft Cartridge Filter | CX500RE C-7656 15004 PA50 | FC-1240$5799 Unicel C-8600 75 sq ft replacement cartridge filter for Hayward Star-Clear II C-800 Unicel 75 Sq Ft Replacement Filter Cartridge for Hayward® Star-Clear II C-800, C-8600$5099 Unicel C-9485 85 sq. ft. replacement filter cartridge for Hayward Star-Clear CX850RE Unicel 85 Sq. Ft. Replacement Filter Cartridge for Hayward® Star-Clear CX850RE Filters, C-9485$5199 Unicel C-7447 50 sq. ft. replacement filter cartridge for Hayward Super-Star Clear C2000 Unicel 50 Sq. Ft. Replacement Filter Cartridge for Hayward® Super-Star Clear C2000 Filters, C-7447$5599 Pleatco PA75SV-M 75 sq ft antimicrobial filter cartridge with open end and molded gasket Pleatco 75 Sq Ft Antimicrobial Filter Cartridge for Hayward® C-570 and Sta-Rite PRC 75, PA75SV-M$5799 Filbur PC-1292 90 sq ft replacement filter cartridge for Hayward CX900RE Filbur Replacement Filter Cartridge for Hayward® CX900RE, PC-1292$6599 SuperPro FC-1976 80 square foot filter cartridge for the Pentair CCP320 SuperPro Cartridge Filter 80 Sq Ft for Pentair CCP320, FC-1976$5899

Product details

The Pleatco PA40 is a 40 sq ft replacement filter cartridge for the Hayward® C-410 and Easy Clear C400. It measures 7 in. across by 14-1/16 in. long, with an open end and a molded gasket.

Why the molded gasket matters

The gasket is part of the cartridge rather than a separate ring you have to find and fit. That is one less small part to lose at the equipment pad and one less way for water to bypass the media instead of going through it.

When to replace instead of clean

A cartridge is a consumable. Rinsing keeps it working through a season, but every cleaning takes a little of the pleat with it, and oils and minerals eventually load the media in a way water alone will not shift. The honest test is pressure: if a full clean no longer brings the gauge back down near where it started, the cartridge is finished. Stiff pleats, permanent gray staining or splits at the end caps say the same thing.

Keeping a spare

Many owners keep a second cartridge on the shelf so the filter goes back together the same day, and the dirty one dries and gets cleaned properly at leisure. Dry cleaning is more effective than scrubbing a wet cartridge in a hurry.

Specifications
Brand Pleatco
Manufacturer part number PA40
UPC 690164229517
Type Filter cartridge
Filter area 40 sq ft
Outside diameter 7"
Length 14-1/16"
End style Open with molded gasket
Filter manufacturer Hayward®
Fits Hayward® C-410, Easy Clear C400
Shipping weight 2.4 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pleatco

Pleatco X15-ULT-A9-Q4 Advanced Ultra filter cartridge for Jandy CL460, 4-pack Pleatco 7-1/8" Diameter 115 Sq Ft Advanced Ultra Filter Cartridge for Jandy CL460, 4-Pack, X15-ULT-A9-Q4$32399 Pleatco X15-ULT-A7-Q4 Advanced Ultra 7 in. filter cartridge for Pentair Clean & Clear Plus CCP520, 4 pack Pleatco 7 in. Diameter 130 Sq Ft Advanced Ultra Replacement Filter Cartridge 4 Pack, Clean & Clear Plus CCP520, X15-ULT-A7-Q4$27899 Pleatco PJAN115 115 sq ft filter cartridge for the Jandy CL 460 Pleatco PJAN115 115 Sq Ft Filter Cartridge for Jandy CL 460$11399 Pleatco X15-ULT-A5-Q4 Advanced Ultra filter cartridge, four pack for Pentair Clean & Clear Plus 320 Pleatco 7 in. Diameter 320 sq ft Advanced Ultra Replacement Filter Cartridge 4 Pack for Pentair Clean & Clear Plus 320 CCP320, X15-ULT-A5-Q4$24299 Pleatco X15-ULT-A1-M Advanced Ultra Xtreme Blue A1 filter cartridge for Hayward C4025 and C4030 Pleatco Advanced Ultra Xtreme Blue A1 C4025/C4030 Filter Cartridge, X15-ULT-A1-M$12499 Pleatco PH105-4 105 sq ft filter cartridge for Harmsco Tropic Flo 100 Pleatco 105 Sq Ft Filter Cartridge, Harmsco Tropic Flo 100, BF100SC, PH105-4$12599 Pleatco PA90 90 sq. ft. replacement filter cartridge for Hayward Star-Clear Plus C-900 and Sta-Rite PXC-95 Pleatco Cartridge Filter, 90 Sq. Ft., PA90$6999 Pleatco PCC130-PAK4 520 sq ft filter cartridge pack Pleatco 520 Sq Ft Filter Cartridge Pack, Clean and Clear Plus 520, Crystal Water, PCC130-PAK4$40099 Pleatco PA120 120 sq ft replacement filter cartridge for Hayward Star Clear Plus C1200 Pleatco Cartridge Filter, 120 Sq Ft, PA120$11399 Pleatco PA137 137 sq ft pool filter cartridge, angled view Pleatco PA137 Filter Cartridge 137 Sq Ft, CX1380-RE$10499
Pleatco PFAB150 150 square foot filter cartridge for the PacFab Pentair FMY-150 Pleatco 150 Sq Ft Filter Cartridge, FMY-150, PFAB150$10099 Pleatco PA50 50 sq ft pool filter cartridge Pleatco 50 Sq Ft Filter Cartridge, Star-Clear C500, Pentair Purex CF-50, PA50$6499 Pleatco X15-PCC130 130 square foot filter cartridge for Pentair Clean and Clear Plus 520 Pleatco 130 Sq Ft Filter Cartridge, Clean & Clear Plus 520, X15-PCC130$13299 Pleatco PWW50L 50 sq ft filter cartridge for Waterway Teleweir Pleatco PWW50L 50 Sq Ft Filter Cartridge for Waterway Teleweir$3699 Pleatco PSR137 replacement cartridge for Sta-Rite Posi-Flo II PTM-135 Pleatco Cartridge PTM-135 Posi-Flo II, PSR137$12399 Pleatco PCS75N 75 sq ft replacement filter cartridge for Coleman Spas Pleatco 75 sq ft Filter Cartridge for Coleman Spas, PCS75N$7599 Pleatco PJAN145 145 sq ft replacement filter cartridge for the Jandy CL 580 Pleatco 145 sq ft Filter Cartridge for Jandy CL 580, PJAN145$10199 Web Price Pleatco PAP100-4 100 square foot filter cartridge for Predator 100 and Clean & Clear 100 Pleatco 100 Sq Ft Filter Cartridge for Predator 100 and Clean & Clear 100, PAP100-4$11199 Pleatco PCC60 60 sq ft pool filter cartridge Pleatco 60 sq ft Filter Cartridge, Clean & Clear Plus 240, American Quantum, PCC60$7599 Pleatco PCC80 80 sq ft pool filter cartridge for the Clean and Clear Plus 320 Pleatco PCC80 80 sq ft Filter Cartridge for Clean and Clear Plus 320$8399

Questions and answers

What people ask about this product, answered by our pool techs.

Which filters does this cartridge fit?
The Hayward® C-410 and the Easy Clear C400.
What are the dimensions?
7 in. outside diameter and 14-1/16 in. long, with 40 sq ft of filter area.
Does it need a separate gasket?
No. The open end carries a molded gasket, so the seal is part of the cartridge.
How often should the cartridge be replaced?
Rinse it through the season, and replace it once a proper cleaning no longer brings the pressure back down. Pleats that stay gray, feel stiff or have torn at the ends are past saving.
Ask your own question
