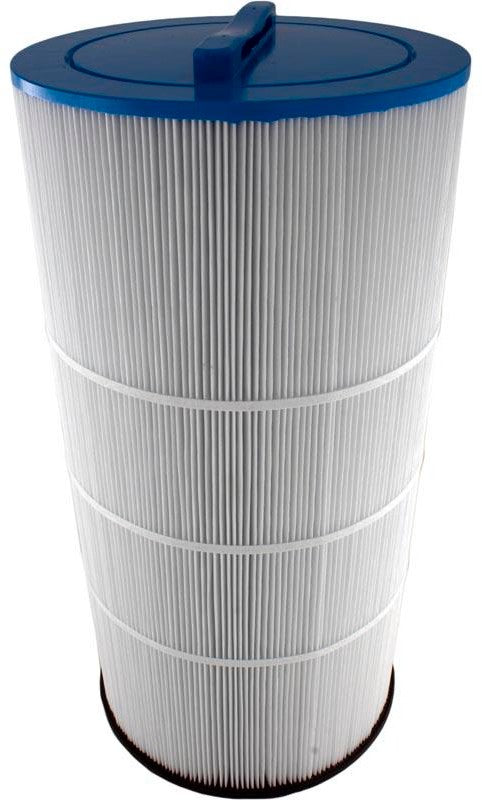

Pleatco PJ120 120 sq ft Sherlock replacement pool filter cartridgePleatco Sherlock 120 sq ft Filter Cartridge, PJ120 In stock$14199
Pleatco PJ120 120 sq ft Sherlock replacement pool filter cartridge
Shop all Pleatco

Pleatco Sherlock 120 sq ft Filter Cartridge, PJ120

Ask a questionMPN PJ120
$14199
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Pleatco PJ120 The Pleatco replacement element for the Sherlock filter.
  • 120 square feet Full rated media area, so the filter holds its designed run time between cleanings.
  • 10 inch outside diameter Matches the housing bore, so it seats without packing or shimming.
  • 20-1/2 inches long The full stack height for this filter body.
  • Pleated element Pleated media puts a large filtering surface into a housing that measures a foot across.
  • Swap on pressure Once a proper wash no longer drops the gauge back to its clean reading, the cartridge is finished.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pleatco Sherlock 120 sq ft Filter Cartridge, PJ120, SKU PLE-051-9227. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pleatco Sherlock 120 sq ft Filter Cartridge, PJ120
Pleatco

Sherlock 120 sq ft Filter Cartridge, PJ120

$14199
Pleatco 7-1/8" Diameter 115 Sq Ft Advanced Ultra Filter Cartridge for Jandy CL460, 4-Pack, X15-ULT-A9-Q4
Pleatco

7-1/8" Diameter 115 Sq Ft Advanced Ultra Filter Cartridge for Jandy CL460, 4-Pack, X15-ULT-A9-Q4

$32399
Pleatco 7 in. Diameter 130 Sq Ft Advanced Ultra Replacement Filter Cartridge 4 Pack, Clean & Clear Plus CCP520, X15-ULT-A7-Q4
Pleatco

7 in. Diameter 130 Sq Ft Advanced Ultra Replacement Filter Cartridge 4 Pack, Clean & Clear Plus CCP520, X15-ULT-A7-Q4

$27899
Pleatco 7 in. Diameter 320 sq ft Advanced Ultra Replacement Filter Cartridge 4 Pack for Pentair Clean & Clear Plus 320 CCP320, X15-ULT-A5-Q4
Pleatco

7 in. Diameter 320 sq ft Advanced Ultra Replacement Filter Cartridge 4 Pack for Pentair Clean & Clear Plus 320 CCP320, X15-ULT-A5-Q4

$24299
Pleatco Advanced Ultra Xtreme Blue A1 C4025/C4030 Filter Cartridge, X15-ULT-A1-M
Pleatco

Advanced Ultra Xtreme Blue A1 C4025/C4030 Filter Cartridge, X15-ULT-A1-M

$12499
Pleatco Cartridge Filter, 90 Sq. Ft., PA90
Pleatco

Cartridge Filter, 90 Sq. Ft., PA90

$6999
Pleatco PJAN115 115 Sq Ft Filter Cartridge for Jandy CL 460
Pleatco

PJAN115 115 Sq Ft Filter Cartridge for Jandy CL 460

$11399
Subtotal

Similar products

Other products people compare with this one.

Pleatco PA120 120 sq ft replacement filter cartridge for Hayward Star Clear Plus C1200 Pleatco Cartridge Filter, 120 Sq Ft, PA120$11399 Hayward CX1200RE genuine 120 sq ft filter cartridge for Star-Clear Plus C-1200 Hayward Genuine Filter Cartridge, 120 sq ft, Star-Clear Plus C-1200, CX1200RE$14199 Pleatco X15-ULT-A6-M Xtreme Blue A6 replacement filter cartridge for Clean and Clear Plus 420 Pleatco Xtreme Blue A6 CCP420 Single Filter Cartridge, X15-ULT-A6-M$11999 Pleatco PFAB150 150 square foot filter cartridge for the PacFab Pentair FMY-150 Pleatco 150 Sq Ft Filter Cartridge, FMY-150, PFAB150$10099 Unicel C-8412 120 square foot replacement pool filter cartridge Unicel C-8412 120 Square Foot Replacement Filter Cartridge$9599 Pleatco PH105-4 105 sq ft filter cartridge for Harmsco Tropic Flo 100 Pleatco 105 Sq Ft Filter Cartridge, Harmsco Tropic Flo 100, BF100SC, PH105-4$12599 Pleatco PA137 137 sq ft pool filter cartridge, angled view Pleatco PA137 Filter Cartridge 137 Sq Ft, CX1380-RE$10499 Pleatco PAP100-4 100 square foot filter cartridge for Predator 100 and Clean & Clear 100 Pleatco 100 Sq Ft Filter Cartridge for Predator 100 and Clean & Clear 100, PAP100-4$11199 Pleatco PCS75N 75 sq ft replacement filter cartridge for Coleman Spas Pleatco 75 sq ft Filter Cartridge for Coleman Spas, PCS75N$7599 Xtreme Blue C4 X15-ULT-C4-M replacement filter cartridge for Pentair Clean and Clear Plus and Predator Pleatco Xtreme Blue C4 150 sqft Clean and Clear Plus 420/Predator Filter Cartridge, X15-ULT-C4-M$16799
Pleatco PSR100-4 100 square foot filter cartridge for Sta-Rite Posi-Flo 100TX and 100TXR Pleatco 100 Sq Ft Filter Cartridge, 100TX/100TXR, PSR100-4$11599 Pleatco X15-PCC130 130 square foot filter cartridge for Pentair Clean and Clear Plus 520 Pleatco 130 Sq Ft Filter Cartridge, Clean & Clear Plus 520, X15-PCC130$13299 Pleatco PSR70-4 70 sq ft replacement cartridge for Sta-Rite 70TX and 70TXR filters Pleatco 70 Sq Ft Cartridge Filter, 70TX/70TXR, PSR70-4$10199 Pleatco PCC80 80 sq ft pool filter cartridge for the Clean and Clear Plus 320 Pleatco PCC80 80 sq ft Filter Cartridge for Clean and Clear Plus 320$8399 Pleatco PCC60 60 sq ft pool filter cartridge Pleatco 60 sq ft Filter Cartridge, Clean & Clear Plus 240, American Quantum, PCC60$7599 Pleatco PWWCT150 150 square foot pool filter cartridge Pleatco PWWCT150 Filter Cartridge, 150 sq ft$13999 Pleatco PJAN145 145 sq ft replacement filter cartridge for the Jandy CL 580 Pleatco 145 sq ft Filter Cartridge for Jandy CL 580, PJAN145$10199 Web Price Pleatco PAP75-4 75 square foot filter cartridge for Predator 75 and Clean & Clear 75 Pleatco 75 Sq Ft Filter Cartridge, Predator 75, Clean & Clear 75, PAP75-4$8699 Pleatco PA131 131 sq ft replacement filter cartridge for Hayward SwimClear C5025 and C5030 Pleatco 131 Sq Ft Replacement Filter Cartridge for Hayward® SwimClear C5025, PA131$7703 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299

Product details

The Pleatco PJ120 is the replacement cartridge for the Sherlock filter, carrying 120 square feet of pleated media. It measures 10 inches across the outside diameter and 20-1/2 inches long.

Media area is the whole point

A cartridge filter gets its long cycles from surface area. Fitting an element that is short on media means the filter loads faster, pressure climbs sooner, and the lid comes off more often than it should. Replacing like for like keeps the filter running the way it did when the system was new.

Cleaning and replacing

Write down the pressure gauge reading with a clean cartridge in. When it climbs roughly 8 to 10 psi above that, pull the element and wash it thoroughly. When a good wash no longer brings the gauge back down, or the pleats are matted, split or permanently gray, fit a new cartridge.

Specifications
Brand Pleatco
Manufacturer part number PJ120
UPC 690164229708
Square footage 120
Outside diameter 10"
Length 20-1/2"
Fits Sherlock filters
Shipping weight 5 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pleatco

Pleatco X15-ULT-A9-Q4 Advanced Ultra filter cartridge for Jandy CL460, 4-pack Pleatco 7-1/8" Diameter 115 Sq Ft Advanced Ultra Filter Cartridge for Jandy CL460, 4-Pack, X15-ULT-A9-Q4$32399 Pleatco X15-ULT-A7-Q4 Advanced Ultra 7 in. filter cartridge for Pentair Clean & Clear Plus CCP520, 4 pack Pleatco 7 in. Diameter 130 Sq Ft Advanced Ultra Replacement Filter Cartridge 4 Pack, Clean & Clear Plus CCP520, X15-ULT-A7-Q4$27899 Pleatco PJAN115 115 sq ft filter cartridge for the Jandy CL 460 Pleatco PJAN115 115 Sq Ft Filter Cartridge for Jandy CL 460$11399 Pleatco X15-ULT-A5-Q4 Advanced Ultra filter cartridge, four pack for Pentair Clean & Clear Plus 320 Pleatco 7 in. Diameter 320 sq ft Advanced Ultra Replacement Filter Cartridge 4 Pack for Pentair Clean & Clear Plus 320 CCP320, X15-ULT-A5-Q4$24299 Pleatco X15-ULT-A1-M Advanced Ultra Xtreme Blue A1 filter cartridge for Hayward C4025 and C4030 Pleatco Advanced Ultra Xtreme Blue A1 C4025/C4030 Filter Cartridge, X15-ULT-A1-M$12499 Pleatco PH105-4 105 sq ft filter cartridge for Harmsco Tropic Flo 100 Pleatco 105 Sq Ft Filter Cartridge, Harmsco Tropic Flo 100, BF100SC, PH105-4$12599 Pleatco PA90 90 sq. ft. replacement filter cartridge for Hayward Star-Clear Plus C-900 and Sta-Rite PXC-95 Pleatco Cartridge Filter, 90 Sq. Ft., PA90$6999 Pleatco PCC130-PAK4 520 sq ft filter cartridge pack Pleatco 520 Sq Ft Filter Cartridge Pack, Clean and Clear Plus 520, Crystal Water, PCC130-PAK4$40099 Pleatco PA120 120 sq ft replacement filter cartridge for Hayward Star Clear Plus C1200 Pleatco Cartridge Filter, 120 Sq Ft, PA120$11399 Pleatco PA137 137 sq ft pool filter cartridge, angled view Pleatco PA137 Filter Cartridge 137 Sq Ft, CX1380-RE$10499
Pleatco PFAB150 150 square foot filter cartridge for the PacFab Pentair FMY-150 Pleatco 150 Sq Ft Filter Cartridge, FMY-150, PFAB150$10099 Pleatco PA50 50 sq ft pool filter cartridge Pleatco 50 Sq Ft Filter Cartridge, Star-Clear C500, Pentair Purex CF-50, PA50$6499 Pleatco X15-PCC130 130 square foot filter cartridge for Pentair Clean and Clear Plus 520 Pleatco 130 Sq Ft Filter Cartridge, Clean & Clear Plus 520, X15-PCC130$13299 Pleatco PWW50L 50 sq ft filter cartridge for Waterway Teleweir Pleatco PWW50L 50 Sq Ft Filter Cartridge for Waterway Teleweir$3699 Pleatco PSR137 replacement cartridge for Sta-Rite Posi-Flo II PTM-135 Pleatco Cartridge PTM-135 Posi-Flo II, PSR137$12399 Pleatco PA40 40 sq ft filter cartridge for Hayward C-410 and Easy Clear C400 Pleatco 40 Sq Ft Filter Cartridge, C-410, Easy Clear C400, PA40$4599 Pleatco PCS75N 75 sq ft replacement filter cartridge for Coleman Spas Pleatco 75 sq ft Filter Cartridge for Coleman Spas, PCS75N$7599 Pleatco PJAN145 145 sq ft replacement filter cartridge for the Jandy CL 580 Pleatco 145 sq ft Filter Cartridge for Jandy CL 580, PJAN145$10199 Web Price Pleatco PAP100-4 100 square foot filter cartridge for Predator 100 and Clean & Clear 100 Pleatco 100 Sq Ft Filter Cartridge for Predator 100 and Clean & Clear 100, PAP100-4$11199 Pleatco PCC60 60 sq ft pool filter cartridge Pleatco 60 sq ft Filter Cartridge, Clean & Clear Plus 240, American Quantum, PCC60$7599

Questions and answers

What people ask about this product, answered by our pool techs.

What size is this cartridge?
10 inches across the outside diameter and 20-1/2 inches long, with 120 square feet of media.
Which filter is it for?
Pleatco lists PJ120 as the cartridge for the Sherlock filter. Measure your old element before ordering if you are not sure which filter you have.
Can I run a smaller cartridge in the same housing?
Not sensibly. Cutting media area shortens the run between cleanings and pushes the pump harder, so match the 120 square foot element the filter was built around.
How long should a cartridge last?
It depends on hours run and how heavy the debris load is. Wash it when pressure is 8 to 10 psi over the clean reading, and replace it when a wash stops restoring that reading or the pleats are matted or torn.
