S.R. Smith 600 mm Actuator for the First multiLift Pool Lift, 100-7000$1,145⁴⁴

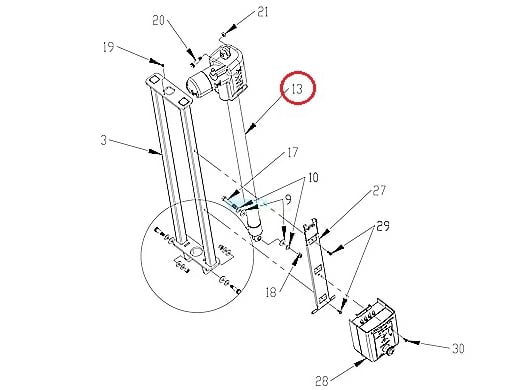

S.R. Smith 100-7000 600 mm actuator for the first multiLift pool lift

S.R. Smith 600 mm Actuator for the First multiLift Pool Lift, 100-7000

Name: S.R. Smith 600 mm Actuator for the First multiLift Pool Lift, 100-7000
Brand: S.R. Smith
SKU: PSU-157295
Price: 1145.44 USD
Availability: BackOrder

Ask a questionMPN 100-7000

$1,145⁴⁴

FREE Delivery

Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

Fit The first multiLift, which the part name gives.
Stroke A 600 mm actuator.
Job The actuator powers the up and down movement of the lift seat.
Not for multiLift2 The multiLift2 parts list calls for actuator 100-8000.

Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.

(888) 751-8084Call Chat with a techChat Email usEmail

Frequently bought together

Current item Select S.R. Smith 600 mm Actuator for the First multiLift Pool Lift, 100-7000

S.R. Smith

600 mm Actuator for the First multiLift Pool Lift, 100-7000

$1,145⁴⁴

Select

S.R. Smith

New Style Battery Charger for Multilift, PAL, Splash and aXs Pool Lifts, 1001530

$170⁹⁹

Select

S.R. Smith

Lift-Operator New Style Battery for multiLift, PAL, Splash! and aXs Pool Lifts, 1001495

$372⁹⁹

Select

S.R. Smith

LiftOperator Control Box Cover for S.R. Smith Pool Lifts, Tan, 910-1000T

$97⁹⁹

Select

S.R. Smith

LiftOperator 24 V CEC Compliant Battery, BC Version for Pool Lifts, 1001495-BC-R

$452⁹⁹

Select

S.R. Smith

2 Button Hand Control for ML300 and multiLift Pool Lifts, 1001601

$224⁰⁶

Select

S.R. Smith

New Construction Anchor Jig with Anchors for ML300 Pool Lifts, 500-5000A

$404⁶⁸

Subtotal

Similar products

Other products people compare with this one.

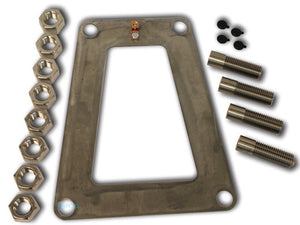

S.R. Smith 500-5000A new construction anchor jig with four flush deck anchors

S.R. Smith New Construction Anchor Jig with Anchors for ML300 Pool Lifts, 500-5000A$404⁶⁸

Product details

The S.R. Smith 100-7000 is the 600 mm actuator for the first multiLift pool lift. The actuator is the part that powers the lift seat up and down.

multiLift or multiLift2

The two generations take different actuators. The multiLift2 parts list calls for actuator 100-8000, so the 100-7000 is not a multiLift2 part. Check the model on the serial number sticker before you order.

Diagnosing an actuator

In the S.R. Smith troubleshooting steps, a lift that will not raise or lower on a fully charged battery is checked at the control box first: the plug, the hand control pins and the cable. If the touchpad on the control box will not move the seat either, the fault is likely the actuator or the control box, and S.R. Smith or an authorized reseller can confirm which.

From Pool School

Pool Lift Battery, Maintenance and Winter StorageCharging, swapping and storing the battery, what fails first, and winter storage. Read Which Pool Lift Fits Your PoolEnter the setback, draft and wall height. See which lifts reach your water. Read

Specifications
Brand	S.R. Smith
Model	multiLift 600 mm Actuator
Manufacturer part number	100-7000
Fits	multiLift
Type	Lift actuator
Length	600 mm
Not for	multiLift2, which uses actuator 100-8000
Shipping weight	12.75 lb
