The S.R. Smith 400-7000AX-BC is the LiftOperator Intelligent control box for the aXs2 pool lift in the CEC compliant BC version. The aXs2 parts list names the standard controller, 400-7000AX, and this is its BC counterpart.

Why the BC version

Since January 2, 2018, S.R. Smith lifts bound for California use the CEC compliant BC versions of the LiftOperator battery, charger and control box, and those BC parts do not interchange with the standard LiftOperator parts. Check the lift serial number before you order a battery, charger or control box.

What it does

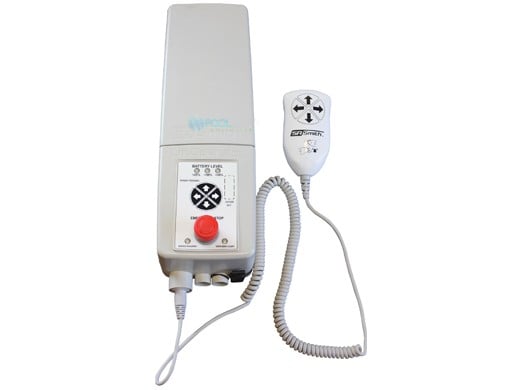

In the aXs2 manual, the LiftOperator control box runs every movement of the lift with touchpad arrows that match the 4 button hand control. Three cables plug into the bottom: the hand control in the largest port, the motor cable with the red stripe in connector 1, and the actuator cable with the green stripe in connector 2. Battery level LEDs show green, amber or red, and the red emergency stop button halts all movement and sounds an alert until it is turned clockwise to reset.

From Pool School

Pool Lift Battery, Maintenance and Winter StorageCharging, swapping and storing the battery, what fails first, and winter storage. Read Which Pool Lift Fits Your PoolEnter the setback, draft and wall height. See which lifts reach your water. Read
Specifications
Brand S.R. Smith
Model LiftOperator Intelligent aXs2 Control Box, BC
Manufacturer part number 400-7000AX-BC
Fits aXs2
Type LiftOperator Intelligent control box, CEC compliant BC version
Buttons 4: up, down, left, right
Standard version 400-7000AX
Not interchangeable with Standard LiftOperator parts, including 400-7000AX
Shipping weight 1 lb

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From S.R. Smith

A white diving board at the edge of a backyard pool. Pool better. S.R. Smith

S.R. Smith lighting

S.R. Smith Treo 5W LED Color Changing RGB Light, 80' Cord, FLED-C-TR S.R. Smith 60W 6 Amp Single Zone LED Light Control Power Tower, PT-6001 S.R. Smith RGB Treo LED Pool Light 12V, 30' Cord, FLED-C-TR-30 S.R. Smith WIRTRAN Control System with 3 Treo Color LED | 3TR-WIRTRAN
Shop S.R. Smith equipment

S.R. Smith parts

S.R. Smith Cantilever Steel Jump Stand with Jig, Radiant White, 69-209-001 S.R. Smith 6' White Spring Assembly for 606 Cantilever Jump Stand, 69-209-026 S.R. Smith 5W Replacement RGB LED Lamp, 12VAC, FLED-LAU-C S.R. Smith 18" Commercial Mounting Kit, 67-209-903-SS
Shop S.R. Smith parts
Pool slides: a curved slide set into a rock waterfall beside a backyard poolDiving boards: a white diving board over a backyard pool
S.R. Smith makes pool slides, diving boards, ladders, rails, in-pool furniture and pool lighting.Shop all S.R. Smith

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

Do I need the 400-7000AX-BC or the 400-7000AX?
Since January 2, 2018, S.R. Smith lifts bound for California use the CEC compliant BC versions of the LiftOperator battery, charger and control box, and those BC parts do not interchange with the standard LiftOperator parts. Check the lift serial number before you order a battery, charger or control box.
Which lift is the 400-7000AX-BC for?
The aXs2. The aXs2 parts list names the standard controller, 400-7000AX, and this is its BC version.
How do I know the control box has failed?
Charge the battery and try a second fully charged battery. If the lift still will not raise, lower or rotate, the S.R. Smith troubleshooting steps say to replace the control box.
