S.R. Smith Commercial 29in Standard Plus 4 Step Ladder | 10092S.R. Smith Standard Crossbrace Plus Commercial Pool Ladder, 29 in. 4-Step, Plastic Treads, .109 in. Wall, 10092$2,11599
S.R. Smith Commercial 29in Standard Plus 4 Step Ladder | 10092
Shop all S.R. Smith

S.R. Smith Standard Crossbrace Plus Commercial Pool Ladder, 29 in. 4-Step, Plastic Treads, .109 in. Wall, 10092

Ask a questionMPN 10092
$2,11599
FREE Delivery
Typically ships within 7 days This item ships directly from the manufacturer.
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Built for commercial traffic A Standard Crossbrace Plus ladder made from thick stainless tubing for heavy duty use at commercial aquatic facilities.
  • Welded cross brace The cross brace is continuously TIG welded to the front and rear legs for added stability.
  • .109 in. wall Frames are 1.90 in. OD polished type 304 stainless at .109 in. wall, the middle of three wall options.
  • Four plastic treads White heavy duty plastic steps, nominally 5 in. by 20 in., supplied with the stainless steel hardware to fit them.
  • Wall friendly feet The lower frame ends bend in to meet the pool wall and carry white rubber bumpers.
  • Known dimensions 26 in. above the deck, 52 in. below it and 78 in. overall, per S.R. Smith spec SRS-507.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About S.R. Smith Standard Crossbrace Plus Commercial Pool Ladder, 29 in. 4-Step, Plastic Treads, .109 in. Wall, 10092, SKU SRS-35-8029. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item S.R. Smith Standard Crossbrace Plus Commercial Pool Ladder, 29 in. 4-Step, Plastic Treads, .109 in. Wall, 10092
S.R. Smith

Standard Crossbrace Plus Commercial Pool Ladder, 29 in. 4-Step, Plastic Treads, .109 in. Wall, 10092

$2,11599
Shade Science Pool Buoy Floating Pool Umbrella, 5'7" Adjustable Shade with 5 Cup Holders, Black and White Stripe, PB-16011-BW
Shade Science

Pool Buoy Floating Pool Umbrella, 5'7" Adjustable Shade with 5 Cup Holders, Black and White Stripe, PB-16011-BW

$24900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Pool Buoy Floating Pool Umbrella with Cup Holders, Harbor Blue
Shade Science

Pool Buoy Floating Pool Umbrella with Cup Holders, Harbor Blue

$21900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Poolguard PGRM-2 In-Ground Pool Alarm
American Granby

Poolguard PGRM-2 In-Ground Pool Alarm

$25199
S.R. Smith 20" U-Frame Fulcrum Cover, FC-200A-R
S.R. Smith

20" U-Frame Fulcrum Cover, FC-200A-R

$6499
Deck-O-Seal Pour Grade Joint Sealant Kit, Tan 96 oz., 4701033
Deck-O-Seal

Pour Grade Joint Sealant Kit, Tan 96 oz., 4701033

$15299
National Stock Sign Co. 41" x 47" Texas Pool Rules Sign, Plastic, TX4148
National Stock Sign

Co. 41" x 47" Texas Pool Rules Sign, Plastic, TX4148

$10899
Subtotal

Similar products

Other products people compare with this one.

S.R. Smith 10136-12-MG 35 inch Standard Crossbrace Plus commercial 3-step ladder with 12 inch extension S.R. Smith 35" Standard Crossbrace Plus Commercial 3-Step Pool Ladder with 12" Extension, 10136-12-MG$2,08099 S.R. Smith Florida Rollout 3 Step Ladder w Crossbrace | 50-792S-36 S.R. Smith Florida Rollout 3 Step Ladder w Crossbrace | 50-792S-36$1,52199 S.R. Smith Florida Rollout 3 Step Ladder w Crossbrace | 50-792S-30 S.R. Smith Florida Rollout 3 Step Ladder w Crossbrace | 50-792S-30$1,37099 S.R. Smith Florida Rollout 3 Step Ladder with Crossbrace | 50-792S-24 S.R. Smith Florida Rollout 3 Step Ladder with Crossbrace | 50-792S-24$1,36199 S.R. Smith 24in Snap-lok 3 Step Ladder Stainles Steel | SLF-24E-3B S.R. Smith 24in Snap-lok 3 Step Ladder Stainles Steel | SLF-24E-3B$1,11199 S.R. Smith Artisan 24in 3-Step Ladder 304 Stainless Steel | ART-1003 S.R. Smith Artisan 24in 3-Step Ladder 304 Stainless Steel | ART-1003$1,38799 Merlin Industries 30125 King Staircase in blue granite with double handrail for above ground pools Merlin Industries King Staircase for Above Ground Pools, Blue Granite, with Double Handrail, 30125$1,00899 S.R. Smith VLLS-103S-MG 24 inch marine grade stainless 3 step vinyl liner pool ladder S.R. Smith 24" Marine Grade 3 Step Vinyl Liner Ladder with Elite Stainless Steel Tread, VLLS-103S-MG$80899 S.R. Smith RLF-24S-3B Elite 3 step residential pool ladder with stainless steel treads S.R. Smith 3 Step Residential Ladder, Elite Model, RLF-24S-3B$75099 Merlin Industries 30124 Blue Granite small above ground pool steps with one handrail Merlin Industries Blue Granite Handrail Above Ground Pool Steps, Small, 30124$69699
Saftron P-324-L5-BK black 5-step in ground pool ladder Saftron 24" Residential 5-Step In Ground Pool Ladder, Black, P-324-L5-BK$68599 Main Access Easy Step 36 inch wide pool step with Smart Choice ladder and dual handrail in taupe Main Access Easy Step 36" Wide with Smart Choice Ladder, Dual Handrail, Taupe$61899 S.R. Smith VLLS-103E-MG 24 inch 3 step vinyl liner Economy ladder, marine grade S.R. Smith 24" 3 Step Vinyl Liner Economy Ladder, Marine Grade, VLLS-103E-MG$56799 Main Access Smart Choice 24 inch outside ladder with Smart Step in taupe Main Access Smart Choice 24" Wide Outside Ladder with Smart Step, Single Handrail, Taupe$54299 S.R. Smith Residential 4 Step Ladder with Econo Tread | RLF-24E-4C S.R. Smith Residential 4 Step Ladder with Econo Tread | RLF-24E-4C$52899 Confer Plastics CCX-IG curve base 3-step in-pool step system for in ground pools Confer Plastics Curve 3-Step In Ground In-Pool Step System, CCX-IG$49299 Saftron PTL-224-3S-G Triton Series 3-step deck mounted ladder, 24 in. x 60 in., gray Saftron Triton Series 3-Step Deck Mounted Ladder, 24 in. W x 60 in. H, Gray, PTL-224-3S-G$48799 SuperPro LAD100SS three step pool ladder with stainless steel treads SuperPro 3-Step Pool Ladder with Stainless Steel Treads, LAD100SS$46799 Saftron P-324-L3-G gray 3-step in ground pool ladder, 24 in. wide Saftron 24 in. Residential 3-Step In Ground Pool Ladder, Gray, P-324-L3-G$43499 Ocean Blue 5-400200 A-frame swing-up ladder for above ground pools Ocean Blue A-Frame Swing-Up Ladder for Above Ground Pools, 5-400200$39999

From S.R. Smith

A white diving board at the edge of a backyard pool. Pool better. S.R. Smith

S.R. Smith lighting

S.R. Smith Treo 5W LED Color Changing RGB Light, 80' Cord, FLED-C-TR S.R. Smith 60W 6 Amp Single Zone LED Light Control Power Tower, PT-6001 S.R. Smith RGB Treo LED Pool Light 12V, 30' Cord, FLED-C-TR-30 S.R. Smith WIRTRAN Control System with 3 Treo Color LED | 3TR-WIRTRAN
Shop S.R. Smith equipment

S.R. Smith parts

S.R. Smith Cantilever Steel Jump Stand with Jig, Radiant White, 69-209-001 S.R. Smith 6' White Spring Assembly for 606 Cantilever Jump Stand, 69-209-026 S.R. Smith 5W Replacement RGB LED Lamp, 12VAC, FLED-LAU-C S.R. Smith 18" Commercial Mounting Kit, 67-209-903-SS
Shop S.R. Smith parts
Pool slides: a curved slide set into a rock waterfall beside a backyard poolDiving boards: a white diving board over a backyard pool
S.R. Smith makes pool slides, diving boards, ladders, rails, in-pool furniture and pool lighting.Shop all S.R. Smith

Product details

The S.R. Smith 10092 is a Standard Crossbrace Plus commercial pool ladder in the 29 in. size, with four steps and plastic treads. Crossbrace Plus ladders use thick stainless tubing and are meant for the heavy, constant traffic of commercial aquatic facilities.

Frame and treads

The frames are 1.90 in. OD polished type 304 stainless steel at .109 in. wall, with every bend formed on a nominal 4 in. radius. A cross brace is continuously TIG welded to the front and rear legs for added stability. The lower ends of the frames bend in to meet the pool wall and are fitted with white rubber bumpers. The four treads are white heavy duty plastic, nominally 5 in. by 20 in., and come with the stainless steel hardware to mount them.

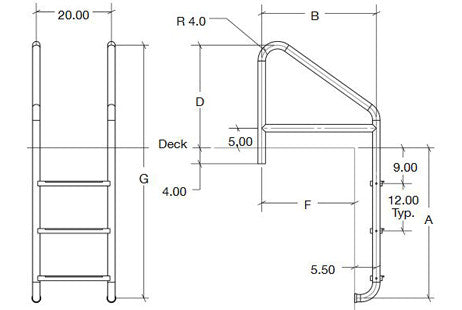

Dimensions

S.R. Smith spec SRS-507 puts this ladder at 26 in. above the deck and 52 in. below it, 78 in. overall. The same 29 in. 4-step frame is also built at .065 in. wall as part 10091 and at .145 in. wall as part 10093.

Anchoring

With proper anchoring the ladder suits poured concrete, shotcrete, fiberglass and vinyl commercial pools and spas. S.R. Smith recommends IAS-100 bronze wedge anchors, which carry a brass grounding screw for bonding, or AS-100B anchors, finished with IEP-100 escutcheons or the EP-100A or EP-100F alternatives.

Specifications
Brand S.R. Smith
Manufacturer part number 10092
UPC 840671101978
Series Standard Crossbrace Plus commercial ladder
Size 29 in.
Steps 4
Treads White heavy duty plastic, nominal 5 in. x 20 in., stainless steel hardware included
Frame 1.90 in. OD polished type 304 stainless steel
Wall thickness .109 in.
Bends 4 in. nominal radius
Cross brace Continuously TIG welded to front and rear legs
Lower ends Bent to meet the pool wall, white rubber bumpers
Height above deck 26 in.
Depth below deck 52 in.
Overall height 78 in.
Recommended anchors IAS-100 bronze wedge anchor, or AS-100B
Recommended escutcheons IEP-100, or EP-100A or EP-100F
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

What is the difference between 10091, 10092 and 10093?
Wall thickness. All three are the 29 in. 4-step Crossbrace Plus ladder with plastic treads, built at .065 in., .109 in. and .145 in. wall. The 10092 is the .109 in. version.
Are anchors and escutcheons included?
S.R. Smith specifies them as separate parts. The recommended anchor is the IAS-100, a bronze wedge anchor with a brass grounding screw for bonding, with the AS-100B as an alternative. The recommended escutcheon is the IEP-100, with the EP-100A or EP-100F as alternatives.
How far does the ladder reach into the pool?
S.R. Smith lists this size at 52 in. below the deck and 26 in. above it, 78 in. overall. Check the water depth and wall profile at the ladder position before ordering.
What kind of pools is it for?
With proper anchoring, S.R. Smith rates the Crossbrace Plus ladder for poured concrete, shotcrete, fiberglass and vinyl commercial pools and spas.
Ask your own question
