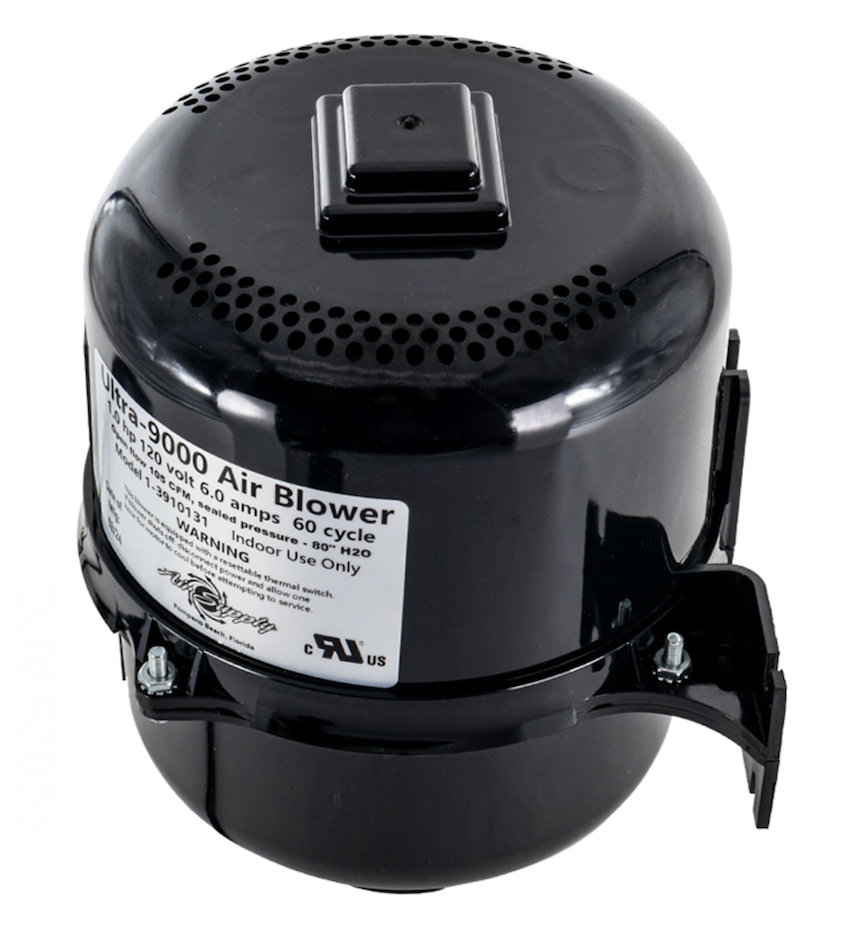

Air Supply of the Future Ultra 9000 spa blower, part 3910131, angled viewAir Supply of the Future Ultra 9000 Blower, 1 HP 120V 6.0 Amps, 3910131 In stock$13899
Air Supply of the Future Ultra 9000 spa blower, part 3910131, angled view
Shop all Air Supply of the Future

Air Supply of the Future Ultra 9000 Blower, 1 HP 120V 6.0 Amps, 3910131

Ask a questionMPN 3910131
$13899
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Built for quiet The Ultra 9000 is aimed at OEM and portable spas, where blower noise carries straight into the tub with the bather.
  • Rubber motor mount The motor sits on a rubber mount that absorbs vibration instead of passing it into the spa shell.
  • Redesigned intake manifold The intake was reworked to keep small objects and debris out of the blower, which is the usual cause of a failure.
  • Tapered slip fitting The connection is a tapered slip fitting, so no glue and no clamp are needed to make it up.
  • 1 HP on household voltage Rated 1 HP at 120 volts, drawing 6.0 amps.
  • Know your variant The Ultra 9000 line is also offered in 3 speed and heater versions, so match the model to the spa pack you have.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Air Supply of the Future Ultra 9000 Blower, 1 HP 120V 6.0 Amps, 3910131, SKU AIR-85-8509. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Air Supply of the Future Ultra 9000 Blower, 1 HP 120V 6.0 Amps, 3910131
Air Supply of the Future

Ultra 9000 Blower, 1 HP 120V 6.0 Amps, 3910131

$13899

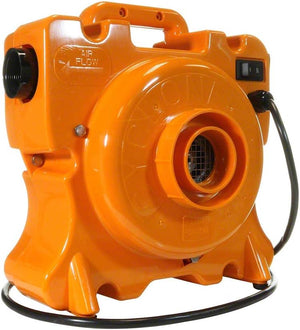

Air Supply of the Future Cyclone Pro 3HP Pool Line Blower and Liner Vac, 120V 2-Stage for Winterizing Pools, 4128100
Air Supply of the Future

Cyclone Pro 3HP Pool Line Blower and Liner Vac, 120V 2-Stage for Winterizing Pools, 4128100

$42499

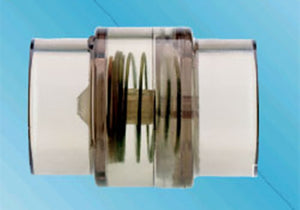

Air Supply of the Future 2" Clear Check Valve for Blowers, 1112500
Air Supply of the Future

2" Clear Check Valve for Blowers, 1112500

$2799
Air Supply of the Future Silencer Air Blower, 2HP, 240V, 5.0 Amps, 6320241
Air Supply of the Future

Silencer Air Blower, 2HP, 240V, 5.0 Amps, 6320241

$23099
Air Supply of the Future 1 HP 240V 2.4A Max Spa Air Blower 2510231
Air Supply of the Future

1 HP 240V 2.4A Max Spa Air Blower 2510231

$13499
Air Supply of the Future Blower Motor | 1HP 240V 3.5 AMPS | 3010201
Air Supply of the Future

Blower Motor | 1HP 240V 3.5 AMPS | 3010201

$10399
Air Supply of the Future Astro Blower 1.5HP, 240V | 6715201
Air Supply of the Future

Astro Blower 1.5HP, 240V | 6715201

$22199
Subtotal

Similar products

Other products people compare with this one.

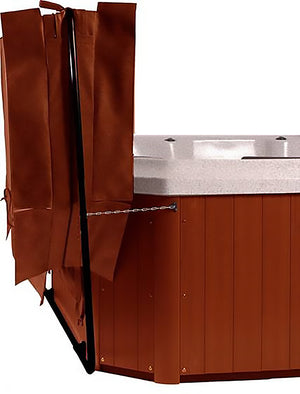

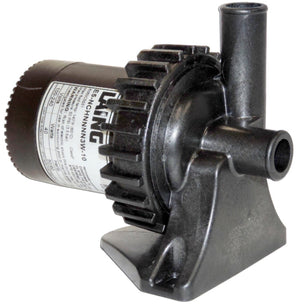

Cover Butler CB-BLACK spa cover lifter in black Cover Butler Spa Cover Lifter, Black, CB-BLACK$16099 Laing Thermotech E5 spa circulation pump 10-0102-K with 4 ft cord and 3/4 in. barbs Laing Thermotech E5 Spa Circulation Pump with 4' Cord, 120/240V, 3/4" Barb, 10-0102-K$19599 Cover Valet CVROCK-IT Cover Rock-It bar style spa cover lifter Cover Valet Cover Rock-It Bar Style Spa Cover Lifter, CVROCK-IT$18699 Balboa G7415 FloThru spa heater assembly, 4.0kW 230V, without mounting studs Balboa G7415 FloThru Heater 4.0kW, 230V, without Mounting Studs, G7415-01$17900 Web Price Gecko Aqua-Flo 2" 2HP XP2E 56FR Wet End | 91041920-000 Gecko Aqua-Flo 2" 2HP XP2E 56FR Wet End | 91041920-000$11399 Air Supply of the Future Silencer air blower, 2.0 HP 120V, part 6320141 Air Supply of the Future Silencer Air Blower, 2.0HP, 120V, 11.0 Amps, 6320141$22399 SuperPro SUPER120010 1 HP 120V quiet pool and spa air blower SuperPro 1 HP, 120V, Quiet Pool Spa Air Blower, SUPER120010$27499 Hayward SPB102 spa air blower, 1HP 230V Hayward Spa Air Blower 1HP 230V, SPB102$27299 Hayward SPB151 spa air blower, 1.5HP 115V Hayward SPB151 Spa Air Blower 1.5HP 115V$27499 Tecmark PT13130-02 brown Tri Delta raised cone mushroom air button Tecmark Brown Mushroom Air Button, PT13130-02$3499
Hayward SP1434PAKA Jet Air III body with 1-1/2 inch by 1-1/2 inch connections Hayward Jet Air III Body 1-1/2" x 1-1/2", SP1434PAKA$2999 Waterway WATERWAYS AIR CONTROL "A" STYLE GRAY | 660-3407 Waterway WATERWAYS AIR CONTROL "A" STYLE GRAY | 660-3407$2399 Waterway WATERWAYS 1" TOP ACCESS AIR CONTROL | 660-3570 Waterway WATERWAYS 1" TOP ACCESS AIR CONTROL | 660-3570$2299 SuperPro 25098-000-000 1 in. S white air control assembly for gunite and fiberglass spas SuperPro 1" S White Air Control Assembly for Gunite/Fiberglass Spa, 25098-000-000$2299 Balboa Instruments White Air Control Assembly .5" | 10-2200WHT Balboa Instruments White Air Control Assembly .5" | 10-2200WHT$2199 CMP 25594-150-000 spa jet body assembly with 1-1/2 inch water and 1 inch air sockets CMP Spa Jet 1-1/2" Water by 1" Air, 25594-150-000$1699 Waterway 3-15-0141 Designer Touch air button trim kit in Biscuit Waterway Designer Touch Air Button Trim Kit, Biscuit, 3-15-0141$1682 Hayward SP1434T combination tool for Jet-Air III hydrotherapy fittings Hayward Combination Tool for Jet-Air III Hydrotherapy Fittings, SP1434T$1599 Waterway 670-2300 Top Flo 3/8 inch air injector Waterway 3/8" Top Flo Air Injector, 670-2300$1099 Life Essentials LST600 deluxe adjustable spa tray table Life Essentials Deluxe Adjustable Spa Tray Table, LST600$6599

Product details

The Ultra 9000 is Air Supply of the Future part 3910131, a 1 HP spa blower running on 120 volts and drawing 6.0 amps. It is intended for OEM installs and portable spas.

The noise problem

A blower sits close to the bather and its noise travels through the spa shell as much as through the air. The Ultra 9000 answers that with a rubber motor mount, which stops motor vibration from being transmitted into the cabinet and the shell.

Why blowers fail

Most blower failures start at the intake, when a small object or a handful of debris gets pulled into the housing. The Ultra 9000 intake manifold was redesigned to prevent that, which is the single biggest change from earlier blowers.

Fitting and variants

The connection is a tapered slip fitting, so the plumbing joint is made up without glue or a clamp. Note that the source data lists the fitting as both 2 inch and 2.5 inch, so measure before you order. The Ultra 9000 line is also built in 3 speed and heater versions, so check which one your spa pack expects.

Specifications
Brand Air Supply of the Future
Manufacturer part number 3910131
Type Spa air blower
Horsepower 1 HP
Voltage 120V
Amperage 6.0 amps
Fitting Tapered slip fitting, listed as 2 inch in the product name and as 2.5 inch in the listing title
Motor mount Rubber, for noise and vibration control
Part numbers referenced 3910120, 3910120F, 3910131
Application OEM and portable spas
Shipping weight 6 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Air Supply of the Future

Air Supply of the Future Cyclone Pro 4128100 3HP pool line blower and liner vac Air Supply of the Future Cyclone Pro 3HP Pool Line Blower and Liner Vac, 120V 2-Stage for Winterizing Pools, 4128100$42499 Air Supply of the Future Silencer air blower, 2HP 240V, part 6320241 Air Supply of the Future Silencer Air Blower, 2HP, 240V, 5.0 Amps, 6320241$23099 Air Supply of the Future 1112500 clear PVC union check valve for blowers Air Supply of the Future 2" Clear Check Valve for Blowers, 1112500$2799 Air Supply of the Future Silencer air blower, 2.0 HP 120V, part 6320141 Air Supply of the Future Silencer Air Blower, 2.0HP, 120V, 11.0 Amps, 6320141$22399 Air Supply of the Future Silencer air blower, 1HP 240V Air Supply of the Future Silencer Air Blower, 1HP, 240V, 2.5 Amps, 6310241$18099 Air Supply of the Future Silencer air blower, 1.5HP 240V, part 6315241 Air Supply of the Future Silencer Air Blower, 1.5HP, 240V, 4.0 Amps, 6315241$20299 Air Supply of the Future Silencer 1.5 HP 120V air blower Air Supply of the Future Silencer Air Blower, 1.5 HP, 120V, 8.0 Amps, 6315141$18799 Air Supply of the Future 2510231 spa air blower, 1 HP 240V Air Supply of the Future 1 HP 240V 2.4A Max Spa Air Blower 2510231$13499 Air Supply of the Future Astro Blower 1.5HP, 120V | 6715101 Air Supply of the Future Astro Blower 1.5HP, 120V | 6715101$18399 Air Supply of the Future Ultra 9000 Blower 1HP, 240V - 3910220F 3910231 | 3910220 Air Supply of the Future Ultra 9000 Blower 1HP, 240V - 3910220F 3910231 | 3910220$12099
Air Supply of the Future Astro Blower 1.5HP, 240V | 6715201 Air Supply of the Future Astro Blower 1.5HP, 240V | 6715201$22199 Air Supply of the Future Blower Motor | 1HP 240V 3.5 AMPS | 3010201 Air Supply of the Future Blower Motor | 1HP 240V 3.5 AMPS | 3010201$10399 Air Supply of the Future Pool Liner Inlet Tube 4in x 5ft Vac Hose | 440456 Air Supply of the Future Pool Liner Inlet Tube 4in x 5ft Vac Hose | 440456$7499

Questions and answers

What people ask about this product, answered by our pool techs.

What size is the fitting?
The source data is not consistent. The product name gives a 2 inch tapered slip fitting and the listing title gives 2.5 inch. Measure the connection on the blower you are replacing before you order.
Do I need glue or a clamp to connect it?
No. A tapered slip fitting is designed to seal on the taper alone, which is one less thing to cut apart at the next service.
Why would this be quieter than the blower it replaces?
Two reasons. The motor is carried on a rubber mount that soaks up vibration, and the intake manifold was redesigned as part of the Ultra 9000 update.
What usually kills a spa blower?
Debris pulled in through the intake. The Ultra 9000 intake manifold was redesigned specifically to stop small objects reaching the blower.
