Air Supply of the Future 1112500 clear PVC union check valve for blowersAir Supply of the Future 2" Clear Check Valve for Blowers, 1112500 In stock$2899

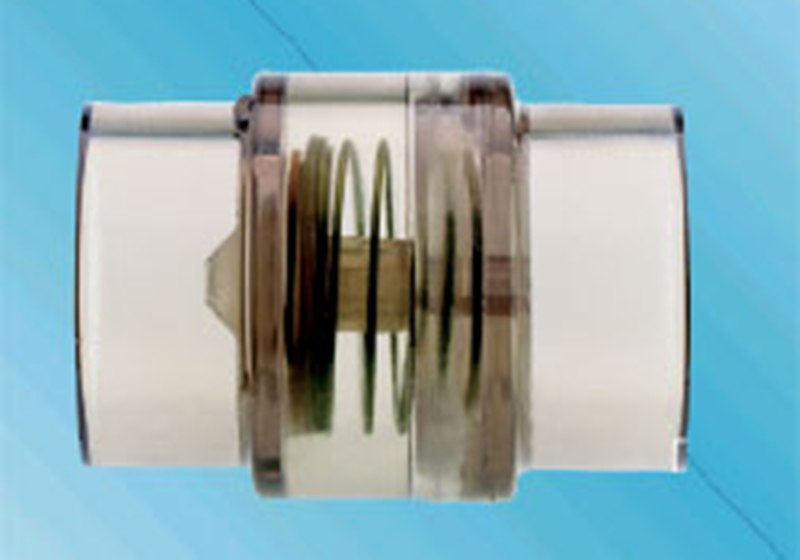

Air Supply of the Future 1112500 clear PVC union check valve for blowers
Shop all Air Supply of the Future

Air Supply of the Future 2" Clear Check Valve for Blowers, 1112500

Ask a questionMPN 1112500
$2899
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Clear PVC body You can see the valve working, which makes checking it a glance rather than a teardown.
  • Drip proof seal Seals against air leakage so the blower keeps working the way it should.
  • Dome shaped spring A 1/4 lb. dome shaped spring for balanced, even airflow.
  • Stainless steel spring An Underwriters Recognized stainless steel spring, chosen for life in wet air.
  • Union connection A union check valve, so it comes apart for service without cutting pipe.
  • Fitment Air Supply lists it for 1 1/2" IPS and 2" O.D. spigot.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Air Supply of the Future 2" Clear Check Valve for Blowers, 1112500, SKU AIR-851-8016. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Air Supply of the Future 2" Clear Check Valve for Blowers, 1112500
Air Supply of the Future

2" Clear Check Valve for Blowers, 1112500

$2899
Air Supply of the Future Cyclone Pro 3HP Pool Line Blower and Liner Vac, 120V 2-Stage for Winterizing Pools, 4128100
Air Supply of the Future

Cyclone Pro 3HP Pool Line Blower and Liner Vac, 120V 2-Stage for Winterizing Pools, 4128100

$37196
Air Supply of the Future Silencer Air Blower, 2HP, 240V, 5.0 Amps, 6320241
Air Supply of the Future

Silencer Air Blower, 2HP, 240V, 5.0 Amps, 6320241

$23799
Air Supply of the Future Ultra 9000 Blower, 1 HP 120V 6.0 Amps, 3910131
Air Supply of the Future

Ultra 9000 Blower, 1 HP 120V 6.0 Amps, 3910131

$14299
Air Supply of the Future 1 HP 240V 2.4A Max Spa Air Blower 2510231
Air Supply of the Future

1 HP 240V 2.4A Max Spa Air Blower 2510231

$13899
Air Supply of the Future Blower Motor | 1HP 240V 3.5 AMPS | 3010201
Air Supply of the Future

Blower Motor | 1HP 240V 3.5 AMPS | 3010201

$10699
Air Supply of the Future Astro Blower 1.5HP, 240V | 6715201
Air Supply of the Future

Astro Blower 1.5HP, 240V | 6715201

$22899
Subtotal

Similar products

Other products people compare with this one.

SuperPro 25098-000-000 1 in. S white air control assembly for gunite and fiberglass spas SuperPro 1" S White Air Control Assembly for Gunite/Fiberglass Spa, 25098-000-000$2299 Hayward SP1434T combination tool for Jet-Air III hydrotherapy fittings Hayward Combination Tool for Jet-Air III Hydrotherapy Fittings, SP1434T$1599 Hayward SP1434PAKA Jet Air III body with 1-1/2 inch by 1-1/2 inch connections Hayward Jet Air III Body 1-1/2" x 1-1/2", SP1434PAKA$3099 CMP 25594-150-000 spa jet body assembly with 1-1/2 inch water and 1 inch air sockets CMP Spa Jet 1-1/2" Water by 1" Air, 25594-150-000$1699 Tecmark PT13130-02 brown Tri Delta raised cone mushroom air button Tecmark Brown Mushroom Air Button, PT13130-02$3599 Balboa Instruments White Air Control Assembly .5" | 10-2200WHT Balboa Instruments White Air Control Assembly .5" | 10-2200WHT$2299 Waterway WATERWAYS AIR CONTROL "A" STYLE GRAY | 660-3407 Waterway WATERWAYS AIR CONTROL "A" STYLE GRAY | 660-3407$2499 Waterway WATERWAYS 1" TOP ACCESS AIR CONTROL | 660-3570 Waterway WATERWAYS 1" TOP ACCESS AIR CONTROL | 660-3570$2399 Waterway 3-15-0141 Designer Touch air button trim kit in Biscuit Waterway Designer Touch Air Button Trim Kit, Biscuit, 3-15-0141$1682 Balboa 10-3955 white slimline escutcheon and eyeball Balboa Slimline Escutcheon and Eyeball White 10-3955, 10-3955WHT$1499
Waterway 229-8127 thread-in 5-scallop twin roto Poly Storm gunite jet internal in gray Waterway Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127$2099 CMP Spa Master 25580-090-000 white 2-1/2 inch gunite jet body with niche CMP Spa Master 2-1/2" White Gunite Jet Body with Niche, 25580-090-000$2699 Waterway 210-6087 Polyjet standard adjustable deluxe internal, gray Waterway Polyjet Internal Standard Adjustable Deluxe, Gray, 210-6087$3599 Waterway 229-8120 5-scallop twin roto thread in Poly Storm gunite jet internals in white Waterway 5-Scallop Twin Roto Thread In Poly Storm Gunite Jet Internals, White, 229-8120$1799 CMP 25591-217-000 Spa Master scalloped directional jet internal in dark gray CMP Spa Master Scalloped Directional Jet Internal, Gunite Dark Gray, 25591-217-000$1699 Waterway 210-6070B deluxe adjustable scalloped pulsator Poly Jet internal, white Waterway Deluxe Adjustable Scalloped Pulsator Poly Jet Internal, 210-6070B$3799 Waterway 229-8050 Poly Storm directional 5-scallop white jet internal Waterway Poly Storm Gunite Jet Internal, Directional 5-Scallop White, 229-8050$1599 Balboa 56-5215WHT Convertassage wall fitting with bearing in white Balboa Convertassage Wall Fitting with Bearing, White, 56-5215WHT$1899 HydroQuip 80-11774-K J/J/L/W/M/C spa control panel overlay Balboa HydroQuip J/J/L/W/M/C Control Panel Overlay, 80-11774-K$2899 Balboa 16-5230WHT Micro'ssage grill and flow path assembly, white Balboa Micro'ssage Grill and Flow Path Assembly, White, 16-5230WHT$3199

Product details

The Air Supply of the Future 1112500 is a union check valve for spa blowers, built with a clear PVC body so the valve can be inspected without opening it up.

Why a blower needs one

A blower pushes air into the spa, and without a one way valve in the line, water finds its way back up the pipe toward the blower when the air stops. That is how blowers die. The check valve is the cheap part that stands between the water and the expensive one.

How it is built

The seal is drip proof, which keeps air from leaking out of the line, and the spring is a 1/4 lb. dome shape chosen to give balanced, even airflow rather than a hard snap. That spring is Underwriters Recognized stainless steel, so it holds up in the warm, wet air a blower line carries.

Fitment

Air Supply lists the valve for 1 1/2 inch IPS and 2 inch O.D. spigot, and the union connection means it can be taken off for service without cutting into the pipe. Measure the plumbing you are joining before ordering.

Specifications
Brand Air Supply of the Future
Manufacturer part number 1112500
Type Union check valve for blowers
Body Clear PVC
Seal Drip proof
Spring 1/4 lb. dome shaped, Underwriters Recognized stainless steel
Fit 1 1/2" IPS, 2" O.D. spigot
Shipping weight 0.45 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Air Supply of the Future

Air Supply of the Future Cyclone Pro 4128100 3HP pool line blower and liner vac Air Supply of the Future Cyclone Pro 3HP Pool Line Blower and Liner Vac, 120V 2-Stage for Winterizing Pools, 4128100$37196 Air Supply of the Future Silencer air blower, 2HP 240V, part 6320241 Air Supply of the Future Silencer Air Blower, 2HP, 240V, 5.0 Amps, 6320241$23799 Air Supply of the Future Silencer air blower, 2.0 HP 120V, part 6320141 Air Supply of the Future Silencer Air Blower, 2.0HP, 120V, 11.0 Amps, 6320141$23099 Air Supply of the Future Silencer air blower, 1HP 240V Air Supply of the Future Silencer Air Blower, 1HP, 240V, 2.5 Amps, 6310241$18699 Air Supply of the Future Silencer air blower, 1.5HP 240V, part 6315241 Air Supply of the Future Silencer Air Blower, 1.5HP, 240V, 4.0 Amps, 6315241$17999 Air Supply of the Future Ultra 9000 spa blower, part 3910131, angled view Air Supply of the Future Ultra 9000 Blower, 1 HP 120V 6.0 Amps, 3910131$14299 Air Supply of the Future Silencer 1.5 HP 120V air blower Air Supply of the Future Silencer Air Blower, 1.5 HP, 120V, 8.0 Amps, 6315141$19299 Air Supply of the Future 2510231 spa air blower, 1 HP 240V Air Supply of the Future 1 HP 240V 2.4A Max Spa Air Blower 2510231$13899 Air Supply of the Future Astro Blower 1.5HP, 120V | 6715101 Air Supply of the Future Astro Blower 1.5HP, 120V | 6715101$18999 Air Supply of the Future Ultra 9000 Blower 1HP, 240V - 3910220F 3910231 | 3910220 Air Supply of the Future Ultra 9000 Blower 1HP, 240V - 3910220F 3910231 | 3910220$12499
Air Supply of the Future Astro Blower 1.5HP, 240V | 6715201 Air Supply of the Future Astro Blower 1.5HP, 240V | 6715201$22899 Air Supply of the Future Blower Motor | 1HP 240V 3.5 AMPS | 3010201 Air Supply of the Future Blower Motor | 1HP 240V 3.5 AMPS | 3010201$10699 Air Supply of the Future Pool Liner Inlet Tube 4in x 5ft Vac Hose | 440456 Air Supply of the Future Pool Liner Inlet Tube 4in x 5ft Vac Hose | 440456$7699

Questions and answers

What people ask about this product, answered by our pool techs.

What does a blower check valve do?
It lets air travel one way, from the blower into the spa, and stops water traveling back the other way into the blower.
What size plumbing does it take?
Air Supply lists it for 1 1/2 inch IPS and 2 inch O.D. spigot. The listing title calls it a 2 inch valve, so measure the pipe you are connecting to before ordering.
Why is the body clear?
So the valve can be inspected without being taken apart. If it is stuck or fouled you can usually see it.
What is the spring made of?
Stainless steel, Underwriters Recognized, in a 1/4 lb. dome shape for even airflow.
Ask your own question
