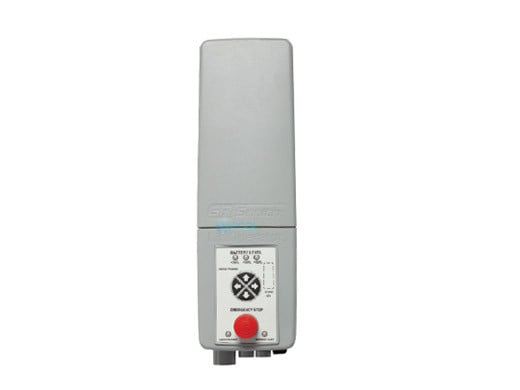

S.R. Smith 400-7000-BC LiftOperator Intelligent 4 button control box, BC versionS.R. Smith LiftOperator Intelligent 4 Button Control Box, BC Version, 400-7000-BC In stock$52412
S.R. Smith 400-7000-BC LiftOperator Intelligent 4 button control box, BC version
Shop all S.R. Smith

S.R. Smith LiftOperator Intelligent 4 Button Control Box, BC Version, 400-7000-BC

Ask a questionMPN 400-7000-BC
$52412
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • BC version The CEC compliant 4 button LiftOperator control box, not the standard 400-7000.
  • Standard version The standard 400-7000 is the 4 button control in the PAL2 and PAL2 Hi/Lo parts lists.
  • Touchpad Four arrows on the box: up, down, left and right.
  • Order by serial S.R. Smith asks for the lift serial number when BC parts are replaced.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About S.R. Smith LiftOperator Intelligent 4 Button Control Box, BC Version, 400-7000-BC, SKU PSU-168162. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item S.R. Smith LiftOperator Intelligent 4 Button Control Box, BC Version, 400-7000-BC
S.R. Smith

LiftOperator Intelligent 4 Button Control Box, BC Version, 400-7000-BC

$52412
S.R. Smith Linak Battery Charger for aXs, PAL and Splash Lifts, 100-3500
S.R. Smith

Linak Battery Charger for aXs, PAL and Splash Lifts, 100-3500

$17999
S.R. Smith New Style Battery Charger for Multilift, PAL, Splash and aXs Pool Lifts, 1001530
S.R. Smith

New Style Battery Charger for Multilift, PAL, Splash and aXs Pool Lifts, 1001530

$17099
S.R. Smith Lift-Operator New Style Battery for multiLift, PAL, Splash! and aXs Pool Lifts, 1001495
S.R. Smith

Lift-Operator New Style Battery for multiLift, PAL, Splash! and aXs Pool Lifts, 1001495

$37299
S.R. Smith Lift-Operator Old Style Battery for PAL, Splash! and aXs Pool Lifts, 100-2000
S.R. Smith

Lift-Operator Old Style Battery for PAL, Splash! and aXs Pool Lifts, 100-2000

$41899
S.R. Smith

LiftOperator Control Box Cover for S.R. Smith Pool Lifts, Tan, 910-1000T

$9799

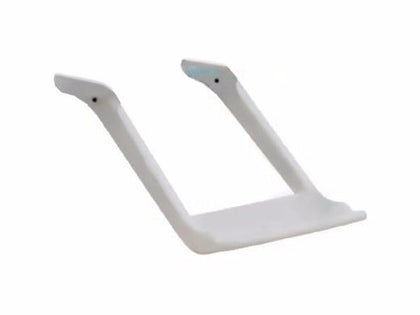

S.R. Smith Pool Lift Footrest with Hardware for Splash!, aXs2 and PAL, Gray, 160-2300A
S.R. Smith

Pool Lift Footrest with Hardware for Splash!, aXs2 and PAL, Gray, 160-2300A

$10861
Subtotal

Similar products

Other products people compare with this one.

S.R. Smith LiftOperator 24 V CEC Compliant Battery, BC Version for Pool Lifts, 1001495-BC-R$45299 S.R. Smith 120-1100 24 V rotation motor for PAL2, Splash! and PAL pool lifts S.R. Smith 24 V Rotation Motor for PAL2, Splash! and PAL Pool Lifts, 120-1100$45267

Product details

The S.R. Smith 400-7000-BC is the LiftOperator Intelligent 4 button control box in the CEC compliant BC version.

Why the BC version

Since January 2, 2018, S.R. Smith lifts bound for California use the CEC compliant BC versions of the LiftOperator battery, charger and control box, and those BC parts do not interchange with the standard LiftOperator parts. The standard 4 button control, 400-7000, is the one named in the PAL2 and PAL2 Hi/Lo parts lists. The BC box is not named in the owner manual parts lists, so match it to your lift by serial number. Check the lift serial number before you order a battery, charger or control box. The aXs2 has its own BC controller, 400-7000AX-BC.

What the LiftOperator does

In the S.R. Smith manuals, the LiftOperator control box runs every movement of the lift and its touchpad arrows match the 4 button hand control: up, down, left and right. The battery pack sits on top, and battery level LEDs show green, amber or red. The red emergency stop button halts all movement and sounds an alert until it is turned to reset. If a lift will not move on a second fully charged battery, the manuals say to replace the control box.

From Pool School

Pool Lift Battery, Maintenance and Winter StorageCharging, swapping and storing the battery, what fails first, and winter storage. Read Which Pool Lift Fits Your PoolEnter the setback, draft and wall height. See which lifts reach your water. Read
Specifications
Brand S.R. Smith
Model LiftOperator Intelligent Control Box, BC, 4 Button
Manufacturer part number 400-7000-BC
Fits Not named in the S.R. Smith parts lists; confirm by lift serial number
Type LiftOperator Intelligent control box, CEC compliant BC version
Buttons 4
Not interchangeable with Standard LiftOperator parts, including 400-7000
Shipping weight 1.55 lb

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From S.R. Smith

A white diving board at the edge of a backyard pool. Pool better. S.R. Smith

S.R. Smith lighting

S.R. Smith Treo 5W LED Color Changing RGB Light, 80' Cord, FLED-C-TR S.R. Smith 60W 6 Amp Single Zone LED Light Control Power Tower, PT-6001 S.R. Smith RGB Treo LED Pool Light 12V, 30' Cord, FLED-C-TR-30 S.R. Smith WIRTRAN Control System with 3 Treo Color LED | 3TR-WIRTRAN
Shop S.R. Smith equipment

S.R. Smith parts

S.R. Smith Cantilever Steel Jump Stand with Jig, Radiant White, 69-209-001 S.R. Smith 6' White Spring Assembly for 606 Cantilever Jump Stand, 69-209-026 S.R. Smith 5W Replacement RGB LED Lamp, 12VAC, FLED-LAU-C S.R. Smith 18" Commercial Mounting Kit, 67-209-903-SS
Shop S.R. Smith parts
Pool slides: a curved slide set into a rock waterfall beside a backyard poolDiving boards: a white diving board over a backyard pool
S.R. Smith makes pool slides, diving boards, ladders, rails, in-pool furniture and pool lighting.Shop all S.R. Smith

Customer reviews

Questions and answers

What people ask about this product, answered by our pool techs.

What is the difference between 400-7000-BC and 400-7000?
Since January 2, 2018, S.R. Smith lifts bound for California use the CEC compliant BC versions of the LiftOperator battery, charger and control box, and those BC parts do not interchange with the standard LiftOperator parts. The standard 400-7000 is the 4 button control in the PAL2 and PAL2 Hi/Lo parts lists.
Which lift is the 400-7000-BC for?
None of the owner manual parts lists here name 400-7000-BC, so match it to your lift by serial number before ordering. The aXs2 has its own BC controller, 400-7000AX-BC.
How do I know the control box has failed?
The S.R. Smith troubleshooting steps say to try a second fully charged battery. If the lift still does nothing, replace the control box.
