S.R. Smith 24 V Rotation Motor for PAL2, Splash! and PAL Pool Lifts, 120-1100 In stock$45267
S.R. Smith 24 V Rotation Motor for PAL2, Splash! and PAL Pool Lifts, 120-1100
30 day returns · Easy, with prepaid labels provided
Quick overview
- Job Turns the lift left and right, while the actuator handles the up and down travel.
- Fit Named in the parts lists for the PAL2, PAL2 Hi/Lo, every Splash! model and the CEC compliant PAL and PAL Hi/Lo and Spa.
- Rating 24 V DC, 13 RPM, with a 9:1 gearing ratio.
- Assembly Sits on the motor mount assembly 120-1000 and drives through the small gear 800-5065.
- Not for aXs2 The aXs2 parts list calls for a different motor, 120-2100A.
Need a hand?
Similar products
Other products people compare with this one.
Product details

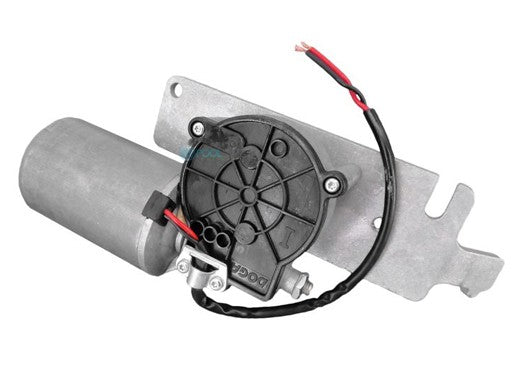

The S.R. Smith 120-1100 is the 24 V DC motor that rotates the seat on PAL2, Splash! and PAL pool lifts. The actuator raises and lowers the seat; this motor turns it toward the water and back.
Where it fits
The manufacturer parts lists name 120-1100 for the PAL2 and PAL2 Hi/Lo, the Splash!, Splash! 300, Splash! Hi/Lo and Spa, Splash! Extended Reach and Extended Reach Hi/Lo, and the CEC compliant PAL and PAL Hi/Lo and Spa. On these lifts the rotation motor assembly is a mounting plate, this 24 V motor and the small gear 800-5065, with the mount listed as 120-1000. The aXs2 is the exception: its parts list calls for motor 120-2100A.
Rating and wiring
S.R. Smith rates the rotation at 24 V DC and 13 RPM with a 9:1 gearing ratio. The motor cable has a red stripe and plugs into connector 1 on the bottom of the LiftOperator control box.
Diagnosing a lift that will not turn
Charge the battery fully first. If the lift rises and lowers but will not rotate, check the plug and the cable, then try the arrows on the control box. Swapping the motor and actuator cables at connectors 1 and 2 shows whether the fault is in the hand control or in the 24 V motor. The part is also listed as 120-1100-R.
From Pool School
Pool Lift Battery, Maintenance and Winter StorageCharging, swapping and storing the battery, what fails first, and winter storage. Read Which Pool Lift Fits Your PoolEnter the setback, draft and wall height. See which lifts reach your water. ReadWhere this part goes
4
Key 4 on the S.R. Smith PAL2: Detail A, motor mount assemblyFits every model in the drawing.See it on the diagramAll S.R. Smith PAL2 Pool Lift Parts 23 parts and the drawing
7
Key 7 on the S.R. Smith Splash! Pool LiftFits every model in the drawing.See it on the diagramAll S.R. Smith Splash! Pool Lift Parts 24 parts and the drawing
| Brand | S.R. Smith |
|---|---|
| Model | 24v Motor |
| Manufacturer part number | 120-1100 |
| Fits | PAL2, Splash!, PAL |
| Type | Rotation motor |
| Voltage | 24 V DC |
| Rotation speed | 13 RPM |
| Gearing ratio | 9:1 |
| Related parts | Motor mount assembly 120-1000, small gear 800-5065 |
| Not for | aXs2, which uses motor 120-2100A |
| Also listed as | 120-1100-R |
| Shipping weight | 3 lb |
