Pleatco PJANCS200-4 200 square foot replacement cartridge for Jandy CS200Pleatco Cartridge Filter, 200 sq ft, for Jandy CS200, PJANCS200-4$19099

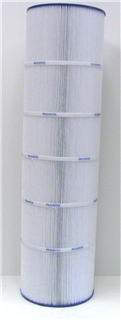

Pleatco PJANCS200-4 200 square foot replacement cartridge for Jandy CS200
Shop all Pleatco

Pleatco Cartridge Filter, 200 sq ft, for Jandy CS200, PJANCS200-4

Ask a questionMPN PJANCS200-4
$19099
Out of stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • For the Jandy CS200 Sized as the replacement element for the Jandy CS series 200 square foot filter.
  • 200 square feet Full rated cartridge area, so the filter runs at the capacity it was designed for.
  • Measured 8-15/16 in. outside diameter by 33-1/8 in. long.
  • Pleatco built Pleatco makes replacement elements to the dimensions of the original cartridge.
  • Restores flow A cartridge that no longer rinses clean drives pressure up and flow down, and no amount of cleaning brings it back.
  • Check the whole set Multi cartridge filters should have all elements replaced together so they load evenly.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pleatco Cartridge Filter, 200 sq ft, for Jandy CS200, PJANCS200-4, SKU PLE-051-9472. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pleatco Cartridge Filter, 200 sq ft, for Jandy CS200, PJANCS200-4
Pleatco

Cartridge Filter, 200 sq ft, for Jandy CS200, PJANCS200-4

$19099
Pleatco 7-1/8" Diameter 115 Sq Ft Advanced Ultra Filter Cartridge for Jandy CL460, 4-Pack, X15-ULT-A9-Q4
Pleatco

7-1/8" Diameter 115 Sq Ft Advanced Ultra Filter Cartridge for Jandy CL460, 4-Pack, X15-ULT-A9-Q4

$32399
Pleatco 7 in. Diameter 130 Sq Ft Advanced Ultra Replacement Filter Cartridge 4 Pack, Clean & Clear Plus CCP520, X15-ULT-A7-Q4
Pleatco

7 in. Diameter 130 Sq Ft Advanced Ultra Replacement Filter Cartridge 4 Pack, Clean & Clear Plus CCP520, X15-ULT-A7-Q4

$27899
Pleatco 7 in. Diameter 320 sq ft Advanced Ultra Replacement Filter Cartridge 4 Pack for Pentair Clean & Clear Plus 320 CCP320, X15-ULT-A5-Q4
Pleatco

7 in. Diameter 320 sq ft Advanced Ultra Replacement Filter Cartridge 4 Pack for Pentair Clean & Clear Plus 320 CCP320, X15-ULT-A5-Q4

$24299
Pleatco Advanced Ultra Xtreme Blue A1 C4025/C4030 Filter Cartridge, X15-ULT-A1-M
Pleatco

Advanced Ultra Xtreme Blue A1 C4025/C4030 Filter Cartridge, X15-ULT-A1-M

$12499
Pleatco PJAN115 115 Sq Ft Filter Cartridge for Jandy CL 460
Pleatco

PJAN115 115 Sq Ft Filter Cartridge for Jandy CL 460

$11399
Pleatco 520 Sq Ft Filter Cartridge Pack, Clean and Clear Plus 520, Crystal Water, PCC130-PAK4
Pleatco

520 Sq Ft Filter Cartridge Pack, Clean and Clear Plus 520, Crystal Water, PCC130-PAK4

$40099
Subtotal

Similar products

Other products people compare with this one.

Pleatco PJAN145 145 sq ft replacement filter cartridge for the Jandy CL 580 Pleatco 145 sq ft Filter Cartridge for Jandy CL 580, PJAN145$10199 Web Price Unicel C-7482 145 sq ft replacement filter cartridge for Jandy CL580 Unicel Filter Cartridge Replacement, 145 Sq Ft for Jandy CL580, C-7482$12299 Unicel C-8410 100 sq ft filter cartridge for the Jandy CS100 Unicel Filter Cartridge, 100 Sq Ft, for Jandy CS100, C-8410$10499 Pleatco PAP100-4 100 square foot filter cartridge for Predator 100 and Clean & Clear 100 Pleatco 100 Sq Ft Filter Cartridge for Predator 100 and Clean & Clear 100, PAP100-4$11199 Unicel Filter Cartridges Replacement Cartridge for Clean & Clear Predator 200 Sq Ft Filter | C-9419 Unicel Filter Cartridges Replacement Cartridge for Clean & Clear Predator 200 Sq Ft Filter | C-9419$17699 Filbur Replacement Cartridge for CS Series 200 Sq Ft Cartridge Filter | FC-0823 Filbur Replacement Cartridge for CS Series 200 Sq Ft Cartridge Filter | FC-0823$17099 Hayward CX2020RE cartridge element for C2002 Star-Clear filter Hayward 200 sq ft Cartridge Element for C2002 Star-Clear Filter, CX2020RE$20099 AquaStar 200 sq ft replacement cartridge for the PLF27000 Pipeline filter AquaStar Cartridge Replacement for PLF27000 Pipeline Filter, 200 Sq Ft, PF27000$14999 Pentair R173216 150 sq ft cartridge filter element for Clean & Clear 150 and Predator 150 Pentair 150 sq ft Cartridge Filter Element for Clean & Clear CC150 and Predator Pool Filters, R173216$18899 AquaStar PF27CART 200 sq ft replacement cartridge for the PipeLine PF27000 filter AquaStar Pipeline 200 Sq Ft 24 in. Filter Cartridge Replacement, PF27CART$16199
Hayward CX481XREPAK4 replacement filter cartridge element for SwimClear C2030 filters Hayward Replacement Filter Cartridge for C2030 SwimClear Filters, 4 Pack, CX481XREPAK4$24499 Unicel C-7459-4 replacement filter cartridge four pack for the Jandy CL340 Unicel Cartridge Filter, 4 Pack, Jandy CL340, C-7459-4$28499 Jandy R0462200 100 sq ft replacement cartridge element for the CS100 filter Jandy Genuine Parts 100 Sq Ft Replacement Filter Cartridge, CS100, R0462200$17099 Pleatco X15-ULT-A6-M Xtreme Blue A6 replacement filter cartridge for Clean and Clear Plus 420 Pleatco Xtreme Blue A6 CCP420 Single Filter Cartridge, X15-ULT-A6-M$11999 Pentair R173217 200 square foot replacement filter cartridge element Pentair 200 sqft Cartridge Element Replacement for Clean & Clear CC200 and Predator Pool Filters, R173217$23699 Pleatco PFAB150 150 square foot filter cartridge for the PacFab Pentair FMY-150 Pleatco 150 Sq Ft Filter Cartridge, FMY-150, PFAB150$10099 Pleatco PH105-4 105 sq ft filter cartridge for Harmsco Tropic Flo 100 Pleatco 105 Sq Ft Filter Cartridge, Harmsco Tropic Flo 100, BF100SC, PH105-4$12599 Pleatco PA137 137 sq ft pool filter cartridge, angled view Pleatco PA137 Filter Cartridge 137 Sq Ft, CX1380-RE$10499 Pentair 178655Z replacement cartridge for the Quad D.E. 80 filter Pentair Genuine OEM Replacement Cartridge for Quad D.E. 80 Filter, 178655Z$14699 Hayward CX875REM Advantage cartridge element, 450 sq ft Hayward Advantage Cartridge Element for Cartridge Filter, 450 sq ft, CX875REM$15399

Product details

The Pleatco PJANCS200-4 is a 200 square foot replacement filter cartridge for the Jandy CS200 cartridge filter. It measures 8-15/16 in. outside diameter by 33-1/8 in. long.

When to replace

A cartridge is done when cleaning stops working. Early in its life a rinse or a soak brings the filter pressure back to where it started. Later, the pleats stay dull and the pressure climbs again within days, because the media itself is loaded rather than the surface. That is the point to fit a new element instead of cleaning the old one again.

Sizing

Confirm the dimensions against the cartridge you are pulling out. The rated area and the physical size both matter: a shorter or narrower element will not seal correctly against the filter manifold, and water will bypass the media.

Specifications
Brand Pleatco
Manufacturer part number PJANCS200-4
UPC 690164229326
Type Replacement filter cartridge
Square footage 200
Outside diameter 8-15/16"
Length 33-1/8"
Filter manufacturer Jandy
Fits Jandy CS200, listed in the source as both CS-200 and CS 200
Shipping weight 8.8 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pleatco

Pleatco X15-ULT-A9-Q4 Advanced Ultra filter cartridge for Jandy CL460, 4-pack Pleatco 7-1/8" Diameter 115 Sq Ft Advanced Ultra Filter Cartridge for Jandy CL460, 4-Pack, X15-ULT-A9-Q4$32399 Pleatco X15-ULT-A7-Q4 Advanced Ultra 7 in. filter cartridge for Pentair Clean & Clear Plus CCP520, 4 pack Pleatco 7 in. Diameter 130 Sq Ft Advanced Ultra Replacement Filter Cartridge 4 Pack, Clean & Clear Plus CCP520, X15-ULT-A7-Q4$27899 Pleatco PJAN115 115 sq ft filter cartridge for the Jandy CL 460 Pleatco PJAN115 115 Sq Ft Filter Cartridge for Jandy CL 460$11399 Pleatco X15-ULT-A5-Q4 Advanced Ultra filter cartridge, four pack for Pentair Clean & Clear Plus 320 Pleatco 7 in. Diameter 320 sq ft Advanced Ultra Replacement Filter Cartridge 4 Pack for Pentair Clean & Clear Plus 320 CCP320, X15-ULT-A5-Q4$24299 Pleatco X15-ULT-A1-M Advanced Ultra Xtreme Blue A1 filter cartridge for Hayward C4025 and C4030 Pleatco Advanced Ultra Xtreme Blue A1 C4025/C4030 Filter Cartridge, X15-ULT-A1-M$12499 Pleatco PH105-4 105 sq ft filter cartridge for Harmsco Tropic Flo 100 Pleatco 105 Sq Ft Filter Cartridge, Harmsco Tropic Flo 100, BF100SC, PH105-4$12599 Pleatco PA90 90 sq. ft. replacement filter cartridge for Hayward Star-Clear Plus C-900 and Sta-Rite PXC-95 Pleatco Cartridge Filter, 90 Sq. Ft., PA90$6999 Pleatco PCC130-PAK4 520 sq ft filter cartridge pack Pleatco 520 Sq Ft Filter Cartridge Pack, Clean and Clear Plus 520, Crystal Water, PCC130-PAK4$40099 Pleatco PA120 120 sq ft replacement filter cartridge for Hayward Star Clear Plus C1200 Pleatco Cartridge Filter, 120 Sq Ft, PA120$11399 Pleatco PA137 137 sq ft pool filter cartridge, angled view Pleatco PA137 Filter Cartridge 137 Sq Ft, CX1380-RE$10499
Pleatco PFAB150 150 square foot filter cartridge for the PacFab Pentair FMY-150 Pleatco 150 Sq Ft Filter Cartridge, FMY-150, PFAB150$10099 Pleatco PA50 50 sq ft pool filter cartridge Pleatco 50 Sq Ft Filter Cartridge, Star-Clear C500, Pentair Purex CF-50, PA50$6499 Pleatco X15-PCC130 130 square foot filter cartridge for Pentair Clean and Clear Plus 520 Pleatco 130 Sq Ft Filter Cartridge, Clean & Clear Plus 520, X15-PCC130$13299 Pleatco PWW50L 50 sq ft filter cartridge for Waterway Teleweir Pleatco PWW50L 50 Sq Ft Filter Cartridge for Waterway Teleweir$3699 Pleatco PSR137 replacement cartridge for Sta-Rite Posi-Flo II PTM-135 Pleatco Cartridge PTM-135 Posi-Flo II, PSR137$12399 Pleatco PA40 40 sq ft filter cartridge for Hayward C-410 and Easy Clear C400 Pleatco 40 Sq Ft Filter Cartridge, C-410, Easy Clear C400, PA40$4599 Pleatco PCS75N 75 sq ft replacement filter cartridge for Coleman Spas Pleatco 75 sq ft Filter Cartridge for Coleman Spas, PCS75N$7599 Pleatco PJAN145 145 sq ft replacement filter cartridge for the Jandy CL 580 Pleatco 145 sq ft Filter Cartridge for Jandy CL 580, PJAN145$10199 Web Price Pleatco PAP100-4 100 square foot filter cartridge for Predator 100 and Clean & Clear 100 Pleatco 100 Sq Ft Filter Cartridge for Predator 100 and Clean & Clear 100, PAP100-4$11199 Pleatco PCC60 60 sq ft pool filter cartridge Pleatco 60 sq ft Filter Cartridge, Clean & Clear Plus 240, American Quantum, PCC60$7599

Questions and answers

What people ask about this product, answered by our pool techs.

Which filter does this cartridge fit?
The Jandy CS series 200 square foot cartridge filter. The source writes the model as CS-200, CS200 and CS 200, which are the same filter.
What size is it?
8-15/16 in. outside diameter by 33-1/8 in. long, with 200 square feet of cartridge area.
How often should a cartridge be replaced?
When cleaning no longer restores the pressure. Once the pleats stay grey and the filter climbs back to high pressure soon after a rinse, the media is loaded and the element is finished.
Should I replace all cartridges at once?
In a multi element filter, yes. Mixing a new cartridge with worn ones sends most of the flow through the clean element and it loads up quickly.
Ask your own question
