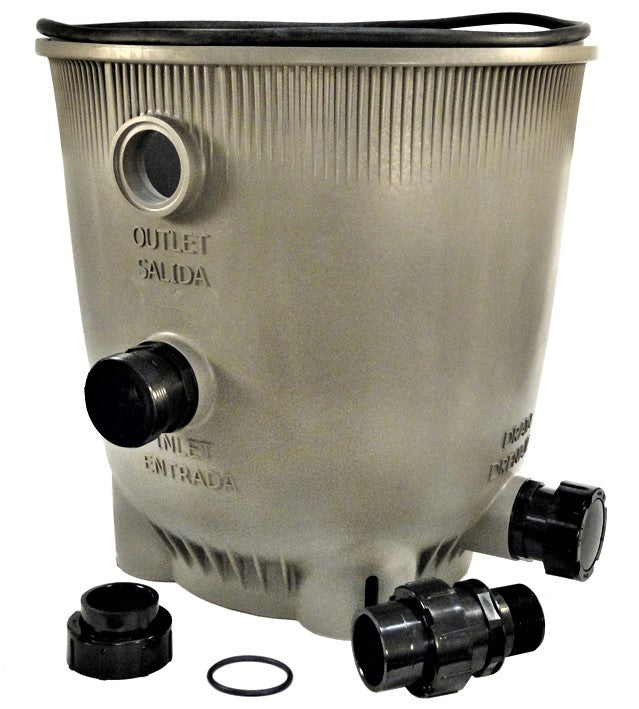

Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ringJandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500 In stock$69499
Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring
Shop all Jandy

Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500

Ask a questionMPN R0466500
$69499
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Complete lower half the tank bottom arrives with the bulkhead fitting, unions with o-rings, outlet elbow, tank o-ring and tank retaining ring.
  • Fits CL and DEV a direct replacement on Jandy CL cartridge filters and DEV series DE filters.
  • Genuine Jandy OEM part R0466500, molded to match the original tank top and clamp ring.
  • New unions in the box fresh unions with o-rings mean the plumbing connections seal on the first fill.
  • DEL and CV owners take note those older tanks fit, but need plumbing changes and, on DEL, a new multiport valve.
  • Fresh tank o-ring the seal between the halves is included, so the rebuild does not reuse a tired one.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500, SKU TLD-051-5048. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Jandy

Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500

$69499
Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200
Jandy

Genuine Replacement Gauge with Air Release Assembly, R0357200

$8299
Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80
Jandy

2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80

$32799
Jandy CV Series Cartridge Filter Tank Top R0554700
Jandy

CV Series Cartridge Filter Tank Top R0554700

$53899
Jandy Top Housing Assembly CS100, CS150, R0461900
Jandy

Top Housing Assembly CS100, CS150, R0461900

$33699
Jandy Tank Body O-Ring, R0357800
Jandy

Tank Body O-Ring, R0357800

$6399
Jandy Genuine OEM Manifold Assembly for DEV48/60 and DEL48/60 DE Filters, R0359000
Jandy

Genuine OEM Manifold Assembly for DEV48/60 and DEL48/60 DE Filters, R0359000

$12099
Subtotal

Similar products

Other products people compare with this one.

Jandy R0465400 tank bottom assembly for CV340, CV460 and CV580 cartridge filters Jandy Tank Bottom Assembly for CV340/460/580 Filters, R0465400$69999 Jandy R0462900 bottom housing assembly for CS Series cartridge filters Jandy Bottom Housing Assembly for CS Series Cartridge Filters, R0462900$45499 Jandy R0357300 tank top for CL580 and DEL60 filters Jandy Tank Top CL580/DEL60, R0357300$61999 Jandy R0462000 top housing assembly for CS200 and CS250 cartridge filters Jandy Top Housing Assembly CS200, CS250, R0462000$43599 Jandy R0465600 bulkhead assembly with o-ring for CV, CL, DEV and DEL filters Jandy Bulkhead Assembly with O-Ring for CV, CL, DEL and DEV Filters, R0465600$8399 Jandy R0357400 tank clamp ring with rod assembly for CV, CL, DEV and DEL filters Jandy Tank Clamp Ring with Rod Assembly, R0357400$33999 Jandy R0357600 manifold assembly for CL and CV series cartridge filters Jandy Manifold Assembly CL / CV Series Cartridge Filters, R0357600$15199 Jandy R0358800 drain plug with O-ring for DEL series filters Jandy Drain Plug with O-Ring for DEL48/60 Filters, R0358800$7199 Jandy R0462100 inlet diffuser with locking tab for CS Series cartridge filters Jandy Inlet Diffuser with Locking Tab for CS Series Cartridge Filters, R0462100$5199 Jandy SEFL1002 sweep elbow Flowlink with 1/2 inch plug Jandy Sweep Elbow Flowlink with Plug, SEFL1002$3699

Product details

The Jandy R0466500 is the lower tank half for CL series cartridge filters and DEV series DE filters, supplied as a complete assembly rather than a bare shell. The tank bottom comes with its bulkhead fitting, unions with o-rings, outlet elbow, tank o-ring and tank retaining ring, so a cracked or leaking lower tank can be swapped without chasing down the small parts separately.

What you get

Everything that lives below the clamp ring: the molded tank bottom, the bulkhead fitting, both unions with their o-rings, the outlet elbow, the large tank o-ring that seals the two halves, and the retaining ring. The existing tank top, internals and clamp carry over.

Older DEL and CV tanks

This assembly can also replace the bottom on a DEL DE filter or a CV cartridge filter, but not as a straight swap. On a DEL the drain is on the side rather than the back, the plumbing unions must be replaced because the bulkhead fittings are different, and the multiport valve has to be replaced as well because the union threads do not match. On a CV with the inlet on one side and the outlet on the other, the plumbing has to be brought around so that both connect at the front of the tank, inlet at the bottom port and outlet at the top port. The unions in the box are there for that work.

On a current CL or DEV filter, none of that applies: set the new bottom in place, seat the o-ring, drop the internals back in and clamp the top on.

Specifications
Brand Jandy
Manufacturer part number R0466500
UPC 052337061919
Type Filter bottom tank assembly
Fits Jandy CL cartridge filters and DEV series DE filters
Included Tank bottom, bulkhead fitting, unions with o-rings, outlet elbow, tank o-ring, tank retaining ring
DEL and CV models Fit with plumbing modifications; DEL also requires a replacement multiport valve
Shipping weight 44 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Jandy

A swimmer diving from the blocks in a dark pool. Everything you need for the perfect pool. Jandy

Jandy equipment

Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400 Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80 Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Shop Jandy equipment

Genuine Jandy parts

Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800 Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200 Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Shop Jandy parts
Heater parts: a Jandy JXi heaterPump parts: a Jandy VS FloPro variable speed pumpSalt systems: a Jandy AquaPure salt cell
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy

Customer reviews

More from Jandy

Jandy R0693900 TruClear PCB replacement assembly Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator$76799 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$24599 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500 Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$1,22900 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws$23999 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$8299 Jandy R0445800 pump lid and locking ring assembly with o-ring for Stealth and ePump pumps Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$12099
Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$53899 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2699 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$72299 Jandy 4424 JVA 24V valve actuator Jandy Valve Actuator JVA 24V, 4424$23399 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$25699 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$33699 Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$25599 Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$39399 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$43299 Jandy R0357800 tank body o-ring for DEV, DEL, CV and CL series filters Jandy Tank Body O-Ring, R0357800$6399

Questions and answers

What people ask about this product, answered by our pool techs.

Which filters does this tank bottom fit?
It is the direct replacement for the bottom tank on Jandy CL series cartridge filters and DEV series DE filters, including the DEV48 and DEV60.
Does it come with the o-ring and unions?
Yes. The tank o-ring, the unions with their o-rings, the bulkhead fitting, the outlet elbow and the tank retaining ring are all in the box.
Will it work on my older Jandy DEL filter?
It will, but with changes. On the DEL the drain moves from the back of the tank to the side, the plumbing unions have to be replaced because the bulkhead fittings differ, and the multiport valve must be replaced because the union threads are different.
What about a CV cartridge filter with the inlet on one side and the outlet on the other?
You will need to replumb so that both the inlet and the outlet come to the front of the tank, inlet to the bottom port and outlet to the top port. The unions supplied with this tank bottom are for making those connections.
Ask your own question
