Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear viewJandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601 In stock$39399
Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view
Shop all Jandy

Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601

Ask a questionMPN R0445601
$39399
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Jandy original replacement part R0445601, also sold under the Zodiac name.
  • Fits four pump lines Stealth SHPF and SHPM, WaterFall SWF and the ePump JEP variable speed.
  • Unibody design the strainer trap and volute are one molded housing.
  • Male buttress thread ports suction and discharge both use Jandy MBT connections, so existing unions thread straight on.
  • Four tab twist lock lid takes the standard 8-13/16 in. OD Stealth lid.
  • Drain plugs not included order R0446000 drain plugs separately, or move yours over from the old body.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601, SKU TLD-101-2008. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601
Jandy

Pump Body for Stealth SHPF/SHPM Pumps, R0445601

$39399
Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800
Jandy

Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800

$7899
Jandy Lid & Locking Ring Assembly with O-Ring, R0445800
Jandy

Lid & Locking Ring Assembly with O-Ring, R0445800

$12099
Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800
Jandy

Pump Housing Body for FHPM FloPro & VS FloPro, R0479800

$25699
Jandy 2" x 2-1/2" Pump Union Assembly (Set of 2), R0449000
Jandy

2" x 2-1/2" Pump Union Assembly (Set of 2), R0449000

$5099
Jandy Mechanical Seal, 5/8" ID, R0479400
Jandy

Mechanical Seal, 5/8" ID, R0479400

$3599
Jandy 0.5 HP to 3 HP Diffuser with O-Ring and Hardware, R0445400
Jandy

0.5 HP to 3 HP Diffuser with O-Ring and Hardware, R0445400

$8199
Subtotal

Similar products

Other products people compare with this one.

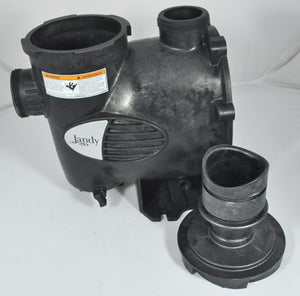

Jandy R0448700 pump body housing for PlusHP PHPF and PHPM pool pumps Jandy Pump Body PHPF/PHPM, R0448700$36799 Jandy R0448701 pump body for MaxHP MHPM and WaterFeature WFTR pumps Jandy Pump Body MHPM, R0448701$38399 Jandy R0807202 impeller kit for Stealth and PlusHP pool pumps Jandy Impeller Kit for Stealth SHPF/SHPM and PlusHP PHPF/PHPM Pumps, R0807202$6299 Jandy R0480100 pump strainer basket for FloPro FHPM and FHP series pumps Jandy Pump Basket for FHPM/FHP Series Pumps, R0480100$3199 SuperPro GOKIT82V-9 Viton gasket and o-ring kit for Jandy SHPF and SHPM Stealth pumps SuperPro Jandy SHPF and SHPM Series Viton Seal Kit, GOKIT82V-9$5099 Jandy R0448900 pump filter basket for PlusHP, MaxHP and WaterFeature pumps Jandy Filter Basket for PHPF/PHPM/MHPM Series Pumps, R0448900$3199 Jandy R0480300 backplate o-ring for FloPro FHPM and VS-FHP series pumps Jandy Backplate O-Ring for FHPM and VS-FHP Series Pumps, R0480300$2399 Jandy R0807200 impeller kit for SHP Stealth and PHP pumps Jandy SHP Stealth and PHP Impeller Kit, 2 HP Full Rated, R0807200$6099 Jandy R0446102 pump union, 2-1/2 inch slip by 3 inch spigot Jandy 2-1/2" Slip x 3" Spigot Pump Unions, 3 HP, R0446102$5899 Jandy R0446101 2 inch by 2.5 inch pump union tail piece Jandy 2" x 2.5" Pump Unions, 0.75 HP to 2.5 HP, R0446101$5799

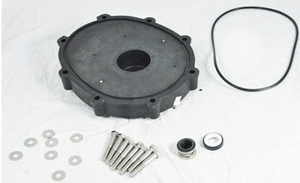

Jandy R0449100 pump lid seal gasket with o-ring Jandy Pump Lid Seal Gasket with O-Ring, R0449100$1999 Jandy R0445200 pump back plate kit with shaft seal, o-ring and hardware Jandy Back Plate Kit, R0445200$18999 Jandy R0479500 FloPro pump backplate kit Jandy FHP Flo Pro Backplate Kit, R0479500$10699 Jandy R0480000 clear pump lid with locking ring for FloPro pumps Jandy Lid with Lock Ring, R0480000$7223 Jandy R0807203 0.75 HP impeller kit for Stealth and PlusHP pumps Jandy .75 HP FR SHP/PHP Impeller Kit with Screw and O-Ring, R0807203$6299 Jandy R0807201 1.5 HP impeller kit with screw and o-ring Jandy 1.5 HP FR SHP/PHP Impeller Kit with Screw and O-Ring, R0807201$6099 Jandy R0807205 3 HP SHP impeller kit with screw and o-ring Jandy 3 HP SHP Impeller Kit with Screw and O-Ring, R0807205$6099 Jandy R0479603 1.5 HP impeller with o-ring and screw for the FloPro FHPM pump Jandy 1.5 HP Impeller with O-Ring and Screw, FHPM, R0479603$5999 Jandy R0479602 1 HP pump impeller with o-ring and screw Jandy 1 HP Impeller with O-Ring and Screw, R0479602$5999 Jandy R0479604 FHPF 2 HP impeller with screw and o-ring Jandy FHPF 2 HP Impeller Kit, R0479604$5999

Product details

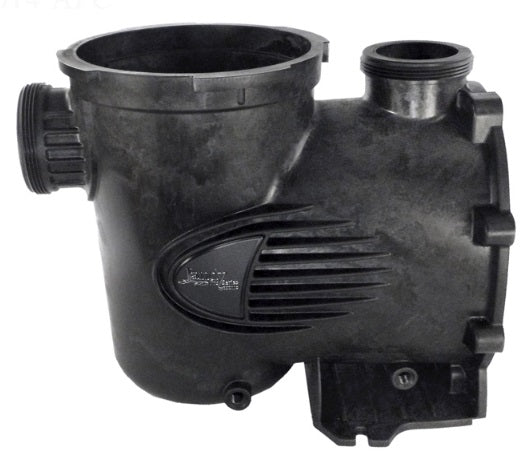

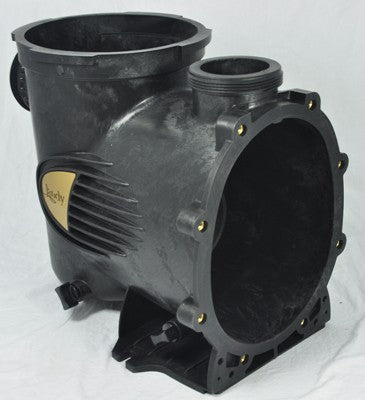

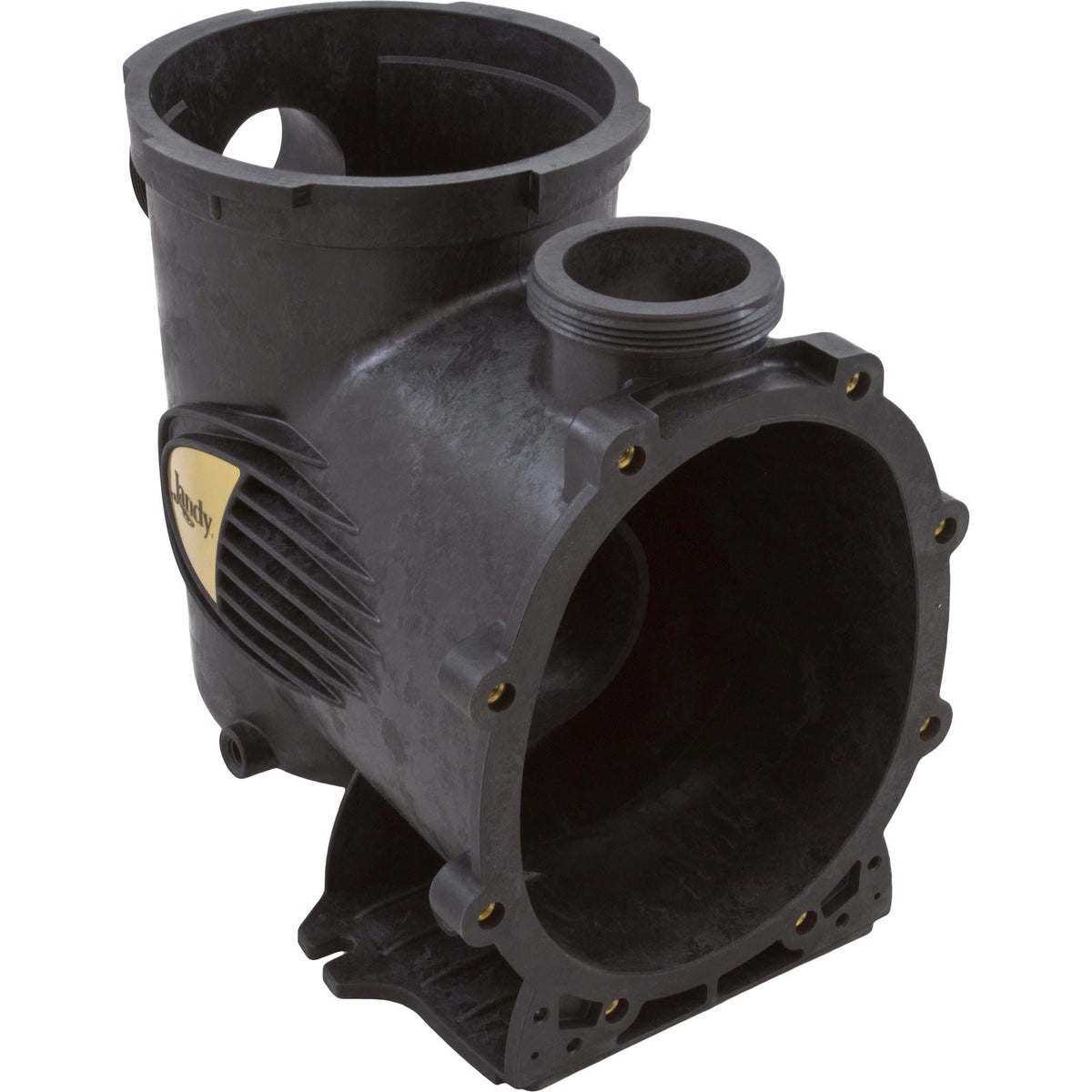

The Jandy R0445601 is the genuine pump body for the Stealth SHPF and SHPM pumps, and it is shared by the WaterFall SWF series and the ePump JEP variable speed pump. It is a unibody housing, meaning the strainer trap and the volute are one molded piece, so a crack in either means replacing this part.

Connections

Both suction and discharge are male buttress thread, the same as the original, so the existing Jandy unions thread straight back on without cutting pipe. The trap takes the standard four tab twist lock lid with an 8-13/16 in. outside diameter.

What is not in the box

The drain plugs are not included; they are Jandy part R0446000. The lid and locking ring, strainer basket, seal plate and motor all transfer from your existing pump. Plan on new o-rings while everything is apart.

Specifications
Brand Jandy
Manufacturer part number R0445601
UPC 052337021852
Type Pump body
Fits Jandy Stealth SHPF, Stealth SHPM, WaterFall SWF, ePump JEP variable speed
Suction connection Male buttress thread (MBT)
Discharge connection Male buttress thread (MBT)
Trap body to volute mounting Unibody
Trap body lid type 4 tab twist lock
Trap body lid OD 8-13/16 in.
Drain plugs Not included (R0446000)
Part type Pool pump part
Shipping weight 13.4 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Jandy

A swimmer diving from the blocks in a dark pool. Everything you need for the perfect pool. Jandy

Jandy equipment

Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400 Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80 Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Shop Jandy equipment

Genuine Jandy parts

Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800 Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200 Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Shop Jandy parts
Heater parts: a Jandy JXi heaterPump parts: a Jandy VS FloPro variable speed pumpSalt systems: a Jandy AquaPure salt cell
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy

Customer reviews

More from Jandy

Jandy R0693900 TruClear PCB replacement assembly Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator$76799 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$24599 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500 Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$1,22900 Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$69499 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws$23999 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$8299
Jandy R0445800 pump lid and locking ring assembly with o-ring for Stealth and ePump pumps Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$12099 Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$53899 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2699 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$72299 Jandy 4424 JVA 24V valve actuator Jandy Valve Actuator JVA 24V, 4424$23399 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$25699 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$33699 Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$25599 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$43299 Jandy R0357800 tank body o-ring for DEV, DEL, CV and CL series filters Jandy Tank Body O-Ring, R0357800$6399

Questions and answers

What people ask about this product, answered by our pool techs.

Which Jandy pumps use this body?
The Stealth SHPF and SHPM, the WaterFall SWF series, and the ePump JEP variable speed pump.
Are the drain plugs included?
No. The drain plugs are Jandy part R0446000 and are sold separately. If the plugs on your old body are in good shape you can reuse them with new o-rings.
What are the plumbing connections?
Male buttress thread on both suction and discharge, the same as the original body, so your existing Jandy unions reconnect without new fittings.
Does it come with the lid, basket or o-ring?
No. This is the bare housing. The lid and locking ring, the strainer basket and the drain plugs are separate parts. It takes the standard four tab twist lock lid with an 8-13/16 in. outside diameter.
