Jandy R0807200 impeller kit for SHP Stealth and PHP pumpsJandy SHP Stealth and PHP Impeller Kit, 2 HP Full Rated, R0807200 In stock$6099
Jandy R0807200 impeller kit for SHP Stealth and PHP pumps
Shop all Jandy

Jandy SHP Stealth and PHP Impeller Kit, 2 HP Full Rated, R0807200

Ask a questionMPN R0807200
$6099
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Jandy Factory kit R0807200, the impeller Jandy specifies for these pumps.
  • Correct rating The 2 HP full rated impeller, which is the same as the 2.5 HP uprated version.
  • Three pieces in the box Impeller, impeller screw and backplate O-ring, so the job is not held up waiting on a seal.
  • For SHP Stealth and PHP Fits the Jandy SHP Stealth and PHP pump families.
  • Restores lost flow A worn or blocked impeller costs turnover, and the cleaner and heater feel it first.
  • Match the horsepower Impellers are rated per horsepower, so confirm your pump before ordering.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jandy SHP Stealth and PHP Impeller Kit, 2 HP Full Rated, R0807200, SKU JDY-101-1005. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jandy SHP Stealth and PHP Impeller Kit, 2 HP Full Rated, R0807200
Jandy

SHP Stealth and PHP Impeller Kit, 2 HP Full Rated, R0807200

$6099
Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800
Jandy

Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800

$7899
Jandy Lid & Locking Ring Assembly with O-Ring, R0445800
Jandy

Lid & Locking Ring Assembly with O-Ring, R0445800

$11799
Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800
Jandy

Pump Housing Body for FHPM FloPro & VS FloPro, R0479800

$24899
Jandy 2" x 2-1/2" Pump Union Assembly (Set of 2), R0449000
Jandy

2" x 2-1/2" Pump Union Assembly (Set of 2), R0449000

$4999
Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601
Jandy

Pump Body for Stealth SHPF/SHPM Pumps, R0445601

$38199
Jandy Mechanical Seal, 5/8" ID, R0479400
Jandy

Mechanical Seal, 5/8" ID, R0479400

$3499
Subtotal

Similar products

Other products people compare with this one.

Jandy R0807201 1.5 HP impeller kit with screw and o-ring Jandy 1.5 HP FR SHP/PHP Impeller Kit with Screw and O-Ring, R0807201$6099 Jandy R0807203 0.75 HP impeller kit for Stealth and PlusHP pumps Jandy .75 HP FR SHP/PHP Impeller Kit with Screw and O-Ring, R0807203$6299 Jandy R0807202 impeller kit for Stealth and PlusHP pool pumps Jandy Impeller Kit for Stealth SHPF/SHPM and PlusHP PHPF/PHPM Pumps, R0807202$6299 Jandy R0807205 3 HP SHP impeller kit with screw and o-ring Jandy 3 HP SHP Impeller Kit with Screw and O-Ring, R0807205$6099 Jandy R0446500 diffuser and impeller hardware O-ring kit Jandy Diffuser and Impeller Hardware O-Ring Kit, R0446500$3899 Jandy R0479603 1.5 HP impeller with o-ring and screw for the FloPro FHPM pump Jandy 1.5 HP Impeller with O-Ring and Screw, FHPM, R0479603$5999 Jandy R0327301 2 in. by 2 in. tailpiece O-ring and union nut kit, set of two Jandy 2" x 2" Tailpiece O-Ring and Union Nut Kit, Set of 2, R0327301$4999 Jandy R0479602 1 HP pump impeller with o-ring and screw Jandy 1 HP Impeller with O-Ring and Screw, R0479602$5999 SuperPro GOKIT82V-9 Viton gasket and o-ring kit for Jandy SHPF and SHPM Stealth pumps SuperPro Jandy SHPF and SHPM Series Viton Seal Kit, GOKIT82V-9$5099 Jandy R0479604 FHPF 2 HP impeller with screw and o-ring Jandy FHPF 2 HP Impeller Kit, R0479604$5999
Jandy R0479605 2-1/2 HP FloPro impeller with screw and back-up plate O-ring Jandy 2-1/2 HP Impeller with Screw and Back-Up Plate O-Ring, R0479605$5999 Jandy R0445400 diffuser kit with o-rings, screws and washers for 0.5 to 3 HP pumps Jandy 0.5 HP to 3 HP Diffuser with O-Ring and Hardware, R0445400$7899 Jandy R0479702 diffuser with O-ring and screw Jandy Diffuser with O-Ring and Screw, R0479702$5699 Jandy R0480000 clear pump lid with locking ring for FloPro pumps Jandy Lid with Lock Ring, R0480000$8899 Jandy R0446200 lid seal o-ring for Stealth and ePump pool pumps Jandy Lid Seal, R0446200$3299 Jandy R0480100 pump strainer basket for FloPro FHPM and FHP series pumps Jandy Pump Basket for FHPM/FHP Series Pumps, R0480100$3099 Jandy R0445500 mechanical shaft seal, 13/16 in. ID, shown with both seal sizes for illustration Jandy Mechanical Shaft Seal, 13/16" ID, R0445500$3399 Jandy R0448900 pump filter basket for PlusHP, MaxHP and WaterFeature pumps Jandy Filter Basket for PHPF/PHPM/MHPM Series Pumps, R0448900$3099 Jandy R0446101 2 inch by 2.5 inch pump union tail piece Jandy 2" x 2.5" Pump Unions, 0.75 HP to 2.5 HP, R0446101$5599 Jandy R0479701 Flo Pro FHPM pump diffuser with o-ring and screw Jandy Diffuser with O-Ring & Screw FHPM 1.5-2.5 HP, R0479701$5699

Product details

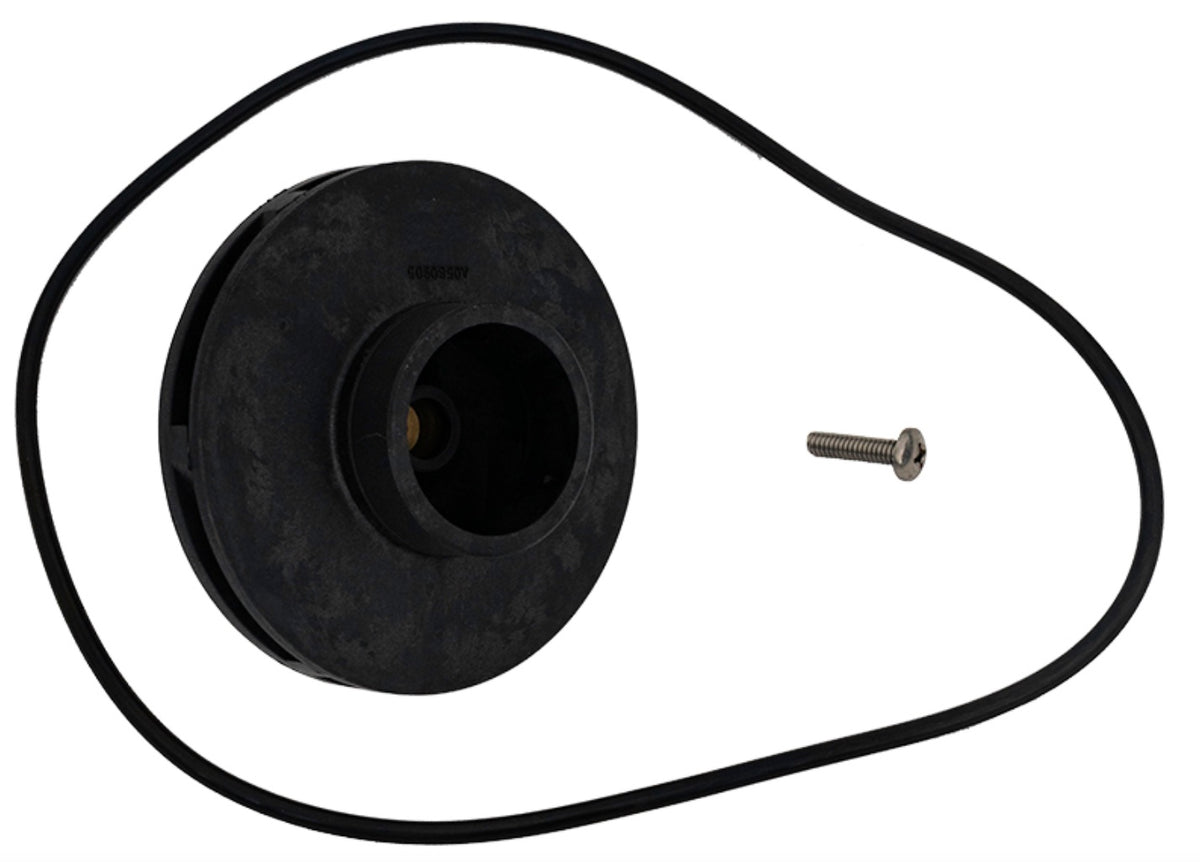

The Jandy R0807200 is the factory impeller kit for SHP Stealth and PHP pumps, in the 2 HP full rated size that Jandy also lists as 2.5 HP uprated. It arrives as a kit: the impeller, its screw, and the backplate O-ring.

Why the kit and not just the impeller

Getting to the impeller means opening the pump, which means disturbing the backplate O-ring. That seal is included here, so the pump goes back together sealed rather than being reassembled on a flattened O-ring that leaks air and loses prime a week later. The impeller screw is in the box for the same reason.

Matching the part to the pump

Impellers are cut for a specific horsepower. Fitting the wrong one changes what the pump does to the whole system, so read the rating off your motor before ordering. If the flow has dropped off with a clean basket and a clean filter, the impeller is the usual culprit, either packed with debris or worn on the vanes.

Specifications
Brand Jandy
Manufacturer part number R0807200
UPC 052337077750
Type Impeller kit
Rating 2 HP full rated, 2.5 HP uprated
Fits Jandy SHP Stealth and PHP pumps
Included Impeller, screw, backplate O-ring
Shipping weight 0.8 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Jandy

A swimmer diving from the blocks in a dark pool. Everything you need for the perfect pool. Jandy

Jandy equipment

Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400 Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80 Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Shop Jandy equipment

Genuine Jandy parts

Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800 Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200 Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Shop Jandy parts
Heater parts: a Jandy JXi heaterPump parts: a Jandy VS FloPro variable speed pumpSalt systems: a Jandy AquaPure salt cell
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy

Customer reviews

More from Jandy

Jandy R0693900 TruClear PCB replacement assembly Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator$75499 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$24599 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500 Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$1,22900 Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$67399 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws$23999 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$7999
Jandy R0445800 pump lid and locking ring assembly with o-ring for Stealth and ePump pumps Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$11799 Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$52299 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2599 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$70099 Jandy 4424 JVA 24V valve actuator Jandy Valve Actuator JVA 24V, 4424$23399 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$24899 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$32699 Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$24899 Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$38199 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$41999

Questions and answers

What people ask about this product, answered by our pool techs.

What is in the kit?
One impeller rated 2 HP full or 2.5 HP uprated, one impeller screw and one backplate O-ring.
Does 2 HP full rated mean the same thing as 2.5 HP uprated?
On this kit, yes. Jandy lists the same impeller both ways, so a 2 HP full rated pump and a 2.5 HP uprated pump take this part.
Which pumps does it fit?
Jandy SHP Stealth and PHP pumps at that horsepower rating.
How do I know the impeller is the problem?
Weak return flow with a clean basket and a clean filter usually points at the impeller. Debris packed into the vanes or worn vanes both cut the flow the pump can produce.
