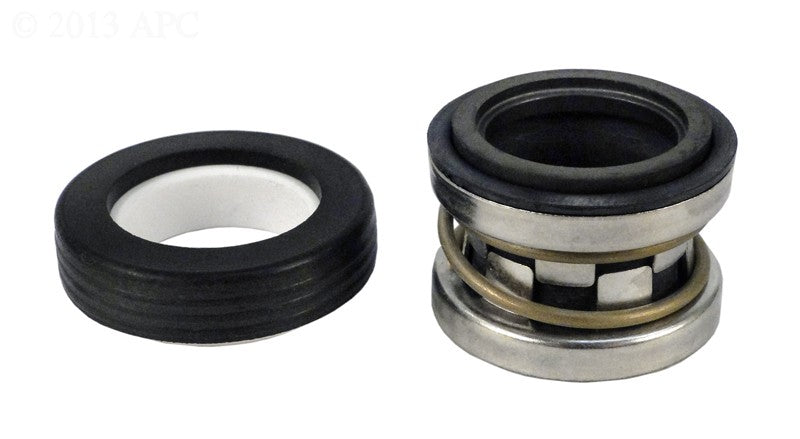

Jandy R0445500 mechanical shaft seal, 13/16 in. ID, shown with both seal sizes for illustrationJandy Mechanical Shaft Seal, 13/16" ID, R0445500 In stock$3499
Jandy R0445500 mechanical shaft seal, 13/16 in. ID, shown with both seal sizes for illustration
Shop all Jandy

Jandy Mechanical Shaft Seal, 13/16" ID, R0445500

Ask a questionMPN R0445500
$3499
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 13/16 in. ceramic ID for the double stepped impeller shaft on Stealth impeller revisions N and lower.
  • Stealth SHPF and SHPM fits pumps with a serial number before P08FF0001.
  • Polaris PB4-60 fits booster pumps with a serial number after PB120111001 or starting at AVEH050100.
  • One seal in the kit since mid 2012 the R0445500 includes only the 13/16 in. seal, part A0580500, even though the photo shows two.
  • Check your revision impeller revisions P and higher have a straight shaft and take the 5/8 in. ID seal, R0479400, instead.
  • Also used on PlusHP listed in the Jandy PlusHP PHPF and PHPM pump parts breakdown.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jandy Mechanical Shaft Seal, 13/16" ID, R0445500, SKU TLD-101-2007. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jandy Mechanical Shaft Seal, 13/16" ID, R0445500
Jandy

Mechanical Shaft Seal, 13/16" ID, R0445500

$3499
Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800
Jandy

Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800

$7899
Polaris Front Housing Volute Cover with O-Ring, R0536300
Polaris

Front Housing Volute Cover with O-Ring, R0536300

$6899
Jandy Lid & Locking Ring Assembly with O-Ring, R0445800
Jandy

Lid & Locking Ring Assembly with O-Ring, R0445800

$12099
Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800
Jandy

Pump Housing Body for FHPM FloPro & VS FloPro, R0479800

$25699
Jandy 2" x 2-1/2" Pump Union Assembly (Set of 2), R0449000
Jandy

2" x 2-1/2" Pump Union Assembly (Set of 2), R0449000

$5099
Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601
Jandy

Pump Body for Stealth SHPF/SHPM Pumps, R0445601

$39399
Subtotal

Similar products

Other products people compare with this one.

Jandy R0479400 mechanical shaft seal, 5/8 in. inside diameter Jandy Mechanical Seal, 5/8" ID, R0479400$3599 Jandy R0446200 lid seal o-ring for Stealth and ePump pool pumps Jandy Lid Seal, R0446200$3399 Jandy R0449100 pump lid seal gasket with o-ring Jandy Pump Lid Seal Gasket with O-Ring, R0449100$1999 Polaris P55 OEM motor shaft seal for the PB4-60 booster pump Polaris Booster Pump OEM Shaft Seal$3499 SuperPro GOKIT82V-9 Viton gasket and o-ring kit for Jandy SHPF and SHPM Stealth pumps SuperPro Jandy SHPF and SHPM Series Viton Seal Kit, GOKIT82V-9$5099 Generic 5/8 inch inside diameter carbon and ceramic mechanical shaft seal for Jandy pumps U.S. Seal Mechanical Seal, 5/8" ID (Generic), PS-4231-OS$1999 Polaris R0747800 shaft seal for PB4SQ booster pump Polaris Genuine OEM Shaft Seal for PB4SQ Booster Pump, R0747800$3599 Jandy R0480100 pump strainer basket for FloPro FHPM and FHP series pumps Jandy Pump Basket for FHPM/FHP Series Pumps, R0480100$3199 Jandy R0446000 drain plug with o-ring, set of 2 Jandy Drain Plug with O-Ring (Set of 2), R0446000$2099 Jandy R0448900 pump filter basket for PlusHP, MaxHP and WaterFeature pumps Jandy Filter Basket for PHPF/PHPM/MHPM Series Pumps, R0448900$3199

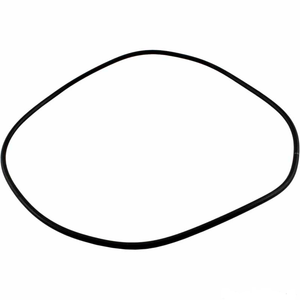

Jandy R0446300 pump backplate o-ring Jandy O-Ring, Backplate, R0446300$1999 Jandy R0479000 blue pressure O-ring for Stealth, WaterFall and ePump pumps Jandy Blue Pressure O-Ring, R0479000$2499 Jandy R0446500 diffuser and impeller hardware O-ring kit Jandy Diffuser and Impeller Hardware O-Ring Kit, R0446500$3899 Jandy R0480300 backplate o-ring for FloPro FHPM and VS-FHP series pumps Jandy Backplate O-Ring for FHPM and VS-FHP Series Pumps, R0480300$2399 Jandy R0327301 2 in. by 2 in. tailpiece O-ring and union nut kit, set of two Jandy 2" x 2" Tailpiece O-Ring and Union Nut Kit, Set of 2, R0327301$4999 Jandy R0480200 lid O-ring for FloPro pool pumps Jandy FloPro Lid O-Ring, FHP, R0480200$2099 Jandy R0449200 tail piece O-ring for MaxHP, PlusHP and WaterFeature pumps Jandy Tail Piece O-Ring, R0449200$2299 Jandy R0546400 FloPro large base spacer Jandy FloPro Base Spacer, Large, R0546400$4499 Polaris R0536400 impeller for the PB4-60 new style booster pump Polaris Genuine Replacement PB4-60 Booster Pump Impeller, R0536400$3699 Polaris P15 3/4 hp impeller for old style PB4-60 booster pump Polaris Genuine OEM Booster Pump Impeller, Old Style PB4-60$4399

Product details

The Jandy R0445500 is the OEM mechanical shaft seal with a 13/16 in. inside diameter on the ceramic. It fits the older Jandy Stealth SHPF and SHPM pumps, those with a serial number before P08FF0001, and the Polaris PB4-60 booster pump with a serial number after PB120111001 or starting at AVEH050100. It also appears in the Jandy PlusHP parts breakdown.

Why the inside diameter matters

The Stealth impeller was originally made with a different shaft. Impeller revisions N and lower have a double stepped shaft and need a seal with a 13/16 in. ID on the ceramic. Revisions P and higher have no step where the impeller sits on the motor shaft and need a 5/8 in. ID seal, which is part R0479400. Fit the wrong one and the seal will not seat.

One seal, not two

This kit used to include both seals. Since mid 2012 it ships with only the 13/16 in. seal, part A0580500. The product photo still shows both for reference, but only one seal is in the box. If you need the 5/8 in. seal, order R0479400.

Specifications
Brand Jandy
Manufacturer part number R0445500
UPC 052337021845
Seal included A0580500
Ceramic inside diameter 13/16 in.
Fits Jandy Stealth SHPF and SHPM pumps, serial number prior to P08FF0001
Fits Polaris PB4-60 booster pumps, serial number after PB120111001 or starting at AVEH050100
Impeller revisions N and lower, double stepped shaft
5/8 in. ID alternative R0479400
Quantity 1 seal
Shipping weight 0.2 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Jandy

A swimmer diving from the blocks in a dark pool. Everything you need for the perfect pool. Jandy

Jandy equipment

Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400 Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80 Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Shop Jandy equipment

Genuine Jandy parts

Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800 Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200 Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Shop Jandy parts
Heater parts: a Jandy JXi heaterPump parts: a Jandy VS FloPro variable speed pumpSalt systems: a Jandy AquaPure salt cell
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy

Customer reviews

More from Jandy

Jandy R0693900 TruClear PCB replacement assembly Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator$76799 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$24599 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500 Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$1,22900 Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$69499 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws$23999 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$8299
Jandy R0445800 pump lid and locking ring assembly with o-ring for Stealth and ePump pumps Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$12099 Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$53899 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2699 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$72299 Jandy 4424 JVA 24V valve actuator Jandy Valve Actuator JVA 24V, 4424$23399 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$25699 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$33699 Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$25599 Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$39399 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$43299

Questions and answers

What people ask about this product, answered by our pool techs.

The picture shows two seals. Do I get both?
No. The R0445500 originally shipped with both the 13/16 in. and 5/8 in. seals, but since mid 2012 only the 13/16 in. seal, A0580500, is included. The photo is for illustration.
How do I know whether I need 13/16 in. or 5/8 in.?
Look at the impeller shaft. Stealth impeller revisions N and lower have a double stepped shaft and take this 13/16 in. seal. Revisions P and higher have no step where the impeller meets the motor shaft and take the 5/8 in. seal, R0479400. By serial number, Stealth pumps before P08FF0001 use this seal.
Does it fit the Polaris PB4-60 booster pump?
Yes, on PB4-60 pumps with a serial number after PB120111001 or starting at AVEH050100.
Is this a genuine Jandy part?
Yes. It is the OEM Jandy and Polaris shaft seal, not a generic equivalent.
