Jandy 4424 JVA 24V valve actuatorJandy Valve Actuator JVA 24V, 4424 In stock$23399
Jandy 4424 JVA 24V valve actuator
Shop all Jandy

Jandy Valve Actuator JVA 24V, 4424

Ask a questionMPN 4424
$23399
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Fits Jandy diverter valves All Jandy Pro Series NeverLube and gray 2 and 3 port diverter valves, in the 24V model.
  • AquaLink RS ready Designed to run from the AquaLink RS control system.
  • Pool and spa switching Rotates 2 way and 3 way diverters for pool and spa combinations and water features, to any position.
  • Easier cam adjustment New design with simpler cam adjustment, a PCB and a hidden toggle switch.
  • 180 degree rotation Full 180 degree travel between valve positions.
  • JVA2440 or JVA2444 Jandy relabeled the unit JVA2444 after internal improvements; both labels are part 4424.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jandy Valve Actuator JVA 24V, 4424, SKU JDY-30-6324. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jandy Valve Actuator JVA 24V, 4424
Jandy

Valve Actuator JVA 24V, 4424

$23399
Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Jandy

1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715

$7399
Jandy NeverLube Valve 3 Port, 2" x 2-1/2", 4717
Jandy

NeverLube Valve 3 Port, 2" x 2-1/2", 4717

$10299
Jandy 2"-2 1/2" Neverlube Positive Seal 2-Way Diverter Valve, 4716
Jandy

2"-2 1/2" Neverlube Positive Seal 2-Way Diverter Valve, 4716

$9499
Jandy Cover O-Ring, 3 in. ID, 1132
Jandy

Cover O-Ring, 3 in. ID, 1132

$1799
Jandy 4 Function Spa Side Remote Switch, Gray, 150 ft., 8050
Waterpik Technologies

Jandy 4 Function Spa Side Remote Switch, Gray, 150 ft., 8050

$52199
Jandy Neverlube 3 Port Valve, 2-1/2" x 2", 4944
Jandy

Neverlube 3 Port Valve, 2-1/2" x 2", 4944

$10699
Subtotal

Similar products

Other products people compare with this one.

Jandy 6584 AquaLink multiplex board Jandy AquaLink Multiplex Board, 6584$14599 Jandy R0466400 AquaLink transformer, 120VAC to 24VAC Jandy AquaLink Transformer 120VAC / 24VAC, R0466400$23699 Jandy AquaLink RS4 Pool and Spa Combo Power Center 50-Pin CPU Circuit Board, Rev. P, R0466803$34999 Jandy R0408700 center plate kit for the JVA 2444 and 4424 valve actuator Jandy Center Plate Kit for JVA 2444/4424 Valve Actuator, R0408700$4699 Jandy R0411600 gear kit for the 2444 valve actuator Jandy Gear Kit for 2444 Valve Actuator, R0411600$3499 Jandy R0411800 Aqualink 20 foot power cord kit for JVA 2444 valve actuators Jandy Aqualink Power Cord Kit 20' JVA 2444, R0411800$7599 Jandy 5098 AquaLink relay splitter kit Jandy AquaLink Relay Splitter, 5098$8699 Jandy R0408600 cam and microswitch kit Jandy Cam and Microswitch Kit, R0408600$6099 Zodiac R0550700 PCB subassembly with white buttons and LCD for Jandy AquaLink RS OneTouch Zodiac R0550700 PCB Subassembly with White Buttons and LCD for Jandy AquaLink RS OneTouch$93799

Product details

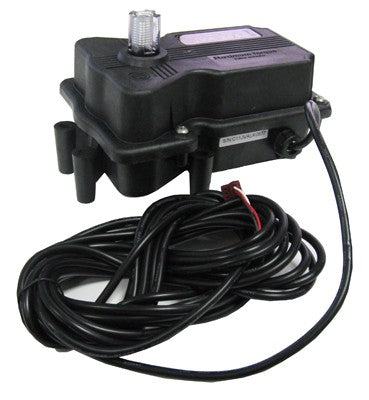

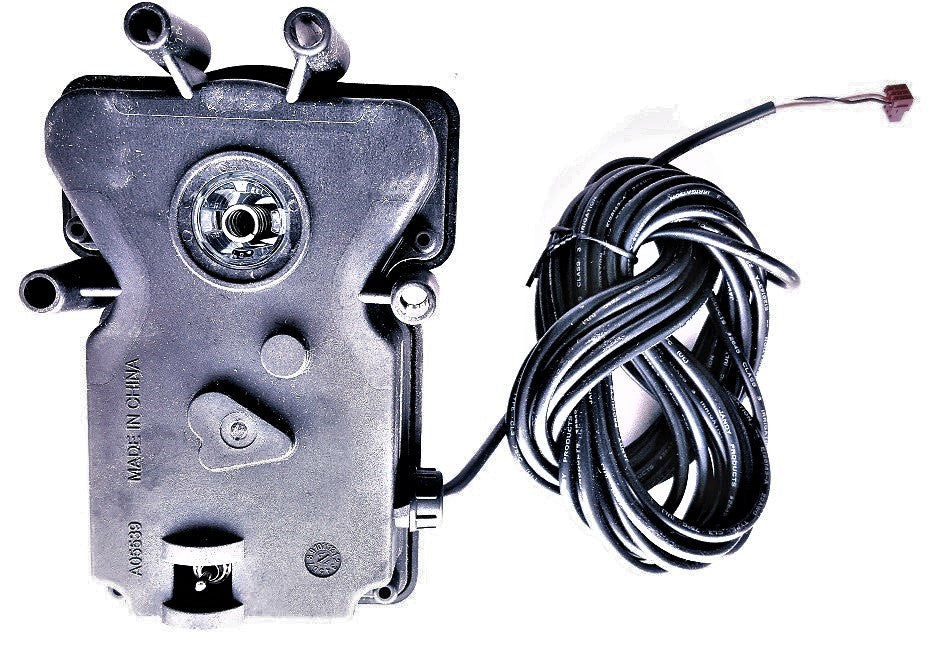

The Jandy 4424 is the 24V valve actuator for Jandy Pro Series NeverLube and gray 2 and 3 port diverter valves. Mounted on the valve, it turns the diverter under command from an AquaLink RS system, switching between pool and spa or driving water features without anyone touching a handle.

What changed

This is the newer design, with easier cam adjustment, a PCB and a hidden toggle switch. It rotates 180 degrees and can be set to stop the diverter at any position, not only at the ends of travel.

Labels

Units have shipped labeled JVA2440 and, after Jandy made internal improvements, JVA2444. Both are part number 4424 and the same product.

Specifications
Brand Jandy
Manufacturer part number 4424
UPC 052337001977
Also labeled JVA2440, JVA2444
Voltage 24V
Rotation 180 degree
Fits Jandy Pro Series NeverLube and gray 2 and 3 port diverter valves
Automation AquaLink RS
Adjustment Cam adjustment, PCB, hidden toggle switch
Shipping weight 3.2 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Jandy

A swimmer diving from the blocks in a dark pool. Everything you need for the perfect pool. Jandy

Jandy equipment

Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400 Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80 Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Shop Jandy equipment

Genuine Jandy parts

Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800 Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200 Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Shop Jandy parts
Heater parts: a Jandy JXi heaterPump parts: a Jandy VS FloPro variable speed pumpSalt systems: a Jandy AquaPure salt cell
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy

Customer reviews

More from Jandy

Jandy R0693900 TruClear PCB replacement assembly Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator$76799 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$24599 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500 Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$1,22900 Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$69499 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws$23999 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$8299
Jandy R0445800 pump lid and locking ring assembly with o-ring for Stealth and ePump pumps Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$12099 Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$53899 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2699 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$72299 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$25699 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$33699 Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$25599 Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$39399 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$43299 Jandy R0357800 tank body o-ring for DEV, DEL, CV and CL series filters Jandy Tank Body O-Ring, R0357800$6399

Questions and answers

What people ask about this product, answered by our pool techs.

Which valves does it fit?
All Jandy Pro Series NeverLube and gray 2 port and 3 port diverter valves.
The box says JVA2444, not 4424. Did I get the wrong part?
No. Jandy made internal improvements and changed the label from JVA2440 to JVA2444. Both are part number 4424 and the same product.
Will it work with my automation?
It is designed for the Jandy AquaLink RS control system and runs on 24V.
How far does it turn?
180 degrees, and the cam adjustment lets you stop the diverter at any position in between.
