Jandy 4717 NeverLube 3 port diverter valve, 2 in. x 2-1/2 in.Jandy NeverLube Valve 3 Port, 2" x 2-1/2", 4717 In stock$10299
Jandy 4717 NeverLube 3 port diverter valve, 2 in. x 2-1/2 in.
Shop all Jandy

Jandy NeverLube Valve 3 Port, 2" x 2-1/2", 4717

Ask a questionMPN 4717
$10299
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Never needs grease the NeverLube design runs maintenance free for the life of the valve.
  • Dual size ports 2 in. socket inside, 2-1/2 in. outside, so it fits either pipe size.
  • 170 GPM handles high flow with minimal head loss, suited to spas and water features.
  • Adjustable stop set the handle travel to trim flow between the two outlets.
  • CPVC body stands up to chemical swings and temperature changes.
  • Position placards included label the handle so anyone can read which way water is going.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jandy NeverLube Valve 3 Port, 2" x 2-1/2", 4717, SKU JDY-56-4055. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jandy NeverLube Valve 3 Port, 2" x 2-1/2", 4717
Jandy

NeverLube Valve 3 Port, 2" x 2-1/2", 4717

$10299
Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L
Hayward

Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L

$1799
Hayward Paralevel Startup Kit, 004-760-2921-00
Hayward

Paralevel Startup Kit, 004-760-2921-00

$5999
Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7
Hayward

1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7

$1099
Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA
Hayward

Genuine OEM SP1082 Skimmer Basket, SPX1082CA

$2499
Paramount 6 Port Water Valve Module, 004-302-4408-00
Paramount

6 Port Water Valve Module, 004-302-4408-00

$36099
Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841
Hayward

Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841

$19199
Subtotal

Similar products

Other products people compare with this one.

Jandy 4715 Neverlube 3-port diverter valve, 1-1/2 in. x 2 in., top view Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715$7399 Pentair Compool 263028 three port diverter valve, 2 in. x 2.5 in. Pentair Three Port Diverter Valve 2" x 2.5", 263028$5999 Pentair Rainbow R172288 chemical resistant 1-1/2 in. x 2 in. spring check valve Pentair Chemical Resistant 1-1/2" x 2" Check Valve, R172288$7799 Jandy 7305 spring check valve, 2 in. internal by 2-1/2 in. external ports Jandy 2 in. / 2-1/2 in. Check Valve, 7305$8399 Jandy 4716 Neverlube positive seal two way diverter valve, 2 in. x 2-1/2 in. Jandy 2"-2 1/2" Neverlube Positive Seal 2-Way Diverter Valve, 4716$9499 Pentair 263029 two port PVC diverter valve, 2 in. x 2-1/2 in. Pentair Two Port Diverter Valve, 2 in. x 2-1/2 in., 263029$5299 Jandy 4944 NeverLube 3 port valve, 2-1/2 in. by 2 in. Jandy Neverlube 3 Port Valve, 2-1/2" x 2", 4944$10699 Hayward PSV3S2DGR 2 in by 2-1/2 in PSV Series 3-way diverter valve in PVC Hayward 2" x 2-1/2" PSV Series 3-Way Diverter Valve, PVC, PSV3S2DGR$5199 Hayward PSV3SDGR 1-1/2 in by 2 in PSV Series 3-way diverter valve in PVC Hayward 1-1/2" x 2" PSV Series 3-Way Diverter Valve, PVC, PSV3SDGR$5599 Jandy 7235 two way check valve with 1-1/2 inch and 2 inch ports Jandy Check Valve, 1-1/2" / 2", 7235$6499
Pentair 263042 black CPVC straight check valve for pool plumbing Pentair Check Valve, CPVC, 2", 263042$8299 Hayward PSV2S2DGR PSV series 2-way diverter valve, 2 in. x 2-1/2 in. PVC Hayward PSV Series 2-Way Diverter Valve, 2 in. x 2-1/2 in. PVC, PSV2S2DGR$5199 Hayward PSCV2S2DGR 2 in. x 2-1/2 in. straight PVC check valve, gray Hayward 2 in. x 2-1/2 in. Straight PVC PSV Check Valve, PSCV2S2DGR$5499 Hayward SP0735 1-1/2 in. 4 way ball valve Hayward 1-1/2" 4 Way Ball Valve, SP0735$8399 Pentair 230148 1.5 in. 6 port low profile T-valve kit Pentair 1.5 in. 6 Port Low Profile T-Valve Kit, 230148$13699 Jandy 4718 Neverlube 2 port dial valve with 2-1/2 inch and 3 inch PVC connections Jandy Neverlube Valve 2 Port, 2-1/2" x 3", 4718$9299 Pentair 263035 three way CPVC diverter valve, 1-1/2 inch by 2 inch Pentair 3-Way 1-1/2" x 2" CPVC Diverter Valve, 263035$9299 Praher OV3-1500U 1-1/2 inch 3 port valve with unions Praher 3 Port Valve, 1-1/2" with Union, OV3-1500U$5499 Hayward PSV3S2 3-way PSV Series CPVC diverter valve, 2 in. x 2.5 in. Hayward 3-Way PSV Series Valve, CPVC 2" x 2.5", PSV3S2$9199 Jandy 3407 Space Saver two port positive seal valve Jandy Valve 2 Port 1.5-2" Space Saver, 3407$6999

From Jandy

A swimmer diving from the blocks in a dark pool. Everything you need for the perfect pool. Jandy

Jandy equipment

Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400 Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80 Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Shop Jandy equipment

Genuine Jandy parts

Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800 Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200 Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Shop Jandy parts
Heater parts: a Jandy JXi heaterPump parts: a Jandy VS FloPro variable speed pumpSalt systems: a Jandy AquaPure salt cell
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy

Product details

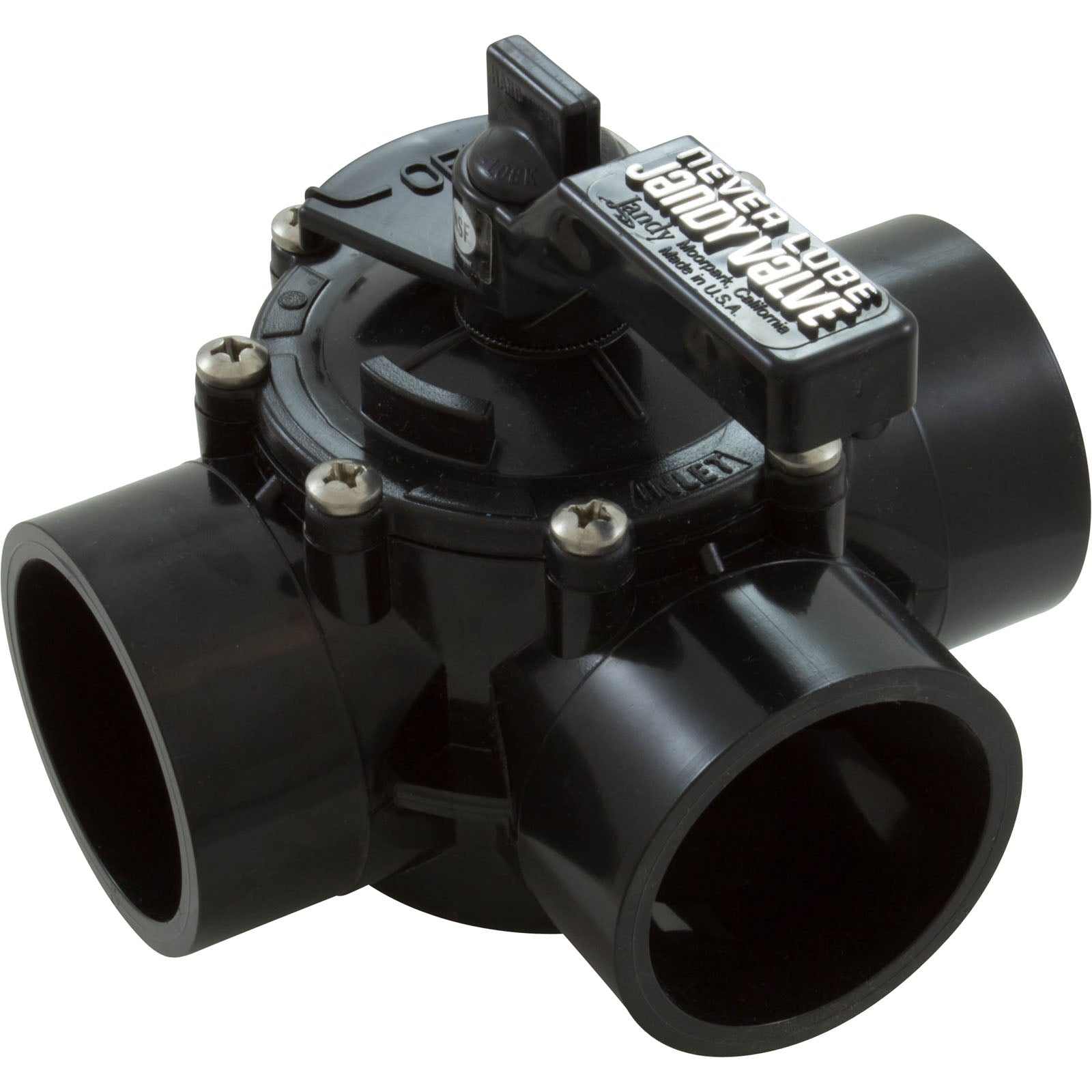

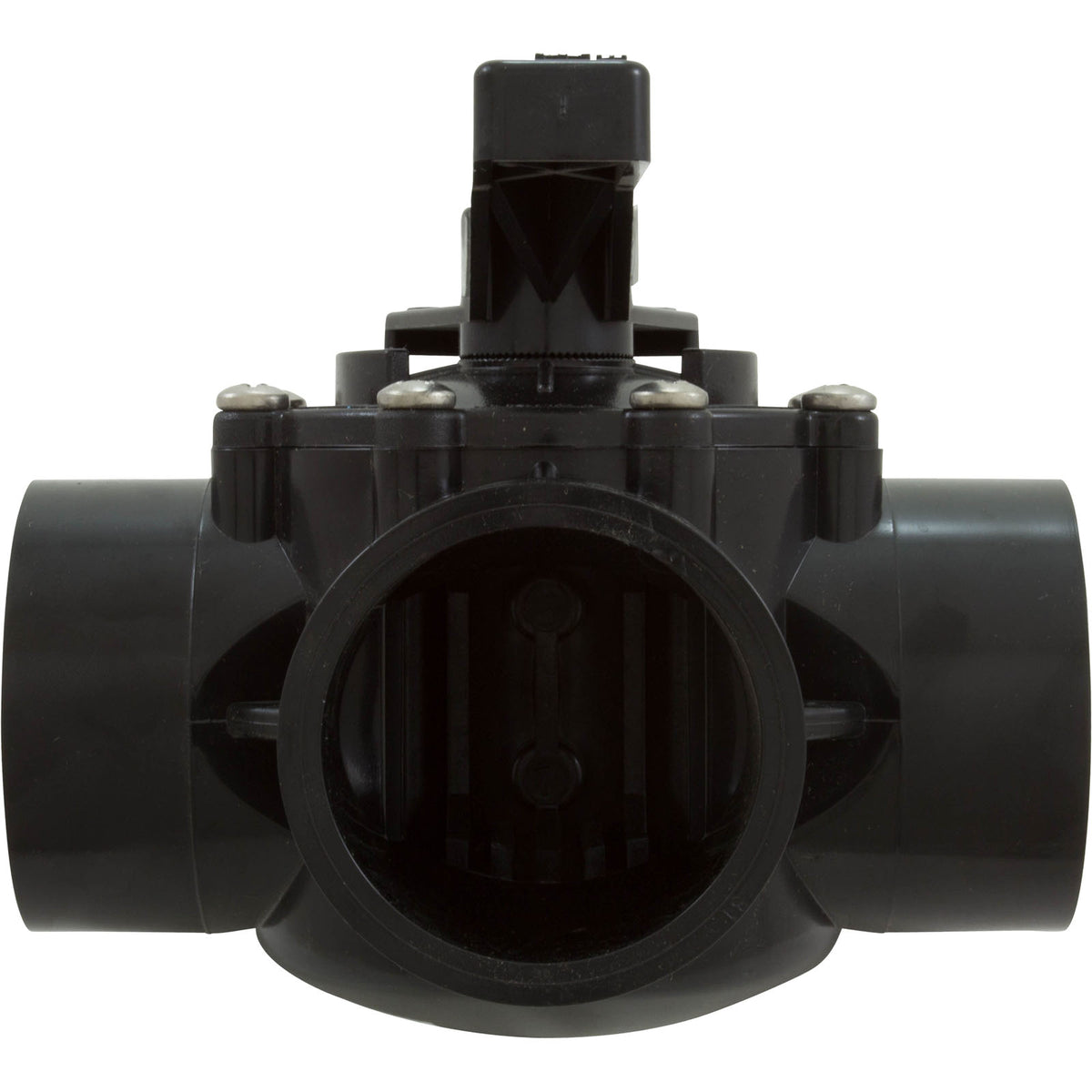

The Jandy 4717 is a three port NeverLube diverter valve with 2 in. by 2-1/2 in. ports, the larger of the two common Jandy sizes. Each port accepts 2 in. pipe inside the socket or 2-1/2 in. pipe outside it, so the same valve works on either plumbing size and the oversized body suits large equipment such as the Pro Series 3 HP Stealth pump.

No maintenance

The valve is named for what it does not need. There is no lubrication schedule and no seals to grease; the diverter turns freely for the life of the valve. The CPVC body handles the chemical and temperature swings of a pool pad without softening or cracking.

Flow and control

It is rated to 170 GPM with minimal head loss, enough for spa jets and water features that need a lot of water. An adjustable stop lets you limit handle travel so the valve can hold a partial position and split flow between the two outlets. Placards for labeling the handle position are in the box.

Before you order

Check that you need the 3 port valve. The two way version and the 1-1/2 in. by 2 in. size are separate part numbers, and a 24 V actuator can be added if you want the valve on automation.

Specifications
Brand Jandy
Manufacturer part number 4717
UPC 052337002066
Fitting type 3-Way Valve
Size 2", 2-1/2"
Port connection 2" internal, 2-1/2" external
Body material CPVC
Flow rating Up to 170 GPM
Lubrication None required
Adjustable stop Yes
Included Position placards
Shipping weight 1.55 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Jandy

Jandy R0693900 TruClear PCB replacement assembly Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator$76799 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$24599 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500 Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$1,22900 Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$69499 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws$23999 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$8299
Jandy R0445800 pump lid and locking ring assembly with o-ring for Stealth and ePump pumps Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$12099 Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$53899 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2699 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$72299 Jandy 4424 JVA 24V valve actuator Jandy Valve Actuator JVA 24V, 4424$23399 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$25699 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$33699 Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$25599 Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$39399 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$43299

Questions and answers

What people ask about this product, answered by our pool techs.

Does this fit 2 in. or 2-1/2 in. pipe?
Both. Each port takes 2 in. pipe on the inside and 2-1/2 in. pipe on the outside, so you can glue up either size without a bushing.
Do I ever need to grease it?
No. The NeverLube valve is built to run without lubrication and needs no periodic maintenance.
How much flow can it pass?
Up to 170 GPM with minimal head loss, which is why it is paired with large pumps such as the Jandy Pro Series 3 HP Stealth and used on spas and water features.
Can I set it to split flow rather than fully divert?
Yes. The adjustable stop limits handle travel, so you can hold the diverter partway and balance flow between the two outlets.
