Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallonsZodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000 In stock$1,04900
Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons
Shop all Zodiac

Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000

Ask a questionMPN R0503000
$1,04900
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Fits Nature2 Fusion Soft 1400 the replacement cell for the SOFT1400 salt and mineral sanitizer.
  • Rated to 40,000 gallons matches the capacity of the Fusion Soft 1400 system.

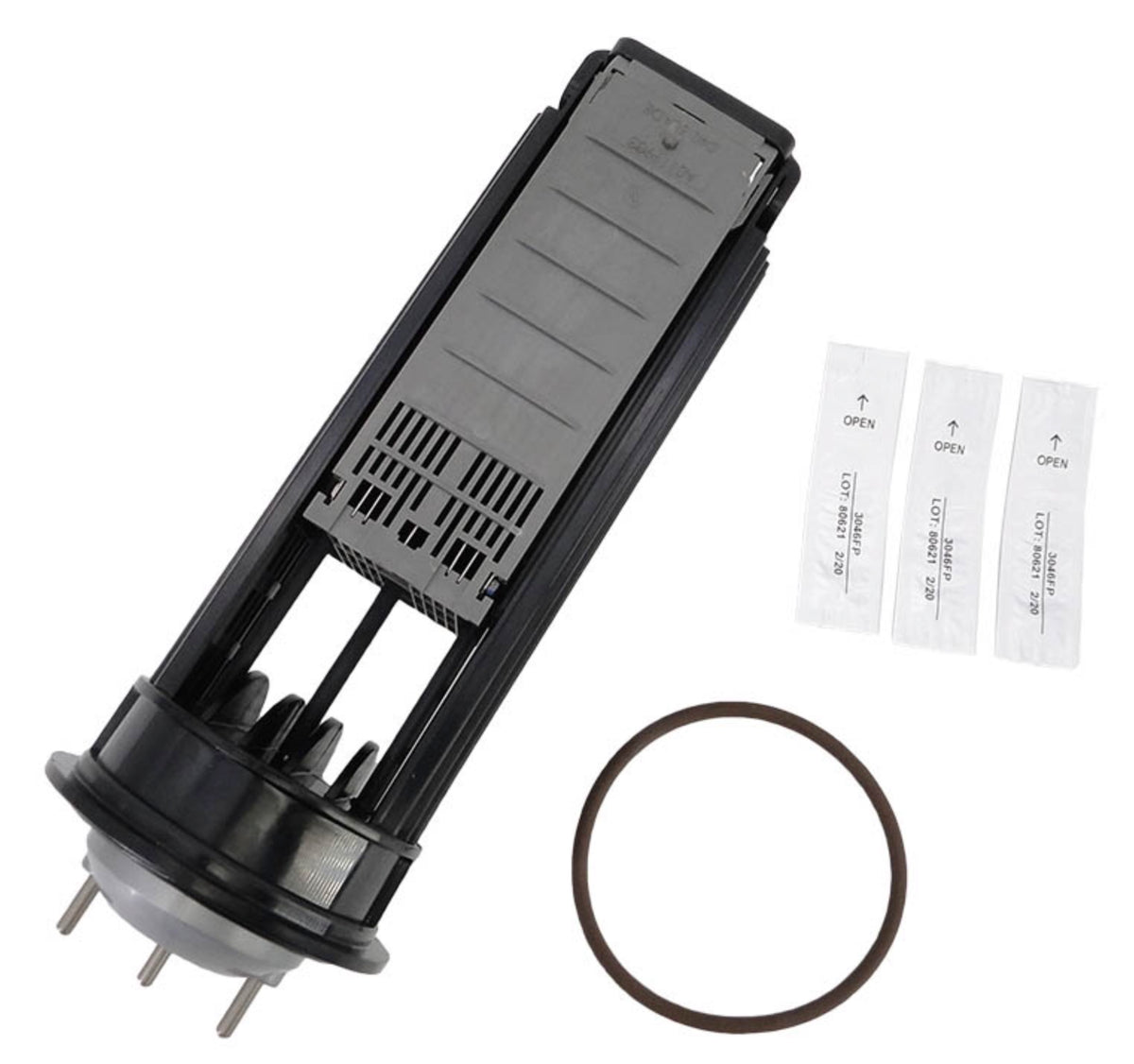

  • Cell, electrode and o-ring the kit includes the Nature2 Fusion Soft cell, a replacement electrode and an o-ring.
  • Mineral cartridge sold separately the system takes a DuoClear 45 or Nature2 Fusion 45 (W28002).
  • Operating range 30 to 120 gpm flow, 50 psi maximum pressure, 3,000 ppm recommended salt.
  • Cord not included the Fusion Soft uses either a 16 ft or 25 ft DC cord, both available separately.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000, SKU JDY-45-1408. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000
Zodiac

Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000

$1,04900
Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator
Jandy

R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator

$75499
Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500
Jandy

Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500

$24599
Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder
Hayward

CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder

$12999
Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws
Jandy

R0984100 AquaPure Power Interface PCB, Large Backboard with Screws

$23999
Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400
Jandy

AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400

$1,39500
Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400
Jandy

AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400

$1,22900
Subtotal

Similar products

Other products people compare with this one.

CompuPool GRC/J/APURE1400-3 3 port 14 blade replacement salt cell for Jandy AquaPure 1400 CompuPool 3-Port 14-Blade Replacement Salt Cell for Jandy AquaPure System 40,000 Gallons$56799 CaliMar CMARCHA40-2Y replacement salt cell for Hayward T-Cell-15, 40,000 gallons CaliMar Salt Cell Compatible with Hayward® T-Cell-15®, 2-Year Warranty, 40K Gallons, CMARCHA40-2Y$54900 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 CompuPool GRC/EM replacement salt cell for Ecomatic ESC24, ESC36 and ESC48 CompuPool Replacement Salt Cell for M0657USA Ecomatic Models ESC24, ESC36, ESC48$60099 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$84099 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price CompuPool GRC40GH replacement salt cell with cord for Hayward T-Cell-15 systems CompuPool Salt Cell Compatible with Hayward® T-Cell-15®, with Cord, 40K Gallons, GRC40GH$56299 AutoPilot PPC1 5-blade replacement salt cell with unions and inline strainer AutoPilot PPC1 OEM Replacement Salt Cell with Unions, 5-Blade, 40K gal$59900 CaliMar CMARCIC40-1Y replacement salt cell compatible with IntelliChlor IC40 CaliMar Replacement Salt Cell Compatible with IntelliChlor IC40, 40K Gallons, CMARCIC40-1Y$89900 Web Price
AutoPilot PPC2 replacement salt cell with unions, for pools up to 32,000 gallons AutoPilot PPC2 Replacement Cell With Unions$88900 Jandy PLC700 AquaPure PureLink three port salt cell kit with 16 ft cables Jandy AquaPure PureLink Salt Chlorine Generator Cell Kit, 12K Gallon Pools, PLC700$99900 AutoPilot PPC3 replacement salt cell with unions for Pool Pilot systems AutoPilot PPC3 Replacement Cell with Unions$88900 Solaxx CLG140A-010 PureChlor replacement salt cell for pools up to 40,000 gallons Solaxx PureChlor Replacement Salt Cell, Up to 40K Gallons, CLG140A-010$1,24699 CaliMar CMARCPC40-2Y replacement salt cell for SGS Wave and Breeze 540 and CMP Powerclean 540 systems CaliMar Replacement Salt Cell for SGS Wave & Breeze 540 Systems and CMP Powerclean 540 Systems, 40K Gallons, CMARCPC40-2Y$52900 Web Price Solaxx CLG125A-010 PureChlor 25K gallon replacement salt cell Solaxx PureChlor 25K Gallon Replacement Salt Cell, CLG125A-010$88399 CompuPool GRC/R/AE7 seven blade replacement salt cell for Resilience A7 and E7C, up to 60,000 gallons CompuPool Resilience 7-Blade Salt Cell Replacement, For up to 60K Gallons$60399 CaliMar CMARCIC20-1Y replacement salt cell compatible with IntelliChlor IC20 CaliMar Replacement Salt Cell Compatible with IntelliChlor IC20, 20K Gallons, CMARCIC20-1Y$79900 Web Price CMP 52000-240-110 PowerClean Salt Cell 540 replacement cell for pools up to 40,000 gallons CMP PowerClean Salt Cell 540, 40K Gallons, 52000-240-110$87099 Solaxx CLGD40-010 D5 replacement salt cell, 40K size Solaxx D5 Replacement Salt Cell 40K CLGD40-010$1,30199

From Zodiac

A girl splashing into a blue pool. Suction pool cleaners and genuine parts. Zodiac

Zodiac equipment

Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000 Zodiac S2046G Levelor Sensor with 200 Foot Cord Zodiac AquaPure Ei 35 Electrode, R0511400 Zodiac Tab Feeder Assembly for Nature2 Inground Fusion Water Sanitizer, R0502600
Shop Zodiac equipment

Genuine Zodiac parts

Zodiac Genuine OEM MX6 / MX8 Track (Each), R0526100 Zodiac Genuine OEM MX6 / MX8 Direction Control Device, Side A, R0524700 Zodiac Genuine OEM MX8 Elite Cyclonic Scrubbing Brush, 4-Pack, R0714400 Zodiac Genuine OEM MX6 / MX8 Engine Assembly, R0524900
Shop Zodiac parts
Pool cleaners: a Zodiac MX8 Elite suction cleaner on a wet pool deckGenuine parts: an exploded drawing of a Zodiac cleaner on blue
Zodiac makes the MX6 and MX8 suction pool cleaners, Nature2 mineral sanitizers and genuine replacement parts.Shop all Zodiac

Product details

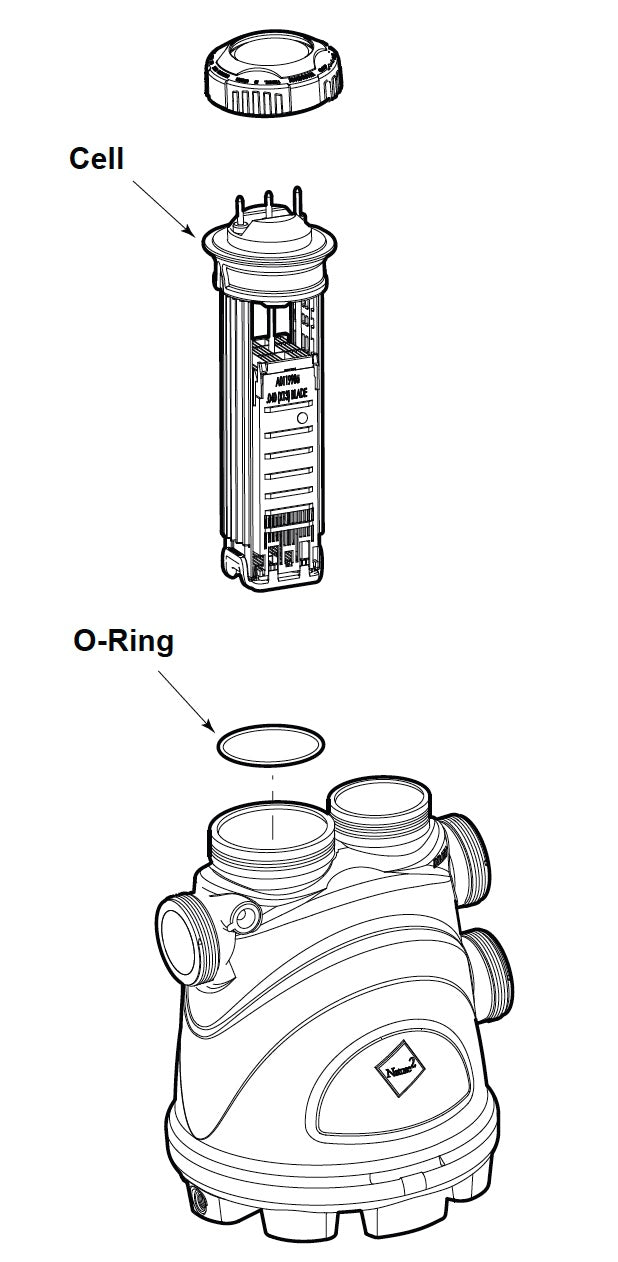

The Zodiac R0503000 is the replacement cell kit for the Nature2 Fusion Soft 1400, the combined salt chlorine generator and mineral sanitizer for pools up to 40,000 gallons. The kit includes the Nature2 Fusion Soft cell, a replacement electrode and an o-ring.

How Fusion Soft works

The cell generates chlorine from salt in the pool water while a Nature2 mineral cartridge in the same housing lets the pool run at a lower chlorine level. Nature2 has been the leading mineral based system for over 18 years, installed in more than 300,000 pools and spas.

Operating limits

The cell runs between 30 and 120 gpm at no more than 50 psi, with a recommended salt level of 3,000 ppm.

What is not in the box

The mineral cartridge is sold separately: a DuoClear 45 or Nature2 Fusion 45, part W28002, for pools to 40,000 gallons. The DC cord is also separate. The Fusion Soft takes either a 16 ft or a 25 ft cord, and both are available.

From Pool School

How to Clean a Salt CellHose first, acid only on scale that stays, and each manufacturer's own mix and time limit. Read When to Replace a Salt CellThe life each manufacturer prints, what looks like a dead cell and is not, and choosing the next one. Read Generic vs OEM Salt CellsWhat you can compare on paper between the original and another manufacturer's cell, and what you cannot. Read
Specifications
Brand Zodiac
Manufacturer part number R0503000
UPC 052337050807
Type Nature2 Fusion Soft replacement cell kit
Fits Nature2 Fusion Soft 1400 (SOFT1400)
Pool size Up to 40,000 gallons
Minimum flow rate 30 gpm
Maximum flow rate 120 gpm
Maximum operating pressure 50 psi
Recommended salt level 3,000 ppm
Mineral cartridge, sold separately DuoClear 45 or Nature2 Fusion 45, W28002
Cord options, sold separately 16 ft or 25 ft DC cord
Includes Nature2 Fusion Soft cell, replacement electrode, o-ring
Shipping weight 2.1 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Zodiac

Zodiac R0526100 track for the Baracuda MX6 and MX8 pool cleaners Zodiac Genuine OEM MX6 / MX8 Track (Each), R0526100$2099 Zodiac R0524700 MX6 MX8 direction control device, Side A Zodiac Genuine OEM MX6 / MX8 Direction Control Device, Side A, R0524700$4199 Zodiac R0714400 MX8 Elite cyclonic scrubbing brush, 4 pack Zodiac Genuine OEM MX8 Elite Cyclonic Scrubbing Brush, 4-Pack, R0714400$2599 Zodiac R0524800 Side B direction control device for the Baracuda MX8 suction pool cleaner Zodiac Genuine OEM Side B Direction Control Device for MX8 Suction Pool Cleaner, R0524800$4199 Zodiac R0502300 large collar with o-ring for Nature2 Fusion sanitizers Zodiac Large Collar with O-ring, R0502300$5299 Zodiac R0527700 3 ft twist lock hose section for Baracuda T3, T5, MX6 and MX8 cleaners Zodiac Baracuda 3 ft Twist Lock Pool Cleaner Hose, fits T3, T5, MX6, MX8, R0527700$3499 Zodiac R0525400 MX8 top cover with swivel assembly Zodiac MX8 Top Cover with Swivel Assembly, R0525400$4099 Zodiac R0502600 tab feeder assembly for the Nature2 Inground Fusion water sanitizer Zodiac Tab Feeder Assembly for Nature2 Inground Fusion Water Sanitizer, R0502600$10699 Zodiac R0524900 MX6 / MX8 engine assembly for Baracuda suction cleaners Zodiac Genuine OEM MX6 / MX8 Engine Assembly, R0524900$4499 Zodiac R0502400 small collar with o-ring for Nature2 Fusion Zodiac Small Collar with O-Ring for Nature2 Fusion, R0502400$2899
Zodiac R0527000 MX8 pool cleaner bearing for wheel and engine Zodiac MX8 Bearing, Wheel and Engine, R0527000$1799 Zodiac R0502800 Nature2 Fusion Soft 700 replacement cell kit Zodiac Nature2 Fusion Soft 700 Cell Kit, 12K Gallon, R0502800$62699 Zodiac W83278 Baracuda 12 inch wheel deflecter for suction pool cleaners Zodiac Baracuda Wheel Deflecter, 12 in, W83278$4399 Zodiac R0525000 scrubber assembly for Baracuda MX6 and MX8 pool cleaners Zodiac Genuine OEM MX6/MX8 Scrubber Assembly, R0525000$2799 Zodiac R0714300 cyclonic scrubbing turbine assembly for MX8 Elite, 2 pack Zodiac Genuine OEM Cyclonic Scrubbing Turbine Assembly, 2 Pack, R0714300$10099 Zodiac R0595101 new style drive pulley for MX6 pool cleaner Zodiac New Style Genuine OEM Replacement Drive Pulley for MX6, R0595101$2499 Zodiac R0526900 blue quick connector for MX8 and MX6 pool cleaners Zodiac Genuine OEM MX8/MX6 Quick Connector, Blue, R0526900$1699 Zodiac R0727400 MX8 chassis assembly R2 for the MX8 automatic pool cleaner Zodiac Genuine OEM MX8 Chassis Assembly R2, R0727400$5499 Zodiac R0796200 factory tune-up kit for MX8 and MX8 Elite pool cleaners Zodiac Genuine OEM MX8/MX8 Elite Factory Tune-Up Kit, R0796200$21699 Zodiac X77094 leaf catcher hose adaptor for the Baracuda MX8 pool cleaner Zodiac Baracuda MX8 Leaf Catcher Hose Adaptor, X77094$2399

Questions and answers

What people ask about this product, answered by our pool techs.

Does it include the mineral cartridge?
No. The Nature2 mineral cartridge is sold separately. For a residential pool up to 40,000 gallons the system takes a DuoClear 45 or Nature2 Fusion 45, part W28002.
Is the cord included?
No. The Fusion Soft uses a 16 ft or 25 ft DC cord, and both are available separately. Reuse your existing cord if it is in good condition.
What flow and pressure does the cell need?
Minimum 30 gpm, maximum 120 gpm, and no more than 50 psi operating pressure.
What salt level should the pool be at?
3,000 ppm is the recommended salt level.
