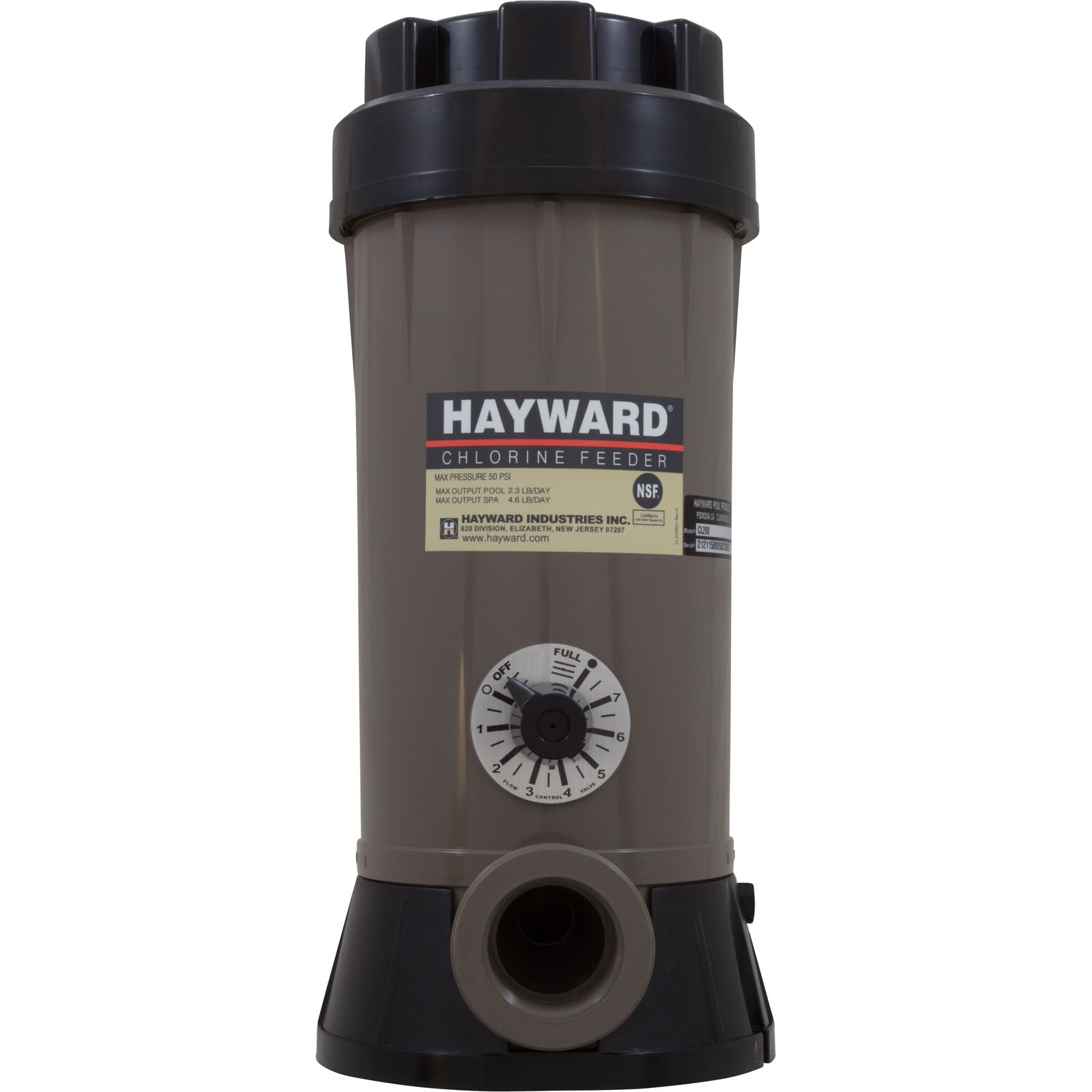

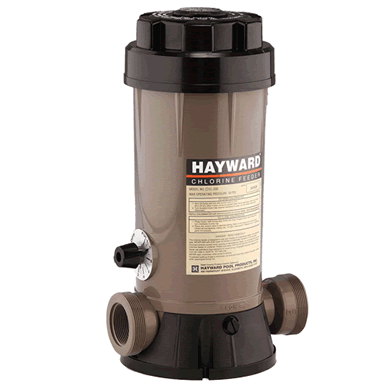

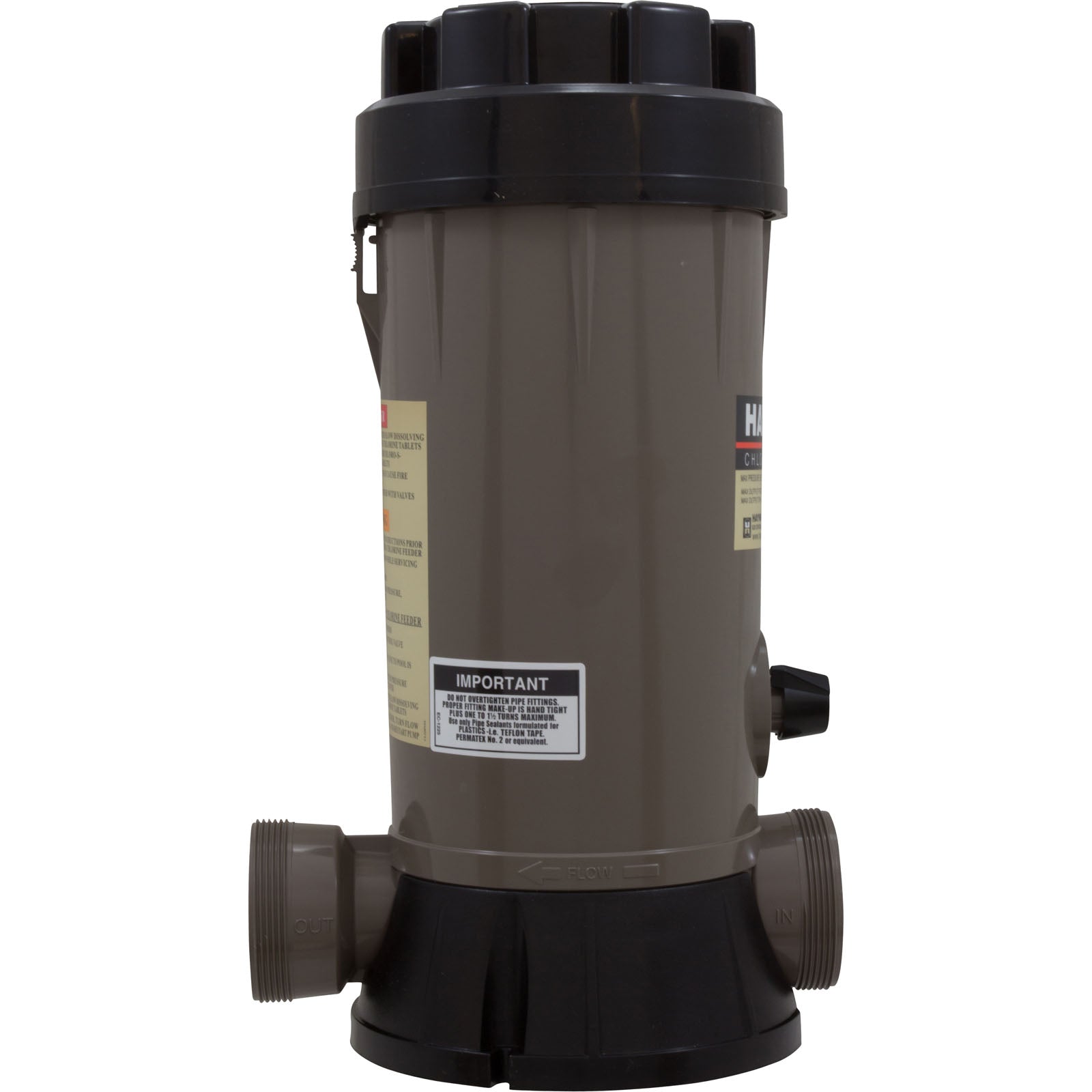

Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feederHayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder In stock$12899
Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder
Shop all Hayward

Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder

Ask a questionMPN CL200EF
$12899
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Current CL200 model the CL200EF is Hayward's newest version and drops into a CL200 installation without changes.
  • 9 lb capacity holds up to 9 lb of chlorine or bromine tablets, so it runs for days between refills.
  • Set and forget a dial meters the feed rate, and tablets dissolve as water passes through on every pump cycle.
  • Corrosion-proof body built to live in the return line with chlorine in it year after year.
  • Pools to 40,000 gallons sized for residential inground and above ground pools.
  • Unions not included reuse the unions from an existing CL200, or add the SP1500UNPAK2 union kit for a new install.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder, SKU HAY-45-305. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder
Hayward

CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder

$12899
Pool Season 3 in. Jumbo Chlorinating Tablets, 47251270
Pool Season

3 in. Jumbo Chlorinating Tablets, 47251270

$5900
AquaFinesse Pool Water Care Tablets, 16 Tablets, 956330
AquaFinesse

Pool Water Care Tablets, 16 Tablets, 956330

$7399
Subtotal

Similar products

Other products people compare with this one.

Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14999 CMP PowerClean Ultra in-line chlorinator 25280-100-000 with clear glass lid CMP PowerClean Ultra In-Line Chlorinator with Clear Glass Lid, 25280-100-000$15099 Hayward CL220 off-line automatic chlorinator chemical feeder Hayward Off-line Automatic Chlorinator Chemical Feeder CL220$15399 CMP 25280-110-000 PowerClean Ultra in-line tablet chlorinator with white lid CMP PowerClean Ultra In-Line Chlorinator, White Lid, 25280-110-000$15299 CMP 25280-150-000 Powerclean Ultra VS in-line chlorinator with clear glass lid CMP Powerclean Ultra VS In-line Chlorinator, Clear Glass Lid, 25280-150-000$17199 King Technology Perform-Max Model 940 in ground in-line chemical feeder King Technology Perform-Max Model 940 In Ground In-Line Feeder, 01-05-0940$13799 Hayward CL110ABG automatic off-line chlorine feeder Hayward Automatic Off-Line Chlorine Feeder, CL110ABG$10199 Hayward CL220BR off-line brominator with 9 lb. bromine tablet capacity Hayward CL220BR Off-Line Brominator, 9 lb. Capacity$16499 Waterway CLC012-W in-line automatic chlorine tablet feeder, white Waterway In-Line Chlorinator, White, CLC012-W$10899 King Technology Perform-Max Model 960 in ground off-line chemical feeder King Technology Perform-Max Model #960 In Ground Off-Line Feeder, 01-05-0960$16499
King Technology New Water Model 400 in-line chlorine cycler for in ground pools King Technology New Water Model 400 In-Line Cycler for In Ground Pools, 01-01-0400$16299 Pentair Rainbow 300 off line chlorinator, part R171016 Pentair Rainbow Off Line Chlorinator #300, R171016$14199 King Technology Perform-Max Model 920 above ground in-line feeder King Technology Perform-Max Model #920 Above Ground In-Line Feeder, 01-05-0920$13399 Hayward CL2002S in-line chlorinator with 2 in. slip PVC connections Hayward In-line Chlorinator, 2" Slip PVC Connections, CL2002S$15899 King Technology New Water Model 120 in-line cycler for above ground pools King Technology New Water Model 120 In-Line Cycler for Above Ground Pools, 01-01-0120$17301 Advantis Technologies Leisure Time Spa Mineral Purifier | 23434 Advantis Technologies Leisure Time Spa Mineral Purifier | 23434$5199 CMP PowerClean Ultra off-line chlorinator with clear glass lid, part 25280-300-000 CMP PowerClean Ultra Off-Line Chlorinator, Clear Glass Lid, 25280-300-000$21299 Poolmaster Inc. Clori-duck Mallard Chlorine Dispenser | 32130 Poolmaster Inc. Clori-duck Mallard Chlorine Dispenser | 32130$4399 King Technology Flippin Frog Sanitizer | 01-12-8406 King Technology Flippin Frog Sanitizer | 01-12-8406$4295 Web Price Poolstyle adjustable spa floater for 1 inch chlorine tablets Poolstyle Adjustable Spa Floater, 1" Tablets, 27051-029-000$2599

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Product details

The Hayward CL200EF is the current model of the CL200, the in-line tablet chlorinator found on a large share of residential pools. It plumbs into the return line after the filter and heater, holds up to 9 lb of chlorine or bromine tablets, and feeds sanitizer every time the pump runs. A dial on the lid sets how much water passes over the tablets, which sets the feed rate.

A drop-in replacement

The body, capacity and 1.5 in. connections match the CL200, so swapping a tired unit takes a few minutes with the unions already on the pipe. The corrosion-proof housing is built for a lifetime of sitting in chlorinated water on the pad.

Sized for residential pools

Hayward rates it for inground and above ground pools up to 40,000 gallons. Loaded with 3 in. tablets it runs for days between refills, which cuts down on daily chemical handling.

Before you order

Unions are not included. If you are replacing an existing CL200, reuse its unions. For a new installation add the Hayward SP1500UNPAK2 union kit, or glue 1.5 in. PVC male adapters directly into the body. Most installers prefer unions so the feeder can be removed for service.

Specifications
Brand Hayward
Manufacturer part number CL200EF
UPC 610377003827
Type In-line automatic tablet chlorinator
Capacity 9 lb of chlorine or bromine tablets
Pool size Up to 40,000 gallons
Pool type Inground and above ground
Replaces Hayward CL200
Plumbing 1.5 in. in-line, after the filter and heater on the return line
Unions Not included, Hayward SP1500UNPAK2 union kit for new installs
Shipping weight 4.5 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,42099 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$15299 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28999 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5999 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19199 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799 Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899
Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$19399 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2499 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$20399 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20899 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26199 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899 Hayward Super Pump W3SP2607X10, 1 HP max rated in-ground pool pump, side view Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10$84900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Is the CL200EF the same as the CL200?
It is the current version of the CL200. The body, capacity and plumbing are the same, so it replaces a CL200 directly.
Are unions included?
No. If you are replacing a CL200, reuse the unions already on the pipe. For a new installation order the Hayward SP1500UNPAK2 union kit, or glue 1.5 in. PVC male adapters straight into the body.
Where does it go in the plumbing?
On the return line after the filter and after the heater, so chlorinated water never flows back through the heater.
What tablets does it take?
Slow dissolving 3 in. or 1 in. trichlor chlorine tablets, or bromine tablets. Never mix chlorine and bromine in the same feeder.
Ask your own question
