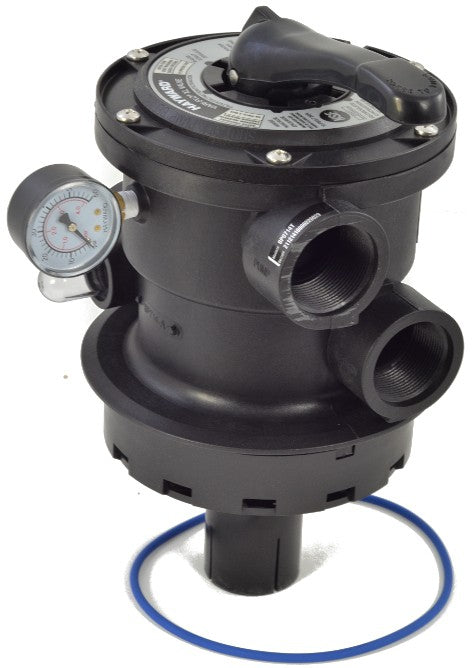

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front viewHayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit In stock$15899
Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view
Shop all Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit

Ask a questionMPN SP0714T
$15899
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Complete kit the SP0714TX valve, GMX600F tank o-ring, side mount pressure gauge and GMX600NM two piece clamp, everything the swap needs.
  • Seven positions Filter, Backwash, Rinse, Waste, Recirculate, Closed and Winter on one lever.
  • Fits eight Pro Series filters S164T, S166T, S180T, S190T, S210T, S220T, S244T and S245T, on an 8 in. flange.
  • Replaces SP-711-13 the direct successor to the older Hayward valve.
  • Built to last ABS body and cover, heavy duty stainless steel spring, heavy duty rubber valve seat.
  • Sight glass built in watch the backwash run clear before you switch to rinse.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit, SKU HAY-06-271. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit
Hayward

SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit

$15899
Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA
Hayward

Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA

$15299
Hayward OEM O-Ring, 6-3/4" ID, GMX600F
Hayward

OEM O-Ring, 6-3/4" ID, GMX600F

$2699
Hayward Cover O-Ring, 5-1/2" ID, SPX0710XZ3
Hayward

Cover O-Ring, 5-1/2" ID, SPX0710XZ3

$699
Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62
Hayward

Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62

$19399
Hayward Cover O-Ring for Vari-Flo, SPX0715Z1
Hayward

Cover O-Ring for Vari-Flo, SPX0715Z1

$2699
Hayward Nylon Washer, SPX0710Z16
Hayward

Nylon Washer, SPX0710Z16

$499
Subtotal

Similar products

Other products people compare with this one.

Hayward SP071621 2 in. Vari-Flo top mount multiport valve, front view Hayward 2" Vari-Flo Top Mount Valve, SP071621$22799 Hayward SP0710XALL Vari-Flo XL 1.5 inch multiport valve kit Hayward Vari-Flo XL Multi-Port Valve Kit 1.5", SP0710XALL$16699 Hayward SPX0710X32 Vari-Flo 1.5 in. side mount multiport valve for S200 and S240 sand filters Hayward Vari-Flo 1.5 in. Multiport Valve (S200 and S240), SPX0710X32$28099 Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26199 Hayward SP0715X62 Vari-Flo 2 in. side mount control valve for Pro Series sand filters Hayward Pro-Series Sand Filter Vari-Flo Control Valve with 2 in. Plumbing Ports and Gauge, SP0715X62$29299 Hayward SPX0715X32 2 inch Vari-Flo multiport control valve assembly Hayward 2" Multiport Valve, SPX0715X32$39599

Product details

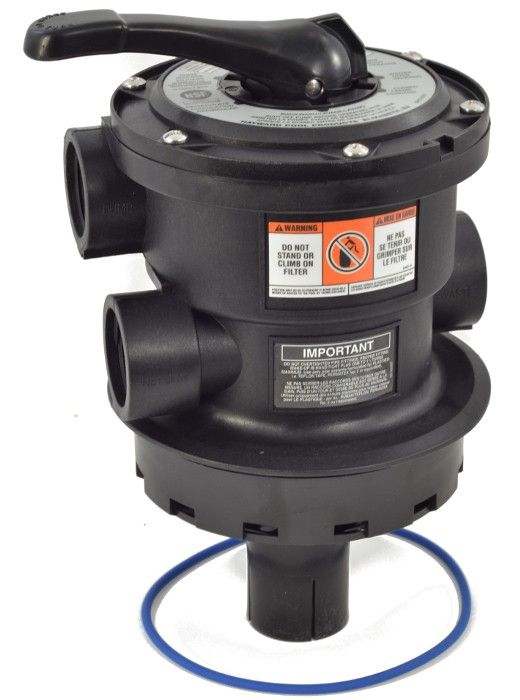

The Hayward SP0714T Vari-Flo XL is the top mount multiport valve on Hayward's Pro Series sand filters, sold here as the complete kit: the valve itself, the tank o-ring, a side mount pressure gauge and the two piece clamp that holds it to the tank. It is the genuine Hayward part and the current replacement for the older SP-711-13.

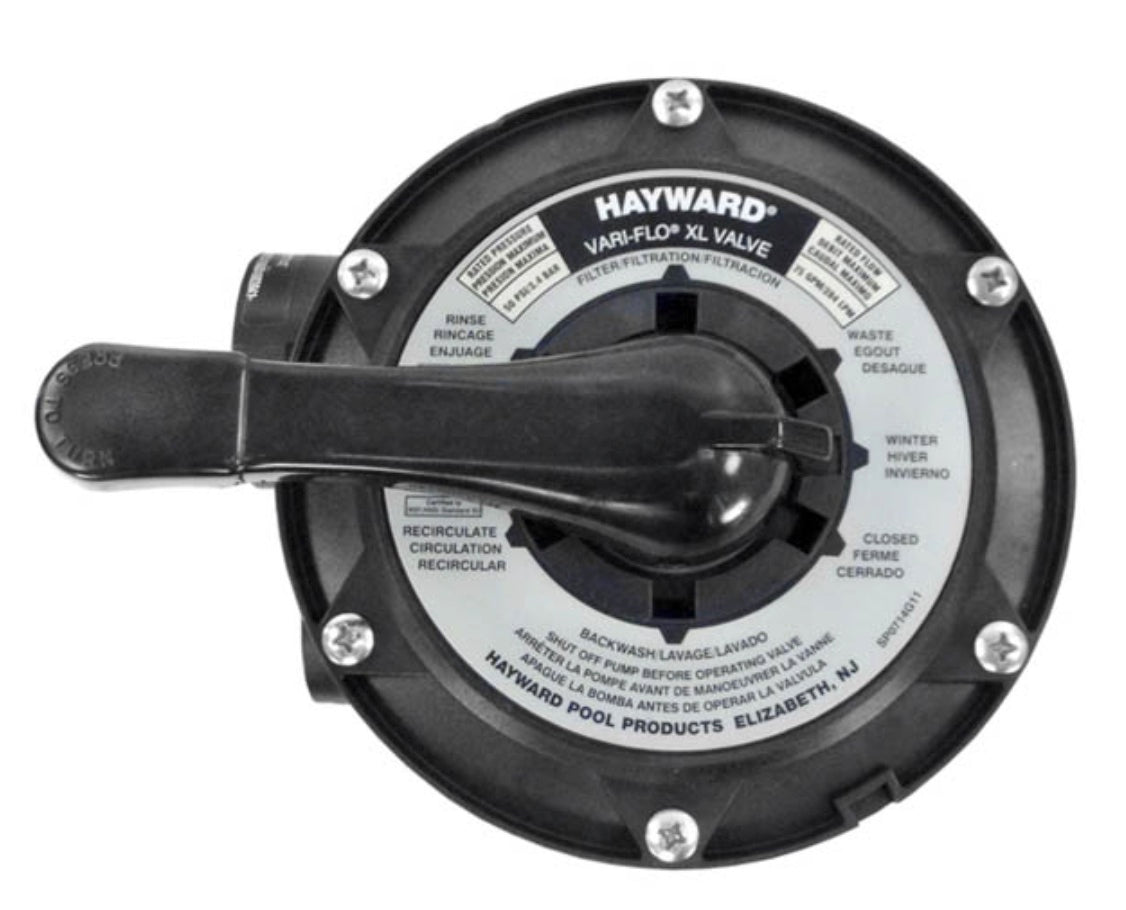

Seven positions on one lever

Filter for everyday running, Backwash to flush the sand bed, Rinse to resettle it, Waste to send water around the filter for lowering the pool or vacuuming heavy debris, Recirculate to move water without filtering, Closed, and Winter for laying the system up. A built in sight glass shows the backwash water running clear, so you know when to switch to rinse rather than guessing.

Built for years on a pad

The body and cover are ABS, the spring is heavy duty stainless steel and the valve seat is heavy duty rubber. The self cleaning design keeps the diverter from clogging or sticking between uses.

Before you order

Ports are 1.5 in. threaded on an 8 in. flange. That matches the S164T, S166T, S180T, S190T, S210T, S220T, S244T and S245T. Filters plumbed in 2 in., including the S310T and S310T2, take the SP071620T instead. Everything for the swap is in the box, so no separate o-ring or clamp order is needed.

Specifications
Brand Hayward
Manufacturer part number SP0714T
UPC 610377472401
Type Vari-Flo XL top mount multiport valve kit
Positions 7: Filter, Backwash, Rinse, Waste, Recirculate, Closed, Winter
Plumbing ports 1.5 in. threaded
Flange diameter 8 in.
Mounting Two piece clamp, top mount
Fits Hayward S164T, S166T, S180T, S190T, S210T, S220T, S244T, S245T sand filters
Replaces Hayward SP-711-13
Body and cover ABS
Spring Heavy duty stainless steel
Valve seat Heavy duty rubber
Sight glass Built in

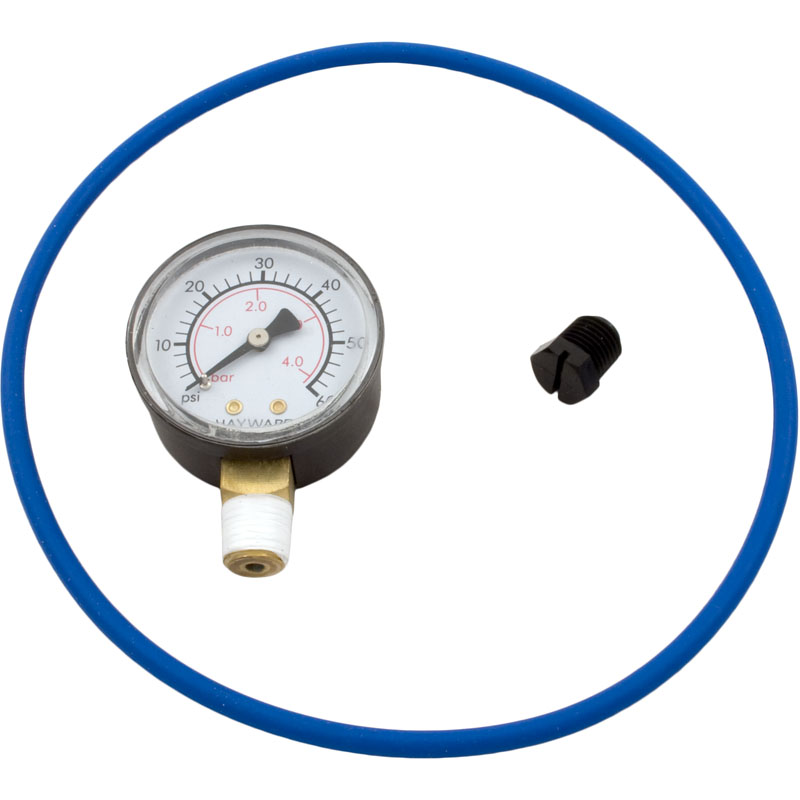

Included SP0714TX valve, GMX600F tank o-ring, side mount pressure gauge, GMX600NM valve clamp
2 in. alternative SP071620T
Shipping weight 5.4 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12899 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,42099 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$15299 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28999 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5999 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19199 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799 Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899
Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$19399 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2499 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$20399 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20899 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26199 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899 Hayward Super Pump W3SP2607X10, 1 HP max rated in-ground pool pump, side view Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10$84900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Will it fit my Hayward sand filter?
It fits the Pro Series S164T, S166T, S180T, S190T, S210T, S220T, S244T and S245T, all of which use an 8 in. top mount flange and 1.5 in. plumbing. Filters plumbed in 2 in., such as the S310T and S310T2, take the 2 in. SP071620T instead.
My old valve is an SP-711-13. Is this the replacement?
Yes. The SP0714T Vari-Flo XL is Hayward's current replacement for the SP-711-13.
What comes in the box?
The SP0714TX valve, a GMX600F tank o-ring, a side mount pressure gauge and the GMX600NM two piece clamp that holds the valve to the tank.
What do the seven positions do?
Filter is normal operation. Backwash reverses flow to flush the sand bed to waste. Rinse resettles the bed after a backwash. Waste sends water to the waste port around the filter, for lowering the pool or vacuuming heavy debris. Recirculate returns water to the pool without filtering. Closed stops all flow. Winter relieves the valve for winterizing.
