Hayward SP0710XALL Vari-Flo XL 1.5 inch multiport valve kitHayward Vari-Flo XL Multi-Port Valve Kit 1.5", SP0710XALL In stock$16699
Hayward SP0710XALL Vari-Flo XL 1.5 inch multiport valve kit
Shop all Hayward

Hayward Vari-Flo XL Multi-Port Valve Kit 1.5", SP0710XALL

Ask a questionMPN SP0710XALL
$16699
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Six valve positions Filter, backwash, waste, rinse, closed and recirculate from one handle.
  • Lever action handle Positions change with a lever rather than a wrestling match at the filter.
  • Integral sight glass Shows when the backwash cycle has run clear, so you stop at the right moment.
  • PermaGlass XL body Hayward exclusive material, chosen for maximum flow through the valve.
  • Sized for 1.5 inch plumbing The 1.5 inch Vari-Flo XL, Hayward part SP0710XALL.
  • Supplied as a kit Sold as the complete valve kit rather than as loose internals.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Vari-Flo XL Multi-Port Valve Kit 1.5", SP0710XALL, SKU HAY-06-219. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Vari-Flo XL Multi-Port Valve Kit 1.5", SP0710XALL
Hayward

Vari-Flo XL Multi-Port Valve Kit 1.5", SP0710XALL

$16699
Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit
Hayward

SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit

$15899
Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA
Hayward

Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA

$14799
Hayward Cover O-Ring, 5-1/2" ID, SPX0710XZ3
Hayward

Cover O-Ring, 5-1/2" ID, SPX0710XZ3

$599
Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62
Hayward

Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62

$18899
Hayward Cover O-Ring for Vari-Flo, SPX0715Z1
Hayward

Cover O-Ring for Vari-Flo, SPX0715Z1

$2599
Hayward Nylon Washer, SPX0710Z16
Hayward

Nylon Washer, SPX0710Z16

$499
Subtotal

Similar products

Other products people compare with this one.

Hayward SP071621 2 in. Vari-Flo top mount multiport valve, front view Hayward 2" Vari-Flo Top Mount Valve, SP071621$22899 Hayward SPX0710X32 Vari-Flo 1.5 in. side mount multiport valve for S200 and S240 sand filters Hayward Vari-Flo 1.5 in. Multiport Valve (S200 and S240), SPX0710X32$27299 Hayward SP0715X62 Vari-Flo 2 in. side mount control valve for Pro Series sand filters Hayward Pro-Series Sand Filter Vari-Flo Control Valve with 2 in. Plumbing Ports and Gauge, SP0715X62$28399 Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$25399 Hayward SPX0715X32 2 inch Vari-Flo multiport control valve assembly Hayward 2" Multiport Valve, SPX0715X32$39599

Product details

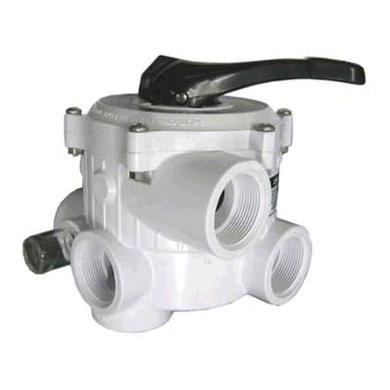

The Hayward SP0710XALL is the Vari-Flo XL multiport control valve kit for 1.5 inch plumbing. It is the valve that routes water through the filter and handles backwashing.

Six positions

One lever action handle selects filter, backwash, waste, rinse, closed or recirculate. An integral sight glass sits in the valve so you can see the backwash water and stop the cycle when it runs clear instead of guessing at the timing.

Body material

The valve body is PermaGlass XL, a material exclusive to Hayward, specified to keep flow resistance through the valve low.

Check the fit before ordering

The source information for this valve is not consistent on mounting. It is described as a side mount 1.5 inch valve kit, and it is also listed against the Vari-Flo top mount 1-1/2 in. models SP0710X, SP0711 and SP0712. Confirm Hayward part number SP0710XALL against the valve currently on your filter before you order.

Specifications
Brand Hayward
Manufacturer part number SP0710XALL
UPC 610377044462
Series Vari-Flo XL
Type Multiport control valve kit
Plumbing size 1.5 inch
Body material PermaGlass XL
Positions Six: filter, backwash, waste, rinse, closed, recirculate
Handle Lever action
Sight glass Integral
Mounting Listed as side mount in the product title; the same source files it under Vari-Flo top mount 1-1/2 in. models SP0710X, SP0711, SP0712
Shipping weight 3.9 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12499 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,37799 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$899 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$25399 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Is this a side mount or a top mount valve?
The source is not consistent. The product title and description call it a side mount 1.5 inch valve kit, while the same source also lists it under Vari-Flo top mount 1-1/2 in. models SP0710X, SP0711 and SP0712. Match Hayward part number SP0710XALL against your filter before ordering.
What positions does the handle have?
Six: filter, backwash, waste, rinse, closed and recirculate.
What is the sight glass for?
It shows the water leaving the valve during a backwash. When it runs clear, the backwash cycle is finished and you can move the handle on to rinse.
What is PermaGlass XL?
It is a Hayward exclusive body material used on the Vari-Flo XL. Hayward specifies it for maximum flow through the valve.
Ask your own question
