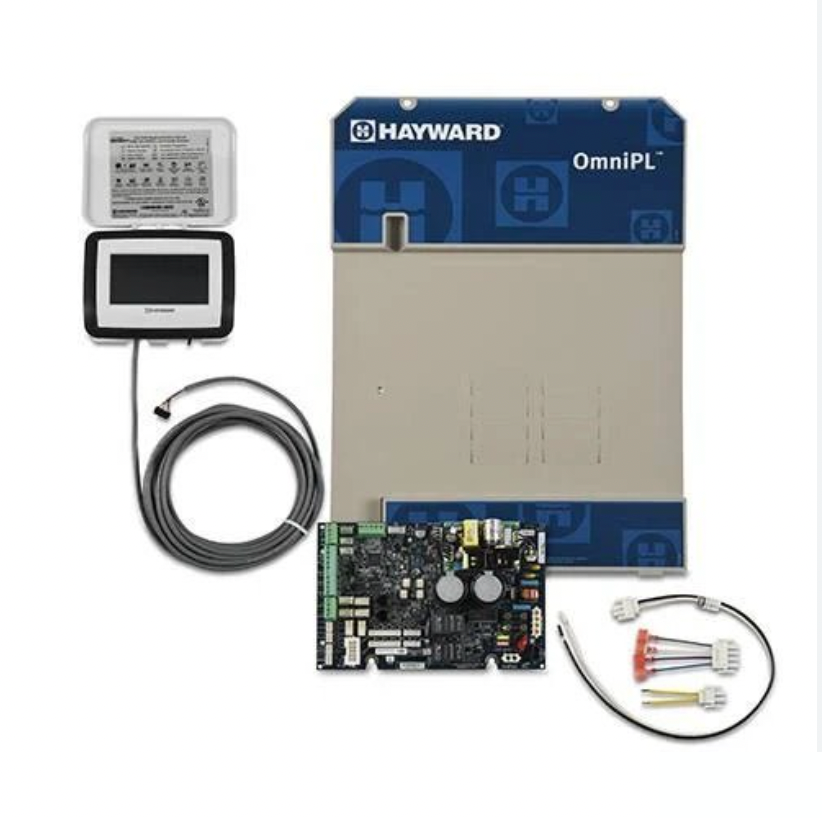

Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPLHayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG In stock$1,99900 Web Price
Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL
Shop all Hayward

Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG

Ask a questionMPN HLXPROUPG
$1,99900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
FREE Delivery
In stock

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Upgrade, not a full system Installs onto an existing Pro Logic or AquaLogic, so the enclosure and field wiring already on the wall stay in place.
  • Scalable relays Ships with 4 relays and upgrades to 6 or 8 as the equipment pad grows.
  • Variable speed pumps Controls up to 8 variable speed pumps directly, without using relays.
  • OmniDirect Mode Paired with ColorLogic LED lighting it unlocks extra color options, dimming and speed control.
  • Touchscreen on a 15 ft cord The external display mounts wherever it is convenient to reach.
  • App and voice W models run from the OmniLogic app and take Amazon Alexa and Google Home commands.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG, SKU HAY-30-2121. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG
Hayward

Pro Logic Retrofit Kit, OmniPL, HLXPROUPG

$1,99900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Jandy Valve Actuator JVA 24V, 4424
Jandy

Valve Actuator JVA 24V, 4424

$23399
Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO
Hayward

Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO

$1,07599
Pentair IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474
Pentair

IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474

$26999
Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M
Intermatic

24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M

$9599
Pentair Clear Flow Cell Jelly Jar for AK1200 IntelliChem Chemical Controller, 754000340
Pentair

Clear Flow Cell Jelly Jar for AK1200 IntelliChem Chemical Controller, 754000340

$31199
Intermatic Freeze Protection Thermostat, 178T24
Intermatic

Freeze Protection Thermostat, 178T24

$7299
Subtotal

Similar products

Other products people compare with this one.

Pentair 522048 IntelliTouch and EasyTouch to IntelliCenter upgrade kit, i10PS for CLC/CPC Pentair IntelliTouch/EasyTouch to IntelliCenter Next Gen Upgrade Kit, i10PS for CLC/CPC, 522048$1,27199 Jandy R0468501 AquaLink RS8 upgrade kit, Pool/Spa Combo, Rev.QQ Jandy AquaLink RS8 Upgrade Kit, Pool/Spa Combo, Rev.QQ, R0468501$1,19099 Hayward HLWIRELESS OmniLogic waterproof wireless remote Hayward OmniLogic Waterproof Wireless Remote, HLWIRELESS$1,06999 Pentair EasyTouch 8 EC-520540 pool and spa combo control system with 2 actuators Pentair EasyTouch 8 Pool/Spa Combo with 2 Actuators, EC-520540$2,19699 Jandy IQ30-RS AquaLink 3.0 upgrade kit with RS-PS8 PCB, bezel and CPU Jandy AquaLink IQ30-RS 3.0 Upgrade Kit with RS-PS8 PCB, Bezel, CPU$1,32499 Pentair 523448 IntelliCenter load center system with i5P personality kit Pentair IntelliCenter Load Center System with i5P Personality Kit, 523448$2,21333 Pentair 521907 IntelliCenter Load Center System with i5PS personality kit Pentair IntelliCenter Load Center System with i5PS Personality Kit, without SCG, 521907$2,60099 Pentair EasyTouch 8SC EC-520545 pool/spa combo load center with IC40 salt cell and two actuators Pentair EasyTouch 8SC Pool/Spa Combo with IC40 Salt Cell, Transformer, and 2 Actuators, EC-520545$2,84900 Hayward OmniHub smart pool and spa control, part HLOMNIHUB Hayward OmniHub Smart Pool and Spa Control with One Smart Relay, HLOMNIHUB$1,10599 Pentair 521909 IntelliCenter i5P single body personality kit Pentair IntelliCenter i5P Single Body Personality Kit, 521909$1,40699
Pentair 520547 EasyTouch wireless controller for 8 circuit systems Pentair Genuine OEM EasyTouch Wireless Controller for 8 Circuit System, 520547$1,40599 Jandy AQWHR18 AquaLink wireless handheld remote with transceiver Jandy AquaLink AQWHR18 Wireless Handheld Remote with Transceiver$1,17999 Hayward Goldline Hayward Pro Logic Pool & Spa 8 Relays | PL-PS-8 Hayward Goldline Hayward Pro Logic Pool & Spa 8 Relays | PL-PS-8$2,68899 Jandy AquaLink RS-PS6 pool and spa combo 6 function automation control system Jandy AquaLink RS Pool and Spa Combo 6 Automation System, RS-PS6$1,27199 Pentair 523529 IntelliCenter next generation upgrade kit for IntelliTouch and EasyTouch Pentair IntelliTouch/EasyTouch to IntelliCenter Next Generation Upgrade Kit CLC/CPC, 523529$99599 Pentair IntelliCenter 521904 Load Center System with i8PS Personality Kit Pentair IntelliCenter Load Center System with i8PS Personality Kit, 521904$3,03999 S.R. Smith PT-6001 poolLUX Plus2 60W single zone LED light control power tower S.R. Smith 60W 6 Amp Single Zone LED Light Control Power Tower, PT-6001$90099 Pentair EasyTouch PL4-PSL4 Wireless Remote | 522464 Pentair EasyTouch PL4-PSL4 Wireless Remote | 522464$88299 S.R. Smith WIRTRAN Control System with 3 Treo Color LED | 3TR-WIRTRAN S.R. Smith WIRTRAN Control System with 3 Treo Color LED | 3TR-WIRTRAN$81899 Hayward HLXPLCONTROL replacement OmniPL controller Hayward HLXPLCONTROL Replacement OmniPL Controller$81099

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Product details

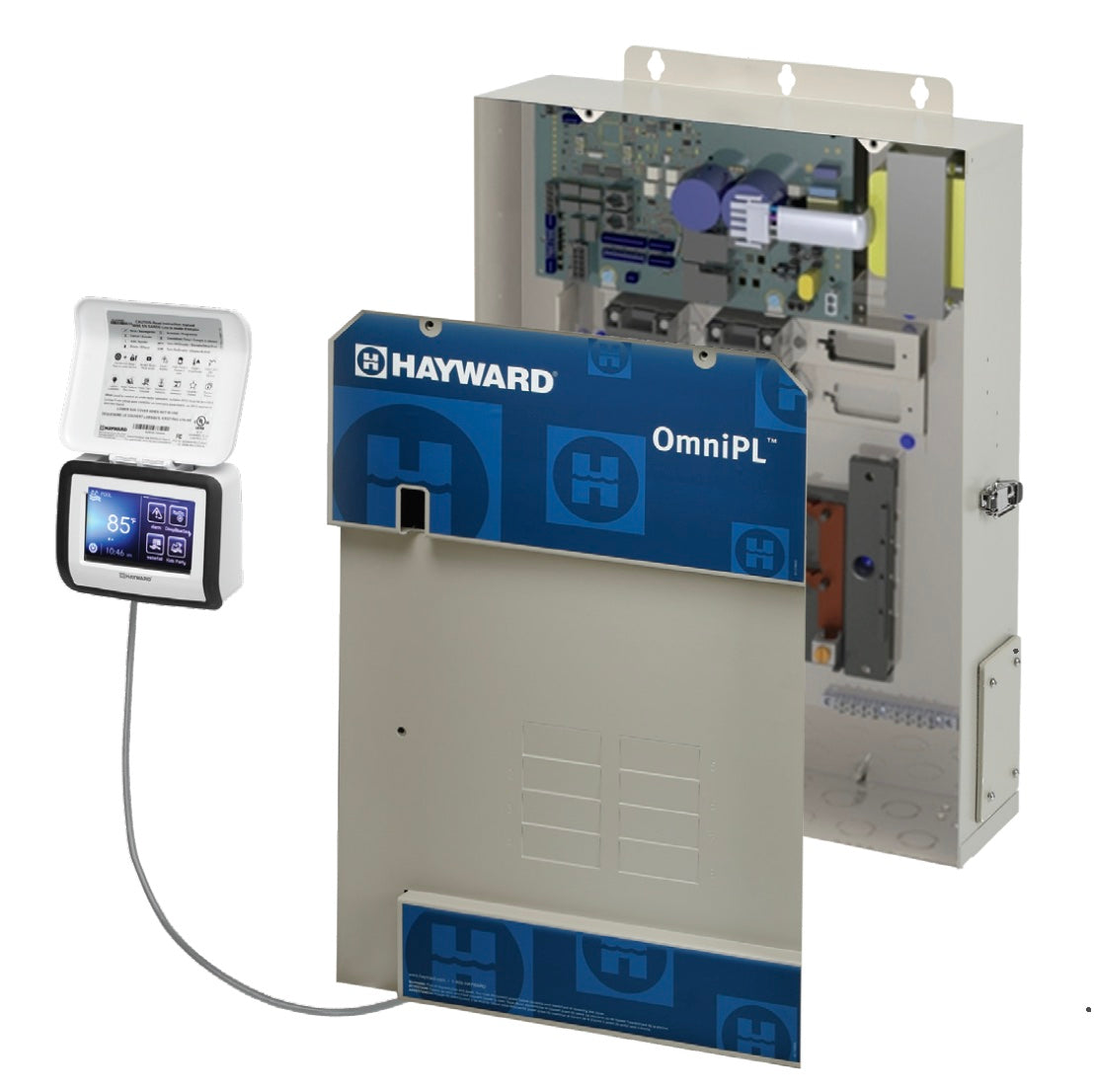

The Hayward HLXPROUPG converts an existing Pro Logic or AquaLogic installation into an OmniPL automation system. It is an upgrade kit rather than a complete controller, so the panel and wiring already on the wall stay put and the pool picks up variable speed pump, salt system and lighting control at a mid range price.

What it controls

The kit ships with 4 relays and can be upgraded to 6 or 8 later. Variable speed pumps do not take a relay at all; the system runs up to 8 of them directly. With ColorLogic LED lights, OmniDirect Mode adds color options, dimming and speed control that are not available otherwise. PLUS models include a salt cell and S models are salt ready.

How you run it

An external touchscreen on a 15 ft cord mounts wherever it is easiest to reach. W models add full mobile control through the OmniLogic app plus Amazon Alexa and Google Home voice control. OmniLogic remotes work with it, including the HLWRELESS, HLWALLMOUNT and HLSPASIDE.

Before you order

Legacy Pro Logic and AquaLogic remotes, whether wireless, wall mount, desktop or spaside, are not compatible with the retrofit and will need to be replaced with OmniLogic equivalents.

Specifications
Brand Hayward
Manufacturer part number HLXPROUPG
UPC 0610377416283
Type OmniPL automation retrofit kit
Requires Existing Pro Logic or AquaLogic system
Relays 4 included, upgradeable to 6 or 8
Variable speed pump control Up to 8 pumps without relays
Display External touchscreen, 15 ft cord
Salt chlorination Cell included on PLUS models, salt ready on S models
Mobile app OmniLogic app, W models
Voice control Amazon Alexa and Google Home, W models
Compatible remotes OmniLogic HLWRELESS, HLWALLMOUNT, HLSPASIDE
Not compatible with Pro Logic and AquaLogic legacy wireless, wall mount, desktop and spaside remotes
Shipping weight 11 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12899 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,42099 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$15299 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28999 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5999 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19199 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$19399 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2499 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$20399 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20899 Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26199 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899 Hayward Super Pump W3SP2607X10, 1 HP max rated in-ground pool pump, side view Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10$84900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Is this a complete automation system?
No. It is an upgrade kit. A Pro Logic or AquaLogic system has to be installed already; the kit converts that system to OmniPL.
Will my old Pro Logic remotes still work?
No. The legacy Pro Logic and AquaLogic wireless, wall mount, desktop and spaside remotes are not compatible. Use the OmniLogic remotes instead: HLWRELESS, HLWALLMOUNT and HLSPASIDE.
Can I control it from my phone?
On W models, yes, through the OmniLogic app. W models also accept Amazon Alexa and Google Home voice commands.
How many relays and pumps does it handle?
It comes with 4 relays and can be expanded to 6 or 8. Variable speed pumps do not use relays; it controls up to 8 of them directly.
Ask your own question
