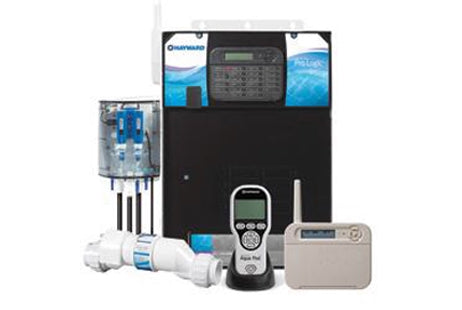

Hayward Goldline Hayward Pro Logic Pool & Spa 8 Relays | PL-PS-8Hayward ProLogic Pool and Spa Automation Base System, 8 Function with 8 Relays, PL-PS-8 In stock$2,61499
Hayward Goldline Hayward Pro Logic Pool & Spa 8 Relays | PL-PS-8
Shop all Hayward

Hayward ProLogic Pool and Spa Automation Base System, 8 Function with 8 Relays, PL-PS-8

Ask a questionMPN PL-PS-8
$2,61499
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 8 function base system Manages up to 8 pieces of pool and spa equipment on any pool, spa or combination.
  • Heaters and solar Adds control of up to two heaters and a solar system.
  • Valve actuators Automates up to 4 rotating actuator valves.
  • Built-in sub panel and keypad Includes a built-in 100 amp sub panel and a built-in keypad for operation and programming.
  • Pump control Controls energy-saving two-speed and variable-speed pumps.
  • Expandable Accommodates salt chlorination, LED light shows, chemical automation, wired and wireless remotes, and home automation.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward ProLogic Pool and Spa Automation Base System, 8 Function with 8 Relays, PL-PS-8, SKU GLD-30-731. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward ProLogic Pool and Spa Automation Base System, 8 Function with 8 Relays, PL-PS-8
Hayward

ProLogic Pool and Spa Automation Base System, 8 Function with 8 Relays, PL-PS-8

$2,61499
Jandy Valve Actuator JVA 24V, 4424
Jandy

Valve Actuator JVA 24V, 4424

$23399
Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO
Hayward

Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO

$1,07599
Pentair IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474
Pentair

IntelliChem Container Tank-Mount Pump Upgrade Kit, 522474

$25899
Intermatic 24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M
Intermatic

24-Hour 208-277V Mechanical Time Switch, DPST, Mechanism Only, T104M

$9299
Pentair Clear Flow Cell Jelly Jar for AK1200 IntelliChem Chemical Controller, 754000340
Pentair

Clear Flow Cell Jelly Jar for AK1200 IntelliChem Chemical Controller, 754000340

$30299
Intermatic Freeze Protection Thermostat, 178T24
Intermatic

Freeze Protection Thermostat, 178T24

$7099
Subtotal

Similar products

Other products people compare with this one.

Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Pentair EasyTouch 8 EC-520540 pool and spa combo control system with 2 actuators Pentair EasyTouch 8 Pool/Spa Combo with 2 Actuators, EC-520540$2,13099 Jandy IQ30-RS AquaLink 3.0 upgrade kit with RS-PS8 PCB, bezel and CPU Jandy AquaLink 3.0 Upgrade Kit with RS-PS8 PCB, Bezel, CPU, IQ30-RS$1,32299 Pentair 523448 IntelliCenter load center system with i5P personality kit Pentair IntelliCenter Load Center System with i5P Personality Kit, 523448$2,14699 Pentair 521907 IntelliCenter Load Center System with i5PS personality kit Pentair IntelliCenter Load Center System with i5PS Personality Kit, without SCG, 521907$2,52299 Pentair EasyTouch 8SC EC-520545 pool/spa combo load center with IC40 salt cell and two actuators Pentair EasyTouch 8SC Pool/Spa Combo with IC40 Salt Cell, Transformer, and 2 Actuators, EC-520545$2,84900 Pentair IntelliCenter 521904 Load Center System with i8PS Personality Kit Pentair IntelliCenter Load Center System with i8PS Personality Kit, 521904$2,94799 Pentair 521909 IntelliCenter i5P single body personality kit Pentair IntelliCenter i5P Single Body Personality Kit, 521909$1,36499 Pentair 520547 EasyTouch wireless controller for 8 circuit systems Pentair Genuine OEM EasyTouch Wireless Controller for 8 Circuit System, 520547$1,36499 Jandy AquaLink RS-PS6 pool and spa combo 6 function automation control system Jandy AquaLink RS Pool and Spa Combo 6 Automation System, RS-PS6$2,09599
Pentair 522048 IntelliTouch and EasyTouch to IntelliCenter upgrade kit, i10PS for CLC/CPC Pentair IntelliTouch/EasyTouch to IntelliCenter Next Gen Upgrade Kit, i10PS for CLC/CPC, 522048$1,23399 Jandy R0468501 AquaLink RS8 upgrade kit, Pool/Spa Combo, Rev.QQ Jandy AquaLink RS8 Upgrade Kit, Pool/Spa Combo, Rev.QQ, R0468501$1,15599 Jandy AQWHR18 AquaLink wireless handheld remote with transceiver Jandy AquaLink AQWHR18 Wireless Handheld Remote with Transceiver, AQWHR18$1,09799 Hayward OmniHub smart pool and spa control, part HLOMNIHUB Hayward OmniHub Smart Pool and Spa Control with One Smart Relay, HLOMNIHUB$1,07299 Hayward HLWIRELESS OmniLogic waterproof wireless remote Hayward OmniLogic Waterproof Wireless Remote, HLWIRELESS$1,03799 S.R. Smith PT-6001 poolLUX Plus2 60W single zone LED light control power tower S.R. Smith 60W 6 Amp Single Zone LED Light Control Power Tower, PT-6001$90199 Pentair iS10 10-Function Spa-side Wired Remote with LED Screen | 150 | 521178 Pentair SpaCommand iS10 Spa-Side Wired Remote with LED Screen, 150 ft Cable, White, 521178$86699 Pentair EasyTouch PL4-PSL4 Wireless Remote | 522464 Pentair EasyTouch PL4 and PSL4 Wireless Remote Control Panel with Backlit LCD, 522464$85599 S.R. Smith WIRTRAN Control System with 3 Treo Color LED | 3TR-WIRTRAN S.R. Smith WIRTRAN Control System with 3 Treo Color LED | 3TR-WIRTRAN$79499 Hayward HLXPLCONTROL replacement OmniPL controller Hayward HLXPLCONTROL Replacement OmniPL Controller, HLXPLCONTROL$78699

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Product details

The Hayward PL-PS-8 is the ProLogic base system with 8 relays (8 function), a pool and spa automation control that manages up to 8 pieces of equipment plus up to two heaters and a solar system.

What it does

ProLogic is Hayward's scalable pool and spa control line, and the PL-PS-8 is the 8 function base system. It runs equipment on any pool, spa or pool and spa combination, automates up to 4 rotating actuator valves, and controls two-speed and variable-speed pumps. Off-peak scheduling lets filtration and cleaning run at lower-demand hours.

Built in

The base system includes a 100 amp sub panel and a keypad for operation and programming, and a digital display of the time, day, pool or spa temperature and ambient air temperature.

Adding options

The base system accommodates salt chlorination, advanced LED light shows, chemical automation, and wired and wireless remotes, and it interfaces to home automation. Hayward offers six ProLogic models with Pick N' Mix accessories for building a custom controller.

Before you order

This is the 8 function base system. Choose the options you need for your equipment pad separately.

Specifications
Brand Hayward
Manufacturer part number PL-PS-8
UPC 761418009244
Type Pool and spa automation base system
Series ProLogic
Number of functions 8
Pool type Any pool, spa, or pool and spa combination
Equipment control Up to 8 pieces of equipment, plus up to two heaters and a solar system
Valve actuators Up to 4 rotating actuator valves
Sub panel Built-in 100 amp
Keypad Built-in
Display Time, day, pool or spa temperature and ambient air temperature
Pump control Two-speed and variable-speed pumps
Shipping weight 37.35 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit, SP0714T$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder, CL200EF$12999 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,16900 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,20799 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,13499 Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1899
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$899 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26299 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

What does the Hayward ProLogic PL-PS-8 control?
It manages up to 8 pieces of pool and spa equipment, plus up to two heaters and a solar system, and can automate up to 4 rotating actuator valves.
Does the Hayward PL-PS-8 include a sub panel and keypad?
Yes. It has a built-in 100 amp sub panel and a built-in keypad for complete operation and programming.
Can the ProLogic PL-PS-8 be expanded?
Yes. Hayward says it accommodates salt chlorination, advanced LED light shows, chemical automation and wired and wireless remotes, and it interfaces to home automation.
Will the PL-PS-8 control a variable-speed pump?
Yes. It controls two-speed and variable-speed pumps, and Hayward describes it managing an EcoStar variable-speed pump.
