Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714THayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA In stock$15299
Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T
Shop all Hayward

Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA

Ask a questionMPN SPX0714BA
$15299
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Top half of the valve fully assembled cover, handle, handle pin, spring, washers, spider gasket and rotor in one box.
  • Fixes backwash port leaks the repair for water leaking out of the backwash port on an SP0714T.
  • Fits SP0714T Vari-Flo XL the top mount valve on Hayward Pro Series and other top mount sand filters.
  • Filter fit list S166T, S180T, S190T, S210T, S220T, S230T, S244T and S270T.
  • Cover o-ring not included the SPX0714L cover o-ring is sold separately.
  • Genuine Hayward OEM part, not a copy.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA, SKU HAY-061-2138. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA
Hayward

Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA

$15299
Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit
Hayward

SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit

$15899
Hayward OEM O-Ring, 6-3/4" ID, GMX600F
Hayward

OEM O-Ring, 6-3/4" ID, GMX600F

$2699
Hayward Cover O-Ring, 5-1/2" ID, SPX0710XZ3
Hayward

Cover O-Ring, 5-1/2" ID, SPX0710XZ3

$699
Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62
Hayward

Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62

$19399
Hayward Cover O-Ring for Vari-Flo, SPX0715Z1
Hayward

Cover O-Ring for Vari-Flo, SPX0715Z1

$2699
Hayward Nylon Washer, SPX0710Z16
Hayward

Nylon Washer, SPX0710Z16

$499
Subtotal

Similar products

Other products people compare with this one.

Hayward SPX0710XBA17 black Vari-Flo key cover and handle assembly Hayward Vari-Flo Key Cover and Handle Assembly, Black, SPX0710XBA17$14099 Hayward SPX0715BA3 2 in. key, cover and handle assembly in black for Vari-Flo SP715 and SP716 valves Hayward 2 in. Key, Cover and Handle Assembly, Black, SPX0715BA3$21499 Hayward SPX0715C key and stem assembly for Vari-Flo SP0715 and SP0716 valves Hayward Key and Stem Assembly for Vari-Flo SP0715 and SP0716 Valves, SPX0715C$8899 Hayward SPX0710XBA white key, cover and handle assembly for Vari-Flo multiport valves Hayward Key, Cover and Handle Assembly, White, SPX0710XBA$13999 Hayward SPX0710XC Noryl key and stem assembly for Vari-Flo multiport valves Hayward Noryl Key and Stem Assembly for 1-1/2 in. Vari-Flo Valves, SPX0710XC$4399 Hayward SPX0704D valve key gasket for Vari-Flo SP0704 multiport valve Hayward Valve Key Gasket for Vari-Flo SP0704 1-1/2 in. 4-Position Multiport Valve, SPX0704D$2999 Hayward SPX0710XF Vari-Flo multiport valve replacement handle Hayward SPX0710XF Vari-Flo Valve Handle$2599 Hayward SPX0714CA key seal diverter assembly with molded spider gasket for the SP0714T Vari-Flo XL valve Hayward Key Seal Diverter Assembly, SPX0714CA$5999 Hayward SPX0714Z1 valve cover screw set of 6 for the SP0714T Vari-Flo XL valve Hayward Cover Screw Set of 6 for SP0714T Valve, SPX0714Z1$2799 Hayward SPX0715G 2 in Vari-Flo valve label plate Hayward 2 In Vari-Flo Label Plate, SPX0715G$1599
Hayward SPX0710G Vari-Flo valve label plate for 1-1/2 inch valves Hayward Vari-Flo Label Plate 1-1/2", SPX0710G$1199 Hayward SPX0710K 1/4 in. plastic pipe plug for Vari-Flo multiport valves Hayward 1/4 in. Plastic Pipe Plug for Vari-Flo Multiport Valves, SPX0710K$799 Hayward SPX0714D replacement diffuser for the SP0714T Vari-Flo XL valve Hayward Diffuser for SP0714T Valve, SPX0714D$6299 Hayward SPX0714G valve position decal for the SP0714T Vari-Flo XL multiport valve Hayward SP0714T MPV Valve Position Label, SPX0714G$1399 Hayward SPX0735GA shaft seal o-ring set for Vari-Flo valves Hayward O-Ring Shaft Seal Assembly, SPX0735GA$399 Hayward SP1072S 1-1/2 inch in-line backwash sight glass Hayward Sight Glass In-Line 1-1/2", SP1072S$4299 Hayward SPX0710Z62 nylon spring washer set, pack of two Hayward Nylon Spring Washer Set SPX0710Z62$1699

Product details

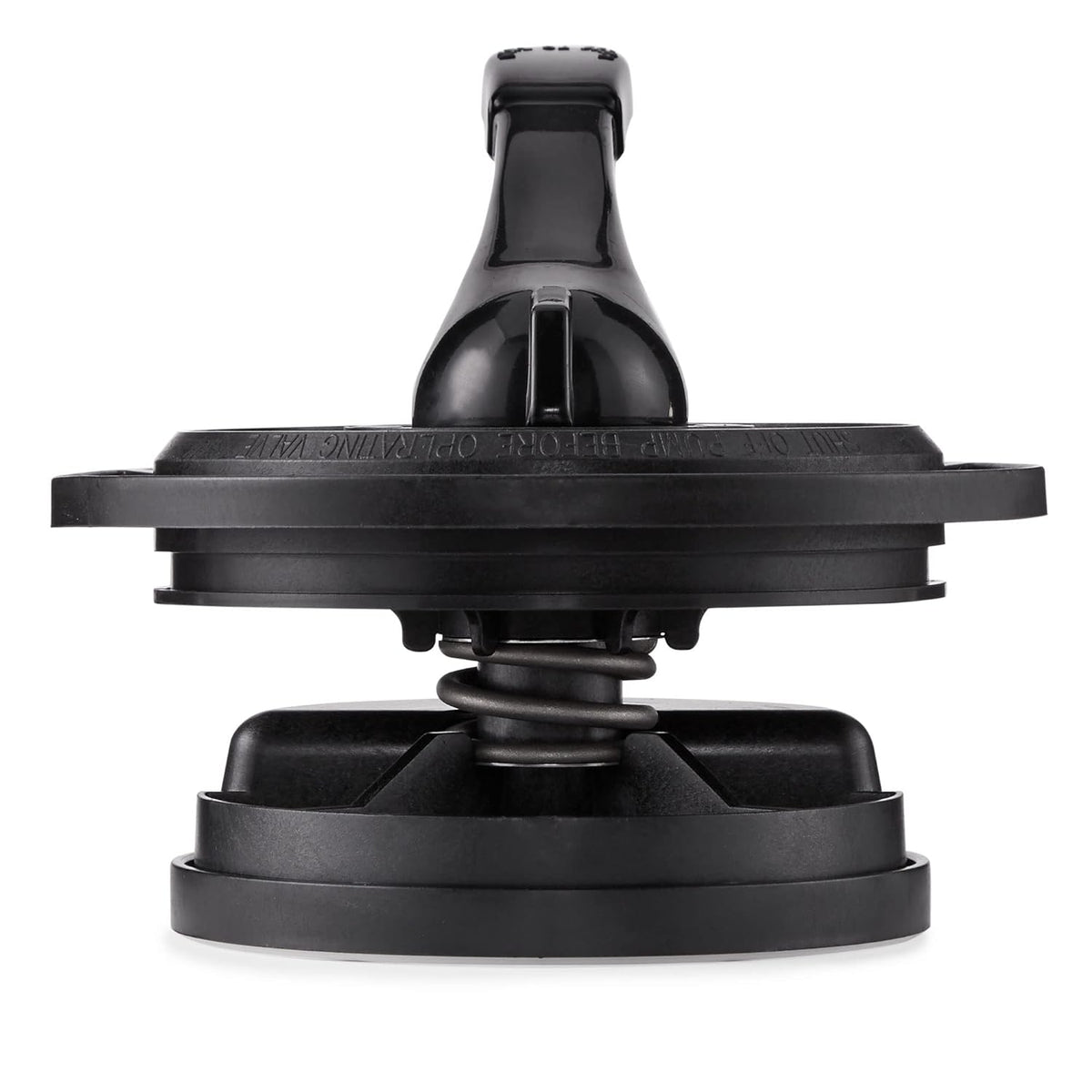

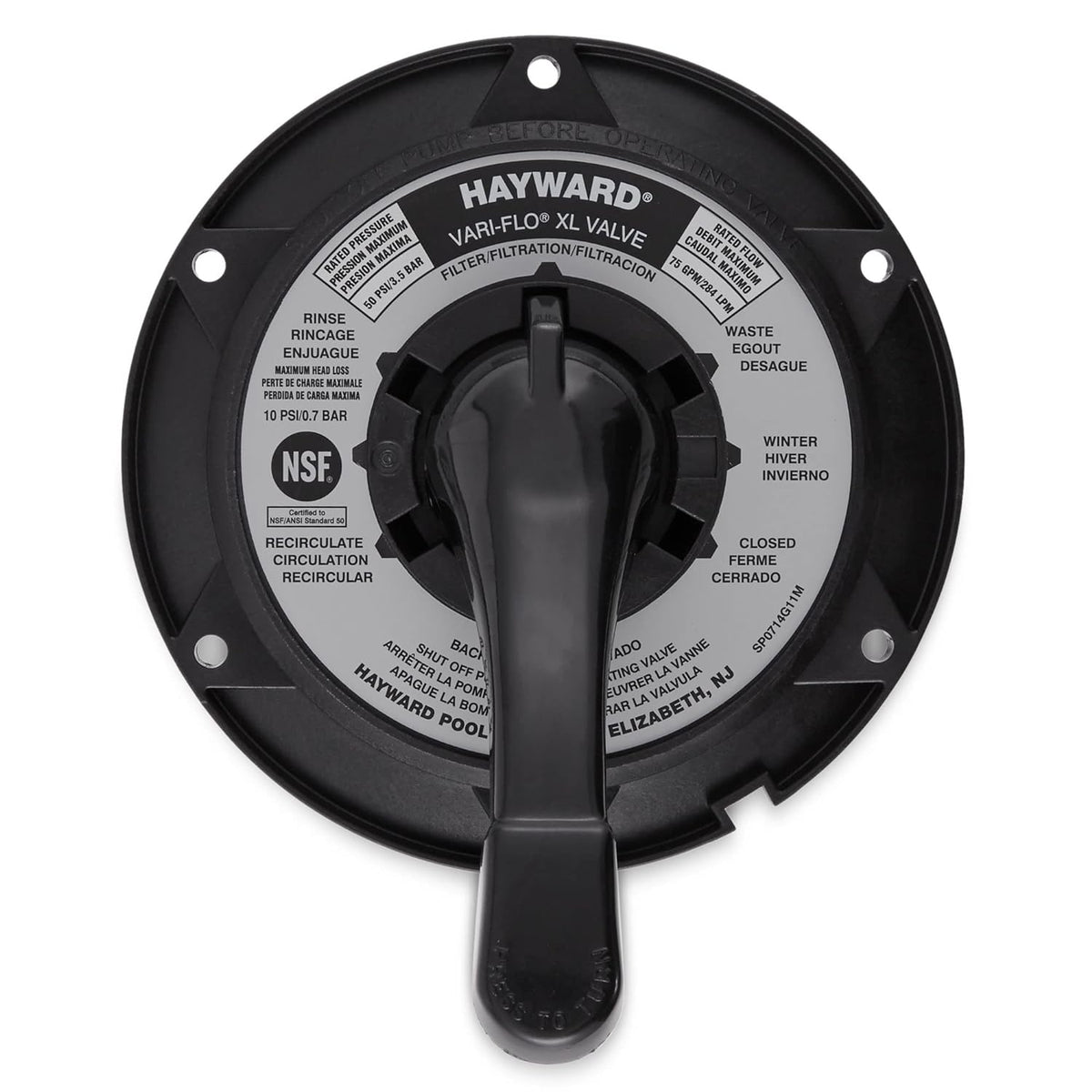

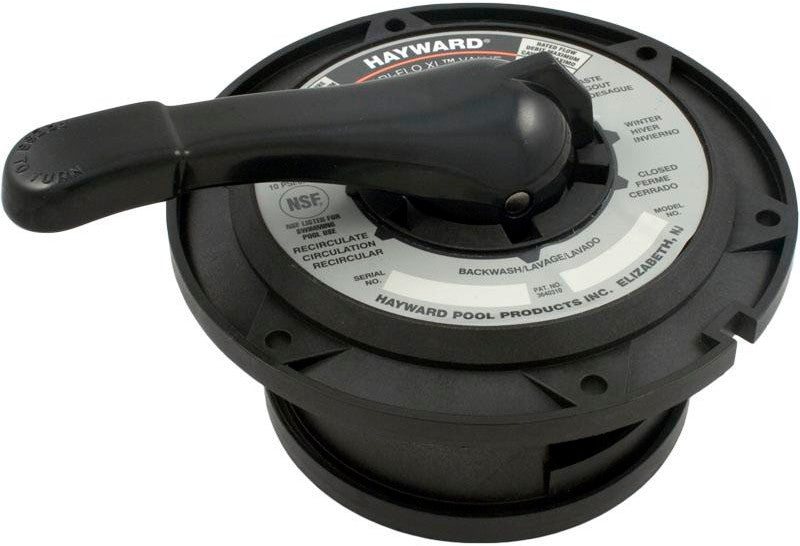

The Hayward SPX0714BA is the genuine key, cover and handle assembly for the SP0714T Vari-Flo XL top mount valve, the multiport valve on Hayward Pro Series and other top mount sand filters. It is effectively the whole upper half of the valve: a fully assembled cover with the handle, handle pin, spring and washers, plus the rotor and spider gasket underneath.

The symptom it fixes

Water leaking out of the backwash port. When the spider gasket or rotor wears, the valve can no longer seal the ports off from one another and water finds its way to backwash while the filter runs. Replacing the assembly restores the seal.

Fit

It fits the SP0714T (SP-714) valve on Hayward top mount filters including the S166T, S180T, S190T, S210T, S220T, S230T, S244T and S270T.

Before you order

The cover o-ring, part SPX0714L, is not included. It is worth ordering alongside so the valve goes back together with a fresh seal.

Specifications
Brand Hayward
Manufacturer part number SPX0714BA
UPC 610377492225
Type Key, cover and handle assembly
Fits valve Hayward SP0714T (SP-714) Vari-Flo XL top mount
Fits filters Hayward Pro Series and top mount sand filters: S166T, S180T, S190T, S210T, S220T, S230T, S244T, S270T
Fixes Water leaking out of the backwash port
Included Fully assembled cover, handle, handle pin, spring, valve cover, washers, spider gasket, rotor
Not included Cover o-ring SPX0714L
Shipping weight 2.1 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12899 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,42099 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28999 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5999 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19199 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799 Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899
Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$19399 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2499 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$20399 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20899 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26199 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899 Hayward Super Pump W3SP2607X10, 1 HP max rated in-ground pool pump, side view Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10$84900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Water is running out of the backwash port while filtering. Will this fix it?
Yes. That is the symptom this assembly addresses. It replaces the rotor and spider gasket along with the cover and handle.
Is the cover o-ring included?
No. The SPX0714L cover o-ring is sold separately. Order it at the same time if yours is flattened or cracked.
Will it fit my Hayward sand filter?
It fits the SP0714T Vari-Flo XL top mount valve used on Hayward Pro Series and top mount sand filters, including the S166T, S180T, S190T, S210T, S220T, S230T, S244T and S270T.
Does it come with the spider gasket and rotor?
Yes. The rotor and spider gasket are included with the fully assembled cover, handle, handle pin, spring and washers.
