Hayward SPX0710XBA17 black Vari-Flo key cover and handle assemblyHayward Vari-Flo Key Cover and Handle Assembly, Black, SPX0710XBA17 In stock$14099

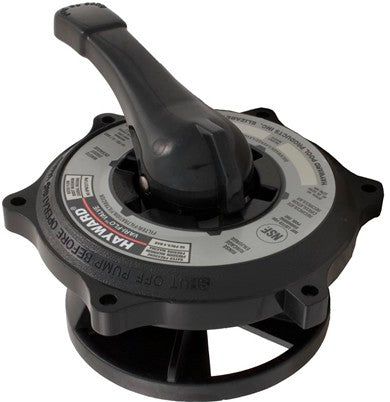

Hayward SPX0710XBA17 black Vari-Flo key cover and handle assembly
Shop all Hayward

Hayward Vari-Flo Key Cover and Handle Assembly, Black, SPX0710XBA17

Ask a questionMPN SPX0710XBA17
$14099
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Hayward the OEM SPX0710XBA17 top assembly for Vari-Flo valves, in black.
  • Fits four valves SP0710, SP0710X, SP0711 and SP0712 1-1/2 in. Vari-Flo multiport valves.
  • Key, cover and handle together the lid, the key beneath it and the handle come as one assembly.
  • Six positions Backwash, Recirculate, Rinse, Filter, Waste and Closed, reading clockwise.
  • Rated like the valve 50 PSI (3.4 bar) rated pressure, 60 GPM rated flow, 10 PSI (0.7 bar) maximum head loss.
  • O-ring not included the cover o-ring is sold separately, so order one if yours is flattened or cracked.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Vari-Flo Key Cover and Handle Assembly, Black, SPX0710XBA17, SKU HAY-061-2109. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Vari-Flo Key Cover and Handle Assembly, Black, SPX0710XBA17
Hayward

Vari-Flo Key Cover and Handle Assembly, Black, SPX0710XBA17

$14099
Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit
Hayward

SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit

$15899
Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA
Hayward

Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA

$15299
Hayward Cover O-Ring, 5-1/2" ID, SPX0710XZ3
Hayward

Cover O-Ring, 5-1/2" ID, SPX0710XZ3

$699
Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62
Hayward

Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62

$19399
Hayward Cover O-Ring for Vari-Flo, SPX0715Z1
Hayward

Cover O-Ring for Vari-Flo, SPX0715Z1

$2699
Hayward Nylon Washer, SPX0710Z16
Hayward

Nylon Washer, SPX0710Z16

$499
Subtotal

Similar products

Other products people compare with this one.

Hayward SPX0715C key and stem assembly for Vari-Flo SP0715 and SP0716 valves Hayward Key and Stem Assembly for Vari-Flo SP0715 and SP0716 Valves, SPX0715C$8899 Hayward SPX0710XBA white key, cover and handle assembly for Vari-Flo multiport valves Hayward Key, Cover and Handle Assembly, White, SPX0710XBA$13999 Hayward SPX0715BA3 2 in. key, cover and handle assembly in black for Vari-Flo SP715 and SP716 valves Hayward 2 in. Key, Cover and Handle Assembly, Black, SPX0715BA3$21499 Hayward SPX0710XC Noryl key and stem assembly for Vari-Flo multiport valves Hayward Noryl Key and Stem Assembly for 1-1/2 in. Vari-Flo Valves, SPX0710XC$4399 Hayward SPX0704D valve key gasket for Vari-Flo SP0704 multiport valve Hayward Valve Key Gasket for Vari-Flo SP0704 1-1/2 in. 4-Position Multiport Valve, SPX0704D$2999 Hayward SPX0710XF Vari-Flo multiport valve replacement handle Hayward SPX0710XF Vari-Flo Valve Handle$2599 Hayward SPX0714CA key seal diverter assembly with molded spider gasket for the SP0714T Vari-Flo XL valve Hayward Key Seal Diverter Assembly, SPX0714CA$5999 Hayward SPX0715G 2 in Vari-Flo valve label plate Hayward 2 In Vari-Flo Label Plate, SPX0715G$1599 Hayward SPX0704HA Vari-Flo o-ring with Teflon shaft seal Hayward Vari-Flo O-Ring/Teflon Shaft Seal, SPX0704HA$1399 Hayward SPX0710G Vari-Flo valve label plate for 1-1/2 inch valves Hayward Vari-Flo Label Plate 1-1/2", SPX0710G$1199
Hayward SPX0710K 1/4 in. plastic pipe plug for Vari-Flo multiport valves Hayward 1/4 in. Plastic Pipe Plug for Vari-Flo Multiport Valves, SPX0710K$799 Hayward SPX0710Z1A valve cover screw with nut, set of 6 Hayward Cover Screw with Nut, Set of 6, SPX0710Z1A$3099 Hayward SPX0714Z1 valve cover screw set of 6 for the SP0714T Vari-Flo XL valve Hayward Cover Screw Set of 6 for SP0714T Valve, SPX0714Z1$2799 Hayward SPX0710XZ7 valve handle pin Hayward Valve Handle Pin, SPX0710XZ7$1499 Hayward SPX0735GA shaft seal o-ring set for Vari-Flo valves Hayward O-Ring Shaft Seal Assembly, SPX0735GA$399 Hayward SPX0714D replacement diffuser for the SP0714T Vari-Flo XL valve Hayward Diffuser for SP0714T Valve, SPX0714D$6299 Hayward SP1072S 1-1/2 inch in-line backwash sight glass Hayward Sight Glass In-Line 1-1/2", SP1072S$4299 Hayward SPX0710Z62 nylon spring washer set, pack of two Hayward Nylon Spring Washer Set SPX0710Z62$1699 Hayward SPX0710MA threaded plastic sight glass with O-ring for Vari-Flo valves Hayward Plastic Sight Glass Threaded, with O-Ring, SPX0710MA$1699 Hayward SPX0714G valve position decal for the SP0714T Vari-Flo XL multiport valve Hayward SP0714T MPV Valve Position Label, SPX0714G$1399

Product details

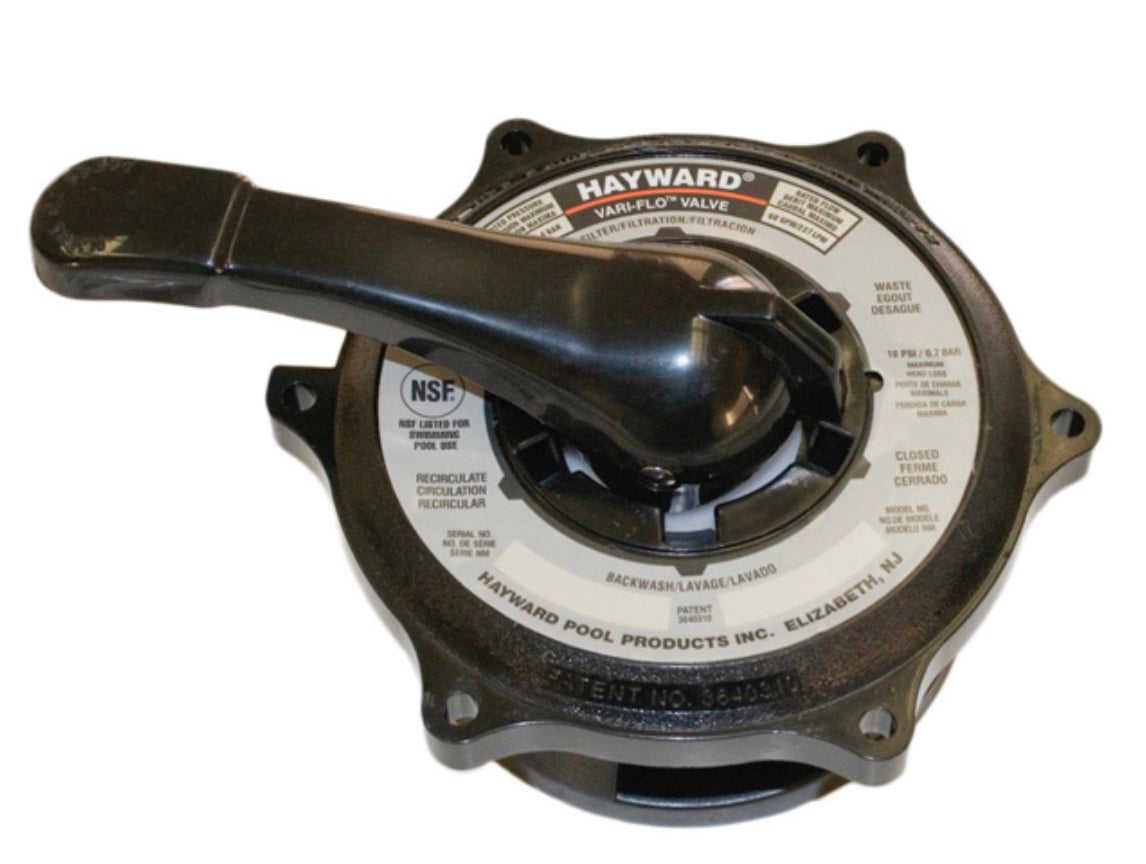

The Hayward SPX0710XBA17 is the genuine key, cover and handle assembly in black for the SP0710, SP0710X, SP0711 and SP0712 1-1/2 in. Vari-Flo multiport valves. It replaces the whole top of the valve in one piece: the cover, the key that diverts water beneath it and the handle that turns it.

Positions and ratings

Reading clockwise the six positions are Backwash, Recirculate, Rinse, Filter, Waste and Closed. The assembly carries the valve's ratings of 50 PSI (3.4 bar) rated pressure, 60 GPM rated flow and 10 PSI (0.7 bar) maximum head loss. The lid is stamped Patent No. 3640310, a quick way to confirm you are looking at a valve from this family.

Before you order

The cover o-ring is not included and must be bought separately. Since the o-ring is the seal between this assembly and the valve body, plan to fit a new one at the same time rather than reusing a flattened one. A white version of the same assembly is also available if you prefer to match an older valve.

Specifications
Brand Hayward
Manufacturer part number SPX0710XBA17
UPC 610377034883
Color Black
Fits Hayward SP0710, SP0710X, SP0711, SP0712 1-1/2 in. Vari-Flo multiport valves
Valve positions, clockwise Backwash, Recirculate, Rinse, Filter, Waste, Closed
Rated pressure 50 PSI / 3.4 BAR
Rated flow 60 GPM
Maximum head loss 10 PSI / 0.7 BAR
Cover o-ring Not included
Lid marking Patent No. 3640310
Part type Filter valve part
Shipping weight 1.15 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12899 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,42099 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$15299 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28999 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5999 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19199 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$19399 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2499 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$20399 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20899 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26199 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Which valves does this fit?
The Hayward SP0710, SP0710X, SP0711 and SP0712 1-1/2 in. Vari-Flo multiport valves.
Does it include the cover o-ring?
No. The o-ring that seals the cover to the valve body is sold separately. Fit a new one when you install this assembly.
What is the key?
The key is the rotor under the cover that the handle turns to direct water to each port. It, the cover and the handle come together as this assembly.
How do I tell if my valve is one of these?
Vari-Flo 1-1/2 in. valves in this family have six positions, Backwash, Recirculate, Rinse, Filter, Waste and Closed, reading clockwise, and the lid is stamped Patent No. 3640310.
Ask your own question
