Hayward SPX0710XF Vari-Flo multiport valve replacement handleHayward SPX0710XF Vari-Flo Valve Handle In stock$2599
Hayward SPX0710XF Vari-Flo multiport valve replacement handle
Shop all Hayward

Hayward SPX0710XF Vari-Flo Valve Handle

Ask a questionMPN SPX0710XF
$2599
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Hayward Factory part number SPX0710XF.
  • Marked SP-710X-F The identifying mark is stamped into the plastic on the underside of the handle.
  • Vari-Flo multiport The handle used on Hayward Vari-Flo top mount backwash valves.
  • Common breakage Handles crack at the hub after years of being forced against a stiff valve.
  • Restores positive position changes A solid handle lets you seat the valve properly in filter, backwash and rinse.
  • Handle only The pin and other valve parts are ordered separately if they are worn too.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward SPX0710XF Vari-Flo Valve Handle, SKU HAY-061-3193. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward SPX0710XF Vari-Flo Valve Handle
Hayward

SPX0710XF Vari-Flo Valve Handle

$2599
Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit
Hayward

SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit

$15899
Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA
Hayward

Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA

$15299
Hayward Cover O-Ring, 5-1/2" ID, SPX0710XZ3
Hayward

Cover O-Ring, 5-1/2" ID, SPX0710XZ3

$699
Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62
Hayward

Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62

$19399
Hayward Cover O-Ring for Vari-Flo, SPX0715Z1
Hayward

Cover O-Ring for Vari-Flo, SPX0715Z1

$2699
Hayward Nylon Washer, SPX0710Z16
Hayward

Nylon Washer, SPX0710Z16

$499
Subtotal

Similar products

Other products people compare with this one.

Hayward SPX0704D valve key gasket for Vari-Flo SP0704 multiport valve Hayward Valve Key Gasket for Vari-Flo SP0704 1-1/2 in. 4-Position Multiport Valve, SPX0704D$2999 Hayward SPX0715G 2 in Vari-Flo valve label plate Hayward 2 In Vari-Flo Label Plate, SPX0715G$1599 Hayward SPX0714G valve position decal for the SP0714T Vari-Flo XL multiport valve Hayward SP0714T MPV Valve Position Label, SPX0714G$1399 Hayward SPX0714Z1 valve cover screw set of 6 for the SP0714T Vari-Flo XL valve Hayward Cover Screw Set of 6 for SP0714T Valve, SPX0714Z1$2799 Hayward SPX0710Z62 nylon spring washer set, pack of two Hayward Nylon Spring Washer Set SPX0710Z62$1699 Hayward SPX0710XBA17 black Vari-Flo key cover and handle assembly Hayward Vari-Flo Key Cover and Handle Assembly, Black, SPX0710XBA17$14099 Hayward SPX0710G Vari-Flo valve label plate for 1-1/2 inch valves Hayward Vari-Flo Label Plate 1-1/2", SPX0710G$1199 Hayward SPX0710K 1/4 in. plastic pipe plug for Vari-Flo multiport valves Hayward 1/4 in. Plastic Pipe Plug for Vari-Flo Multiport Valves, SPX0710K$799 Hayward SPX0710XC Noryl key and stem assembly for Vari-Flo multiport valves Hayward Noryl Key and Stem Assembly for 1-1/2 in. Vari-Flo Valves, SPX0710XC$4399 Hayward SPX0715C key and stem assembly for Vari-Flo SP0715 and SP0716 valves Hayward Key and Stem Assembly for Vari-Flo SP0715 and SP0716 Valves, SPX0715C$8899
Hayward SPX0714D replacement diffuser for the SP0714T Vari-Flo XL valve Hayward Diffuser for SP0714T Valve, SPX0714D$6299 Hayward SPX0710XBA white key, cover and handle assembly for Vari-Flo multiport valves Hayward Key, Cover and Handle Assembly, White, SPX0710XBA$13999 Hayward SPX0715BA3 2 in. key, cover and handle assembly in black for Vari-Flo SP715 and SP716 valves Hayward 2 in. Key, Cover and Handle Assembly, Black, SPX0715BA3$21499 Hayward SP1072S 1-1/2 inch in-line backwash sight glass Hayward Sight Glass In-Line 1-1/2", SP1072S$4299 Hayward SPX0735GA shaft seal o-ring set for Vari-Flo valves Hayward O-Ring Shaft Seal Assembly, SPX0735GA$399 Hayward SPX0714CA key seal diverter assembly with molded spider gasket for the SP0714T Vari-Flo XL valve Hayward Key Seal Diverter Assembly, SPX0714CA$5999

Product details

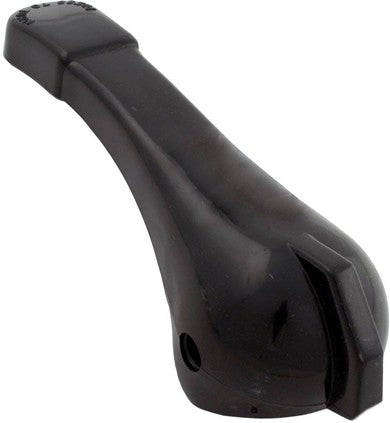

The Hayward SPX0710XF is the genuine replacement handle for Vari-Flo multiport valves. The original part is identified by SP-710X-F stamped into the plastic on the underside of the handle.

Why handles break

A multiport handle is levered against a spring loaded valve stem every time the position changes, and on a valve that has stiffened with age that takes real force. Over enough seasons the plastic fatigues at the hub and either cracks or rounds out, and the handle starts turning without moving the stem underneath.

What you get

This is the handle by itself. The handle pin and the internal valve parts are separate items, so if the valve is stiff or leaking as well as missing a handle, look at those at the same time. If a new handle still feels heavy to move, the valve internals are the next thing to check rather than the handle.

Specifications
Brand Hayward
Manufacturer part number SPX0710XF
UPC 610377034937
Type Valve handle
Marking SP-710X-F stamped on the underside
Part type Filter valve part
Listed for Hayward Vari-Flo top mount 1-1/2 in valves SP0710X, SP0711-13, SP0711-20 and SP0712 series, and the SP0704 4 position valve
Shipping weight 0.2 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12899 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,42099 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$15299 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28999 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5999 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19199 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$19399 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2499 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$20399 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20899 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26199 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

How do I confirm this is my handle?
Turn the old handle over. The genuine part carries SP-710X-F stamped into the plastic on the underside.
Does the pin come with it?
No. This is the handle on its own. The handle pin is a separate Hayward part.
Which valves is it listed for?
The Hayward Vari-Flo top mount 1-1/2 in valves in the SP0710X, SP0711 and SP0712 families, and the SP0704 4 position valve.
My handle turns but the valve does not change position, is this the part?
Possibly. If the handle spins freely or feels soft at the hub, the handle has failed. If it moves the stem but the valve still passes water to the wrong port, the problem is inside the valve instead.
