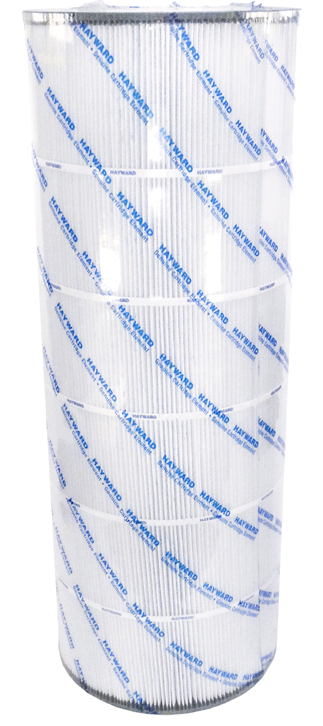

Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200SHayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE In stock$20299
Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S
Shop all Hayward

Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE

Ask a questionMPN CX200XRE
$20299
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Hayward the OEM CX200XRE element made for the SwimClear C200S, not an aftermarket copy.
  • 200 sq. ft. of filter area the full rated area of the C200S tank, so flow and cycle time stay where Hayward designed them.
  • Sized for the tank 10-1/4 in. in diameter and 28-1/8 in. long.
  • Cross reference replaces Unicel C-9442, Pleatco PA200S, FC-1267, CP-C200S and CS200E.
  • Pleated media more surface to hold dirt and fine debris between hose downs.
  • No tools, no plumbing open the tank, lift the old element out, set this one in and close up.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE, SKU HAY-051-249. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE
Hayward

Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE

$20299
CMP Bottom Collector Manifold Compatible with Hayward® CX3000C, 25357-750-000
CMP

Bottom Collector Manifold Compatible with Hayward® CX3000C, 25357-750-000

$6799
Hayward Outlet Elbow O-Ring, 2-3/16" ID, DEX2400Z5
Hayward

Outlet Elbow O-Ring, 2-3/16" ID, DEX2400Z5

$399
Hayward Metal Reinforced Seal for SwimClear and Pro-Grid Filters, DEX2422Z2
Hayward

Metal Reinforced Seal for SwimClear and Pro-Grid Filters, DEX2422Z2

$10299
Hayward SwimClear Lower Piping Assembly, CX3030H
Hayward

SwimClear Lower Piping Assembly, CX3030H

$14199
Hayward OEM Bulkhead O-Ring, SX200Z3
Hayward

OEM Bulkhead O-Ring, SX200Z3

$799
Hayward Star Clear Plus Filter Head with Vent Valve C1200, CX1200B
Hayward

Star Clear Plus Filter Head with Vent Valve C1200, CX1200B

$24899
Subtotal

Similar products

Other products people compare with this one.

Hayward CX225XREM 225 sq ft replacement cartridge element for the SwimClear C225SC Hayward SwimClear C225SC 225 Sq Ft Filter Cartridge CX225XREM$26999 Hayward CX1200RE genuine 120 sq ft filter cartridge for Star-Clear Plus C-1200 Hayward Genuine Filter Cartridge, 120 sq ft, Star-Clear Plus C-1200, CX1200RE$14499 Unicel C-7488-4 replacement filter cartridge for Hayward SwimClear C4020, C4025 and C4030 Unicel Filter Cartridge 4-Pack for Hayward® SwimClear™ C4020/4025/4030, C-7488-4$30199 Hayward CX481XREPAK4 replacement filter cartridge element for SwimClear C2030 filters Hayward Replacement Filter Cartridge for C2030 SwimClear Filters, 4 Pack, CX481XREPAK4$25099 Hayward CX100XRE SwimClear C100S 100 sq ft filter cartridge element Hayward 100 Sq. Ft. SwimClear Filter Cartridge Element, C100S, CX100XRE$14399 Hayward CX800RE 75 square foot OEM filter cartridge for Star-Clear II C800 Hayward CX800RE OEM Filter Cartridge, 75 Sq Ft$12099 Hayward CX900RE 90 sq ft filter cartridge element, front view Hayward C900 Filter Cartridge Element, 90 sq ft, CX900RE$11999 Hayward CX150XRE 150 sq. ft. SwimClear cartridge filter element Hayward 150 Sq. Ft. SwimClear Cartridge Element, CX150XRE$14599 Hayward CX1390REM C6060 Microban replacement filter cartridge Hayward C6060 Microban Filter Cartridge, CX1390REM$19499 Hayward CX875REM Advantage cartridge element, 450 sq ft Hayward Advantage Cartridge Element for Cartridge Filter, 450 sq ft, CX875REM$15699
Hayward CX760RE 75 square foot replacement filter cartridge for StarClear Plus Hayward CX760RE Filter Cartridge, 75 Sq Ft$10699 Hayward CX2020RE cartridge element for C2002 Star-Clear filter Hayward 200 sq ft Cartridge Element for C2002 Star-Clear Filter, CX2020RE$20099 Filbur Replacement Cartridge for Hayward SwimClear C5025 525 Sq Ft PA131 | FC-1227 Filbur Cartridge Compatible with Hayward® SwimClear™ C5025 525 Sq Ft PA131 | FC-1227$11899 Filbur Replacment Cartridge for Hayward C5000 and C5020 PA126 | FC-1296 Filbur Cartridge Compatible with Hayward® C5000 and C5020 PA126 | FC-1296$12299 Hayward CX580XREPAK4 set of four replacement cartridge elements for the SwimClear C3030 Hayward OEM Cartridge Filter Element for SwimClear C3030 (4-Pack), CX580XREPAK4$31199 Hayward CX591XREPAK4 replacement cartridge set for the SwimClear C7030 filter Hayward Replacement Filter Cartridge Set for SwimClear C7030, 4 Pack, CX591XREPAK4$30599 Hayward CX580XRE cartridge element for SwimClear C3030 pool filters Hayward Filter Cartridge for SwimClear C3030 Pool Filter, CX580XRE$9599 Filbur Replacment Cartridge for Hayward SwimClear C4025 425 Sq Ft Cartridge Filter | CX880XRE C-7488 20601 PA106 | FC-1226 Filbur Cartridge Compatible with Hayward® SwimClear™ C4025 425 Sq Ft Cartridge Filter | CX880XRE C-7488 20601 PA106 | FC-1226$9499 Filbur Replacment Cartridge for Hayward SwimClear C3025 325 Sq Ft Cartridge Filter | CX580XRE C-7483 18101 PA81 | FC-1225 Filbur Cartridge Compatible with Hayward® SwimClear™ C3025 325 Sq Ft Cartridge Filter | CX580XRE C-7483 18101 PA81 | FC-1225$8099 Pleatco PA131 131 sq ft replacement filter cartridge for Hayward SwimClear C5025 and C5030 Pleatco 131 Sq Ft Filter Cartridge Compatible with Hayward® SwimClear™ C5025, PA131$7703

Product details

The Hayward CX200XRE is the genuine replacement cartridge for the SwimClear C200S filter. It carries the full 200 sq. ft. of filter area the tank was designed around, measures 10-1/4 in. in diameter by 28-1/8 in. long, and drops into place without tools or plumbing work.

Pleated for capacity

The pleated media packs a lot of surface into the tank, so it holds dirt, fine debris and other contaminants for longer between hose downs and keeps water clear through the swim season.

Cross reference

If you have been buying an aftermarket element, this is the original behind it. The CX200XRE replaces Unicel C-9442, Pleatco PA200S, FC-1267, CP-C200S and CS200E.

Installation

Turn the pump off and bleed pressure at the tank, open the tank, lift the old cartridge out, set the new one in its place and close the tank. Rinse the element and reset the pressure gauge baseline as you normally would.

Specifications
Brand Hayward
Manufacturer part number CX200XRE
UPC 610377279376
Fits Hayward SwimClear C200S
Filter area 200 sq. ft.
Diameter 10-1/4 in.
Length 28-1/8 in.
Type Pleated replacement cartridge
Replaces Unicel C-9442, CP-C200S, CS200E, FC-1267, Pleatco PA200S
Shipping weight 9.8 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12999 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,16900 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,10299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1899
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26299 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899 Hayward Super Pump W3SP2607X10, 1 HP max rated in-ground pool pump, side view Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10$84900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Which filter does this fit?
The Hayward SwimClear C200S cartridge filter. Before ordering, check that the element in your tank measures about 10-1/4 in. across and 28-1/8 in. tall and is rated at 200 sq. ft.
Is this the same as a Unicel C-9442 or Pleatco PA200S?
Those are aftermarket equivalents. The CX200XRE is the Hayward original, and C-9442, PA200S, FC-1267, CP-C200S and CS200E all cross to it.
What is the filter area?
200 sq. ft., matching the C200S rating. A smaller element would shorten the time between cleanings.
How do I install it?
Shut the pump off and relieve pressure at the tank, open the tank, lift the old cartridge out, seat this one in its place and close the tank. No tools or plumbing changes are needed.
Ask your own question
