Hayward CX760RE 75 square foot replacement filter cartridge for StarClear PlusHayward CX760RE Filter Cartridge, 75 Sq Ft In stock$10999

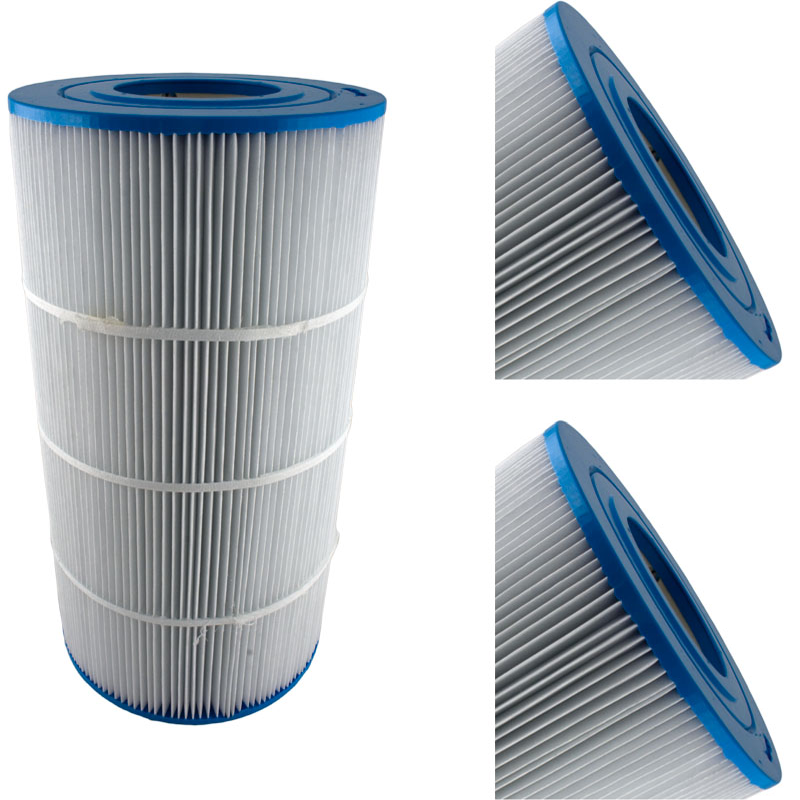

Hayward CX760RE 75 square foot replacement filter cartridge for StarClear Plus
Shop all Hayward

Hayward CX760RE Filter Cartridge, 75 Sq Ft

Ask a questionMPN CX760RE
$10999
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Hayward part Factory cartridge CX760RE, not an aftermarket element.
  • 75 square feet The rated filter area, which sets how long the filter runs between cleanings.
  • Measures 8-15/16 in. by 17-3/8 in. Outside diameter 8-15/16 inches, length 17-3/8 inches.
  • Open end caps both ends Top and bottom end caps are 4 inch open with a molded gasket.
  • Molded gaskets included The gaskets are part of the end caps, so there is nothing separate to fit.
  • Rinse, do not scrub Spreading the pleats with water keeps the media open, while a brush drives dirt in and flattens the folds.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward CX760RE Filter Cartridge, 75 Sq Ft, SKU HAY-06-645. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward CX760RE Filter Cartridge, 75 Sq Ft
Hayward

CX760RE Filter Cartridge, 75 Sq Ft

$10999
Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE
Hayward

Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE

$20299
Hayward Outlet Elbow O-Ring, 2-3/16" ID, DEX2400Z5
Hayward

Outlet Elbow O-Ring, 2-3/16" ID, DEX2400Z5

$399
Hayward Metal Reinforced Seal for SwimClear and Pro-Grid Filters, DEX2422Z2
Hayward

Metal Reinforced Seal for SwimClear and Pro-Grid Filters, DEX2422Z2

$10299
Hayward SwimClear Lower Piping Assembly, CX3030H
Hayward

SwimClear Lower Piping Assembly, CX3030H

$14199
Hayward OEM Bulkhead O-Ring, SX200Z3
Hayward

OEM Bulkhead O-Ring, SX200Z3

$799
Hayward Star Clear Plus Filter Head with Vent Valve C1200, CX1200B
Hayward

Star Clear Plus Filter Head with Vent Valve C1200, CX1200B

$23499
Subtotal

Similar products

Other products people compare with this one.

Hayward CX900RE 90 sq ft filter cartridge element, front view Hayward C900 Filter Cartridge Element, 90 sq ft, CX900RE$12199 Hayward CX1200RE genuine 120 sq ft filter cartridge for Star-Clear Plus C-1200 Hayward Genuine Filter Cartridge, 120 sq ft, Star-Clear Plus C-1200, CX1200RE$14199 Hayward CCX1000RE OEM 100 sq ft filter cartridge for X-Stream CC1000 Hayward OEM Filter Cartridge, 100 sq ft, CCX1000RE$9299 Hayward CX100XRE SwimClear C100S 100 sq ft filter cartridge element Hayward 100 Sq. Ft. SwimClear Filter Cartridge Element, C100S, CX100XRE$14399 Hayward CX580XRE cartridge element for SwimClear C3030 pool filters Hayward Filter Cartridge for SwimClear C3030 Pool Filter, CX580XRE$7399 Hayward CX875REM Advantage cartridge element, 450 sq ft Hayward Advantage Cartridge Element for Cartridge Filter, 450 sq ft, CX875REM$15399 Hayward CX800RE 75 square foot OEM filter cartridge for Star-Clear II C800 Hayward CX800RE OEM Filter Cartridge, 75 Sq Ft$11999 Hayward CX150XRE 150 sq. ft. SwimClear cartridge filter element Hayward 150 Sq. Ft. SwimClear Cartridge Element, CX150XRE$14599 Hayward CX1390REM C6060 Microban replacement filter cartridge Hayward C6060 Microban Filter Cartridge, CX1390REM$19499 Hayward CX2020RE cartridge element for C2002 Star-Clear filter Hayward 200 sq ft Cartridge Element for C2002 Star-Clear Filter, CX2020RE$20099
Hayward CX481XREPAK4 replacement filter cartridge element for SwimClear C2030 filters Hayward Replacement Filter Cartridge for C2030 SwimClear Filters, 4 Pack, CX481XREPAK4$24499 Hayward CX225XREM 225 sq ft replacement cartridge element for the SwimClear C225SC Hayward SwimClear C225SC 225 Sq Ft Filter Cartridge CX225XREM$26999 Hayward CX591XREPAK4 replacement cartridge set for the SwimClear C7030 filter Hayward Replacement Filter Cartridge Set for SwimClear C7030, 4 Pack, CX591XREPAK4$30599 Hayward CX580XREPAK4 set of four replacement cartridge elements for the SwimClear C3030 Hayward OEM Cartridge Filter Element for SwimClear C3030 (4-Pack), CX580XREPAK4$32499 Hayward CX880XREPAK4 SwimClear replacement filter cartridge elements, 4 pack Hayward Replacement Filter Cartridge Elements for SwimClear, 4 Pack, CX880XREPAK4$38099 Hayward CX1280XREPAK4 replacement cartridge element set for the SwimClear C5030 filter Hayward Replacement Cartridge Element for SwimClear C5030 Filter, 4 Pack, CX1280XREPAK4$47999 Hayward CX225RE 25 sq ft replacement cartridge element for StarClear C225 filter Hayward OEM C225-Blue StarClear Plus Replacement Cartridge Element, 25 SqFt, CX225RE$5499

Product details

The Hayward CX760RE is the genuine replacement filter cartridge for the StarClear Plus cartridge filter, rated at 75 square feet.

Dimensions

The element measures 8-15/16 inches across and 17-3/8 inches long, with 4 inch open end caps at the top and the bottom. Each end cap carries a molded gasket, so there is no separate seal to fit and nothing to lose during the swap.

Check the model before you order

The source data for this cartridge lists it two ways. The product description names the StarClear Plus C760, and the catalog files it in the StarClear Plus C751 parts group. Rather than trust either label alone, measure the cartridge that comes out and compare it to the dimensions above.

Getting the most out of it

Wash the element when the filter pressure rises above its clean starting point, spreading the pleats with a hose or a cartridge cleaner rather than a brush. Scrubbing pushes dirt into the media and flattens the folds. When a cleaned cartridge will not come back to its normal pressure, or the pleats are torn or matted, it is time for a new one.

Specifications
Brand Hayward
Manufacturer part number CX760RE
UPC 610377548410
Type Replacement filter cartridge
Filter area 75 Sq Ft
Outside diameter 8-15/16"
Length 17-3/8"
Top end cap 4" open with molded gasket
Bottom end cap 4" open with molded gasket
Fits Hayward StarClear Plus C760 cartridge filter
Also listed under Hayward StarClear Plus C751 parts group
Shipping weight 4.9 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12499 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,37799 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$899 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$25399 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Is this for the C760 or the C751?
The source data carries both. The product description lists it for the StarClear Plus C760, while the catalog files it in the StarClear Plus C751 parts group. Measure your old cartridge against 8-15/16 inches outside diameter and 17-3/8 inches long before ordering.
What are the exact dimensions?
Outside diameter 8-15/16 inches, length 17-3/8 inches, with 4 inch open end caps top and bottom, each with a molded gasket.
Do I need to buy gaskets separately?
No. The gaskets are molded into the top and bottom end caps.
When does a cartridge need replacing rather than cleaning?
When a washed cartridge no longer returns to its usual clean starting pressure, or when the pleats are torn, matted or split at the end caps.
