CMP 25357-750-000 bottom collector manifold, replacement for Hayward CX3000CCMP Generic Bottom Collector Manifold for Hayward CX3000C, 25357-750-000 In stock$7099
CMP 25357-750-000 bottom collector manifold, replacement for Hayward CX3000C
Shop all CMP

CMP Generic Bottom Collector Manifold for Hayward CX3000C, 25357-750-000

Ask a questionMPN 25357-750-000
$7099
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Replaces CX3000C A direct aftermarket substitute for the Hayward OEM bottom manifold.
  • Air bleed built in The internal air bleed is part of the manifold, matching the original design.
  • Four cartridge layout Seats the four filter elements in Hayward SwimClear and SuperStar Clear multi cartridge filters.
  • Plastic construction Molded plastic, like the part it replaces.
  • Made by CMP CMP is an established aftermarket manufacturer of pool filter and pump components.
  • Check the o-rings While the tank is open, inspect the bulkhead and tank o-rings and replace any that are flattened.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About CMP Generic Bottom Collector Manifold for Hayward CX3000C, 25357-750-000, SKU CTM-051-8256. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item CMP Generic Bottom Collector Manifold for Hayward CX3000C, 25357-750-000
CMP

Generic Bottom Collector Manifold for Hayward CX3000C, 25357-750-000

$7099
CMP Generic Top Manifold Assembly with Built-in Air Relief, DEX2400C, 25357-700-000
CMP

Generic Top Manifold Assembly with Built-in Air Relief, DEX2400C, 25357-700-000

$6599
CMP FNS Plus Top Manifold Assembly, 25357-600-000
CMP

FNS Plus Top Manifold Assembly, 25357-600-000

$9599
CMP Heavy Duty J-Style Top Manifold for CV340, CV460, CV580, CL340, CL460, CL580 Cartridge Filters, 25357-850-000
CMP

Heavy Duty J-Style Top Manifold for CV340, CV460, CV580, CL340, CL460, CL580 Cartridge Filters, 25357-850-000

$9899
CMP Generic Multiport Valve Replacement for Hayward Vari-Flo SP0714T, 27515-154-000
CMP

Generic Multiport Valve Replacement for Hayward Vari-Flo SP0714T, 27515-154-000

$13199
CMP Sand Filter Manual Air Relief Valve Gauge Assembly, 25357-273-564
CMP

Sand Filter Manual Air Relief Valve Gauge Assembly, 25357-273-564

$8699
CMP 2" Pump Union Ribbed T-Gasket, 21023-030-000
CMP

2" Pump Union Ribbed T-Gasket, 21023-030-000

$499
Subtotal

Similar products

Other products people compare with this one.

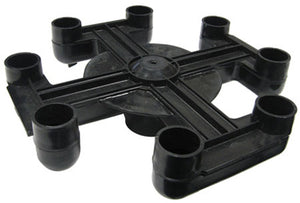

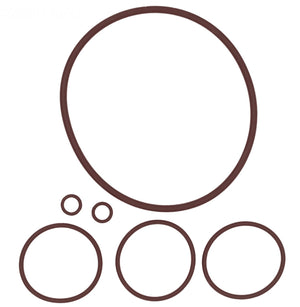

Pentair 170040 bottom manifold for Clean and Clear Plus cartridge filter Pentair Genuine OEM Bottom Manifold for Clean and Clear Plus, 170040$6399 Val-pak Bottom Manifold for Pentair Purex 2000 & 4000 | V20-369 Val-pak Bottom Manifold for Pentair Purex 2000 & 4000 | V20-369$5999 Hayward DEX2422Z2 metal reinforced tank seal for Pro-Grid and SwimClear filters Hayward Metal Reinforced Seal for SwimClear and Pro-Grid Filters, DEX2422Z2$10599 Hayward CX800F 9-1/2 inch filter head o-ring for Star-Clear II filters Hayward OEM O-Ring for Filter Head, CX800F$4999 Hayward CX3020FB outlet elbow for SwimClear cartridge filters Hayward Outlet Elbow for SwimClear Cartridge Filters, CX3020FB$7699 Hayward ECX270861 bottom mount 1/4 inch pool filter pressure gauge, 0-60 PSI Hayward 1/4" Pressure Gauge, Bottom Mount, ECX270861$3699 Hayward DEX2420F bulkhead fitting for Pro-Grid DE and SwimClear filters Hayward Bulkhead Fitting for Pro Grid and SwimClear, DEX2420F$4699 Hayward CX3030D SwimClear bottom cartridge mounting plate Hayward SwimClear Bottom Cartridge Mounting Plate, CX3030D$9599 Hayward SB2KIT FPM o-ring for 1-1/4 inch to 2 inch SB series basket strainers Hayward FPM O-Ring for 1-1/4 Inch to 2 Inch SB Series Basket Strainer, SB2KIT$4999 Jacuzzi 442379910R Tri-Clops manifold for round filter elements Jacuzzi Tri-Clops Manifold for Round Elements, 442379910R$7999
Waterway 550-4300 cartridge manifold assembly for Crystal Water filters Waterway Cartridge Manifold Assembly for Crystal Water Cartridge Filters, 550-4300$5899 Hayward CX900G locking knob for Star Clear Plus C751, C900 and C1200 cartridge filters Hayward Locking Knob (C751, C900, C1200 series), CX900G$6999 Jandy R0523000 filter drain cap with O-ring and union nut Jandy Drain Cap with O-Ring and Union Nut for DEV and CL Filters, R0523000$3699 Jandy R0465600 bulkhead assembly with o-ring for CV, CL, DEV and DEL filters Jandy Bulkhead Assembly with O-Ring for CV, CL, DEL and DEV Filters, R0465600$8399 Hayward CX900F filter head lid o-ring for Star Clear Plus cartridge filters Hayward Filter Head Lid O-Ring, CX900F$4399 Hayward ECX27091 back mount pressure gauge for pool filters Hayward Back Mount Pressure Gauge, ECX27091$3799 Hayward CXFDA200 filter diffuser assembly for the SwimClear C200S Hayward SwimClear Filter Diffuser Assembly C200S, CXFDA200$5099 Hayward CX250F Star-Clear filter head gasket Hayward OEM Star-Clear Filter Head Gasket, CX250F$4199 Sta-Rite WC9-3 black tank o-ring for Posi-Flo II PTM cartridge filters Sta-Rite Black Tank O-Ring for Posi-Flo II PTM Cartridge Filters, WC9-3$4099 Sta-Rite 25010-0200 air relief valve assembly for PLD and PTM filter systems Sta-Rite Air Relief Valve Assembly for PLD and PTM Filter Systems, 25010-0200$4699

Product details

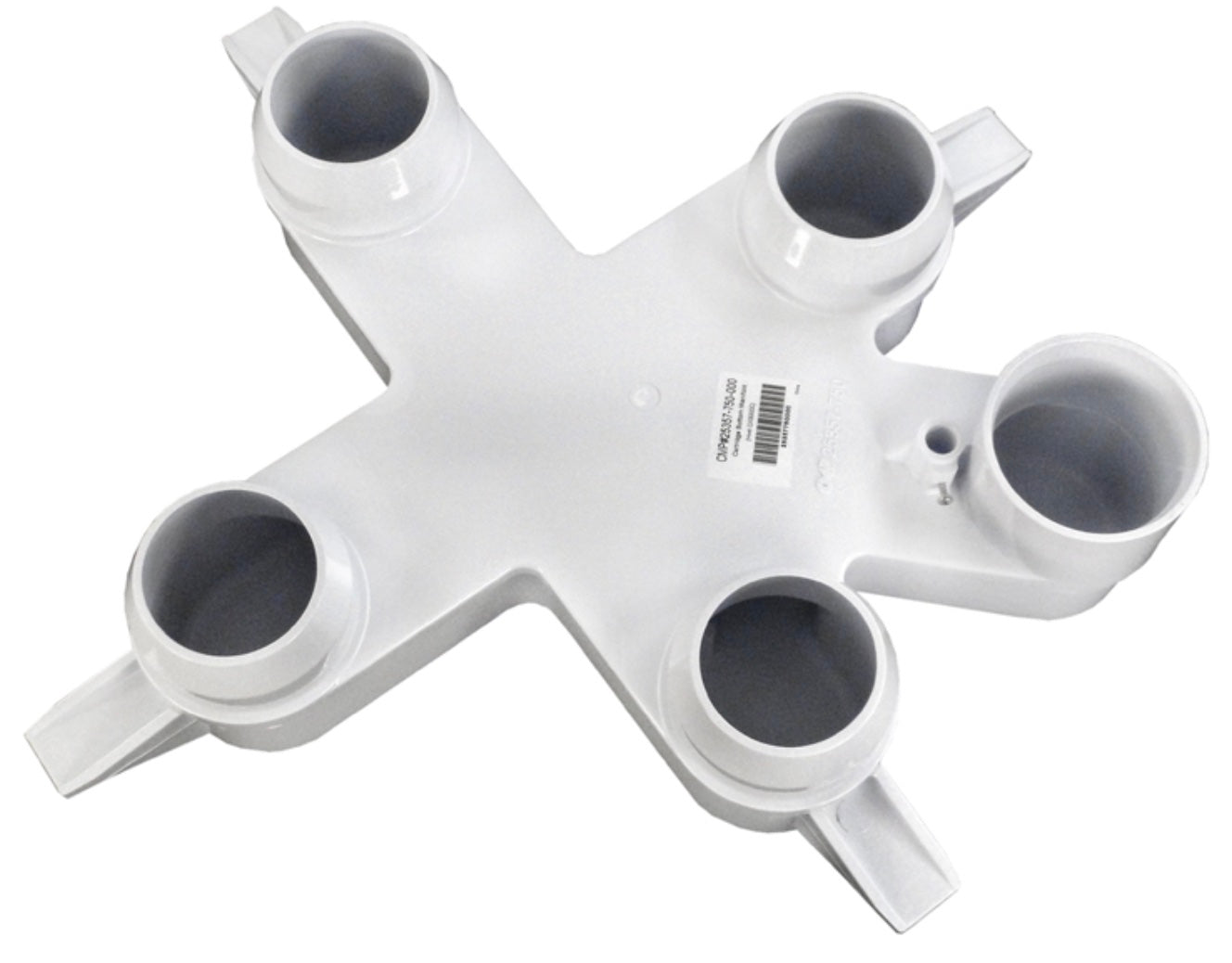

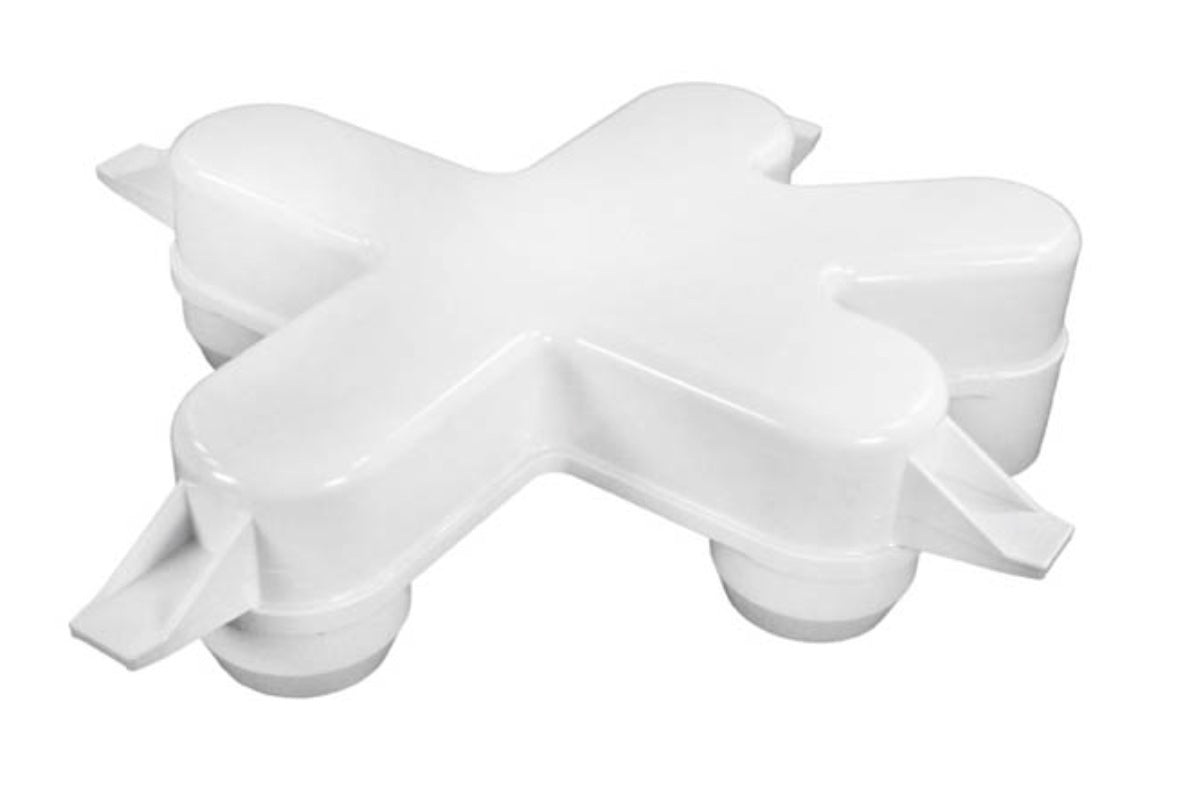

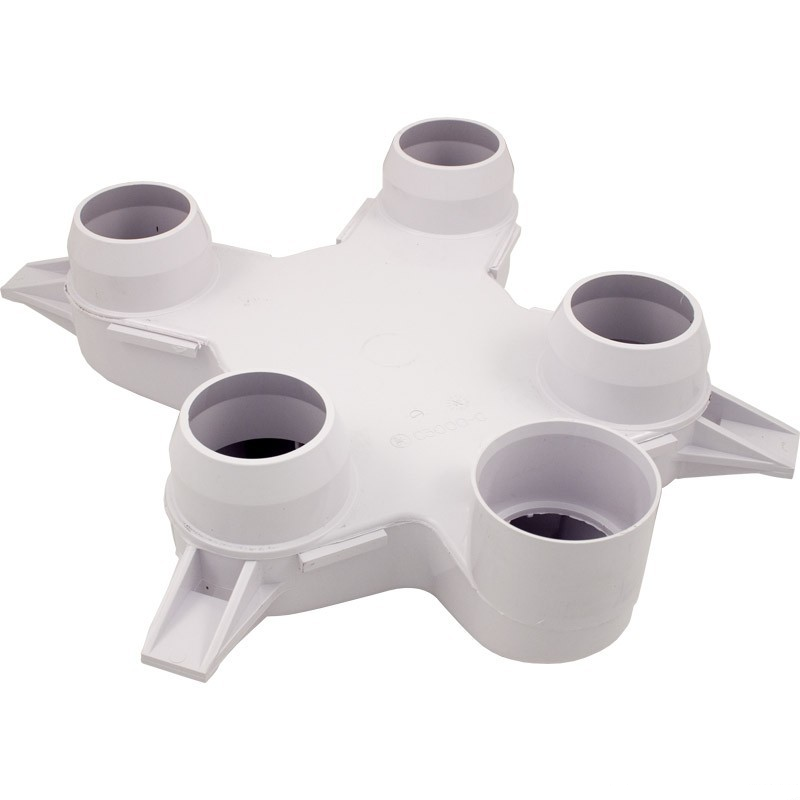

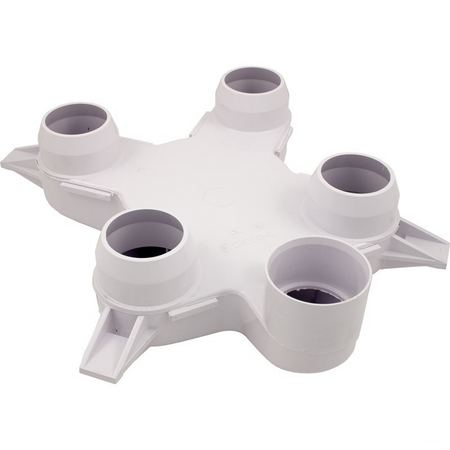

The CMP 25357-750-000 is an aftermarket bottom collector manifold made to replace the Hayward CX3000C in SwimClear and SuperStar Clear cartridge filters. The manifold sits in the base of the tank, locates the four filter cartridges and collects the filtered water on its way to the outlet.

What it does

Each of the four cartridges seats on the manifold, which is why a cracked or warped manifold shows up as dirt bypassing the filter or cartridges that will not sit square. The internal air bleed is molded in, so air that collects under the lid can escape as the original design intended.

Fitting notes

Confirm CX3000C is the bottom manifold listed for your filter model before ordering. With the tank open it is worth checking the bulkhead and tank o-rings and replacing any that have flattened, since they are the usual source of leaks after a reassembly.

Specifications
Brand CMP
Manufacturer part number 25357-750-000
UPC 849640004418
Replaces Hayward CX3000C
Fits Hayward SwimClear and SuperStar Clear cartridge filters
Cartridge count 4
Air bleed Integrated internal
Material Plastic
Shipping weight 4.95 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from CMP

Aquamoto 58470-110-700 jumbo floating chlorine dispenser for 3 in. tablets Aquamoto Jumbo Chlorine Floater for 3" Chlorine Tabs, 58470-110-700$2099 CMP PowerClean Ultra in-line chlorinator 25280-100-000 with clear glass lid CMP PowerClean Ultra In-Line Chlorinator with Clear Glass Lid, 25280-100-000$15099 CMP 21063-200-000 2 in. MPT x 2 in. slip CPVC pump union CMP Pump Union, Threaded 2" MPT x 2" Slip, CPVC, 21063-200-000$2099 CMP 21063-154-000 CPVC pump union, 1-1/2 in. slip by male thread with o-ring CMP Pump Union CPVC 1-1/2" Slip by Male Thread with O-Ring, 21063-154-000$1799 CMP 25563-300-500 five pack of foam sweep hose tail scrubbers for Polaris cleaners CMP Sweep Hose Tail Scrubber (5 Pack), 25563-300-500$899 CMP 27182-352-000 FlowSkim heavy duty skimmer basket with 12 inch handle for Hayward SP-1082 skimmers CMP FlowSkim HD Skimmer Basket with 12" Handle for Hayward SP-1082 Skimmers, 27182-352-000$3399 CMP DEL AOP 25 Next Gen ozone and UV-C pool sanitizer, part 53000-025-000, front view CMP Next Gen DEL AOP 25 Ozone + UV-C Sanitation for Residential Pools, 25,000 Gallons, 120V/240V, 53000-025-000$1,51299 CMP 25280-110-000 PowerClean Ultra in-line tablet chlorinator with white lid CMP PowerClean Ultra In-Line Chlorinator, White Lid, 25280-110-000$15299 CMP 27180-009-000 B-9 replacement skimmer basket for Hayward SP1070 skimmers CMP Pool Skimmer Basket, Replaces Hayward SP1070-E, 27180-009-000$1399 CMP 25506-320-100 32 in. white PVC channel drain cover and frame CMP 32-Inch PVC Channel Drain Cover and Frame, White, 25506-320-100$14199
CMP 25280-109-200 clear glass PowerClean Ultra chlorinator cover CMP Clear Glass PowerClean Chlorinator Cover, 25280-109-200$3499 CMP 25549-500-000 stainless steel pool light adapter repair ring CMP Pool Light Adapter Repair Ring, 25549-500-000$5299 CMP 25552-020-300 white pool eyeball jet cap cover, 1-1/2 in. MIP CMP Pool Eyeball Jet Cap Cover, 25552-020-300$1099 CMP 25280-150-000 Powerclean Ultra VS in-line chlorinator with clear glass lid CMP Powerclean Ultra VS In-line Chlorinator, Clear Glass Lid, 25280-150-000$17199 CMP FlowSkim 12 in. pool skimmer basket handle attachment CMP FlowSkim Pool Skimmer Basket Handle Attachment, 12 in., 25573-300-000$2099 CMP 25830-400-000 Hydro Seal black CPVC check valve, 2 in. socket x 2.5 in. spigot CMP Hydro Seal Black CPVC Check Valve 2 in. S x 2.5 in. SPGT 25830-400-000$4099 CMP 27182-300-000 FlowSkim skimmer basket and handle for Hayward SP1070E and U3 skimmers CMP FlowSkim Basket and Handle SP1070E, U3, 27182-300-000$3299 CMP 25810-400-050 Pool Defender 2 in. compact sacrificial zinc anode CMP Pool Defender 2 in. Compact Sacrificial Zinc Anode, 25810-400-050$8699 CMP Spa Master 25580-090-000 white 2-1/2 inch gunite jet body with niche CMP Spa Master 2-1/2" White Gunite Jet Body with Niche, 25580-090-000$2699 CMP 26101-060-530 PowerClean Ultra and Mini chlorinator lid o-ring CMP PowerClean Ultra/Mini Lid O-Ring, 26101-060-530$1899

Questions and answers

What people ask about this product, answered by our pool techs.

Is this the Hayward part or an aftermarket one?
It is the CMP aftermarket version, part 25357-750-000, made to replace the Hayward CX3000C. The genuine Hayward manifold is sold separately.
Which filters use the CX3000C manifold?
Hayward SwimClear and SuperStar Clear cartridge filters that hold four cartridges. Check the parts list for your filter model to confirm CX3000C is the bottom manifold called out.
Does it include the air bleed?
Yes. The internal air bleed is integrated into the manifold.
What else should I replace at the same time?
Look at the bulkhead o-ring and the tank o-ring while the filter is apart. If either is flattened or cracked, fit a new one so the filter seals when you close it up.
