Hayward CXRLV1001 SwimClear air relief assembly with O-ringHayward SwimClear Air Relief Assembly with O-Ring, CXRLV1001 In stock$2699

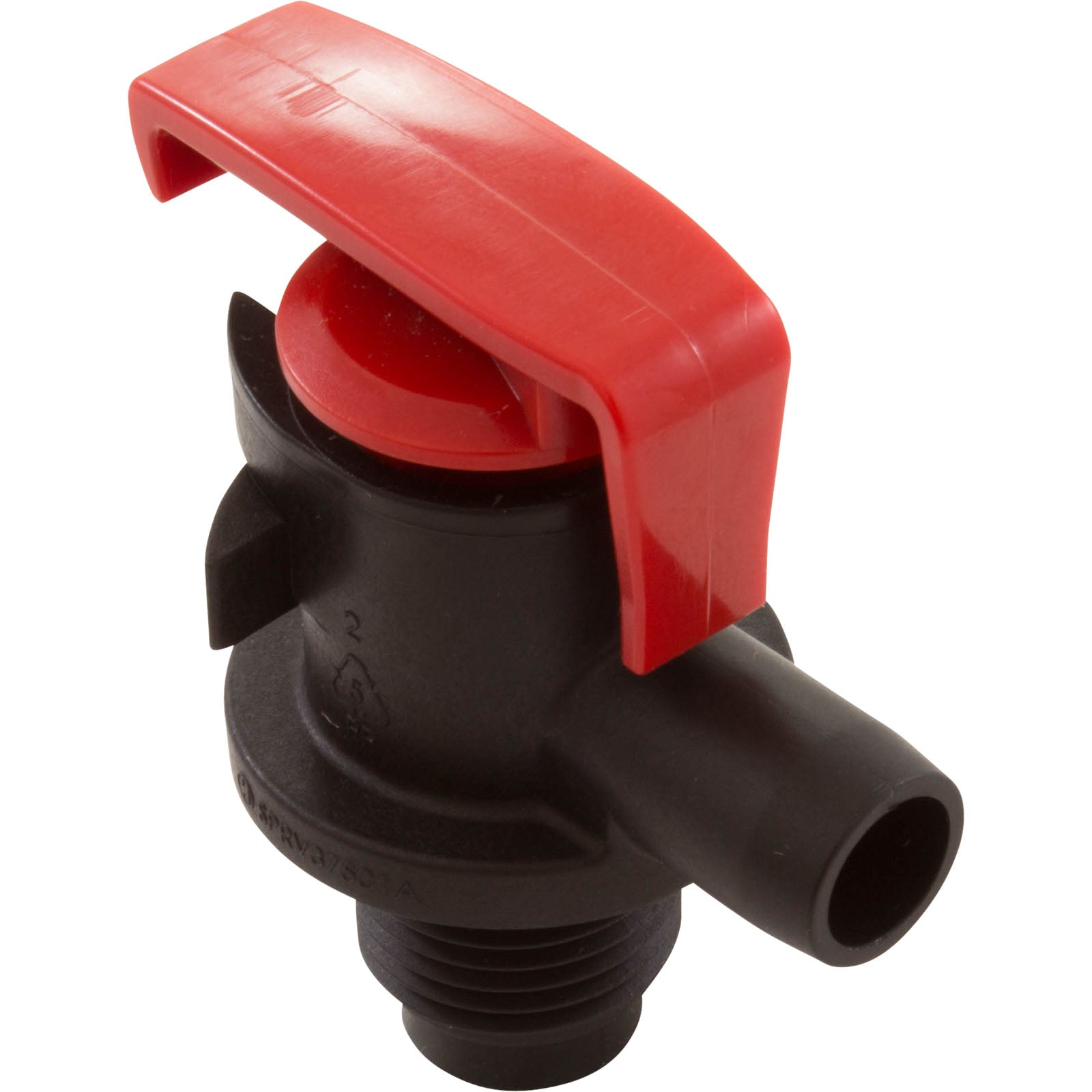

Hayward CXRLV1001 SwimClear air relief assembly with O-ring
Shop all Hayward

Hayward SwimClear Air Relief Assembly with O-Ring, CXRLV1001

Ask a questionMPN CXRLV1001
$2699
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Hayward part Factory CXRLV1001 air relief assembly, not a generic valve.
  • O-ring included The sealing O-ring comes with the assembly, so you are not chasing a second part number.
  • Vents trapped air Opening the relief lets air out of the filter head so the tank fills with water and the pressure gauge reads true.
  • Common wear point The relief valve sits in the sun on top of the filter, and the plastic and O-ring are usually the first things on the tank to give up.
  • Check the model first Our source lists this assembly against more than one SwimClear grouping, so match it to the model tag on your filter before ordering.
  • Do not overtighten Hand tight is enough. Cranking the relief down splits the housing and cracks the seat it screws into.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward SwimClear Air Relief Assembly with O-Ring, CXRLV1001, SKU HAY-051-8254. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward SwimClear Air Relief Assembly with O-Ring, CXRLV1001
Hayward

SwimClear Air Relief Assembly with O-Ring, CXRLV1001

$2699
Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE
Hayward

Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE

$20899
Hayward Outlet Elbow O-Ring, 2-3/16" ID, DEX2400Z5
Hayward

Outlet Elbow O-Ring, 2-3/16" ID, DEX2400Z5

$399
Hayward Metal Reinforced Seal for SwimClear and Pro-Grid Filters, DEX2422Z2
Hayward

Metal Reinforced Seal for SwimClear and Pro-Grid Filters, DEX2422Z2

$10599
Hayward SwimClear Lower Piping Assembly, CX3030H
Hayward

SwimClear Lower Piping Assembly, CX3030H

$14599
Hayward OEM Bulkhead O-Ring, SX200Z3
Hayward

OEM Bulkhead O-Ring, SX200Z3

$899
Hayward Star Clear Plus Filter Head with Vent Valve C1200, CX1200B
Hayward

Star Clear Plus Filter Head with Vent Valve C1200, CX1200B

$24299
Subtotal

Similar products

Other products people compare with this one.

Hayward CCX1000V manual air relief assembly with o-ring Hayward Air Relief Assembly with O-Ring, CCX1000V$2599 Hayward ECX1322A air relief valve with o-ring for pool filters Hayward Air Relief Valve with O-Ring, ECX1322A$1899 Hayward CX4000Z3 air relief tube assembly for SwimClear and Super Star Clear cartridge filters Hayward Air Relief Tube for SwimClear and Super Star Clear Filters, CX4000Z3$2099 Hayward CX800Z4A StarClear auto air relief tube with screen Hayward StarClear Auto Air Relief Tube with Screen, CX800Z4A$2699 Hayward CXFHR1001 lid o-ring for SwimClear C100S, C150S and C200S cartridge filters Hayward SwimClear C100S/C150S and C200S Lid O-Ring, CXFHR1001$2999 Hayward CX250Z14A Star Clear 1/2 inch drain plug with O-ring Hayward Star Clear 1/2 in. Drain Plug with O-Ring, CX250Z14A$1899 Hayward CX3000J1 air relief filter with stainless steel screen Hayward Air Relief Filter, CX3000J1$3099 Hayward CX1100Z4 plastic air relief tube for C1100, C1200, S244S and S311 filters Hayward Plastic Air Relief Tube C1200/C1100/S244S/S311, CX1100Z4$2299 Hayward CX2030Z3 air relief tube for SwimClear cartridge filters Hayward Air Relief Tube CX2030Z3$2899 Hayward CX5000Z3 air relief tube for C5020 and C5025 cartridge filters Hayward CX5000Z3 Air Relief Tube for C5020/C5025 Filters$2599
Hayward CX3000Z3 air relief tube assembly for cartridge filters Hayward Air Relief Tube, CX3000Z3$1899 Hayward CXLRL1001 SwimClear cartridge filter lid lock ring latch Hayward SwimClear Cartridge Filter Lid Lock Ring Latch, CXLRL1001$2199 Hayward CX900J E-ring for Star-Clear Plus cartridge filters Hayward E-Ring, Star-Clear Plus Filter, CX900J$2099 Hayward CX3030F inlet elbow for SwimClear cartridge filters Hayward CX3030F Inlet Elbow for SwimClear Cartridge Filters (after Sept. 2012)$2099 Hayward CX120D filter lid o-ring for the Micro-Star cartridge filter Hayward O-Ring for Micro Star-Clear Filter Lid, CX120D$2399 Hayward CX900DA knob accessory kit for Star-Clear cartridge filters Hayward Knob Accessory Kit, CX900DA$3399 Hayward ECX27091 back mount pressure gauge for pool filters Hayward Back Mount Pressure Gauge, ECX27091$3799 Hayward CX900W Star-Clear Plus filter knob washer Hayward Star-Clear Plus Knob Washer, CX900W$1799 Hayward CX250G Star-Clear filter lock knob Hayward Star-Clear Filter Lock Knob, CX250G$3499 Hayward DEX2420Z8A air relief o-ring kit, set of 2, for SwimClear and Pro-Grid filters Hayward SwimClear/Pro-Grid Air Relief O-Ring Kit, Set of 2, DEX2420Z8A$4399

Product details

The Hayward CXRLV1001 is the manual air relief assembly for SwimClear cartridge filters, supplied complete with its O-ring. It is the genuine Hayward part.

What it does

Air gathers at the top of a cartridge tank whenever the filter is opened, the water level falls or the pump loses prime. The relief valve on the filter head is how you let that air out. Until the air is gone the tank is not full of water, the pressure gauge does not read the filter honestly, and the lid takes a hard shove every time the pump restarts.

Why it fails

The relief sits on the highest, most exposed point of the filter, so it takes full sun and every temperature swing the equipment pad gets. The plastic goes brittle and the O-ring flattens, and the valve starts to weep, seize or refuse to seal once it is closed. At that point the assembly is replaced rather than repaired.

Before you order

Our source material lists this part against more than one SwimClear grouping, so read the model number off the label on your filter and check it against the Hayward parts list for that tank. When you fit the new one, run it down hand tight. Overtightening a plastic relief valve cracks the housing or the seat it threads into.

Specifications
Brand Hayward
Manufacturer part number CXRLV1001
UPC 0610377279178
Type Manual air relief assembly
Included Air relief assembly with O-ring
Fits Hayward SwimClear cartridge filters
Shipping weight 0.06 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12899 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,42099 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$15299 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28999 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5999 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19199 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$19399 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2499 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$20399 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20899 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26199 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Exactly which SwimClear filters does it fit?
The source is not consistent. It files this part under SwimClear models C200SC and C225SC, while the parts diagram it points to covers C100S, C150S and C200S. Check the model number on your filter label against the Hayward parts list for that tank before you order.
Does the O-ring come with it?
Yes. Hayward supplies CXRLV1001 as the air relief assembly together with its O-ring.
Why does my filter need bleeding at all?
Air collects at the top of a cartridge tank every time the system is opened or the water level drops. Trapped air keeps the tank from filling, throws off the pressure reading and can push the lid hard when the pump restarts.
Mine is stuck or weeping. Is the whole assembly the fix?
Usually yes. A relief that drips, will not seat or has seized in the boss is normally replaced as a complete assembly rather than repaired.
