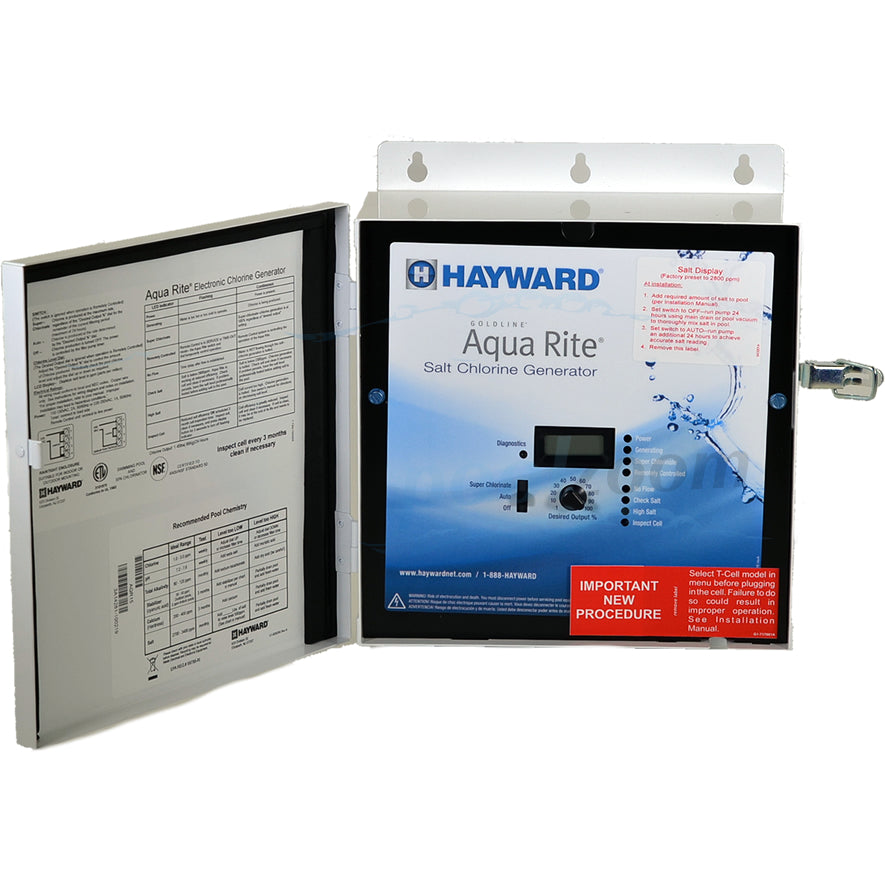

Hayward GLX-CTL-RITE AquaRite salt system power center, control box onlyHayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE In stock$1,42099
Hayward GLX-CTL-RITE AquaRite salt system power center, control box only
Shop all Hayward

Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE

Ask a questionMPN GLX-CTL-RITE
$1,42099
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Control box only the AquaRite power center without a cell. Pick the TurboCell that matches your pool size.
  • Up to 40,000 gallons sized for new and existing residential pools with the right cell fitted.
  • One unit, either voltage wires to 120VAC or 240VAC, 50/60Hz.
  • Digital display set chlorine output anywhere from 0 to 100% from the front panel.
  • Automatic cell cleaning reverses polarity to keep scale off the cell plates.
  • Weatherproof and certified outdoor rated enclosure, NSF certified for chlorine delivery, ETL safety listed.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE, SKU GLD-45-121. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE
Hayward

AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE

$1,42099
CaliMar Replacement Salt Cell for Hayward T-Cell-15, 2-Year Warranty, 40K Gallons, CMARCHA40-2Y
CaliMar

Replacement Salt Cell for Hayward T-Cell-15, 2-Year Warranty, 40K Gallons, CMARCHA40-2Y

$54900
AquaChek White Salt Titrators, Salt Water Test Strips, 40 Count Bottle, 561161
AquaChek

White Salt Titrators, Salt Water Test Strips, 40 Count Bottle, 561161

$4199
AquaChek Salt System Test Kit for Salt Water Pools, Yellow 4-Way and White Salt Test Strips, 542228A
AquaChek

Salt System Test Kit for Salt Water Pools, Yellow 4-Way and White Salt Test Strips, 542228A

$2599
Hayward T-Cell Salt Cell Cleaning Stand, GLX-CELLSTAND
Goldline Controls

Hayward T-Cell Salt Cell Cleaning Stand, GLX-CELLSTAND

$5799
Hayward Salt & Swim Pro Replacement Union Kit, GLX-DIY-UNION
Hayward

Salt & Swim Pro Replacement Union Kit, GLX-DIY-UNION

$6999
Subtotal

Similar products

Other products people compare with this one.

Pentair 523744-EC IntelliChlor LT15 salt chlorine generator and 110 volt power pack bundle Pentair IntelliChlor LT15 Salt Chlorine Generator Power Pack Bundle, 110V, 523744-EC$1,23900 Web Price Hayward W3AQ-TROL-RJ AquaTrol salt chlorine generator, return jet model with straight blade plug Hayward AquaTrol Salt Chlorine Generator, Return Jet, Straight Blade, W3AQ-TROL-RJ$1,16900 Web Price CaliMar CMARSHA60-3Y complete salt chlorinator system for inground pools up to 60,000 gallons CaliMar Salt Chlorinator System Complete, for Up to 60,000 Gallon Pools, CMARSHA60-3Y$1,01900 Web Price Hayward W3AQR9 AquaRite complete salt chlorination system for pools up to 25,000 gallons Hayward AquaRite Salt System Complete, 25,000 Gallon Pools, W3AQR9$1,99900 Web Price CaliMar CMARSHA40-3Y complete salt chlorinator system for inground pools up to 40,000 gallons CaliMar Complete Salt Chlorinator System for Inground Pools up to 40,000 Gallons, CMARSHA40-3Y$99900 Web Price Solaxx CLG928A PoolTux above ground salt chlorine generator Solaxx PoolTux 28K Gallon Above Ground Salt Chlorine Generator, CLG928A$1,10399 Madimack InverChlor MC250 inverter salt chlorine generator system Madimack InverChlor MC250 Inverter Salt Generator System, Up to 25K Gallons, MC250NA$1,84000 Web Price Hayward Aquatrol Sys AG 18K Gal Twist Lock | W3AQ-TROL-RJ-TL Hayward Aquatrol Sys AG 18K Gal Twist Lock | W3AQ-TROL-RJ-TL$1,22900 Web Price CompuPool Replacement Salt Cell for CaliMar® Titanium Edition System CMARSCT60-7Y | RJG-60-RC CompuPool Replacement Salt Cell for CaliMar® Titanium Edition System CMARSCT60-7Y | RJG-60-RC$71900 Web Price AutoPilot 16084 new power module for Pool Pilot DIG-220, ST-220 and 75003 AutoPilot ST/DIG/75003 Power Module New, 16084$70099
CaliMar Repl Cell for CompuPool CPSC36 Up 40K Gal. CMARCCE40-3Y | CMARCCE40-1Y CaliMar Repl Cell for CompuPool CPSC36 Up 40K Gal. CMARCCE40-3Y | CMARCCE40-1Y$68900 Web Price Hayward AquaRite S3 salt chlorine generator system for pools up to 40,000 gallons Hayward AquaRite S3 Salt System, 40K Gallon, AQRS340$2,17499 Clear Blue Mineral Lion pool ionizer for pools up to 40,000 gallons Clear Blue 40,000 Gallon Mineral Lion Ionizer, CBI-350B-40-LLKIT$59900 Web Price Hayward GLX-PCB-TROL-HP AquaTrol HP main printed circuit board Hayward AquaTrol HP Main PCB, GLX-PCB-TROL-HP$46399 CaliMar Repl Cell for CompuPool CPSC24 Up 26K Gal. CMARCCE30-3Y | CMARCCE30-1Y CaliMar Repl Cell for CompuPool CPSC24 Up 26K Gal. CMARCCE30-3Y | CMARCCE30-1Y$45900 Web Price Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$43299 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$39599 Hayward GLX-XFMR salt generator replacement transformer Hayward Salt Generator Replacement Transformer, GLX-XFMR$33299 AutoPilot APA0003 tri-sensor assembly with 12 ft cord AutoPilot Tri-Sensor Assembly with 12' Cord, APA0003$27299 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws$23999

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Product details

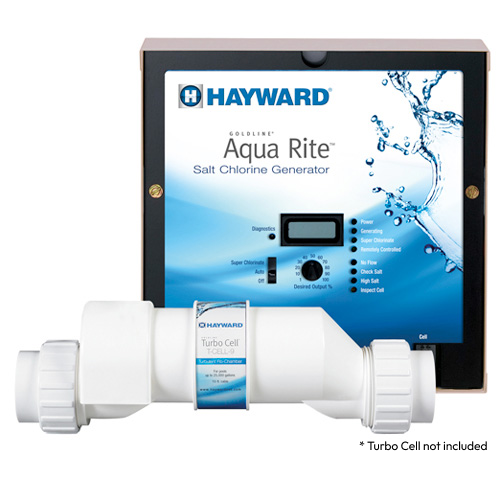

The Hayward GLX-CTL-RITE is the AquaRite power center on its own: the control box that runs the salt cell, without a cell in the box. It suits two situations. If an existing AquaRite board or enclosure has failed and the cell is still healthy, this replaces the box and keeps the cell. If you are building a new salt system, it lets you pick the cell size separately, with the T-15 covering pools up to 40,000 gallons and smaller cells for smaller pools.

How it runs the pool

The box converts dissolved salt into chlorine through the cell and holds the output at whatever level you set, from 0 to 100% on the digital display. Automatic cell cleaning reverses the polarity on a schedule to keep calcium scale from building on the plates, which is what keeps output steady between manual cleanings. The single unit accepts 120VAC or 240VAC at 50/60Hz, and the enclosure and connections are weatherproof for a mount at the equipment pad.

Automation

Paired with a Hayward OmniHub, the AquaRite joins the rest of the pad under app control, with adjustment from a smartphone or by voice through Alexa. It is NSF certified for chlorine delivery rates and ETL safety certified.

Remember to order the cell. The power center will not produce chlorine until a TurboCell sized for your pool is connected.

Specifications
Brand Hayward
Manufacturer part number GLX-CTL-RITE
UPC 761418005628
Type AquaRite salt chlorination power center, control unit only
Salt cell Not included, purchase separately for your pool size
Pool size Residential pools up to 40,000 gallons, with the matching cell
Input 120VAC/240VAC 50/60Hz, single unit
Output control 0 to 100% chlorine output, digital display
Cell cleaning Automatic
Enclosure Weatherproof enclosure and connections
Smart control Integrates with Hayward OmniHub for smartphone or Alexa control
Certifications NSF certified for chlorine delivery rates, ETL safety certified
Shipping weight 18.85 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12899 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$15299 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28999 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5999 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19199 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799 Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899
Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$19399 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2499 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$20399 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20899 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26199 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899 Hayward Super Pump W3SP2607X10, 1 HP max rated in-ground pool pump, side view Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10$84900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Does this include the salt cell?
No. This is the power center, the control box, on its own. You need to add a TurboCell sized for your pool, such as the T-15 for pools up to 40,000 gallons or the T-9 for pools up to 25,000 gallons.
What voltage does it run on?
Either. The same unit accepts 120VAC or 240VAC, 50 or 60Hz, so it wires in beside the pump on whichever supply the pad already has.
How do I adjust chlorine output?
From the digital display on the front of the box, in a range of 0 to 100%. There is also a super chlorinate mode for a boost after heavy use.
Can I control it from my phone?
Yes, when it is paired with a Hayward OmniHub smart pool control. OmniHub adds app access and Alexa voice control for the whole pad, including this AquaRite.
