Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cellJandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400 In stock$1,22900
Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell
Shop all Jandy

Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400

Ask a questionMPN R0452400
$1,22900
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Jandy OEM PLC1400 cell 14-blade, 3-port salt cell for pools up to 40,000 gallons.

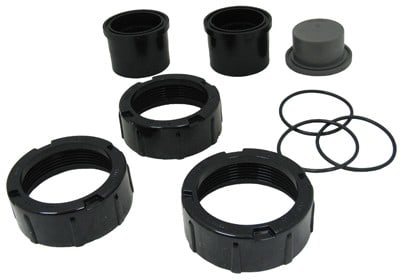

  • Union kit sold separately Jandy lists the R0452100 3-port union kit as its own part; reuse the unions on the pad or add the kit.

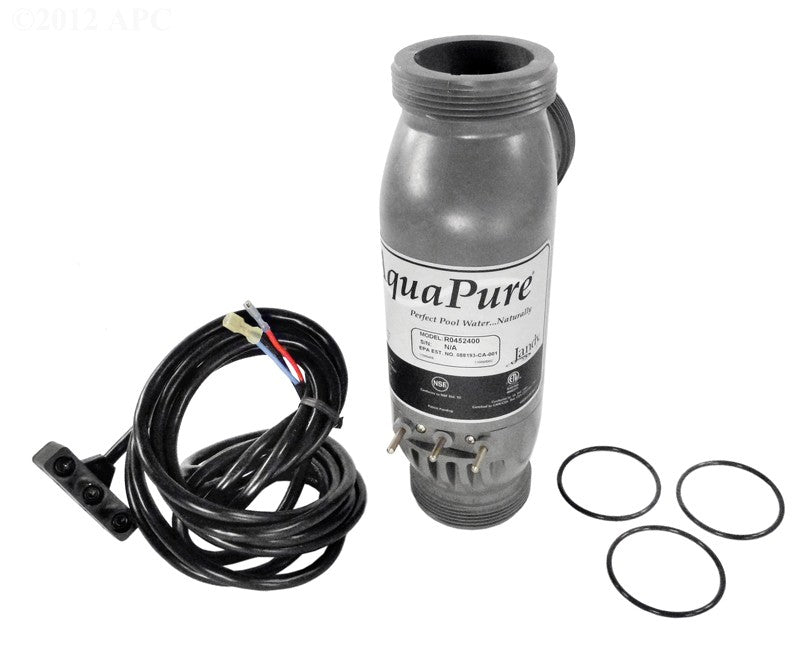

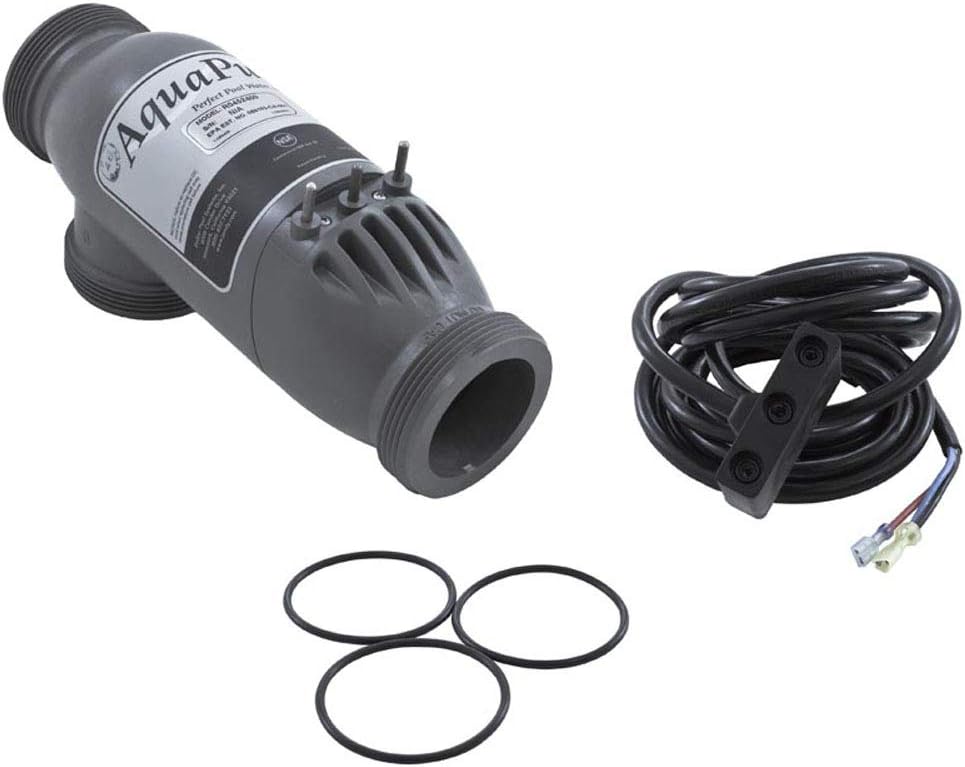

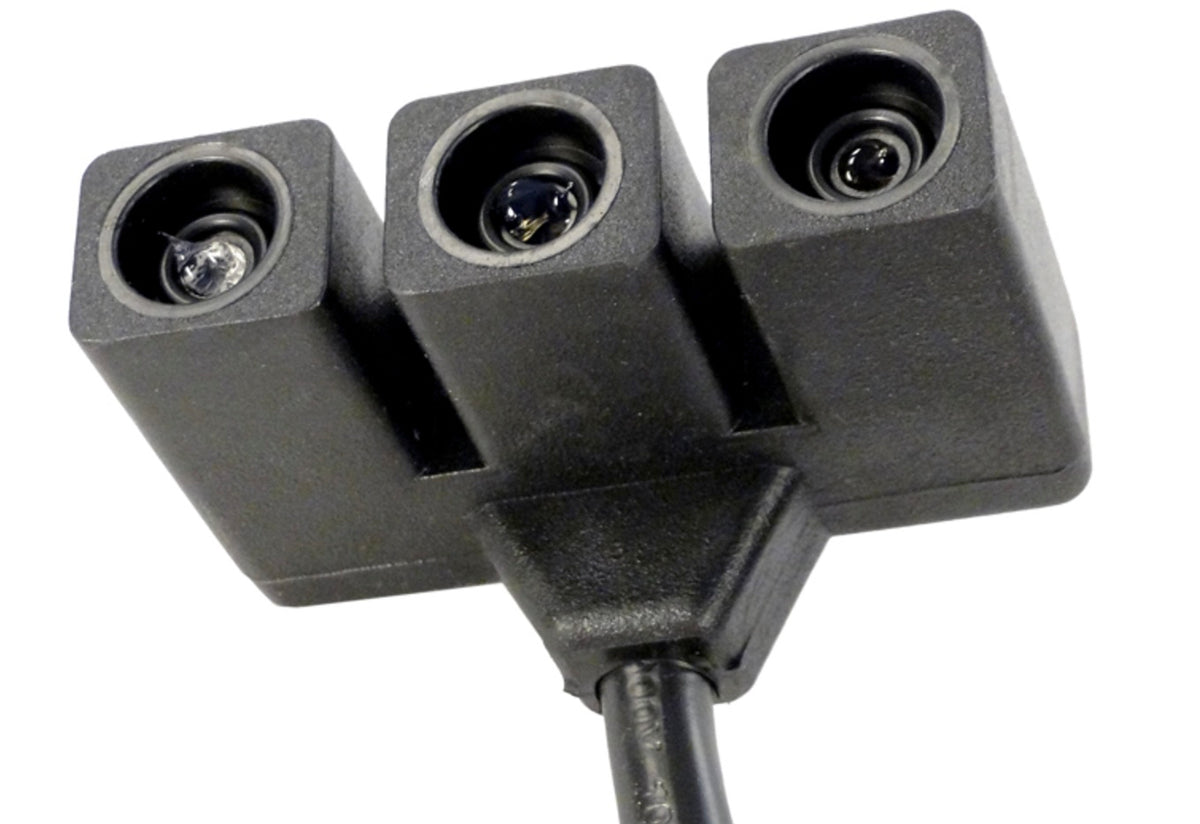

  • 16 ft DC cord included Jandy's parts list shows the cell, three #2-231 O-rings and the 16 ft DC cord in R0452400.
  • No sensor This kit does not include the sensor. Choose the Jandy PLC1400 kit if you need one.
  • Fits AquaPure and PureLink The 3-port cell used on both system families.
  • 40,000 gallon rating Sized for larger residential pools.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400, SKU JDY-45-1407. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400
Jandy

AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400

$1,22900
Jandy TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator, R0693900
Jandy

TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator, R0693900

$75499
Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500
Jandy

Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500

$29999
Hayward In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder, CL200EF
Hayward

In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder, CL200EF

$12999
Jandy AquaPure Power Interface PCB, Large Backboard with Screws, R0984100
Jandy

AquaPure Power Interface PCB, Large Backboard with Screws, R0984100

$23999
Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400
Jandy

AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400

$1,39500
CompuPool 3-Port 14-Blade Replacement Salt Cell for Jandy AquaPure System, 40,000 Gallons, GRC/J1400-3
CompuPool

3-Port 14-Blade Replacement Salt Cell for Jandy AquaPure System, 40,000 Gallons, GRC/J1400-3

$56799
Subtotal

Similar products

Other products people compare with this one.

Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,13499 Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$91399 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price CaliMar CMARCIC40-1Y replacement salt cell compatible with IntelliChlor IC40 CaliMar Replacement Salt Cell Compatible with IntelliChlor IC40, 40K Gallons, CMARCIC40-1Y$89900 Web Price CaliMar CMARCFS40-1Y replacement salt cell for Zodiac Nature 2 Fusion R0503000 CaliMar Salt Cell Compatible with Zodiac Nature2 Fusion Soft R0503000, 40,000 Gallons, CMARCFS40-1Y$69900 Web Price AutoPilot PPC2 replacement salt cell with unions, for pools up to 32,000 gallons AutoPilot OEM Replacement Salt Cell with Unions, 32,000 Gallons, PPC2$88900 Jandy PLC700 AquaPure PureLink three port salt cell kit with 16 ft cables Jandy AquaPure PureLink Salt Chlorine Generator Cell Kit, 12K Gallon Pools, PLC700$99900
Solaxx CLG140A-010 PureChlor replacement salt cell for pools up to 40,000 gallons Solaxx PureChlor Replacement Salt Cell, Up to 40K Gallons, CLG140A-010$1,24699 CaliMar CMARCHA40-1Y replacement salt cell compatible with Hayward T-Cell-15 CaliMar Salt Cell Compatible with Hayward® T-Cell-15®, 40K Gallons, CMARCHA40-1Y$62900 Web Price Solaxx CLG125A-010 PureChlor 25K gallon replacement salt cell Solaxx PureChlor 25K Gallon Replacement Salt Cell, CLG125A-010$88399 CaliMar CMARCIC20-1Y replacement salt cell compatible with IntelliChlor IC20 CaliMar Replacement Salt Cell Compatible with IntelliChlor IC20, 20K Gallons, CMARCIC20-1Y$79900 Web Price CMP 52000-240-110 PowerClean Salt Cell 540 replacement cell for pools up to 40,000 gallons CMP PowerClean Salt Cell 540, 40K Gallons, 52000-240-110$92799 Solaxx CLGD40-010 D5 replacement salt cell, 40K size Solaxx D5 Replacement Salt Cell 40K CLGD40-010$1,42599 Hayward T-CELL-3 AquaRite TurboCell for pools up to 15,000 gallons with 15 foot cord Hayward AquaRite Turbo Cell 15k Gallons with 15' Cord, W3T-CELL-3$69900 Web Price CaliMar CMARCCF40-3Y replacement salt cell for 40,000 gallon salt chlorine generator systems CaliMar Replacement Salt Cell for CMARSHA40-3Y, Up to 40,000 Gallon Pools, CMARCCF40-3Y$64900 Web Price Zodiac R0502800 Nature2 Fusion Soft 700 replacement cell kit Zodiac Nature2 Fusion Soft 700 Cell Kit, 12K Gallon, R0502800$68899 CompuPool JD363130D-COMPL replacement salt cell with clear housing for the CPSC36 CompuPool OEM Replacement Salt Cell with Housing for CPSC36, 7 Blade, JD363130D-COMPL$63099

From Jandy

A swimmer diving from the blocks in a dark pool. Everything you need for the perfect pool. Jandy

Jandy equipment

Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400 Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80 Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Shop Jandy equipment

Genuine Jandy parts

Jandy TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator, R0693900 Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800 Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200 Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Shop Jandy parts
Heater parts: a Jandy JXi heaterPump parts: a Jandy VS FloPro variable speed pumpSalt systems: a Jandy AquaPure salt cell
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy

Product details

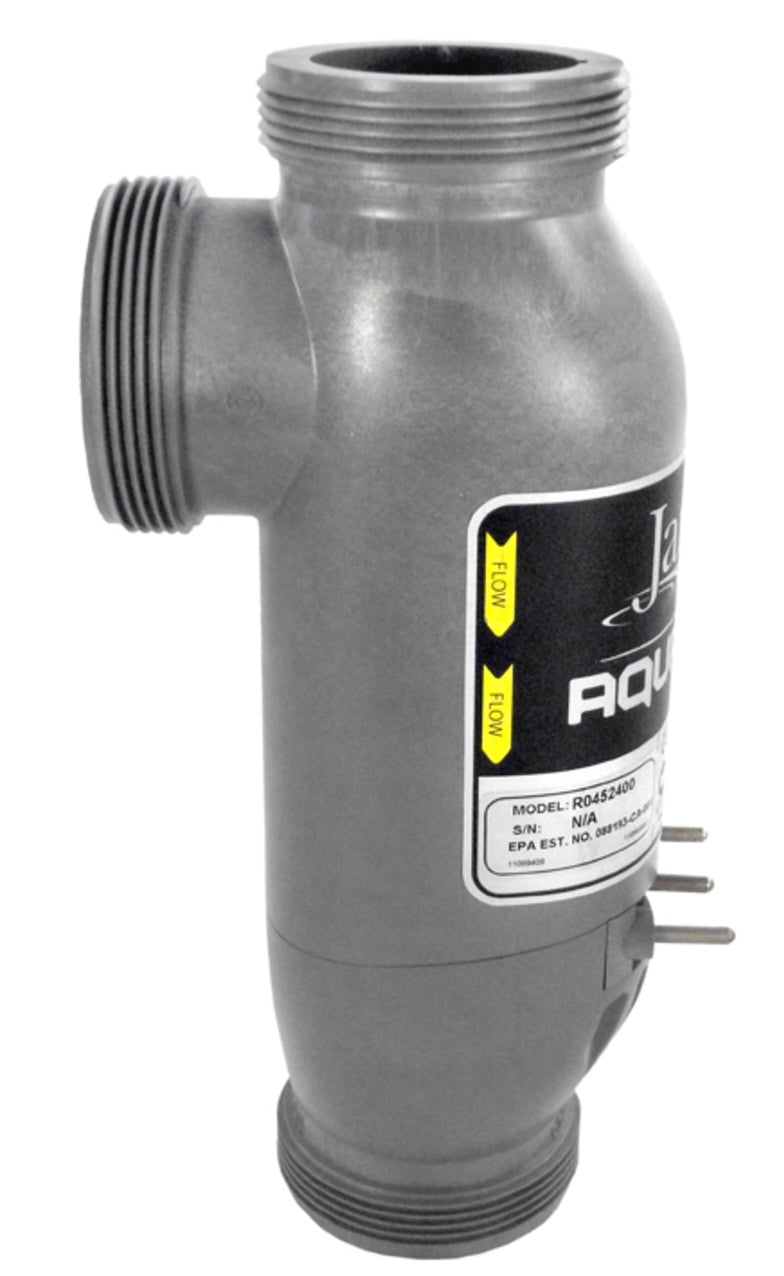

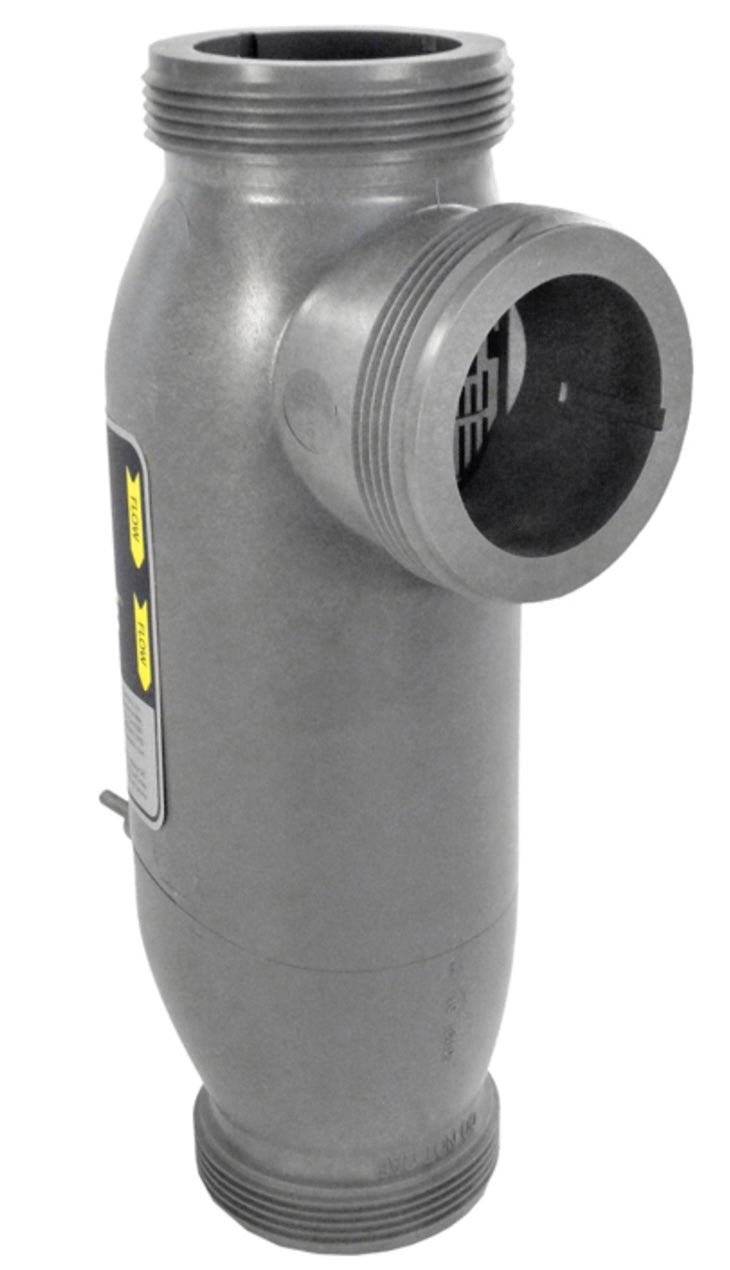

The Jandy R0452400 is the 14-blade, 3-port replacement salt cell for Jandy AquaPure and PureLink chlorine generators, the 1400 size rated for residential pools up to 40,000 gallons. It produces up to 1.25 lb of chlorine in 24 hours (567 g).

What Jandy lists for this part

Jandy's AquaPure and PureLink manual lists R0452400 as the 14-blade cell for the 3-port cell: the cell assembly, three #2-231 O-rings and a 16 ft black DC power cord. The universal union, tailpiece and plug kit is a separate Jandy part, R0452100, and the 3-port flow, temperature and salinity sensor is R0452500 (16 ft cable) or R0476400 (25 ft cable). Confirm what your pad already has before you order.

Fit

The 1400 cell is the one Jandy specifies for pools up to 40,000 gallons. Jandy's smaller 700 model is rated for pools up to 12,000 gallons, so size up to the 1400 for larger pools. PureLink power centers use a PLC700 or PLC1400 cell kit, and the power interface board is set to the 1400 model by default.

Cell care

The control system cleans the cell plates about every 3 hours by reversing the polarity of the current, and chlorine is still produced in reverse. Jandy recommends checking a new cell monthly for several months, then removing it for inspection at least twice a year. Scale on the plates is cleaned with a hose or the acid wash steps in the manual.

From Pool School

How to Clean a Salt CellHose first, acid only on scale that stays, and each manufacturer's own mix and time limit. Read When to Replace a Salt CellThe life each manufacturer prints, what looks like a dead cell and is not, and choosing the next one. Read Generic vs OEM Salt CellsWhat you can compare on paper between the original and another manufacturer's cell, and what you cannot. Read
Specifications
Brand Jandy
Manufacturer part number R0452400
UPC 052337022798
Cell PLC1400, 14-blade, 3-port
Systems Jandy AquaPure, PureLink
Pool size Up to 40,000 gallons
Included PLC1400 cell, three #2-231 O-rings, 16 ft DC power cord (Jandy manual H0325600)
Not included Union kit R0452100, sensor (R0452500 16 ft, R0476400 25 ft)
Kit with sensor Jandy PLC1400
Chlorine output 1.25 lb per 24 hours (567 g)

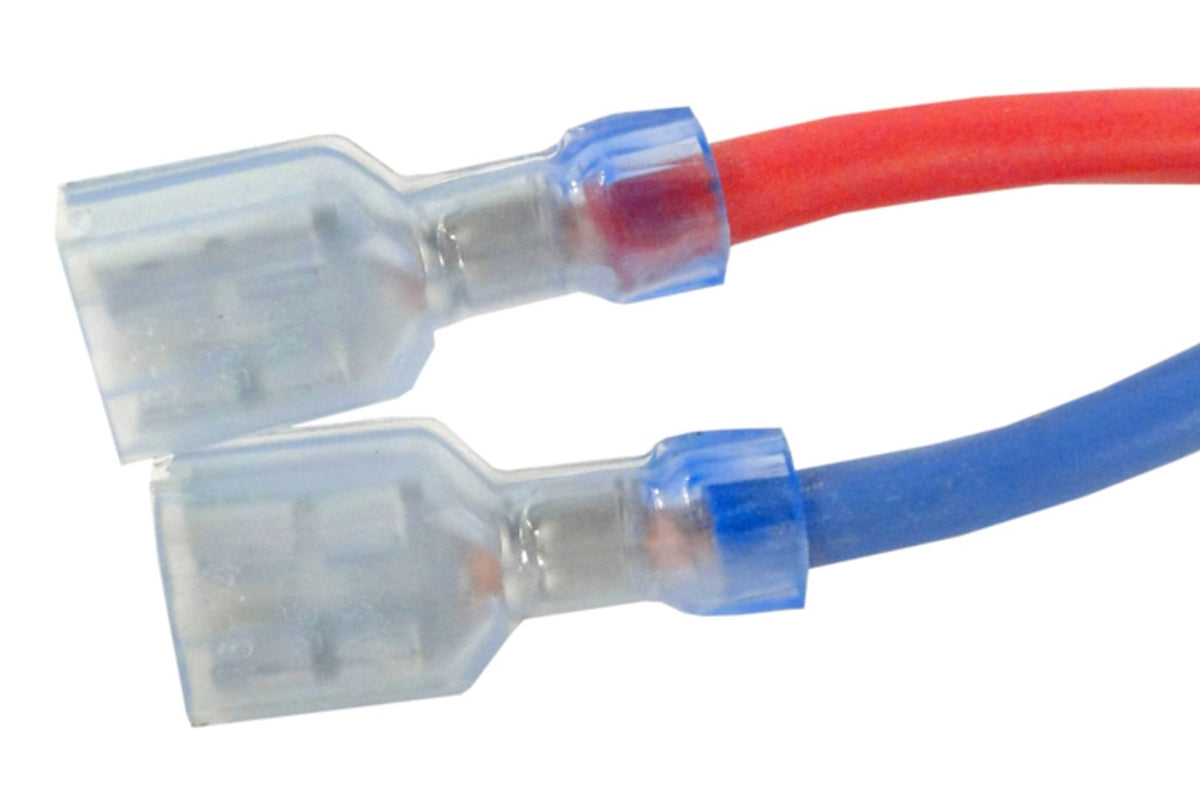

Cell cord 16 ft black DC power cord
Self cleaning Polarity reversal about every 3 hours
Union kit Jandy R0452100, universal union/tailpiece/plug, listed separately by Jandy
Shipping weight 5.5 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Jandy

Jandy R0693900 TruClear PCB replacement assembly Jandy TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator, R0693900$75499 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$29999 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500 Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$76899 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy AquaPure Power Interface PCB, Large Backboard with Screws, R0984100$23999 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$7999 Jandy R0445800 pump lid and locking ring assembly with o-ring for Stealth and ePump pumps Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$11799
Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$52299 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2499 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$91399 Jandy 4424 JVA 24V valve actuator Jandy Valve Actuator JVA 24V, 4424$23399 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$24999 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$33199 Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$24899 Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$38199 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$41999 Jandy R0357800 tank body o-ring for DEV, DEL, CV and CL series filters Jandy Tank Body O-Ring, R0357800$6199

Questions and answers

What people ask about this product, answered by our pool techs.

Is the sensor included?
No. R0452400 is the cell, three O-rings and the DC cord. The sensor (R0452500 with a 16 ft cord, R0476400 with 25 ft) is a separate Jandy part, or order the PLC1400 kit with sensor.
What comes in the box?
The PLC1400 14-blade 3-port Jandy salt cell, three #2-231 O-rings and the 16 ft DC power cord, per Jandy's manual H0325600. The R0452100 union kit is not in the box; reuse the unions already on the pad or add the kit.
Which systems does this cell fit?
Jandy AquaPure and PureLink salt systems that use the 3-port cell.
How big a pool does it handle?
Up to 40,000 gallons.
