Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cellPentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC In stock$1,81900 Web Price
Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell
Shop all Pentair

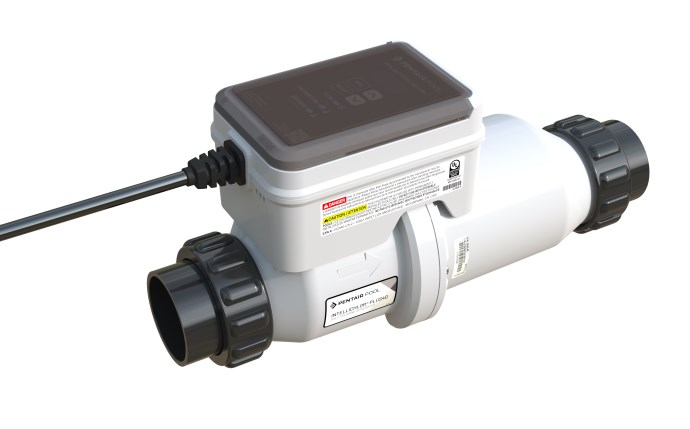

Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC

Ask a questionMPN 523735-EC
$1,81900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
FREE Delivery
In stock

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Drop-in for the IC40 the same length as the original IC40 and runs on existing IntelliChlor power centers, so there is no replumbing.
  • Pools to 40,000 gallons sized for large residential pools.
  • Modular design the onboard computer separates from the cell, so you acid clean the cell without handling the electronics, and sensors and electronics are field replaceable.
  • SmartSense output control cuts chlorine production when the pump is off or the cover is closed, which extends cell life.
  • Diagnostics on the display LCD/LED interface with more than 20 built in diagnostics and warnings, plus live status, salt level and output.
  • Self cleaning regular polarity reversal limits scale on the plates, and an acid cleaning kit with stand is in the box.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC, SKU PAC-45-1570. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC
Pentair

IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC

$1,81900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator
Jandy

R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator

$75499
Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500
Jandy

Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500

$24599
Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder
Hayward

CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder

$12999
Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws
Jandy

R0984100 AquaPure Power Interface PCB, Large Backboard with Screws

$23999
Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400
Jandy

AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400

$1,39500
Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400
Jandy

AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400

$1,22900
Subtotal

Similar products

Other products people compare with this one.

Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Jandy PLC700 AquaPure PureLink three port salt cell kit with 16 ft cables Jandy AquaPure PureLink Salt Chlorine Generator Cell Kit, 12K Gallon Pools, PLC700$99900 Solaxx CLG140A-010 PureChlor replacement salt cell for pools up to 40,000 gallons Solaxx PureChlor Replacement Salt Cell, Up to 40K Gallons, CLG140A-010$1,24699 Solaxx CLGD40-010 D5 replacement salt cell, 40K size Solaxx D5 Replacement Salt Cell 40K CLGD40-010$1,30199 Pentair 523730 IntelliChlor Plus30 replacement salt chlorine generator cell for pools up to 30,000 gallons Pentair IntelliChlor Plus30 Salt Chlorine Generator Replacement Cell, 30K Gal, 523730$1,09599 AutoPilot PPC4 replacement salt chlorine generator cell with unions AutoPilot PPC4 Replacement Cell with Unions$1,51900 AutoPilot ChlorSync CS50 salt chlorine generator cell for pools up to 50,000 gallons AutoPilot ChlorSync Salt Chlorine Generator Cell CS50, Up to 50,000 Gallons$1,63700 Web Price Pentair IntelliChlor Plus60 Salt Chlorine Generator Cell 60,000 Gallons | 523738 Pentair IntelliChlor Plus60 Salt Chlorine Generator Cell 60,000 Gallons | 523738$2,14499
CaliMar CMARCIC60-1Y replacement salt cell compatible with IntelliChlor IC60P, 60,000 gallons CaliMar Replacement Salt Cell Compatible with IntelliChlor IC60P, 60K Gallons, CMARCIC60-1Y$1,09900 Web Price Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price CaliMar CMARCIC40-1Y replacement salt cell compatible with IntelliChlor IC40 CaliMar Replacement Salt Cell Compatible with IntelliChlor IC40, 40K Gallons, CMARCIC40-1Y$89900 Web Price AutoPilot PPC2 replacement salt cell with unions, for pools up to 32,000 gallons AutoPilot PPC2 Replacement Cell With Unions$88900 AutoPilot PPC3 replacement salt cell with unions for Pool Pilot systems AutoPilot PPC3 Replacement Cell with Unions$88900 Solaxx CLG125A-010 PureChlor 25K gallon replacement salt cell Solaxx PureChlor 25K Gallon Replacement Salt Cell, CLG125A-010$88399 CMP 52000-240-110 PowerClean Salt Cell 540 replacement cell for pools up to 40,000 gallons CMP PowerClean Salt Cell 540, 40K Gallons, 52000-240-110$87099 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$84099 Hayward W3GLX-CELL-5 AquaTrol TurboCell salt cell with 15 foot cord Hayward AquaTrol TurboCell with 15 Foot Cord, 20K Gallon Pools, W3GLX-CELL-5$82900 Web Price AutoPilot PPC5 replacement salt cell with unions AutoPilot PPC5 Replacement Cell with Unions$2,82900

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

The Pentair IntelliChlor Plus40 is the 2025 salt chlorine generator cell for pools up to 40,000 gallons. It converts ordinary salt into chlorine in the return line, so there is no chlorine to buy, carry or store. It is the direct replacement for the IntelliChlor IC40: the same length, and fully compatible with existing IntelliChlor power centers and Pentair automation, so it drops in with no replumbing.

Modular, and easier to live with

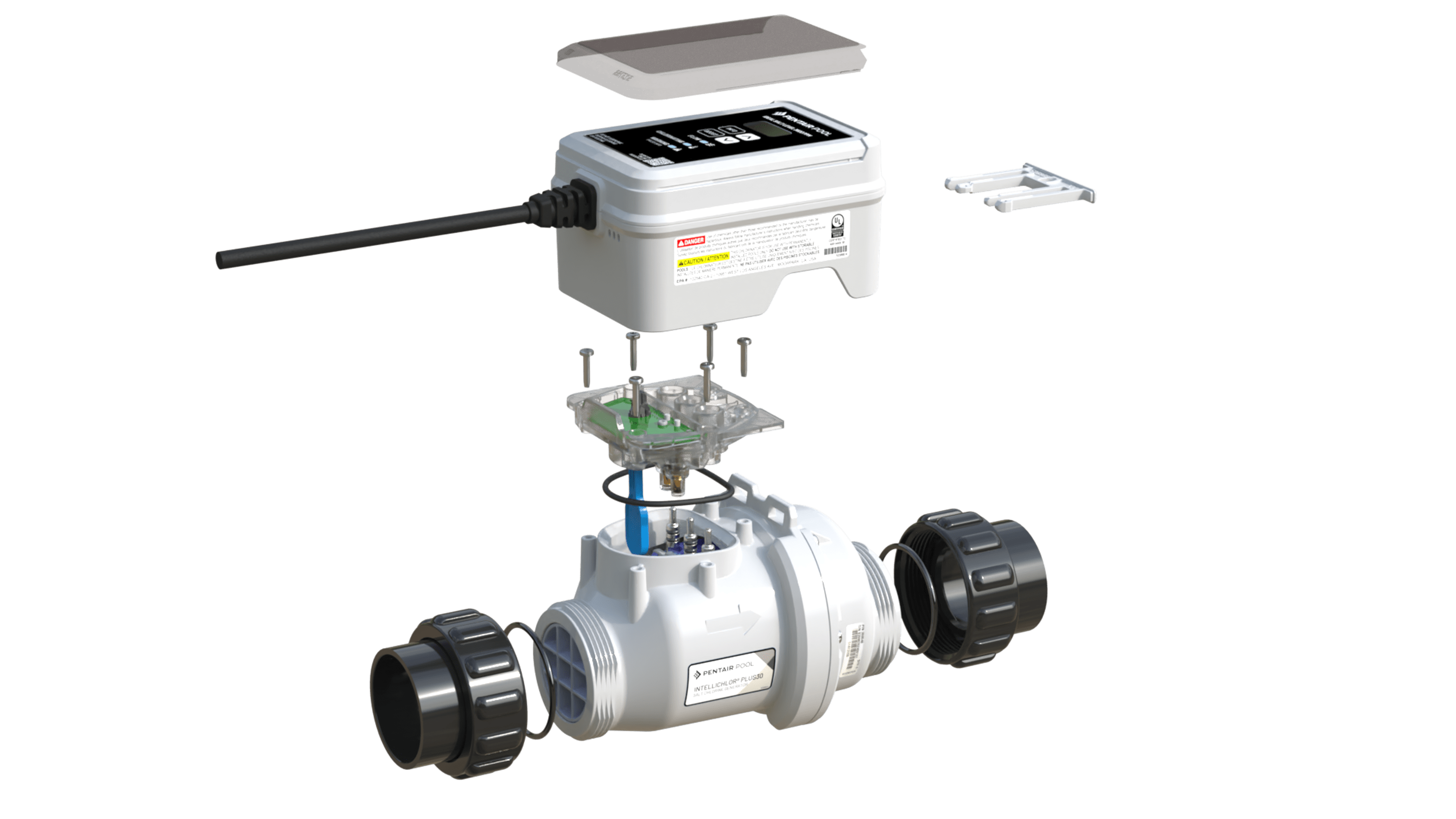

The onboard computer separates from the cell. That means the cell can go into the acid cleaning stand without the electronics coming near the acid, an improvement over earlier units that had to be handled as one piece. It also means sensors and electronics can be replaced individually in the field instead of writing off the whole unit.

Smarter output

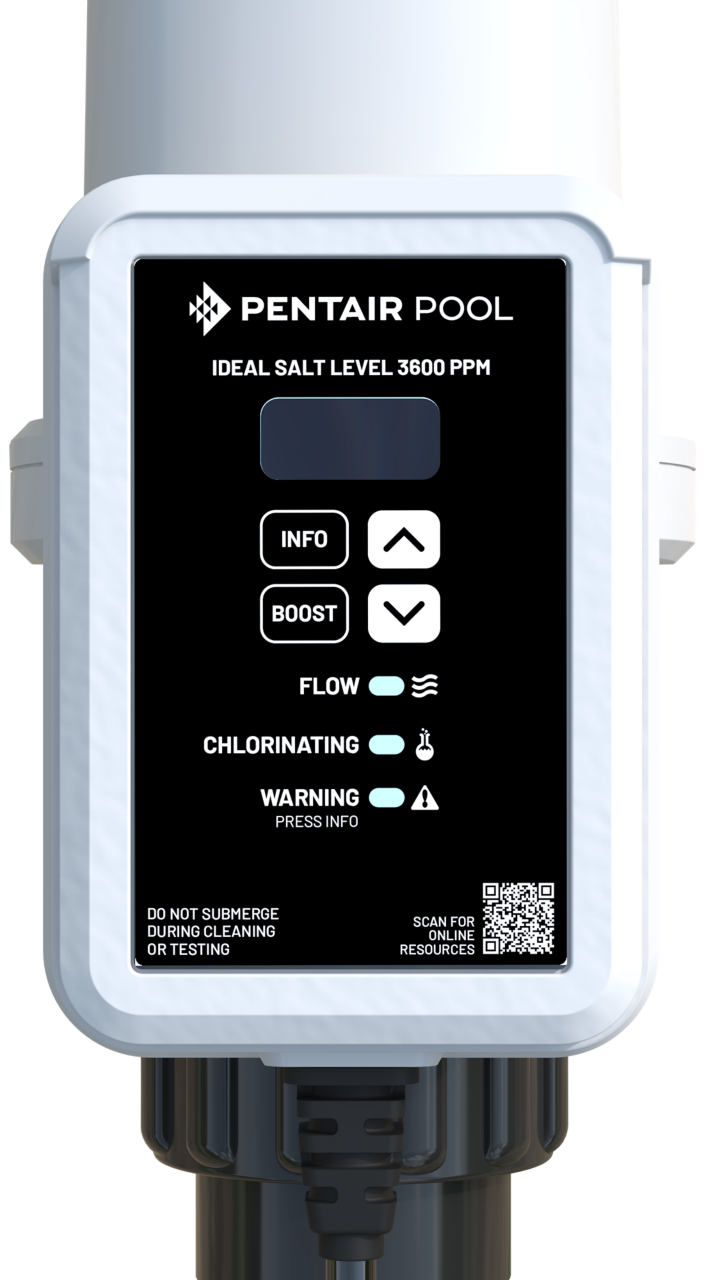

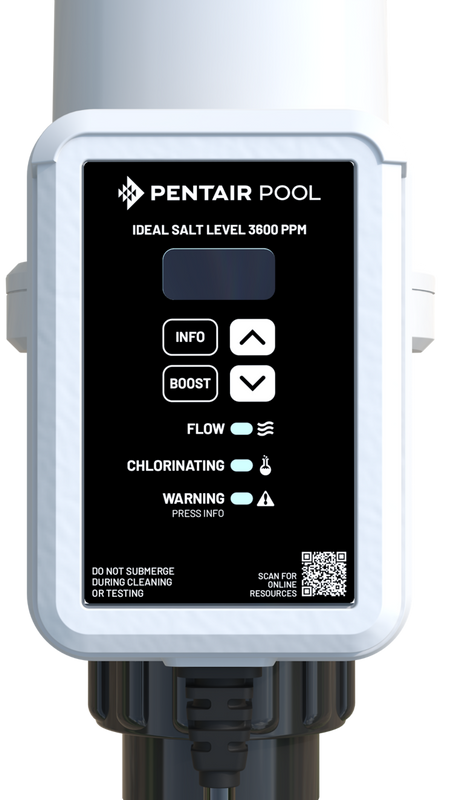

SmartSense adjusts chlorine generation when the pump is off or the pool cover is closed, so the cell is not producing chlorine nobody needs, and its life is extended accordingly. A redesigned conductivity sensor gives more accurate salt readings. The LCD/LED display shows real time status, output level and salt level, with more than 20 built in diagnostics and warnings. Regular polarity reversal keeps scale off the plates between manual cleanings, and an acid cleaning kit ships with every unit.

New to salt?

If you are building a system from scratch and do not already have a power center, you will also need the Pentair IntelliChlor Power Center, EC-520556. It runs on 110/220V, includes the power cable, and works with EasyTouch and IntelliTouch automation.

From Pool School

How to Clean a Salt CellHose first, acid only on scale that stays, and each manufacturer's own mix and time limit. Read When to Replace a Salt CellThe life each manufacturer prints, what looks like a dead cell and is not, and choosing the next one. Read Generic vs OEM Salt CellsWhat you can compare on paper between the original and another manufacturer's cell, and what you cannot. Read
Specifications
Brand Pentair
Manufacturer part number 523735-EC
UPC 788379918644
Type Salt chlorine generator cell
Pool size Up to 40,000 gallons
Replaces Pentair IntelliChlor IC40
Length Same as the IC40
Power center Works with existing IntelliChlor power centers; EC-520556 required for a new installation
Automation Compatible with Pentair EasyTouch and IntelliTouch
Display LCD/LED with 20+ built in diagnostics and warnings
Output control SmartSense
Salt sensor Redesigned conductivity sensor
Cleaning Polarity reversal self cleaning; acid cleaning kit and stand included
Model year 2025
Shipping weight 9.05 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199 Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900
Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46799 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price Pentair 98209800 high flow manual air relief valve assembly with pressure gauge Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800$3899

Questions and answers

What people ask about this product, answered by our pool techs.

Will this replace my IntelliChlor IC40?
Yes. The Plus40 is the same length as the IC40 and works with the existing IntelliChlor power center, so it drops into the same spot with no replumbing.
Do I need to buy a power center?
Only if you are starting from nothing. An existing IntelliChlor power center runs the Plus40. For a new installation you need the Pentair IntelliChlor Power Center, EC-520556, which is 110/220V, includes the power cable and works with EasyTouch and IntelliTouch automation.
Can I clean the cell without damaging the electronics?
Yes. The onboard computer separates from the cell, so the cell goes into the acid cleaning stand on its own. Earlier models had to be handled as one piece.
What does SmartSense do?
It adjusts chlorine generation automatically, cutting output when the pump is off or the pool cover is closed. Less wasted output means longer cell life.
Ask your own question
