Pentair IntelliChlor Plus60 Salt Chlorine Generator Cell 60,000 Gallons | 523738Pentair IntelliChlor Plus60 Salt Chlorine Generator Replacement Cell for Pools up to 60,000 Gallons, 523738 In stock$2,14499
Pentair IntelliChlor Plus60 Salt Chlorine Generator Cell 60,000 Gallons | 523738
Shop all Pentair

Pentair IntelliChlor Plus60 Salt Chlorine Generator Replacement Cell for Pools up to 60,000 Gallons, 523738

Ask a questionMPN 523738
$2,14499
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 60,000 gallon cell Rated for pools up to 60,000 gallons.
  • Drop-in replacement Replaces existing Pentair salt chlorine generators with no additional plumbing.
  • Replaces the IC60 The cross reference lists the Plus60 as the equivalent of the IntelliChlor IC60, 521105.
  • SmartSense technology Adjusts chlorine output when the pump is off or the pool cover is detected as on.
  • Built-in diagnostics LCD and LED interface with 20+ built-in diagnostics and warnings.
  • Acid cleaning kit An acid cleaning kit is provided with all units.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair IntelliChlor Plus60 Salt Chlorine Generator Replacement Cell for Pools up to 60,000 Gallons, 523738, SKU PAC-45-1564. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair IntelliChlor Plus60 Salt Chlorine Generator Replacement Cell for Pools up to 60,000 Gallons, 523738
Pentair

IntelliChlor Plus60 Salt Chlorine Generator Replacement Cell for Pools up to 60,000 Gallons, 523738

$2,14499
Jandy TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator, R0693900
Jandy

TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator, R0693900

$75499
Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500
Jandy

Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500

$29999
Hayward In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder, CL200EF
Hayward

In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder, CL200EF

$12999
Jandy AquaPure Power Interface PCB, Large Backboard with Screws, R0984100
Jandy

AquaPure Power Interface PCB, Large Backboard with Screws, R0984100

$23999
Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400
Jandy

AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400

$1,39500
Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400
Jandy

AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400

$1,22900
Subtotal

Similar products

Other products people compare with this one.

Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,17999 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,13499 Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Solaxx CLG140A-010 PureChlor replacement salt cell for pools up to 40,000 gallons Solaxx PureChlor Replacement Salt Cell, Up to 40K Gallons, CLG140A-010$1,24699 Solaxx CLGD40-010 D5 replacement salt cell, 40K size Solaxx D5 Replacement Salt Cell 40K CLGD40-010$1,42599 AutoPilot PPC5 replacement salt cell with unions AutoPilot Replacement Cell with Unions, PPC5$2,82900 AutoPilot PPC5MF 15 blade commercial replacement salt cell for up to 80,000 gallons AutoPilot Commercial Replacement Salt Cell, 15-Blade for up to 80K Gallons, PPC5MF$2,95599 Pentair IntelliChlor Salt Generator Replacement Cell 40,000 Gal | 520555 Pentair IntelliChlor Salt Generator Replacement Cell 40,000 Gal | 520555$1,60999 CaliMar CMARCIC60-1Y replacement salt cell compatible with IntelliChlor IC60P, 60,000 gallons CaliMar Replacement Salt Cell Compatible with IntelliChlor IC60P, 60K Gallons, CMARCIC60-1Y$1,09900 Web Price
Jandy PLC700 AquaPure PureLink three port salt cell kit with 16 ft cables Jandy AquaPure PureLink Salt Chlorine Generator Cell Kit, 12K Gallon Pools, PLC700$99900 CMP 52000-240-110 PowerClean Salt Cell 540 replacement cell for pools up to 40,000 gallons CMP PowerClean Salt Cell 540, 40K Gallons, 52000-240-110$92799 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$91399 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price CaliMar CMARCIC40-1Y replacement salt cell compatible with IntelliChlor IC40 CaliMar Replacement Salt Cell Compatible with IntelliChlor IC40, 40K Gallons, CMARCIC40-1Y$89900 Web Price AutoPilot PPC2 replacement salt cell with unions, for pools up to 32,000 gallons AutoPilot OEM Replacement Salt Cell with Unions, 32,000 Gallons, PPC2$88900 Solaxx CLG125A-010 PureChlor 25K gallon replacement salt cell Solaxx PureChlor 25K Gallon Replacement Salt Cell, CLG125A-010$88399 Hayward W3GLX-CELL-5 AquaTrol TurboCell salt cell with 15 foot cord Hayward AquaTrol TurboCell with 15 Foot Cord, 20K Gallon Pools, W3GLX-CELL-5$82900 Web Price Solaxx C115199G Saltron Reliant replacement salt cell for pools up to 25,000 gallons Solaxx Saltron Reliant Replacement Salt Cell, Up to 25,000 Gallons, C115199G$80899 CaliMar CMARCIC20-1Y replacement salt cell compatible with IntelliChlor IC20 CaliMar Replacement Salt Cell Compatible with IntelliChlor IC20, 20K Gallons, CMARCIC20-1Y$79900 Web Price

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

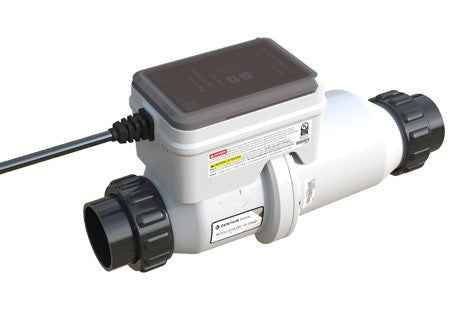

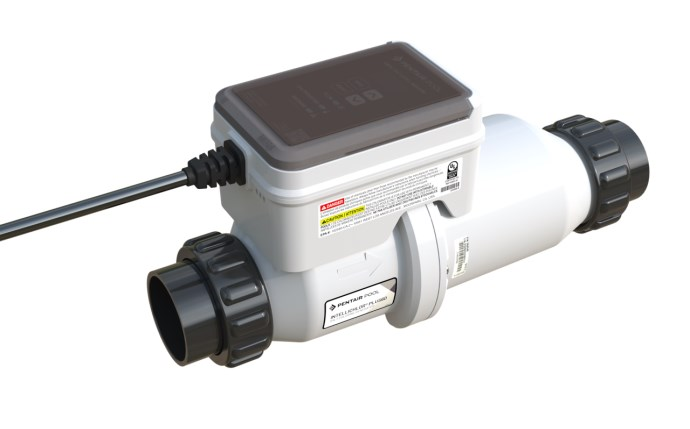

The Pentair 523738 is the IntelliChlor Plus60 salt chlorine generator replacement cell for pools up to 60,000 gallons.

What it does

The cell is the part of the salt chlorine generator that makes chlorine from the salt in the pool water. The Plus60 produces 2.0 lb of chlorine per 24 hours at 100%. It is a drop-in replacement for existing Pentair salt chlorine generators and requires no additional plumbing.

Fit and compatibility

It works with the existing IntelliChlor Power Center and with Pentair automation systems. In Pentair cross reference, the Plus60 is the equivalent of the legacy IntelliChlor IC60, part 521105.

Design features

The modular design allows simple replacement of electronics and sensors. The LCD and LED interface carries 20+ built-in diagnostics and warnings. SmartSense technology adjusts chlorine output when the pump is off or the pool cover is detected as on, and a redesigned conductivity sensor gives more accurate salt level readings. An acid cleaning kit comes with every unit.

Before you order

Match the cell to your pool size. The 523738 is the 60,000 gallon cell.

From Pool School

How to Clean a Salt CellHose first, acid only on scale that stays, and each manufacturer's own mix and time limit. Read When to Replace a Salt CellThe life each manufacturer prints, what looks like a dead cell and is not, and choosing the next one. Read Generic vs OEM Salt CellsWhat you can compare on paper between the original and another manufacturer's cell, and what you cannot. Read
Specifications
Brand Pentair
Manufacturer part number 523738
UPC 788379918514
Type Salt chlorine generator replacement cell
Series IntelliChlor Plus
Cell type Plus60
Pool size Up to 60,000 gallons
Chlorine production 2.0 lb per 24 hours at 100%
System compatibility Pentair
Replaces IntelliChlor IC60, 521105
Includes Acid cleaning kit
Shipping weight 9.11 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $75699 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 5237695.0 (1) $39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,67299 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S, 170145$48299 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29899 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Which IntelliChlor does the Pentair 523738 replace?
The Plus60 is listed as the replacement for the IntelliChlor IC60, part 521105, and it is a drop-in replacement for existing Pentair salt chlorine generators that needs no additional plumbing.
What pool size is the Pentair 523738 rated for?
The IntelliChlor Plus60 is for pools up to 60,000 gallons and produces 2.0 lb of chlorine per 24 hours at 100%.
Will the 523738 work with my existing IntelliChlor power center?
Yes. It is compatible with the existing IntelliChlor Power Center and with Pentair automation systems.
What if my pool is smaller than 60,000 gallons?
Pentair lists smaller cells in the same range, such as the IntelliChlor Plus 40K cell, 523735-EC, for 40,000 gallon pools. Choose the cell that matches your pool size.
