Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front viewPentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 In stock$1,48900

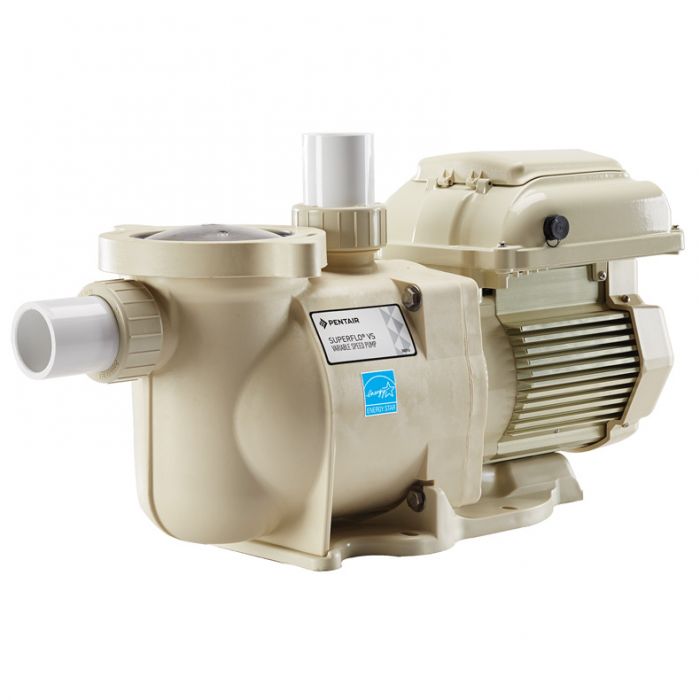

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view
Shop all Pentair

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001

Ask a questionMPN EC-342001
$1,48900 $1,609.00 7% OFF
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 2.2 THP variable speed run slow for everyday filtration and faster only when the pool needs it.
  • Up to 80 percent energy savings compared with a single speed pump, per Pentair.
  • Three speeds and Quick Clean speeds are set on the pump itself, with no separate controller required.
  • 24V relay terminal the wiring compartment includes a 24V relay connection.
  • In-ground pump a drop in variable speed replacement for an in-ground pool pump.
  • Genuine Pentair the EC-342001 SuperFlo VS from an authorized Pentair dealer.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001, SKU PAC-10-3001. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001
Pentair

SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001

$1,48900
Pentair Genuine OEM High Flow Diffuser O-Ring, 355030
Pentair

Genuine OEM High Flow Diffuser O-Ring, 355030

$1799
Pentair SuperFlo and SuperMax Seal Kit, Chemical, Salt and Ozone Resistant, 356197
Pentair

SuperFlo and SuperMax Seal Kit, Chemical, Salt and Ozone Resistant, 356197

$3899
Subtotal

Similar products

Other products people compare with this one.

Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair WhisperFlo EC-015583 1 HP TEFC pool pump Pentair WhisperFlo 1 HP Pool Pump, 1.1 THP, Totally Enclosed Fan Cooled, 115-230V, EC-015583$95900 Hayward Super Pump W3SP2607X10, 1 HP max rated in-ground pool pump, side view Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10$84900 Web Price CaliMar CMARVSP3.0 3HP variable speed pool pump with 2 in. threaded ports, black CaliMar Variable Speed Pool Pump, 3 HP, 230V, 2 in. Ports, CMARVSP3.0$79900 Web Price Pentair SuperFlo VST 342002 variable speed pool pump, TradeGrade Pentair SuperFlo VST Pool Pump, TradeGrade, 342002$1,29424 Hayward W3SP2605X7 Super Pump 3/4 HP up rated inground pool pump Hayward Super Pump .75 HP UR 115/230V, W3SP2605X7$79900 Web Price CMI REV-SS REV single speed primary pool pump, 2 HP CMI REV Single Speed Primary Pool Pump 2 HP, REV-SS$81799 Pentair IntelliFloXF 022056 variable speed and flow pool pump, 3 HP, 230V Pentair IntelliFloXF VSF Variable Speed and Flow Pool Pump, 3 HP Max, 3.95 THP, 230V, 022056$2,12799 Waterway PD-165 Power Defender variable speed in ground pool pump, 1.65 HP 230V Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165$1,21199
Hayward W3SP3202VSP TriStar VS 1.85 HP variable speed pool pump Hayward TriStar VS Variable Speed Pool Pump, 1.85 HP 230V, Single Phase, W3SP3202VSP$2,19900 Web Price Moov MP15AIDV Ai Inverter variable speed pool pump with Wi-Fi, 1.25 THP Moov Ai Inverter Variable Speed Pool Pump with Wi-Fi, 220/240V 50/60Hz TEFC 1.25THP, MP15AIDV$1,09900 Moov MP15VSP dual voltage variable speed inverter pool pump, 1.2 HP Moov VSP Dual Voltage Inverter Pump, 1.2 HP, 115/230V, MP15VSP$89900 Pentair 011533 WhisperFlo VST 2.6 THP variable speed pool pump Pentair WhisperFlo VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, TradeGrade, 011533$1,76699 Pentair 011066 IntelliFlo3 VSF 1.5HP variable speed and flow pool pump Pentair IntelliFlo3 VSF Variable Speed and Flow Pool Pump with Relay Board, 1.5HP 115/208-230V, 011066$1,42199 AquaStar PLP300S 3 HP PipeLine variable speed pool pump with WiFi control AquaStar 3 HP Pipeline VS Pool Pump with WiFi Control, PLP300S$1,85000 Web Price Hayward Max-Flo XL 1.0 HP max-rated inground pool pump Hayward Max-Flo XL, 1.0 HP Max-Rated, W3SP2307X10$74900 Web Price Waterway PD-270 Power Defender 2.7 HP 230V variable speed pool pump Waterway 2.7 HP 230V Power Defender VSP Champion Pump, PD-270$1,46299 Hayward W3SP2303VSP MaxFlo VS 1.65 HP 230V variable speed pool pump Hayward MaxFlo VS 1.65 HP 230V Variable Speed Pool Pump, W3SP2303VSP$1,74900 Web Price Pentair 011642 WhisperFlo WFK-6 three phase 1.5HP pool pump Pentair WhisperFlo Energy Efficient Pool Pump, 3 Phase, 208/230/460V, 1.5HP Full Rated, 011642$1,29299

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

The Pentair SuperFlo VS EC-342001 is a 2.2 THP variable speed pump for in-ground pools, which Pentair sells to replace a 1.5 HP pump. Pentair rates it at up to 80 percent energy savings against a single speed pump, because most of the day it can turn slowly for filtration instead of running flat out.

Onboard control

Speeds are set on the pump's own control panel, three programmable speeds plus Quick Clean, so no separate drive or controller is needed. The wiring compartment has low voltage digital inputs, 18 to 30 V AC or 9 to 30 V DC.

Before you order

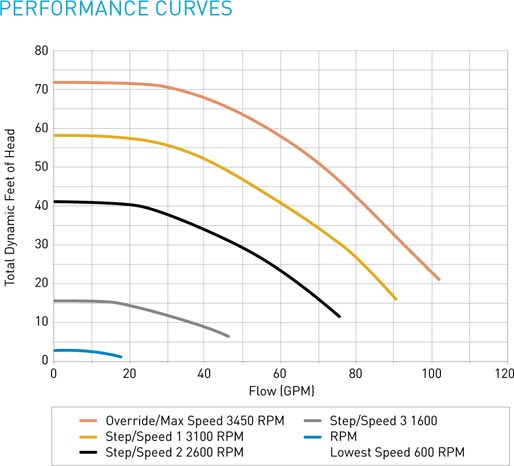

This is the 2.2 THP model. Its performance curve is in the gallery so you can check head and flow against your plumbing before buying.

From Pool School

What Size Pool Pump Do I Need?Enter the gallons, the turnover and the suction pipe. Get the flow and what the pipe carries. Read How Long Should I Run My Pool Pump?Hours from the turnover, why a variable speed pump runs longer and slower, and each manufacturer's default schedule. Read How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it will not catch prime. Read
Specifications
Brand Pentair
Manufacturer part number EC-342001
UPC 788379500191
Dealer part number 342001, the number Pentair sells the SuperFlo VS under through dealers
Type Variable speed pool pump, self priming
Speed Variable, 450 to 3,450 RPM on pumps built after 11/2/2020 (300 to 3,450 before); three programmable speeds plus Quick Clean
Total horsepower 2.2 THP
Service factor 1.0
Weighted energy factor (WEF) 8.6, by DOE's certification record for EC-342001; Pentair's brochure prints 9.0 for 342001
Voltage 115 or 230 V nominal, 50 or 60 Hz, sensed by the pump with no rewiring
Phase Single phase
Port size Unions for 1.5 in and 2 in pipe
Flow at 50 ft of head About 83 GPM at 3,450 RPM on 230 V, read from Pentair's performance curve
Motor Permanent magnet, totally enclosed fan cooled (TEFC), 56 square flange
Control Onboard keypad with three programmable speeds and Quick Clean; low voltage digital inputs, 18 to 30 V AC or 9 to 30 V DC, for external control
Certifications UL, NSF 50, ENERGY STAR, by Pentair
Sized for Pools that would take up to a 1.5 HP pump, by Pentair
Dimensions 12.5 in high at the motor, by Pentair's drawing, which gives no overall length
Shipping weight 53 lb, Pentair's carton weight
Manufacturer status Pentair lists the SuperFlo VS as discontinued and names the SuperFlo VST as its replacement
Warranty 1 year, parts only, by Pentair for e-commerce (EC) models and online purchases
Pool type In ground
Energy savings Up to 80 percent vs single speed
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39299 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14499 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199 Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900
Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46799 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$39399 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price Pentair 98209800 high flow manual air relief valve assembly with pressure gauge Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800$3899

Questions and answers

What people ask about this product, answered by our pool techs.

Is the Pentair SuperFlo VS discontinued?
Yes. Pentair's own page marks the SuperFlo VS discontinued and points to the SuperFlo VST as the pump it recommends in its place. This listing is EC-342001, the SuperFlo VS itself, and Pentair's manuals for it are under Downloads on this page.
What horsepower is the SuperFlo VS EC-342001?
2.2 total horsepower, by Pentair and by DOE's certification record for EC-342001. Pentair sells it for everyday pools that would otherwise take up to a 1.5 HP pump, which is the size it replaces rather than its rating. At full speed on 230 V its curve gives about 83 GPM at 50 feet of head.
Can a SuperFlo VS run on 115 volts?
Yes. Pentair's SuperFlo VS senses 115 V or 230 V, 50 or 60 Hz, by itself, so an existing single phase circuit at either voltage needs no rewiring. Full speed gives less flow on 115 V: Pentair's curve splits from the 230 V line at about 65 GPM and runs below it.
What warranty does Pentair give the SuperFlo VS EC-342001?
One year, parts only, from the date of purchase. That is Pentair's warranty for its e-commerce (EC) models and for products bought online, with no labor coverage. Pentair's standard terms, which add labor, are for equipment bought from a pool store, builder or service company and professionally installed.
