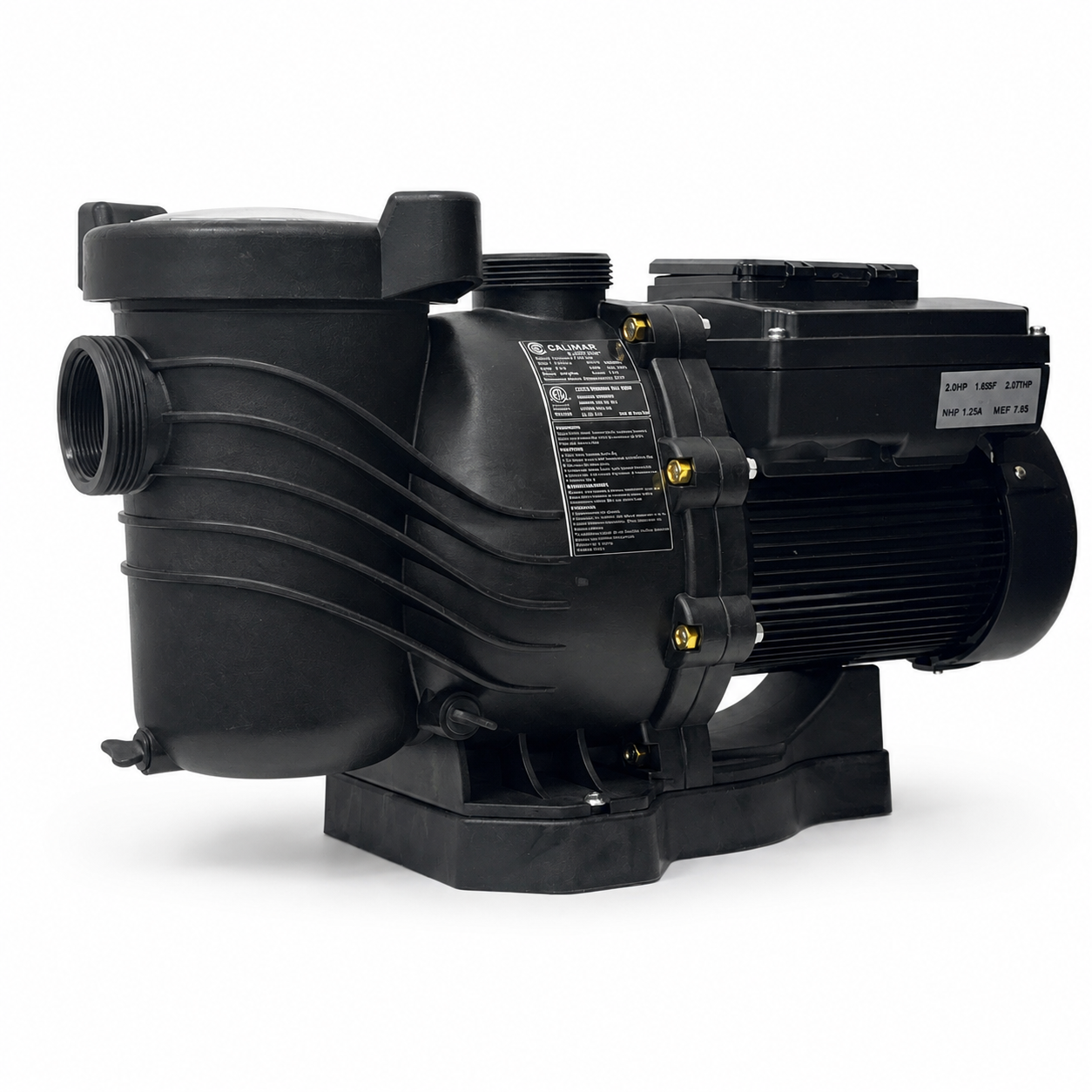

CaliMar CaliFlow variable speed pool pump, 1 HP, 230V, CMARCFVSP2010CaliMar CaliFlow Variable Speed Pool Pump, 1 HP, 230V, 2 in. Ports, CMARCFVSP2010 In stock$74900 Web Price
CaliMar CaliFlow variable speed pool pump, 1 HP, 230V, CMARCFVSP2010
Shop all CaliMar

CaliMar CaliFlow Variable Speed Pool Pump, 1 HP, 230V, 2 in. Ports, CMARCFVSP2010

Ask a questionMPN CMARCFVSP2010
$74900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
FREE Delivery
In stock

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 1 HP, 450 to 3,450 RPM the smallest CaliFlow, drawing 5.5 A on 230V single phase.
  • TEFC motor totally enclosed and fan cooled, described by CaliMar as quiet.
  • Freeze protection off as shipped, with a set point of 40 to 50 F and its own speed.
  • Priming program up to 15 minutes at 2,000 to 3,450 RPM, off by default.
  • Quick Clean one button runs a set speed for 1 minute to 1 hour, 30 minutes by default.
  • Removable base 13.18 in. high on its base, 11.81 in. without it.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About CaliMar CaliFlow Variable Speed Pool Pump, 1 HP, 230V, 2 in. Ports, CMARCFVSP2010, SKU PSU-204617. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item CaliMar CaliFlow Variable Speed Pool Pump, 1 HP, 230V, 2 in. Ports, CMARCFVSP2010
CaliMar

CaliFlow Variable Speed Pool Pump, 1 HP, 230V, 2 in. Ports, CMARCFVSP2010

$74900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Polaris 3/4 HP Booster Pump, Complete, PB4-60
Polaris

3/4 HP Booster Pump, Complete, PB4-60

$55899
Balboa 1070021 Spa Circulation Pump, 1-Speed, 0.25 HP, 230V, 1.1A, 60Hz
Balboa Instruments

Balboa 1070021 Spa Circulation Pump, 1-Speed, 0.25 HP, 230V, 1.1A, 60Hz

$30999
Pentair HydroBoost Booster Pump 115/230V 60Hz, 360526
Pentair

HydroBoost Booster Pump 115/230V 60Hz, 360526

$53199
Balboa Ultimax Pump, 4HP 230V, 12.0 Amp, 2 Speed, 5235212-S
Balboa

Ultimax Pump, 4HP 230V, 12.0 Amp, 2 Speed, 5235212-S

$33899
Subtotal

Similar products

Other products people compare with this one.

Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo EC-015583 1 HP TEFC pool pump Pentair WhisperFlo 1 HP Pool Pump, 1.1 THP, Totally Enclosed Fan Cooled, 115-230V, EC-015583$95900 Hayward Super Pump W3SP2607X10, 1 HP max rated in-ground pool pump, side view Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10$84900 Web Price CaliMar CMARVSP3.0 3HP variable speed pool pump with 2 in. threaded ports, black CaliMar Variable Speed Pool Pump, 3 HP, 230V, 2 in. Ports, CMARVSP3.0$79900 Web Price Hayward W3SP2605X7 Super Pump 3/4 HP up rated inground pool pump Hayward Super Pump .75 HP UR 115/230V, W3SP2605X7$79900 Web Price CMI REV-SS REV single speed primary pool pump, 2 HP CMI REV Single Speed Primary Pool Pump 2 HP, REV-SS$81799 Moov MP15AIDV Ai Inverter variable speed pool pump with Wi-Fi, 1.25 THP Moov Ai Inverter Variable Speed Pool Pump with Wi-Fi, 220/240V 50/60Hz TEFC 1.25THP, MP15AIDV$1,09900 Aqua-Flo Flo-Master XP2 2.5 hp 230v two speed spa pump, part 06125000-1040 Aqua Flo Flo-Master XP2, 2.5 hp 230v, 2-Speed Pump, 06125000-1040$44299 Moov MP15VSP dual voltage variable speed inverter pool pump, 1.2 HP Moov VSP Dual Voltage Inverter Pump, 1.2 HP, 115/230V, MP15VSP$89900 Hayward Max-Flo XL 1.0 HP max-rated inground pool pump Hayward Max-Flo XL, 1.0 HP Max-Rated, W3SP2307X10$74900 Web Price
Waterway Executive 56 Frame | 3HP 2-Speed | 3721221-1D Waterway Executive 56 Frame | 3HP 2-Speed | 3721221-1D$38899 Waterway Executive 56 Frame 5HP 2" Intake 2" Discharge | 3712021-1D Waterway Executive 56 Frame 5HP 2" Intake 2" Discharge | 3712021-1D$49699 Gecko Aqua-Flo Flo-Master FMHP Offset Discharge | 02110000-1010 Gecko Aqua-Flo Flo-Master FMHP Offset Discharge | 02110000-1010$36699 Aqua-Flo 02107000-1010 Flo-Master FMHP side discharge 48 frame 2 speed pump Aqua-Flo Flo-Master FMHP Side Discharge, 48-Frame, 115V, 1.0 HP, .75 OPHP, 2-Speed, 02107000-1010$35399 Aqua-Flo Circ-Master CMHP 1/15 HP 115V side discharge circulation pump Aqua-Flo Circ-Master 1/15 HP 115V CMHP, 02093000-2010$28299 Gecko Aqua-Flo Flo-Master FMCP Center Discharge | 02615005-1010 Gecko Aqua-Flo Flo-Master FMCP Center Discharge | 02615005-1010$26799 Gecko Aqua-Flo Circ-Master CMCP | Center Discharge | 02593000-2010 Gecko Aqua-Flo Circ-Master CMCP | Center Discharge | 02593000-2010$26599 Aqua-Flo Circ-Master CMHP 1/15 HP 230V circulation pump, part 02093001-2010 Aqua-Flo Circ-Master CMHP 1/15 HP 230V Circulation Pump, 02093001-2010$25699 HydroQuip 10-6154106 WOW circulation pump HydroQuip 1-1/2" WOW Circulation Pump 1HP/15HP 230V 0.6 Amp, 10-6154106$24399 Pentair Sta-Rite SuperMax VS Variable Speed 1-1/2 HP Pool Pump | 343001 Pentair Sta-Rite SuperMax VS Variable Speed 1-1/2 HP Pool Pump | 343001$1,28799

Product details

The CaliMar CaliFlow CMARCFVSP2010 is the 1 HP model in CaliMar's CMARCF series of variable speed pumps, which runs up to 3 HP. It takes 230V single phase at 50 or 60 Hz, turns from 450 to 3,450 RPM, and has 2 in. ports in and out. Its controls differ from CaliMar's CMARVSP pumps.

Motor and pump

CaliMar fits a TEFC (totally enclosed, fan cooled) motor, which its manual describes as quiet. The strainer housing has a clear lid held by a nut that turns off by hand. The pump is 22.66 in. long; on its base it stands 13.18 in. high and 9.51 in. wide, and the base comes off, taking it to 11.81 in. high and 8.5 in. wide. A union connector kit, 100EPE-UCK, appears in CaliMar's parts list.

Controls

The keypad runs the pump in manual or schedule mode. The schedule holds four speeds with start times and durations, and as shipped begins with 3,000 RPM at 8 am for 2 hours. Quick Clean runs a set speed for 1 minute to 1 hour. A priming program, off as shipped, can run 1 to 15 minutes at 2,000 to 3,450 RPM, and freeze protection, also off, takes a set point of 40 to 50 F and a speed of 750 to 3,450 RPM. The manual also shows wiring for an automation panel, RS485 or relays that pick speeds 1 to 3, which it marks for its external control models.

Before you buy

At 3,450 RPM, CaliMar's curve gives about 65 GPM against 50 feet of head. It draws 5.5 A at 230V and is connected permanently, on a GFCI protected circuit, by a licensed electrician or qualified pool technician. CaliMar wants it at least 6 feet from the pool wall, with its suction inlet no more than 5 feet above the water. The warranty is one year on materials and workmanship in residential use for the original buyer; commercial use voids it and labor is not covered.

From Pool School

What Size Pool Pump Do I Need?Enter the gallons, the turnover and the suction pipe. Get the flow and what the pipe carries. Read How Long Should I Run My Pool Pump?Hours from the turnover, why a variable speed pump runs longer and slower, and each manufacturer's schedule. Read How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read
Specifications
Brand CaliMar
Manufacturer part number CMARCFVSP2010
Type Variable speed pool pump, self-priming, for permanently installed pools
Horsepower 1 HP
Voltage 230 V
Phase Single phase, 50 or 60 Hz
Amp draw 5.5 A input current
Speed Variable speed, 450 to 3,450 RPM
Flow at 50 ft of head About 65 GPM at 3,450 RPM, read from CaliMar's curve
Water connections 2 in suction, 2 in discharge; union connector kit 100EPE-UCK in CaliMar's parts list
Strainer Strainer housing with a clear lid; the lid nut turns off by hand
Motor Totally enclosed fan cooled (TEFC), variable speed
Priming Self-priming program, off as shipped: 1 to 15 minutes at 2,000 to 3,450 RPM
Controls Built in: clock, manual mode, four speed schedule and Quick Clean
Freeze protection Off as shipped; set point 40 to 50 F, speed 750 to 3,450 RPM
Automation RS485 and relay speed inputs, which CaliMar's manual marks for its external control models
Listing ETL listed for the US and Canada, per the mark on CaliMar's manual
Dimensions 22.66 in long; 13.18 in high and 9.51 in wide on its base, 11.81 in high and 8.5 in wide without it
Warranty 1 year, by CaliMar, on materials and workmanship in residential use; labor not covered; commercial use voids it
Ships Parcel
Downloads
Manual

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from CaliMar

CaliMar CMARCHA40-2Y replacement salt cell for Hayward T-Cell-15, 40,000 gallons CaliMar Salt Cell Compatible with Hayward® T-Cell-15®, 2-Year Warranty, 40K Gallons, CMARCHA40-2Y$54900 CaliMar CMARVSP3.0 3HP variable speed pool pump with 2 in. threaded ports, black CaliMar Variable Speed Pool Pump, 3 HP, 230V, 2 in. Ports, CMARVSP3.0$79900 Web Price CaliMar CMARSHA25-3Y complete salt chlorinator system for pools up to 25,000 gallons CaliMar Salt Chlorinator System Complete, for Up to 25,000 Gallon Pools, CMARSHA25-3Y$83900 Web Price CaliMar CMARCIC20-1Y replacement salt cell compatible with IntelliChlor IC20 CaliMar Replacement Salt Cell Compatible with IntelliChlor IC20, 20K Gallons, CMARCIC20-1Y$79900 Web Price CaliMar CMAR15VS1.5 1.5 HP variable speed pool pump with 1.5 in. threaded ports, black housing CaliMar Variable Speed Pool Pump, 1.5 HP, 230V, 1.5 in. Ports, CMAR15VS1.5$59900 CaliMar CMARCPC40-2Y replacement salt cell for SGS Wave and Breeze 540 and CMP Powerclean 540 systems CaliMar Replacement Salt Cell for SGS Wave & Breeze 540 Systems and CMP Powerclean 540 Systems, 40K Gallons, CMARCPC40-2Y$52900 Web Price CaliMar CMARCFS40-1Y replacement salt cell for Zodiac Nature 2 Fusion R0503000 CaliMar Replacement Salt Cell Compatible with Zodiac Nature 2 Fusion R0503000, 40,000 Gallons, CMARCFS40-1Y$69900 Web Price CaliMar CaliGlow Pro H-Series nicheless LED pool light, 100 ft cord CaliMar CaliGlow Pro H-Series Nicheless LED Pool and Spa Light, 12V, 100 ft Cord, CMAR2L20W100H$49900 CaliMar CaliGlow Pro P-Series nicheless LED pool light, 100 ft cord CaliMar CaliGlow Pro P-Series Nicheless LED Pool and Spa Light, 12V, 100 ft Cord, CMAR2L20W100P$42900 CaliMar CaliGlow Pro J-Series nicheless LED pool light, 50 ft cord CaliMar CaliGlow Pro J-Series Nicheless LED Pool and Spa Light, 12V, 50 ft Cord, CMAR2L20W50J$39900
CaliMar CaliGlow Pro H-Series nicheless LED pool light, 50 ft cord CaliMar CaliGlow Pro H-Series Nicheless LED Pool and Spa Light, 12V, 50 ft Cord, CMAR2L20W50H$44900 CaliMar CaliGlow Pro J-Series nicheless LED pool light, 150 ft cord CaliMar CaliGlow Pro J-Series Nicheless LED Pool and Spa Light, 12V, 150 ft Cord, CMAR2L20W150J$49900 CaliMar CaliGlow Pro H-Series nicheless LED pool light, 150 ft cord CaliMar CaliGlow Pro H-Series Nicheless LED Pool and Spa Light, 12V, 150 ft Cord, CMAR2L20W150H$59900 CaliMar CaliGlow Pro P-Series nicheless LED pool light, 150 ft cord CaliMar CaliGlow Pro P-Series Nicheless LED Pool and Spa Light, 12V, 150 ft Cord, CMAR2L20W150P$49900 CaliMar CaliGlow Pro J-Series nicheless LED pool light, 100 ft cord CaliMar CaliGlow Pro J-Series Nicheless LED Pool and Spa Light, 12V, 100 ft Cord, CMAR2L20W100J$44900 CaliMar Cover O Ring FB2010CO | FB2010-CO CaliMar Cover O Ring FB2010CO | FB2010-CO$1499 CaliMar Strainer Cover Kit FB2010SCK | FB2010-SCK CaliMar Strainer Cover Kit FB2010SCK | FB2010-SCK$2099 CaliMar Repl Cell for CompuPool CPSC24 Up 26K Gal. CMARCCE30-3Y | CMARCCE30-1Y CaliMar Repl Cell for CompuPool CPSC24 Up 26K Gal. CMARCCE30-3Y | CMARCCE30-1Y$45900 Web Price CaliMar CaliNav360 Cordless Inground Robotic Pool Cleaner | CMARNAV360-5Y CaliMar CaliNav360 Cordless Inground Robotic Pool Cleaner | CMARNAV360-5Y$59900 Web Price CaliMar Salt Cell Replacement AutoPilot Model RC-52 SC-60 PPC4 | CMARCAP52-2Y CaliMar Salt Cell Replacement AutoPilot Model RC-52 SC-60 PPC4 | CMARCAP52-2Y$61900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Can the CaliMar CaliFlow be wired to a pool automation system?
CaliMar's CaliFlow manual has wiring for it: a cable from the pump's control connector carries RS485 and four relay inputs, where closing IN1, IN2 or IN3 runs speed 1, 2 or 3 and IN4 runs the four speed schedule set on the pump. The manual marks that wiring for its external control models only, so check the pump has the control connector before planning on it.
Does the CaliMar CaliFlow have freeze protection?
Yes, though it is off as shipped. In the system settings, with the pump stopped, it can be switched on with a set point between 40 and 50 F (4.4 to 10 C) and a speed between 750 and 3,450 RPM; 40 F and 1,000 RPM are the defaults. CaliMar's warranty excludes damage from freezing either way.
Can you remove the base on a CaliMar CMARCFVSP2010?
Yes. CaliMar's drawing shows the base coming off. On the base the pump stands 13.18 inches high and 9.51 inches wide, with the suction port centered 9.13 inches up; without it, 11.81 inches high, 8.5 inches wide and the port at 7.75 inches. It is 22.66 inches long either way. The base, 100EPE-BP, has its own screw kit, 100EPE-MBSK.
How high above the water can a CaliMar CaliFlow pump sit?
No more than 5 feet, measured to the suction inlet, by CaliMar's CaliFlow manual, and as close to the water as the site allows. Use suction pipe no smaller than the pump connection and at least the size of the discharge pipe. For priming, the pump has a program, off as shipped, that runs 1 to 15 minutes at 2,000 to 3,450 RPM.
